H+M 380

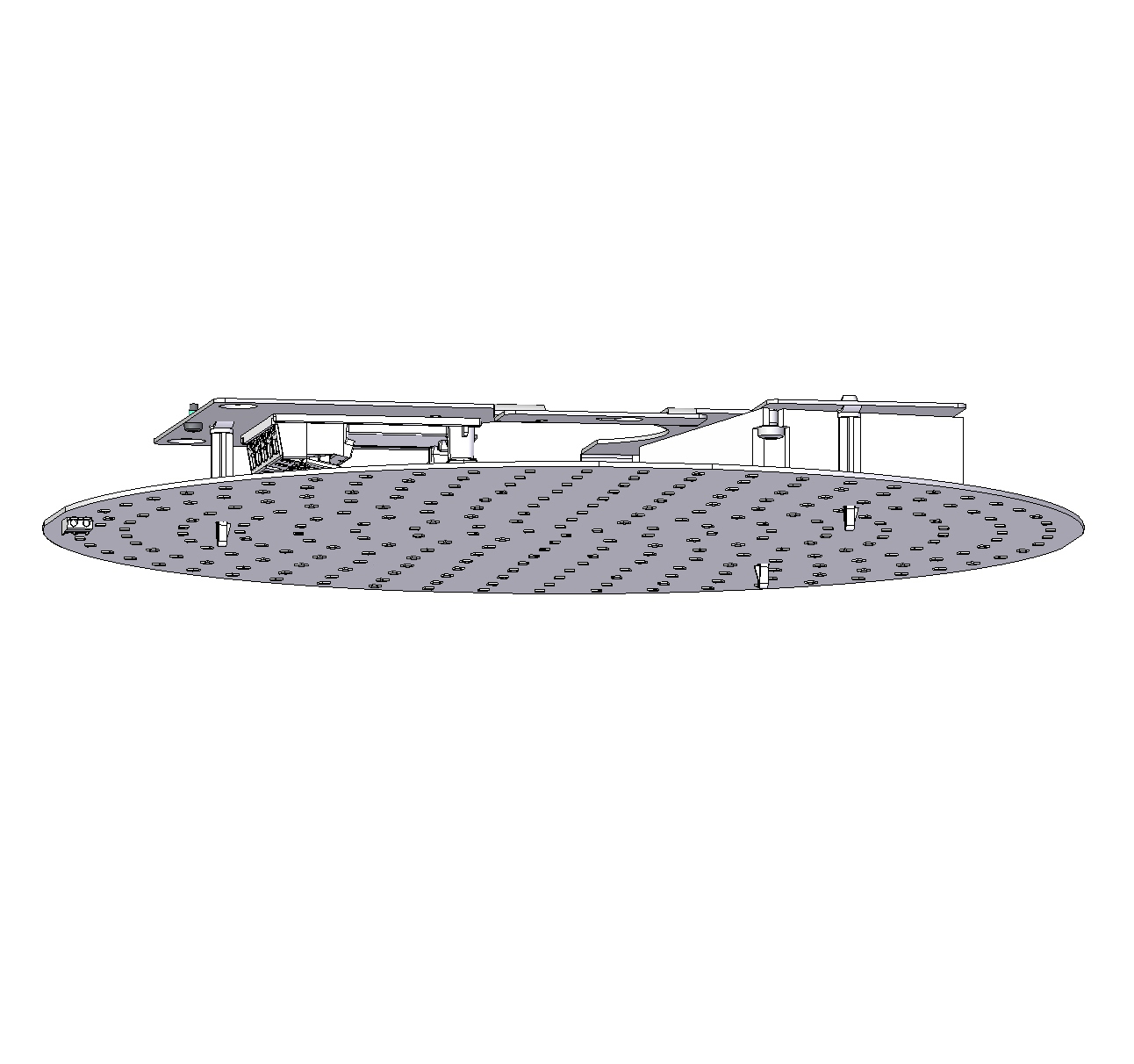

Complete LED module for easy and energy-efficient upgrade of existing H+M 380 luminaires.

Specifications

H+M 380

led-modul_hm-paabyg-indbyg_oe380_led_hb

LED and driver data

LED type 324 mm board
Operational life min 50,000 hours at ta max 25° C, L80B10
Total consumption 17, 23, or 33 W
Colour temperature 2700, 3000 or 4000 Kelvin
alternatively 2700-6500 dynamic
Energy eff. class 2700 K: E, 3000/4000/6500 K: D
Colour rendering min 90 Ra
Colour accuracy 3 steps SDCM

Driver LED driver
Dimming optional
Inrush current max 5 A (50% after 50 µs)
Operational life min 50,000 hours

Variants

Item No.
1903- 17 W, 500 mA
1904- 23 W, 700 mA
1968- 33 W, 1050 mA, Dali

Combine with

Colour temperature Dimming
927 = 2700 K, 90 Ra V = 1-10 V
930 = 3000 K, 90 Ra D = Dali
940 = 4000 K, 90 Ra
9WD = 2700-6500 K, Dali, 90 Ra
