MULTIPLE NYX

Multiple Nyx is custom design at standard prices. Two, three, five, or more Nyx - only requirement is a cylindrical Ø60 pole top.

All luminaires can be for mid-post mounting, or the upmost luminaire is top mounted.

Scroll down to the slide show and see the many designs.

Specifications

MULTIPLE NYX

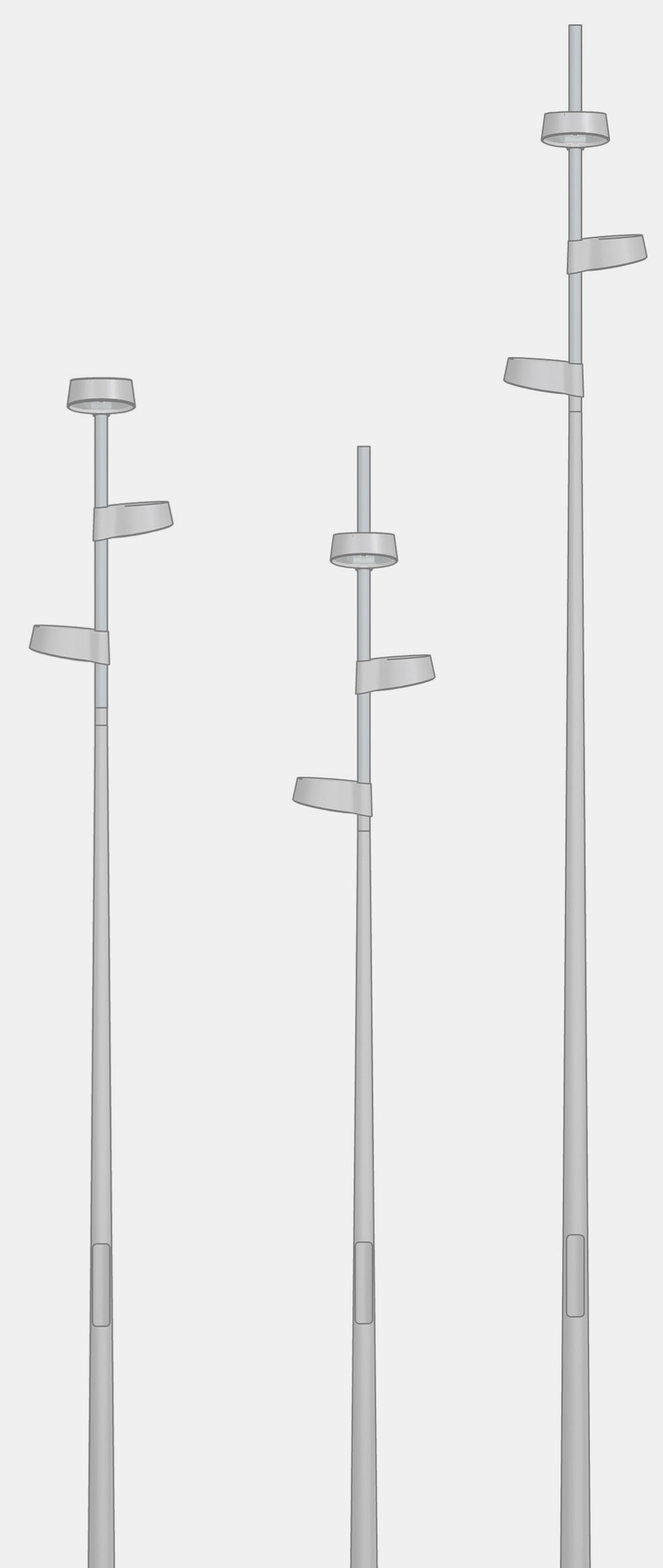

nyx330multiple_f0

Specification

Post for Multiple NYX 330
Material Galvanised steel
Powder coating Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Black: Noir 900 Sablé, SN351F, Akzo Nobel
Black: RAL 9005, SN805G, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Lanterns are not included

Combination
Height 6.6 m 4.8 m conical + 1.8 m cylindrical
For three mid-post lanterns
Height 4.8 m 3 m conical + 1.8 m cylindrical
For three mid-post lanterns
Height 5 m 3.5 m conical + 1.5 m cylindrical
For one post-top and two mid-post lanterns

See position of lanterns in pdf specification below.

Variants and options

Item No. Post for Multiple Nyx 330
3160- 6.6 m, rooted base
3162- 4.8 m, rooted base
3164- 5 m, rooted base
3260- 6.6 m, flanged base
3262- 4.8 m, flanged base
3264- 5 m, flanged base

Options
50200 Rooted base Ø 108-140
50201 Top closing for Ø60 post
98158 Fuse box for 2 Neozed fuses, 16A

Combine with

Select colour in the table.

Colour
3 = black RAL 9005
4 = graphite grey
7 = galvanised
9 = silver grey
17 = corten brown
66 = black noir 900

Example: 3160-4 = 6.6 m column, graphite grey, rooted base

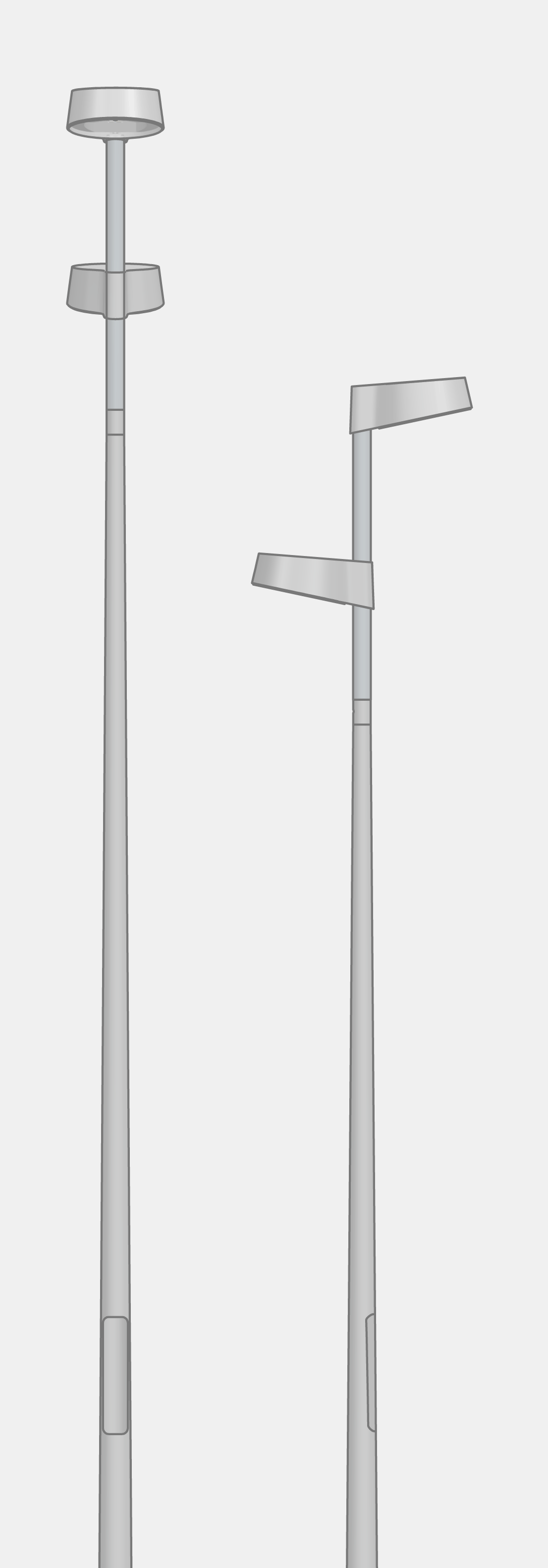

nyx330x2_mdaeksel_f0

Specification

Post for Multiple NYX 330
Material Galvanised steel
Powder coating Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Black: Noir 900 Sablé, SN351F, Akzo Nobel
Black: RAL 9005, SN805G, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Lanterns are not included

Combination
Height 5 m 4 m conical + 1 m cylindrical
For one post-top and one mid-post lantern
Height 4 m 3 m conical + 1 m cylindrical
For one post-top and one mid-post lantern

See position of lanterns in pdf specification below.

Variants and options

Item No. Post for 2 x Nyx 330
3161- 4 m, rooted base
3163- 5 m, rooted base
3261- 4 m, flanged base
3263- 5 m, flanged base

Options
50200 Rooted base Ø 108-140
98158 Fuse box for 2 Neozed fuses, 16A

Combine with

Select colour in the table.

Colour
3 = black RAL 9005
4 = graphite grey
7 = galvanised
9 = silver grey
17 = corten brown
66 = black noir 900

Example: 3161-4 = 4 m column, graphite grey, rooted base

Media & downloads

nyx330x3_tingbak2_1166

Multiple Nyx is customized design at standard prices.

Umbraco.Cms.Core.Models.Link More examples, Multiple Nyx
multiplenyx_6384_1166

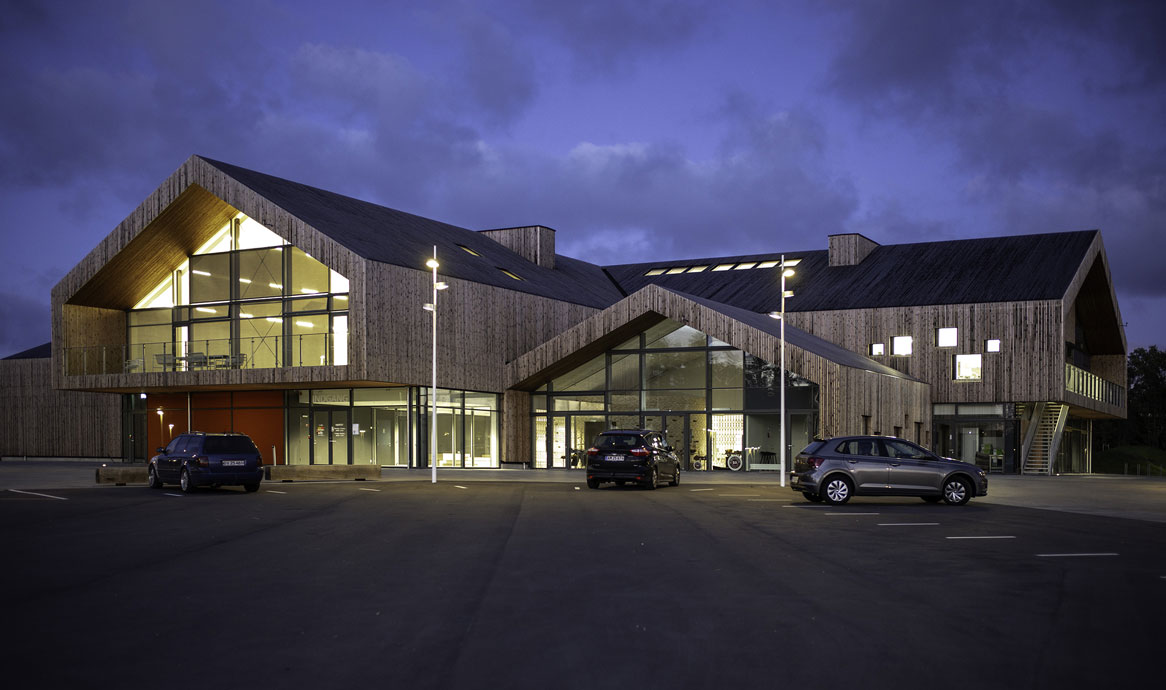

Both Nyx 330 and Multiple Nyx can be seen in the area around the International School at Ikast. C.F. Møller Architects have created a visionary environment for culture and learning.

Umbraco.Cms.Core.Models.Link More images from Ikast

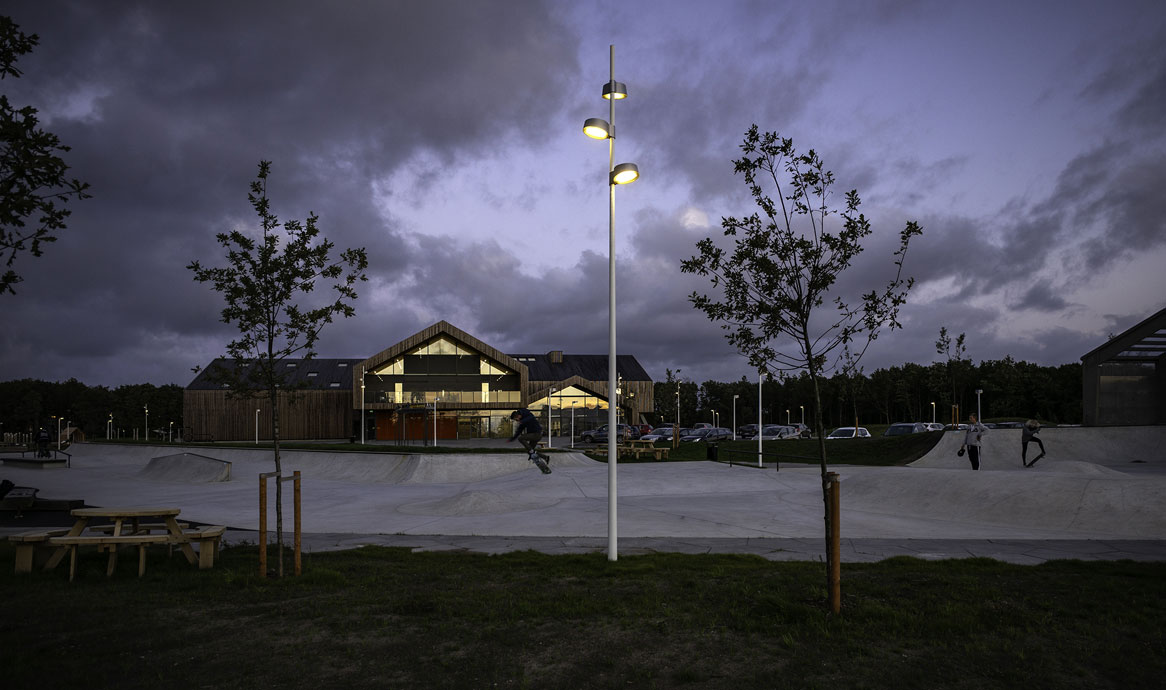

multiplenyx_6300_1166

Multiple Nyx is iconic in the area around the Heart at Ikast.

Umbraco.Cms.Core.Models.Link More images from the Heart

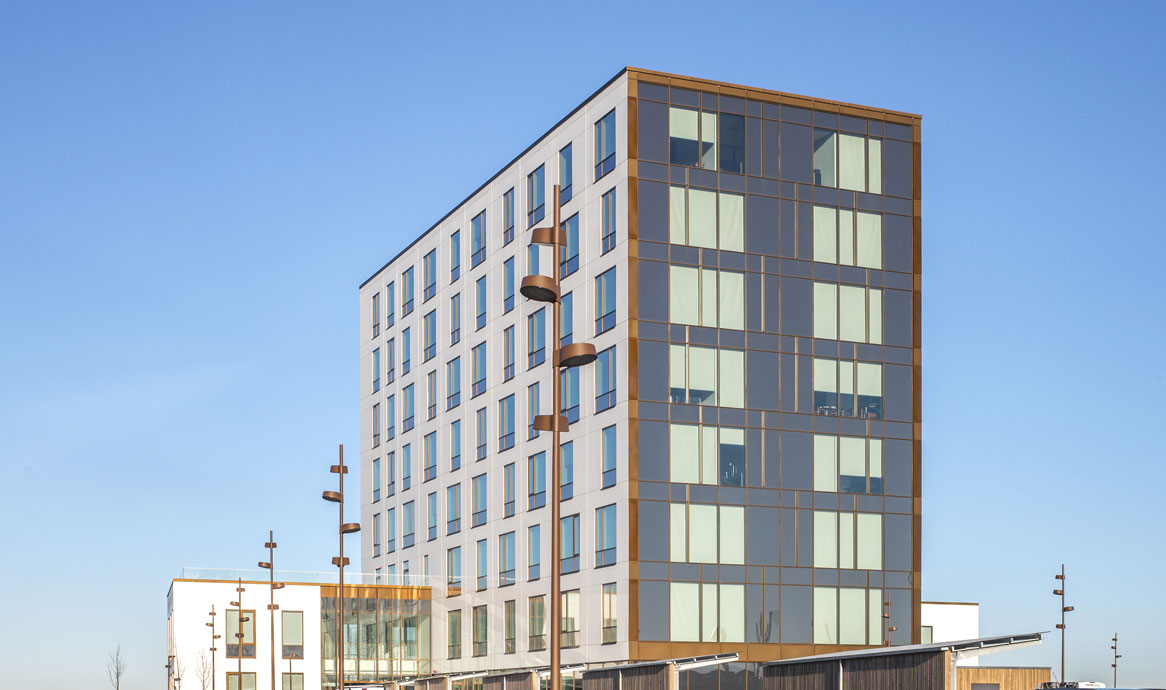

nyxmultiple_esbjerg_1166

Multiple Nyx 330 in corten brown  - icons around the White House, Esbjerg Waterfront.

Umbraco.Cms.Core.Models.Link More images from Esbjerg Waterfront

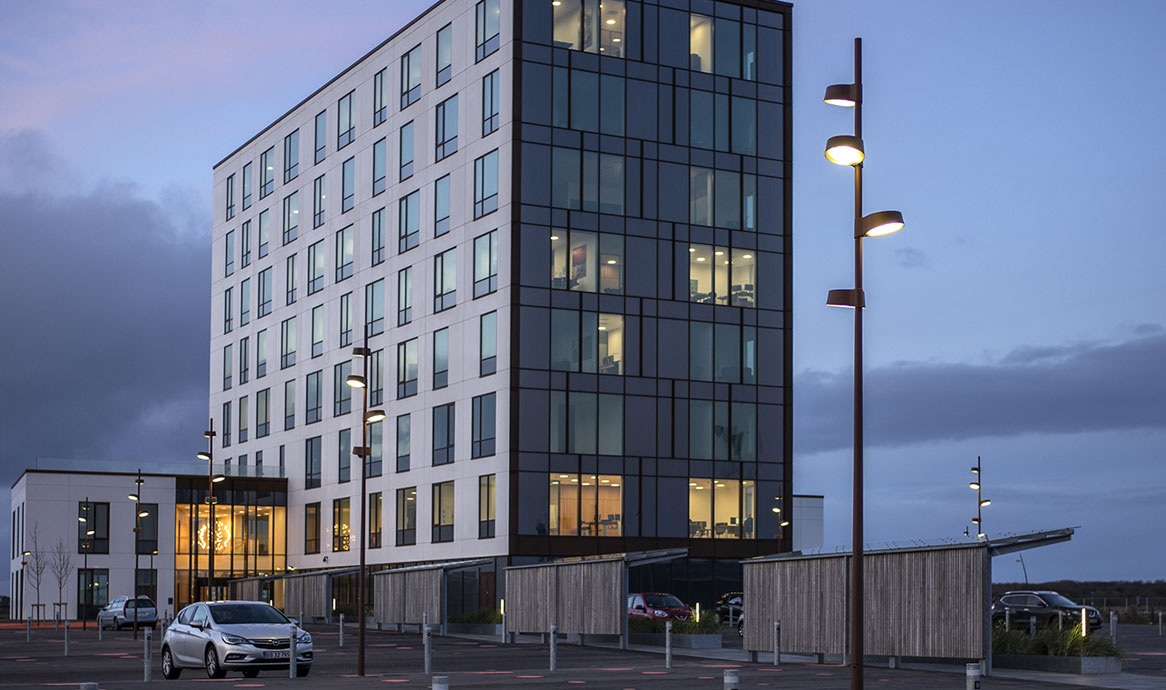

l1009529_p_1166

Multiple Nyx 330 in corten brown, Esbjerg Waterfront. Some luminaires are equipped with camera.

Umbraco.Cms.Core.Models.Link More images from White House

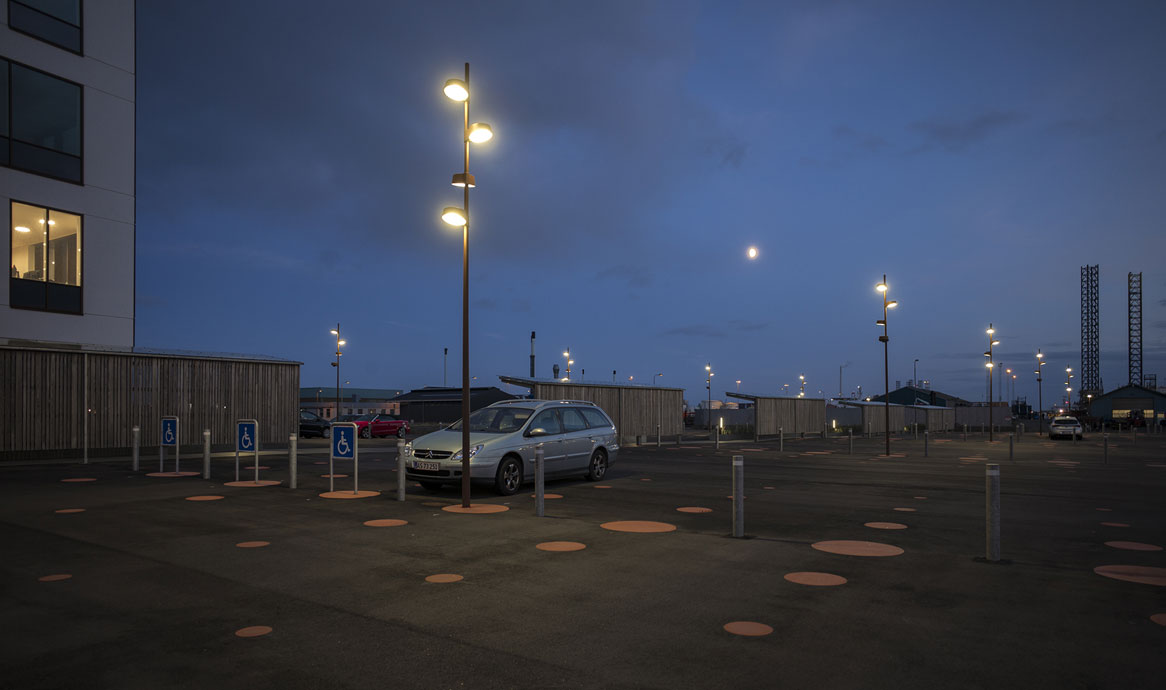

l1009592_l_1166

Multiple Nyx, White House, Esbjerg Waterfront.

Umbraco.Cms.Core.Models.Link More images from Esbjerg Waterfront

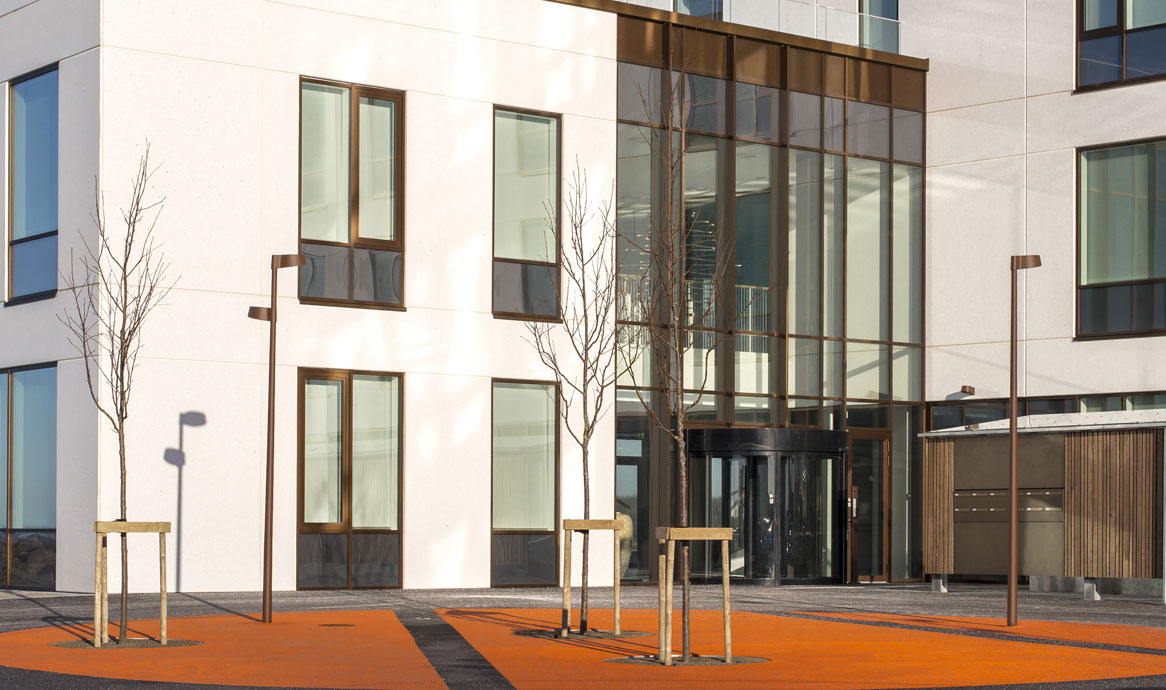

nyx330_esbjerg_1166

Several variations of Nyx 330 in corten brown are used around the White House at Esbjerg Waterfront. Architects: Friis & Moltke

Umbraco.Cms.Core.Models.Link More images from White House
multiplenyx_square_7618_116

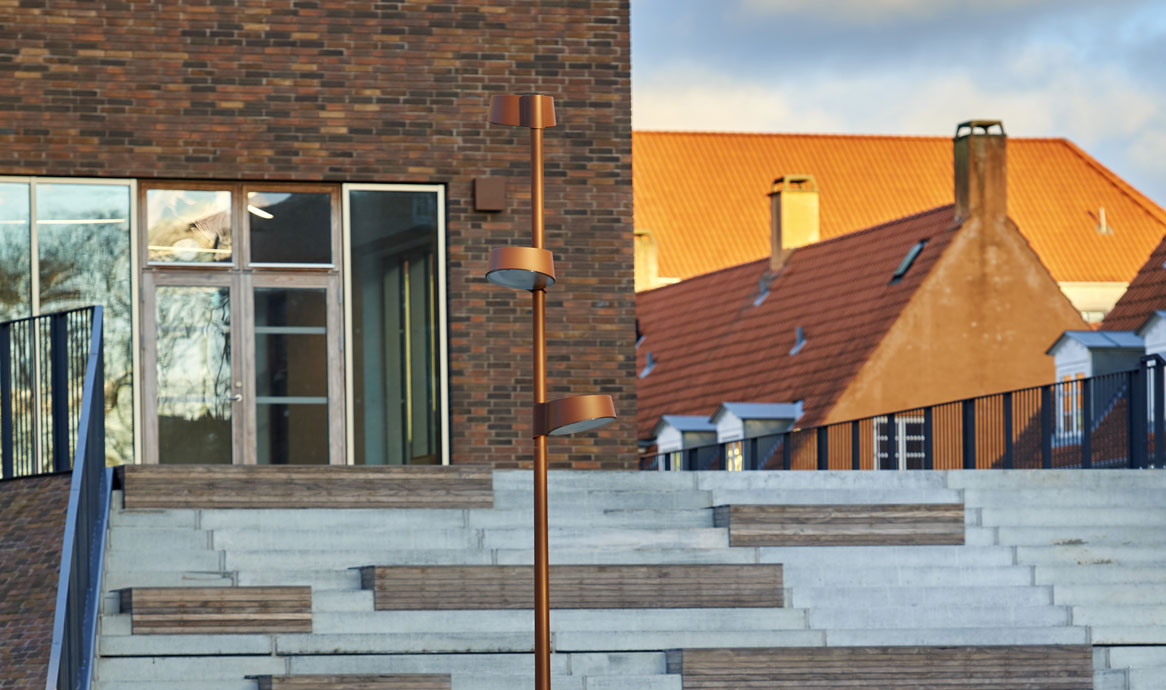

Multiple Nyx 330 in corten brown, public school at Sundbyøster

multiplenyx_7778_1166

Multiple Nyx 330 in corten brown, public school at Sundbyøster

campusbornholm_1166

Multiple Nyx underlines the diversity at Campus Bornholm, a new center for education at the island of Bornholm. Architecture: Cubo Architects

nyx2_3_nordstjerneskolen_11

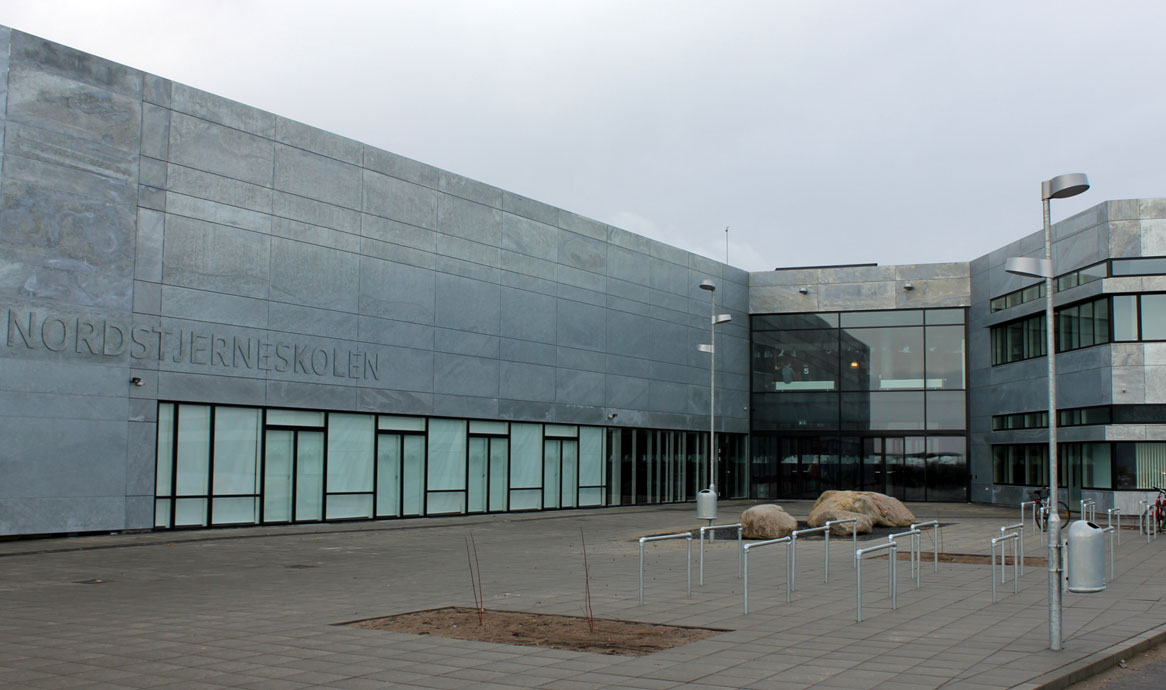

Many variants of Nyx are used at the Nordstjerne public school, Frederikshavn.

nyx2_silver_middelfart

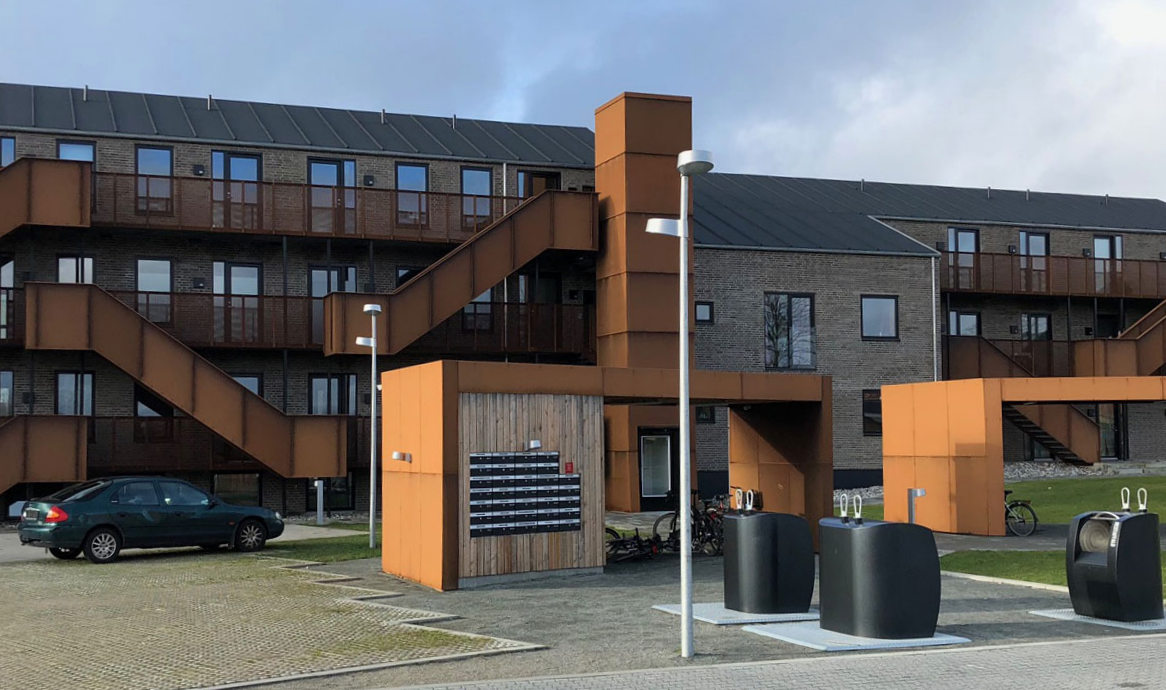

Multiple Nyx silver grey, Middelfart

Umbraco.Cms.Core.Models.Link More examples of Multiple Nyx

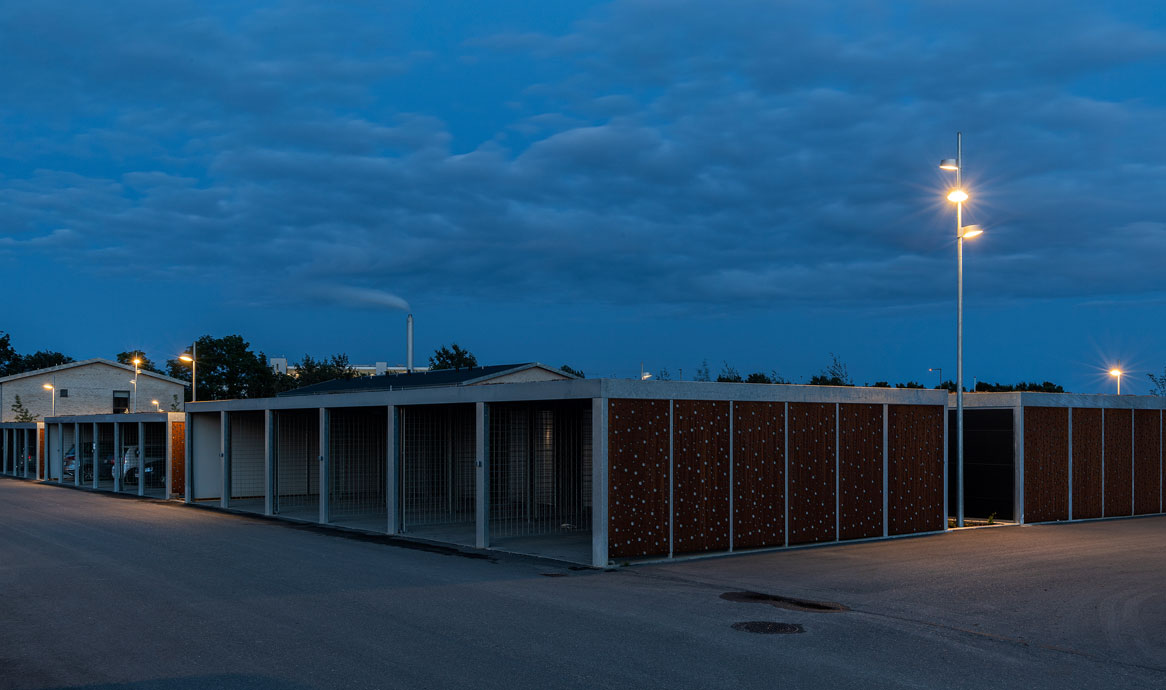

nyx_fyrkilde_4370_1166

Nyx 330 silver grey - single and multiple at galvanised poles - newly renovated residential area Aalborg East.

Umbraco.Cms.Core.Models.Link More Nyx cases
nyx2_fyrkildevej_9328_1166

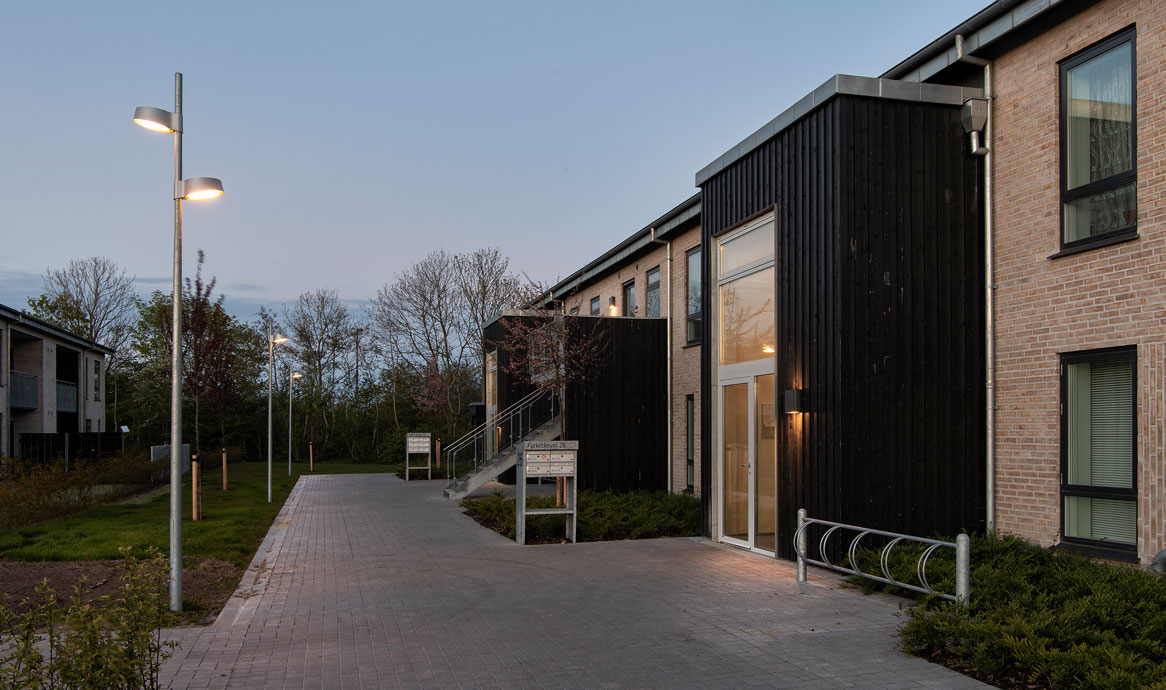

Nyx 330 silver grey at galvanised conical pole - newly renovated residential area Aalborg East.

Umbraco.Cms.Core.Models.Link More Nyx in residential areas
nyx2_fyrkildevej_9353_1166

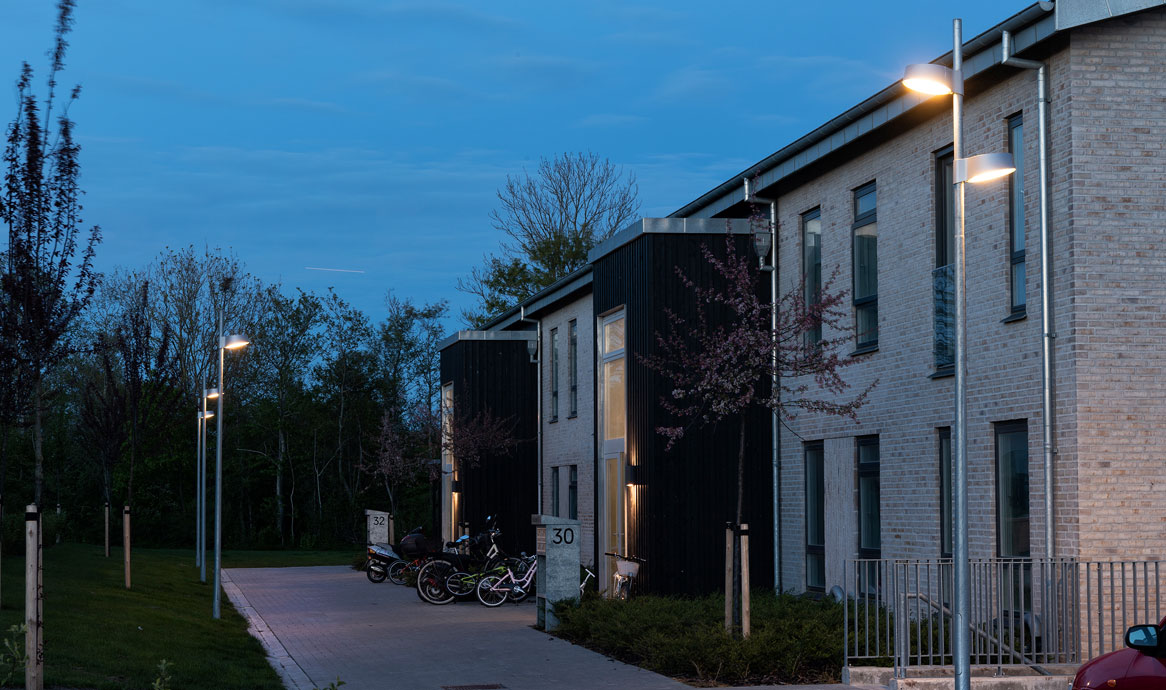

Nyx 330 silver grey - single and multiple at galvanised poles - newly renovated residential area Aalborg East.

Umbraco.Cms.Core.Models.Link More Nyx in residential areas
multiplenyx330_3823_1166

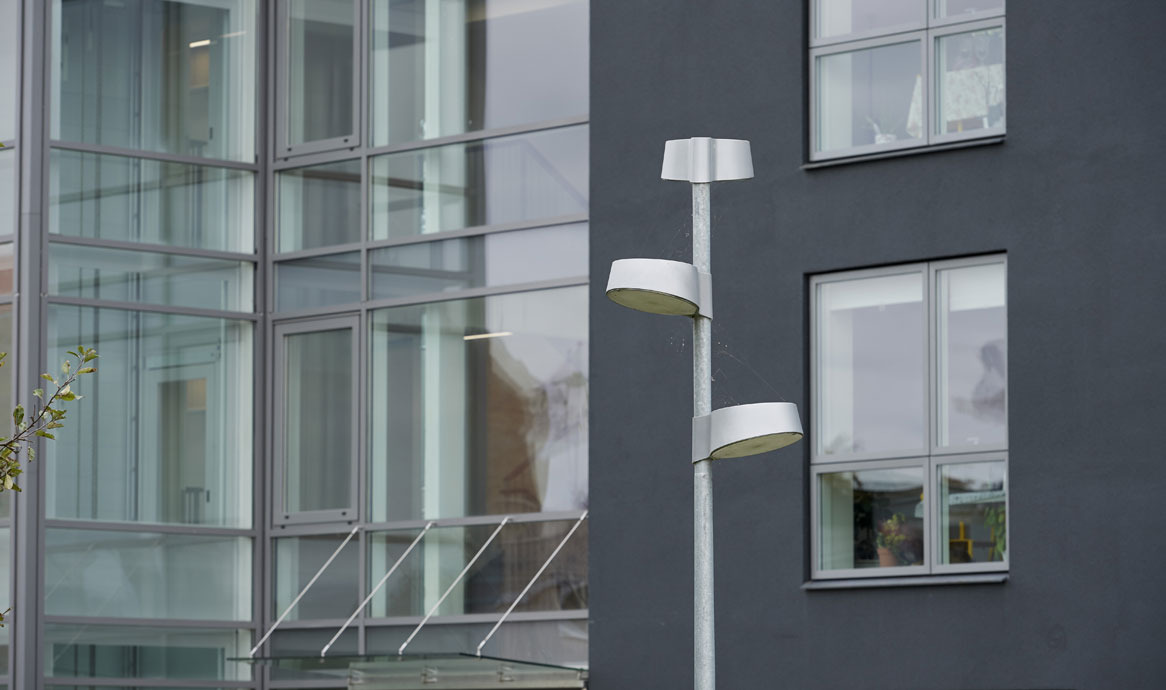

Many Nyx products are used in the refurbisment of Kastanieparken, residential area at Hillerød.

Umbraco.Cms.Core.Models.Link More images from Kastanieparken
nyx330_x3_aften_6253_1166

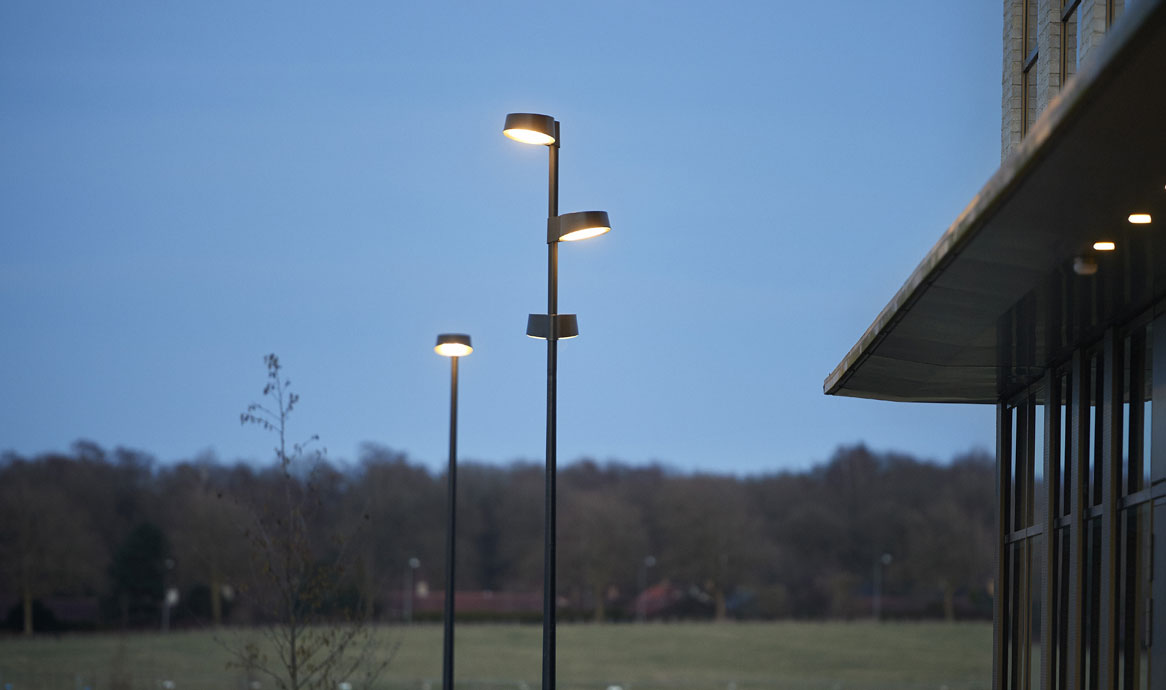

By Multiple Nyx an extra dimension is added to lighting design, and by using both one, two, and three lanterns per post, the architects have created a varied lighting landscape.

Umbraco.Cms.Core.Models.Link More Nyx projects
nyx330_x2_5954_1166

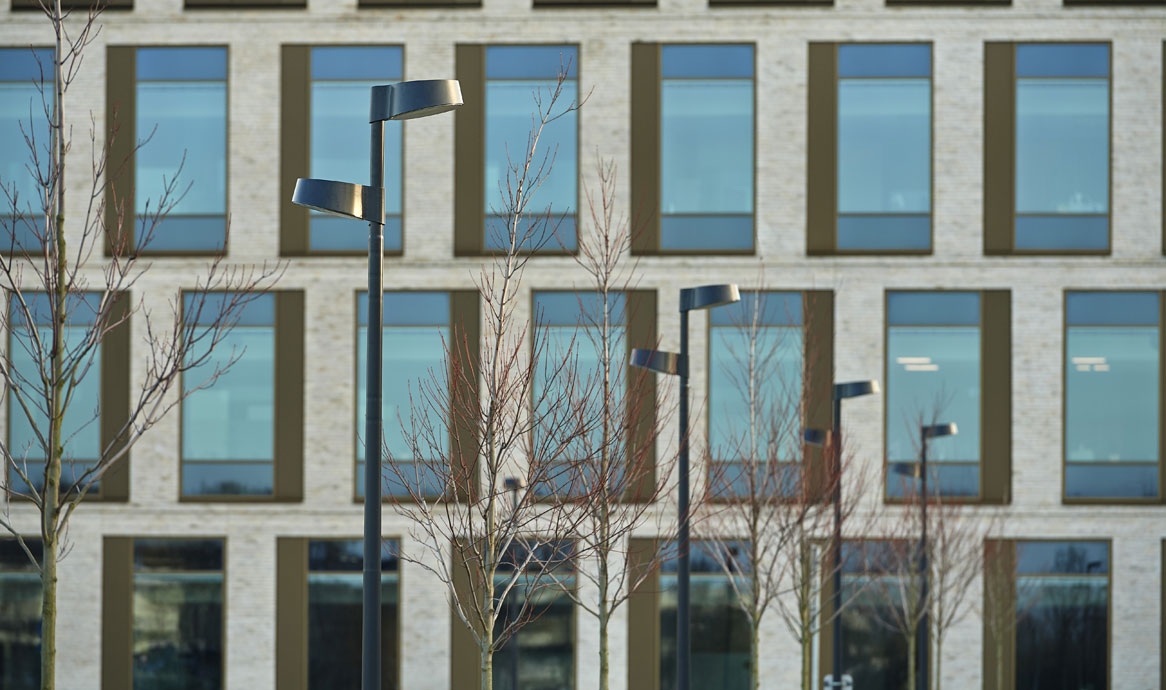

In the form of Multiple Nyx the luminaires become iconic - with and without the light turned on.

Umbraco.Cms.Core.Models.Link More Nyx projects

DesignVilhelm Lauritzen Architects

The story of Nyx begins in 2004 when Vilhelm Lauritzen Architects present the first draft for a wall fitting in two sizes. The design was simple, but characteristic and easily recognisable. Furthermore, Nyx differed from other luminaires of the time by the fact that it is cast in aluminium. Soon the series grew by lanterns and bollards, and especially the lanterns have shown great potential in street lighting.
