QUARTO

Please choose

Quarto was designed by Torsten Thorup and Claus Bonderup back in the 80'es, but is still going strong due to its classic circular shape. However, the Quarto from Focus Lighting differs from the many similar products because it ends up in a cylindrical shape. This completes and adds harmony to the shape. Throughout the years Quarto has proven its ability to both adding quality to and adjusting to its environment.

Specifications

270 exterior

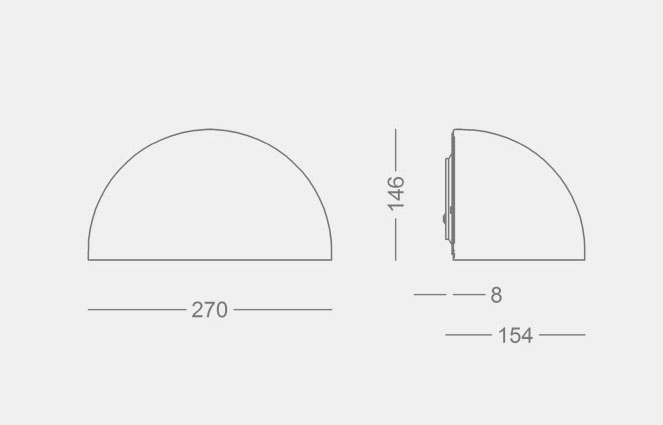

quarto270_ude_skitse

Luminaire

QUARTO 270 exterior
Material Hot-dipped galvanised steel, brass, or copper
Coating White: RAL 9010
Black: RAL 9005
Black: Noir 900 Sablé, SN351F
Graphite grey: YW355F
Corten brown: YX355F
Shade Flame-proof, opal-white polycarbonate
Mounting On wall or wall box
Connection Max two cables, 1.5 mm2, into 3-pole terminal block, 4 mm2
Classification IP45, class I, IK04
Weight 1.3 kg

LED and driver data

LED type Bridgelux V8
Operational life min 100,000 hours at ta max 25° C, L90B10
Total consumption 6, 9, or 12 W
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 90 Ra
Colour accuracy 3 steps SDCM
Output ratio 75%

Driver LED driver, 20 W
Dimming optional
Operational life min 100,000 hours
Alternative Driver and sensor (radar) for wireless control

Variants

Item No. Quarto 270 exterior
6807- 6 W LED, 250 mA
6803- 9 W LED, 350 mA
6804- 12 W LED, 500 mA

Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
1 = white 927 = 2700 K, 90 Ra
3 = black 930 = 3000 K, 90 Ra
4 = graphite grey 940 = 4000 K, 90 Ra
6 = polished brass
8 = polished copper
9 = galvanised
17 = corten brown
66 = noir 900

Dimming Protection class
empty = no dimming empty = class I
V = 1-10 V K = class II
D = DALI
R = bluetooth sensor

Example Item No.: 6804-66927D = Quarto 270, 12 W LED, noir 900, 2700 K, 90 Ra, Dali, class I

quarto270_ude_skitse

Luminaire

QUARTO 270 exterior
Material Hot-dipped galvanised steel, brass, or copper
Coating White: RAL 9010
Black: RAL 9005
Black: Noir 900 Sablé, SN351F
Graphite grey: YW355F
Corten brown: YX355F
Shade Flame-proof, opal-white polycarbonate
Mounting On wall or wall box
Connection Max two cables, 1.5 mm2, into 3-pole terminal block, 4 mm2
Classification IP45, class I, IK04
Weight 1.1 kg

Lamp type

E27 max 57 W, max length 110 mm, max diameter 56 mm
See recommendations below.
Output ratio 58%

Variants and options

Item No. Quarto 270 exterior
6001- max 57 W, E27

Option
1100-2 E27 LED, Philips Core Pro LED 9 W, 2700 K, 80 Ra, 15,000 hours operation
1100-3 E27 LED, Philips Core Pro LED 9 W, 3000 K, 80 Ra, 15,000 hours operation
1100-6 E27 LED, Deco Aurora dimmable, 7.5 W, 2700 K, 80 Ra, 20,000 hours operation

Combine with

Select colour in the table below.

Colour Protection class
1 = white empty = class I
3 = black K = class II
4 = graphite grey
6 = polished brass
8 = polished copper
9 = galvanised
17 = corten brown
66 = noir 900

Example of product code: 6001-9 = Quarto 270, E27, galvanised, class I

Media & downloads

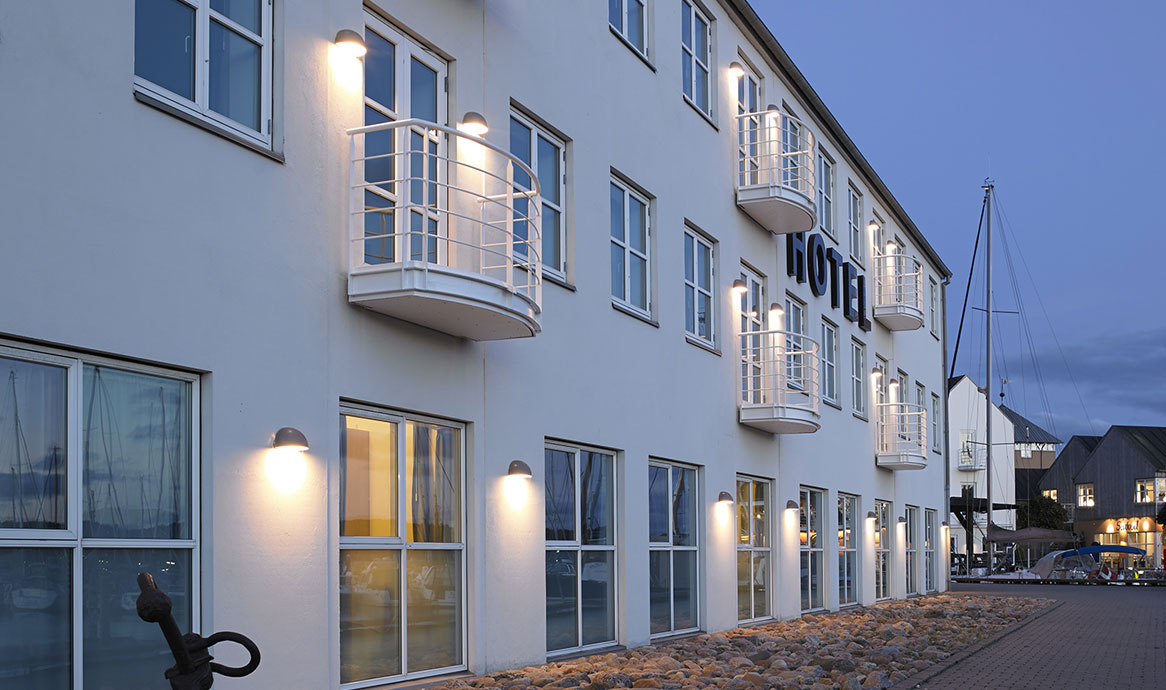

aarhus_5_1166

Qaurto 270 graphite grey, Bed&Breakfast hotel at Port Marselis, Aarhus

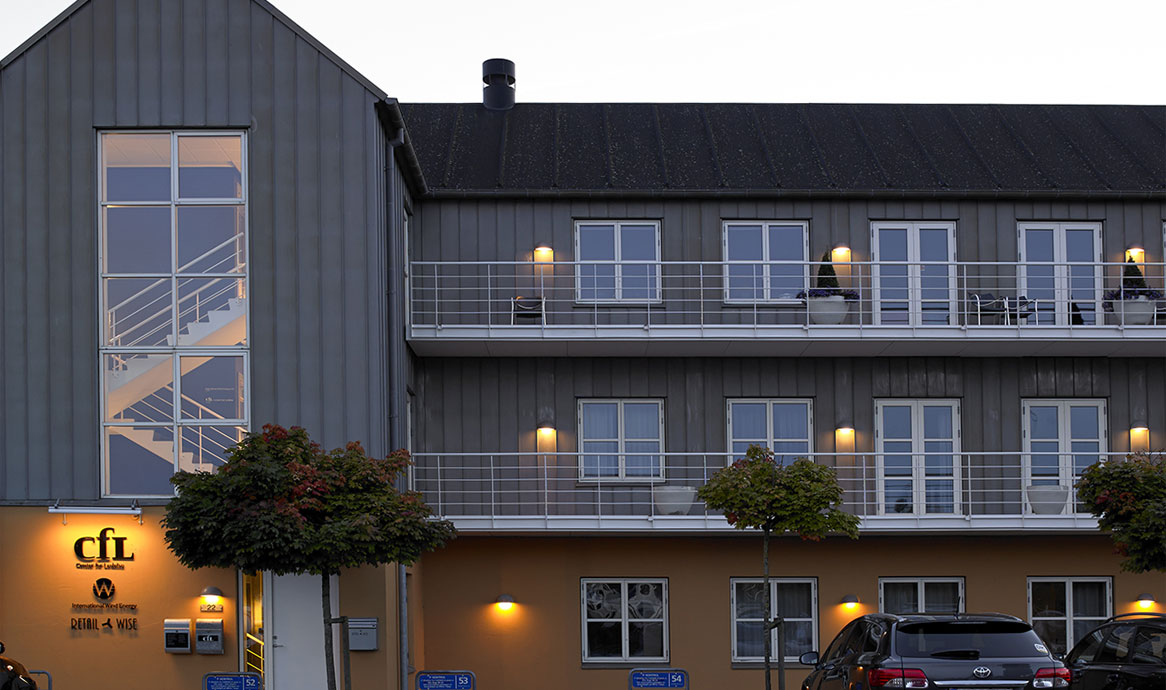

aarhus_3_1166

Quarto 270 graphite grey, Bed&Breakfast hotel at Port Marselis, Aarhus

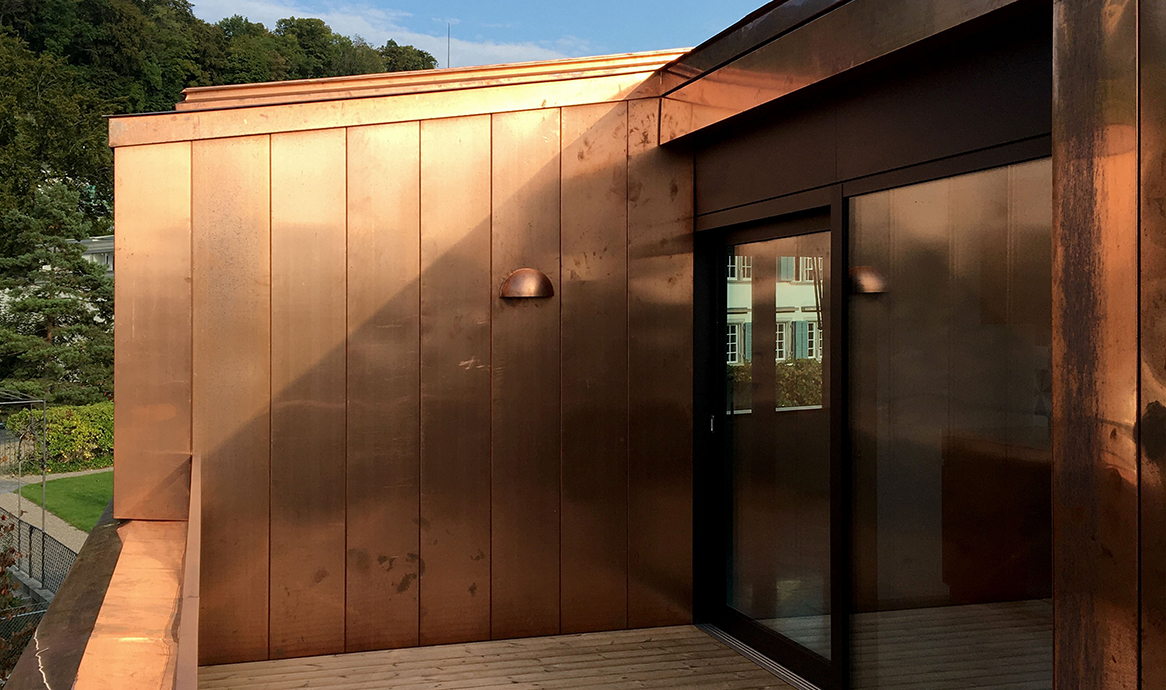

quarto-270_kupfer-unbehandelt_1166

Quarto 270, copper raw, untreated, Switzerland

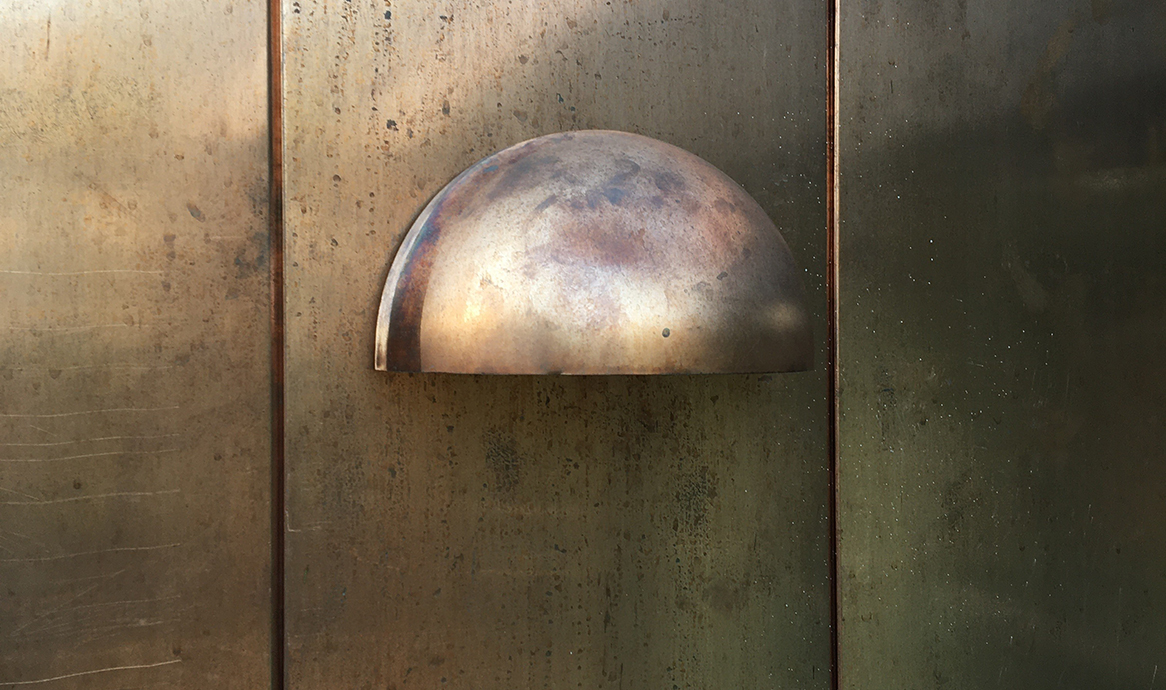

quarto-270_kupfer_close_1166

Quarto 270, copper raw, untreated, Switzerland

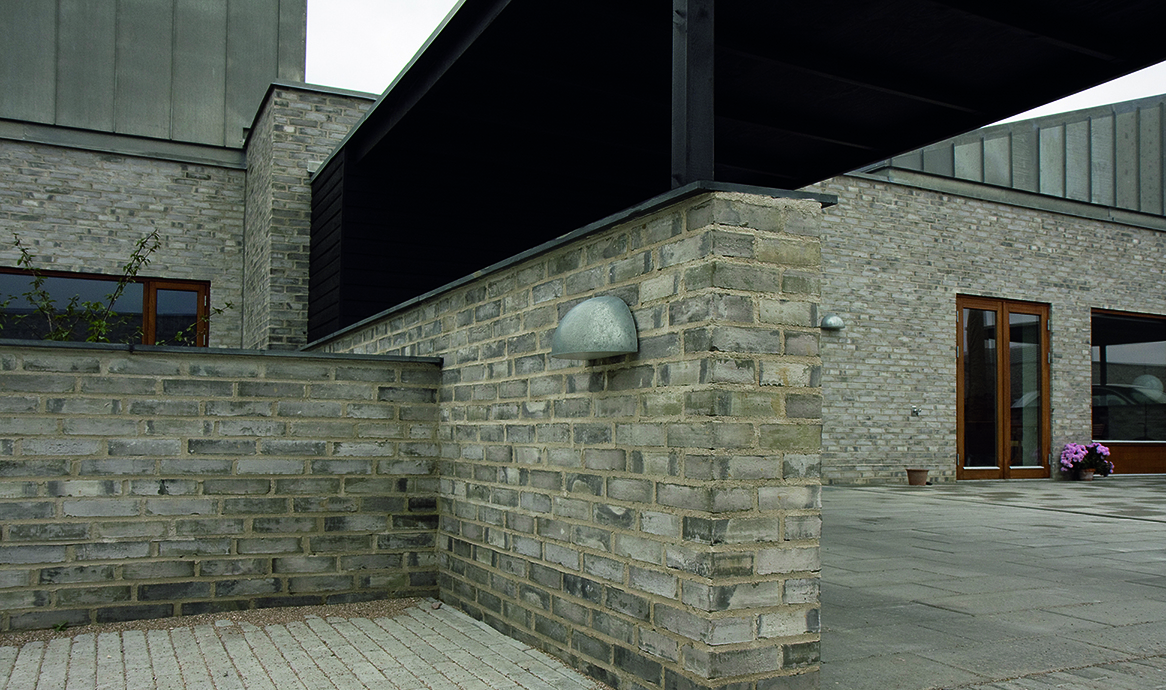

quarto270_galv_slotshusene_1166

Quarto 270, galvanised

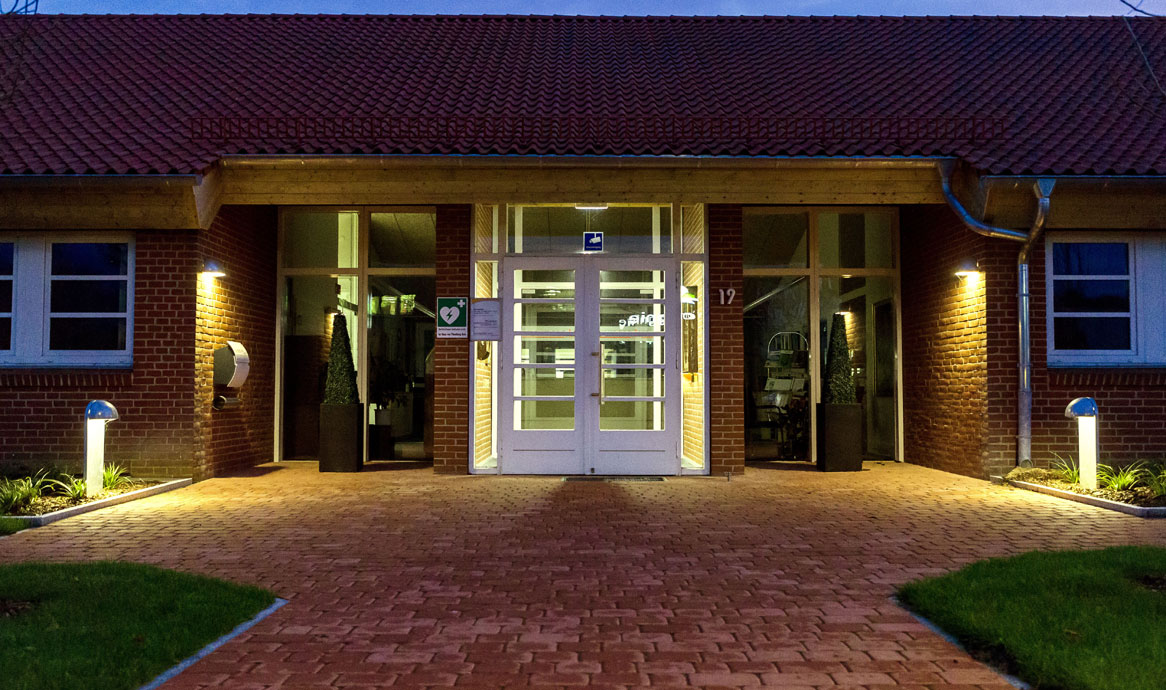

fla-focus-lighting-18_1166

Quarto 270 and Bollard Q, galvanised

Umbraco.Cms.Core.Models.Link See more photos

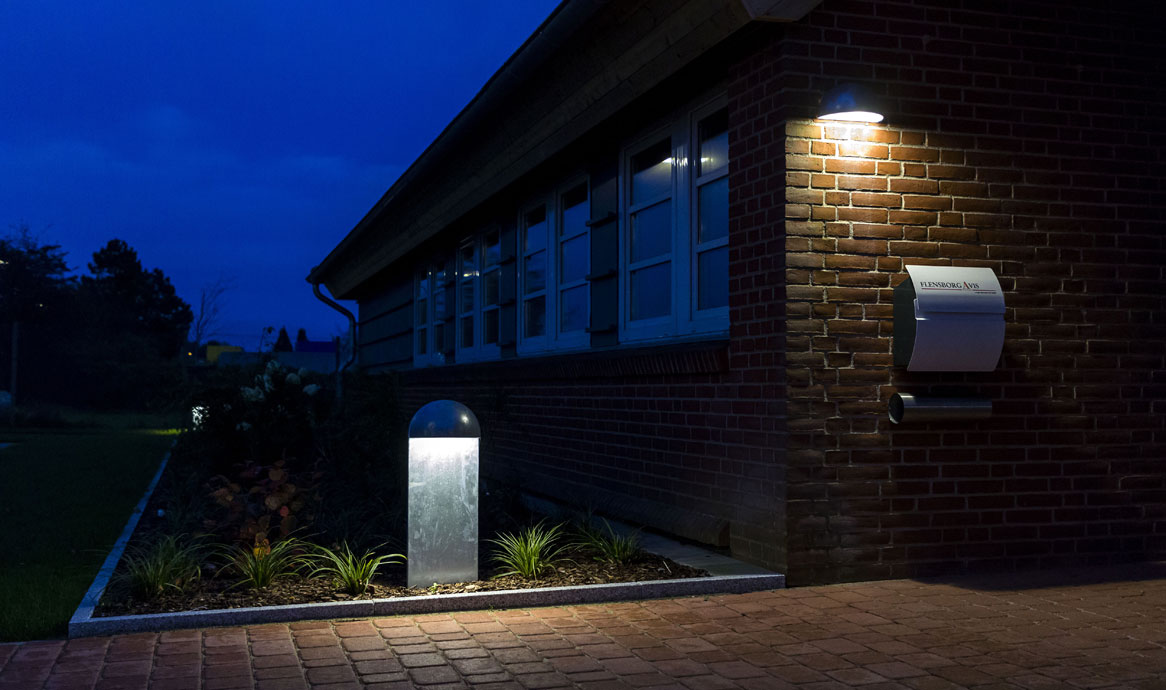

fla-focus-lighting-19_1166

Quarto 270 and Bollard Q, galvanised

Umbraco.Cms.Core.Models.Link See more photos

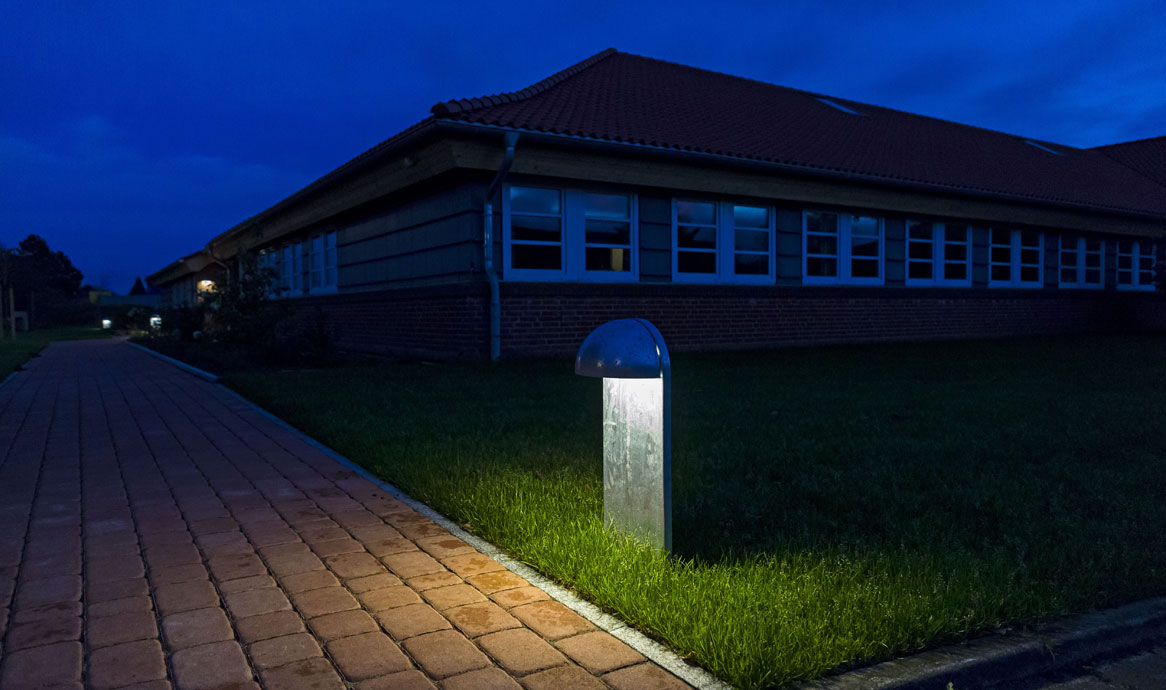

fla-focus-lighting-21_1166

Quarto 270 and Bollard Q, galvanised

Umbraco.Cms.Core.Models.Link See more photos

DesignTorsten Thorup & Claus Bonderup

Quarto is one of many luminaires designed by Torsten Thorup & Claus Bonderup for Focus Lighting. The cooperation began in the late 70es with Confetti and other pendant lamps.
