The Bollard Q is manufactured in double-sided steel or copper sheets, and the steel sheet is hot-dipped galvanised. The bollard is rounded at the top for single og double light fixture, Quarto 270. Fixture to be ordered separately.

Specifications

BOLLARD Q

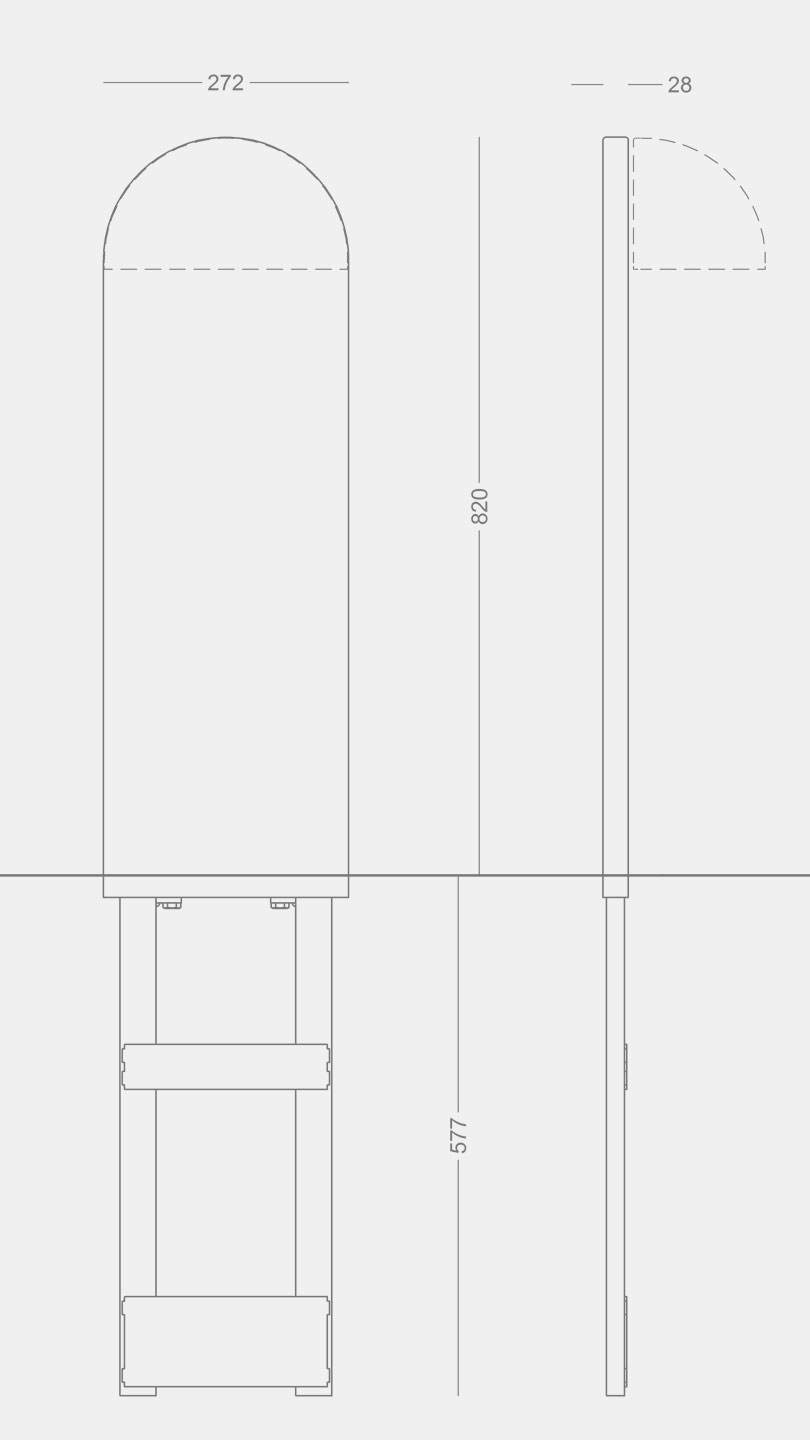

q-stander_nedgravng_skitse

Bollard

Material Hot-dipped galvanised steel or copper
Mounting With rooted or flanged base
Connection In the fitting (Quarto 270 to be ordered separately)
3 x 4 mm2 terminal block, max 2 cables 1.5 mm2
Leads in the bollard
Weight 15 kg

Variants

Item No. Bollard Q
7006- rooted base

Combine with

Select material in the table below.

Material
8 = copper
9 = galvanised

Example order code: 7006-9 = Bollard Q for embedment, galvanised

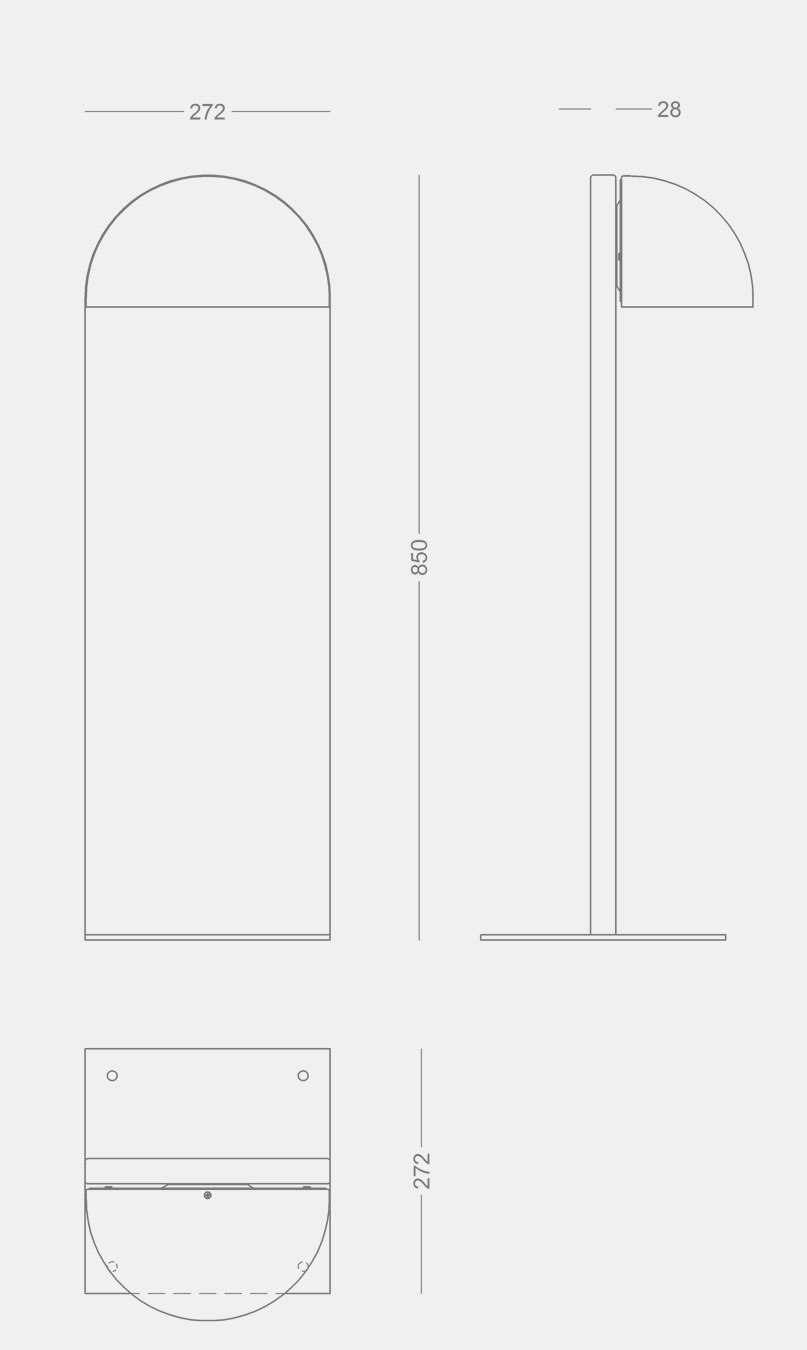

q-stander_flange_skitse

Bollard

Material Hot-dipped galvanised steel or copper
Mounting With rooted or flanged base
Connection In the fitting (Quarto 270 to be ordered separately)
3 x 4 mm2 terminal block, max 2 cables 1.5 mm2
Leads in the bollard
Weight 16 kg

Variants

Item No. Bollard Q
7007- flanged base

Combine with

Select material in the table below.

Material
8 = copper
9 = galvanised

Example order code: 7007-9 = Bollard Q, flanged base, galvanised

Media & downloads

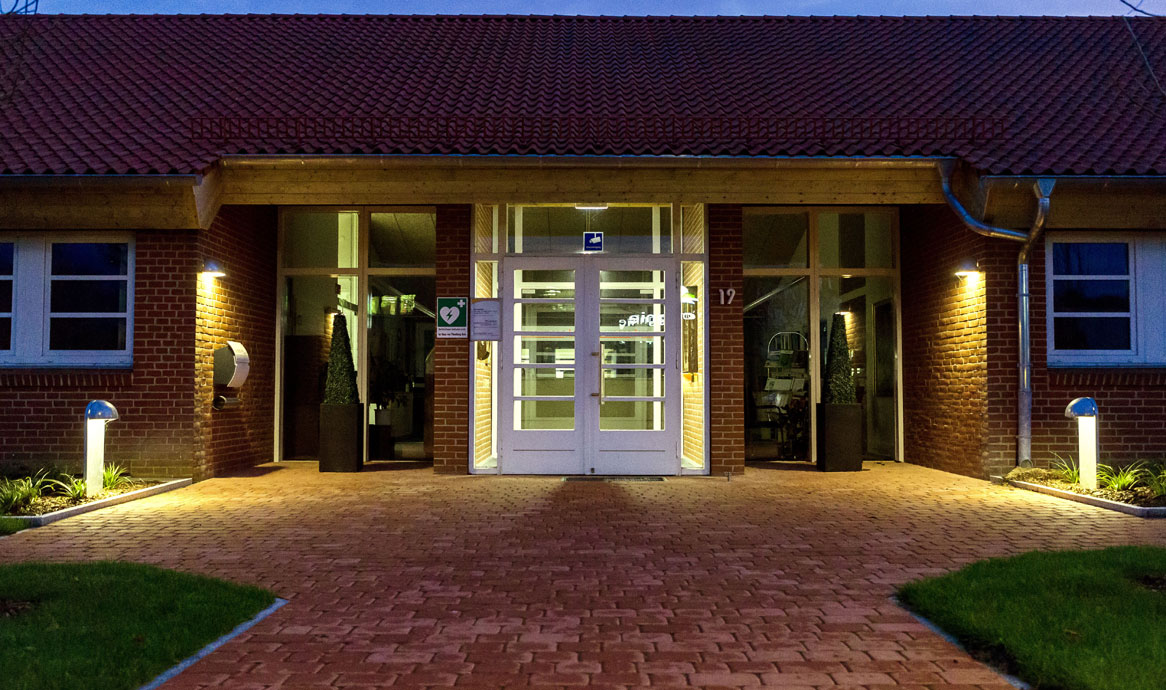

fla-focus-lighting-18_1166

Quarto 270 and Bollard Q, galvanised

Umbraco.Cms.Core.Models.Link See more photos

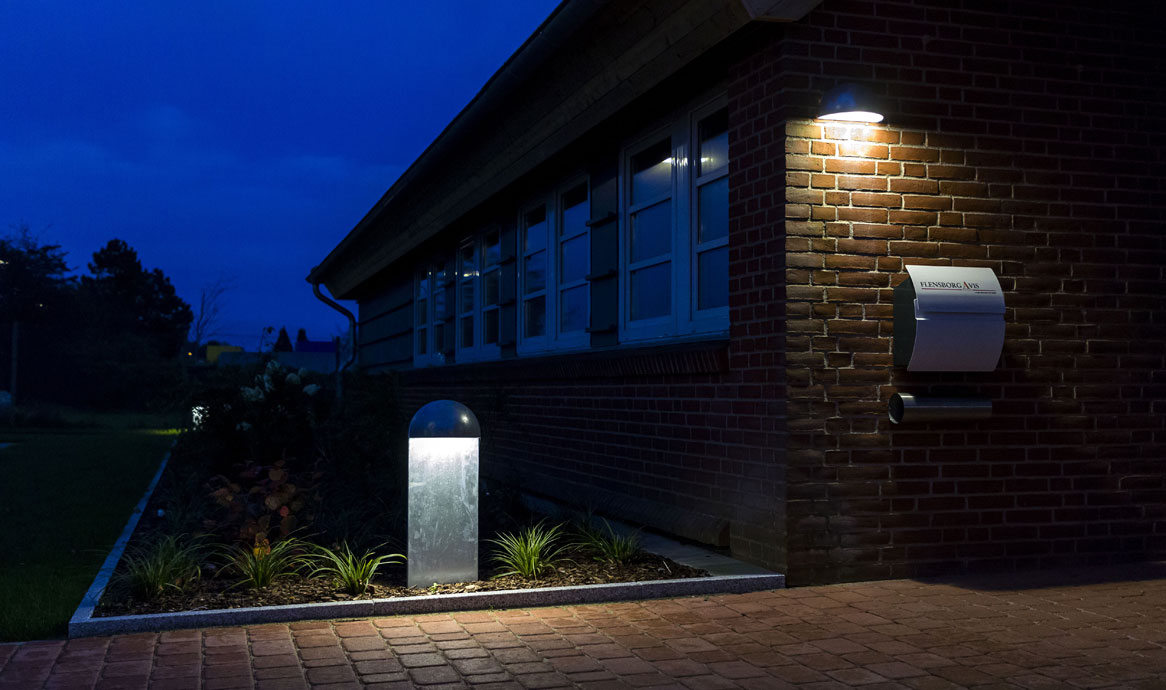

fla-focus-lighting-19_1166

Quarto 270 and Bollard Q, galvanised

Umbraco.Cms.Core.Models.Link See more photos

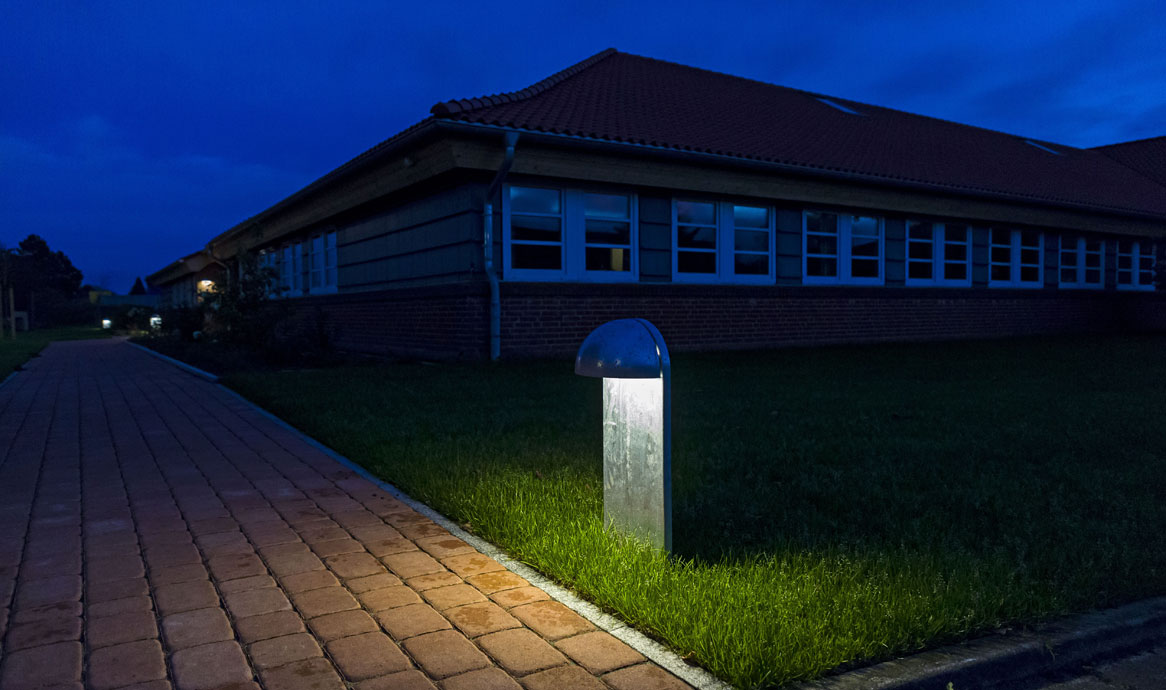

fla-focus-lighting-21_1166

Quarto 270 and Bollard Q, galvanised

Umbraco.Cms.Core.Models.Link See more photos
