SKY BOLLARD

"Sky is designed as one single main shape, divided into three elementary, circular shapes. A softly curved base, a conical, transparent light shade, and a distinct and precise closing element at the top."
- Morten Hove Lasthein, AART Designers

Specifications

SKY BOLLARD

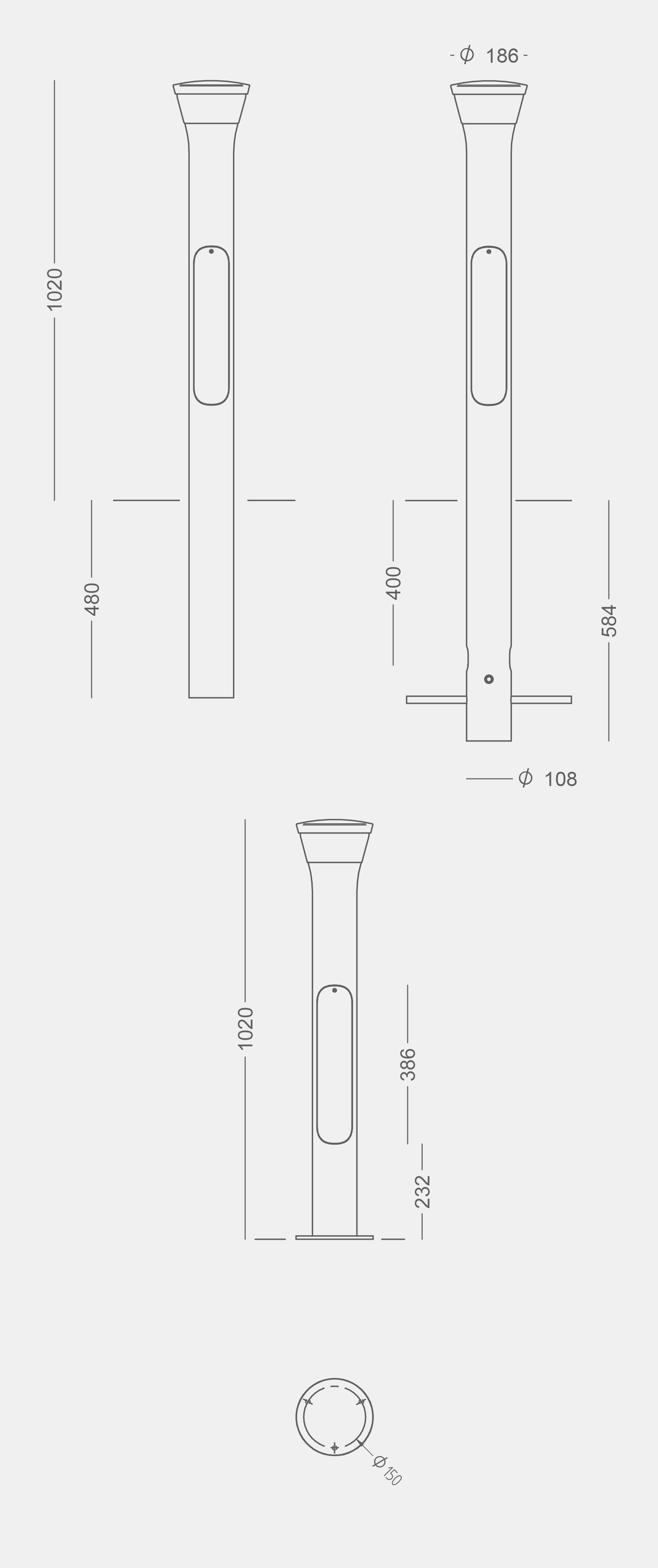

skitse_3xsky-pullert_p_f0

Luminaire

SKY BOLLARD
Material Top in cast aluminium, bollard in galvanised steel
Powder coating Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Black: Noir 900 Sablé, SN351F, Akzo Nobel
Screen Clear polycarbonate with UV resistant acrylate on both sides
Mounting Rooted base with cross bars for embedment
Rooted base, 480 mm for concrete
Flanged base
Connection Max 3 cables into terminal block with 2A fuse,
class II: 4 x 16 mm2, class I: 5 x 16 mm2
Classification IP66, class II; use code for class I
Impact resistance IK10
Weight 10 kg

LED and driver data

LED type Bridgelux V8
Operational life min 100,000 hours at ta max 25° C, L90B10
Total consumption 6, 9 or 12 W
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 90 Ra
Colour accuracy 3 steps SDCM
Output ratio 57%

Driver, standard LED driver, 20 W
Dimming optional
Inrush current max 5 A (50% after 50 µs)
Operational life min 100,000 hours

Programmable driver Xitanium Full Xi FP 22 W, 0.3-1.0 A
Inrush current max 14 A (50% after 400 µs)
Dimming 5 steps dimming within the lumen intervals
Surge protection L/N-GND: 8 kV, L-N: 6 kV
Operational life min 100,000 hours

Variants

Item No. Sky Bollard, rooted base w. cross bars
7852- 6 W LED, 250 mA
7830- 9 W LED, 350 mA
7831- 12 W LED, 500 mA

Item No. Sky Bollard, flanged base
7853- 6 W LED, 250 mA
7836- 9 W LED, 350 mA
7837- 12 W LED, 500 mA

Item No. Sky Bollard, rooted base for concrete
7851- 6 W LED, 250 mA
7833- 9 W LED, 350 mA
7839- 12 W LED, 500 mA

Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
4 = graphite grey 927 = 2700 K, 90 Ra
9 = silver grey 930 = 3000 K, 90 Ra
7 = silver grey top, galvanised bollard 940 = 4000 K, 90 Ra
17 = corten brown
66 = noir 900

Dimming Protection class
empty = no dimming empty = class II
V = 1-10 V J = class I
D = DALI
E = programmable

Extra surge protection
X = 10 kV

Example Item No.: 7831-4930J = Sky Bollard, rooted base, 12 W LED, graphite grey, 3000 K, 90 Ra, class I

Media & downloads

skypullert_aulum_1166_1

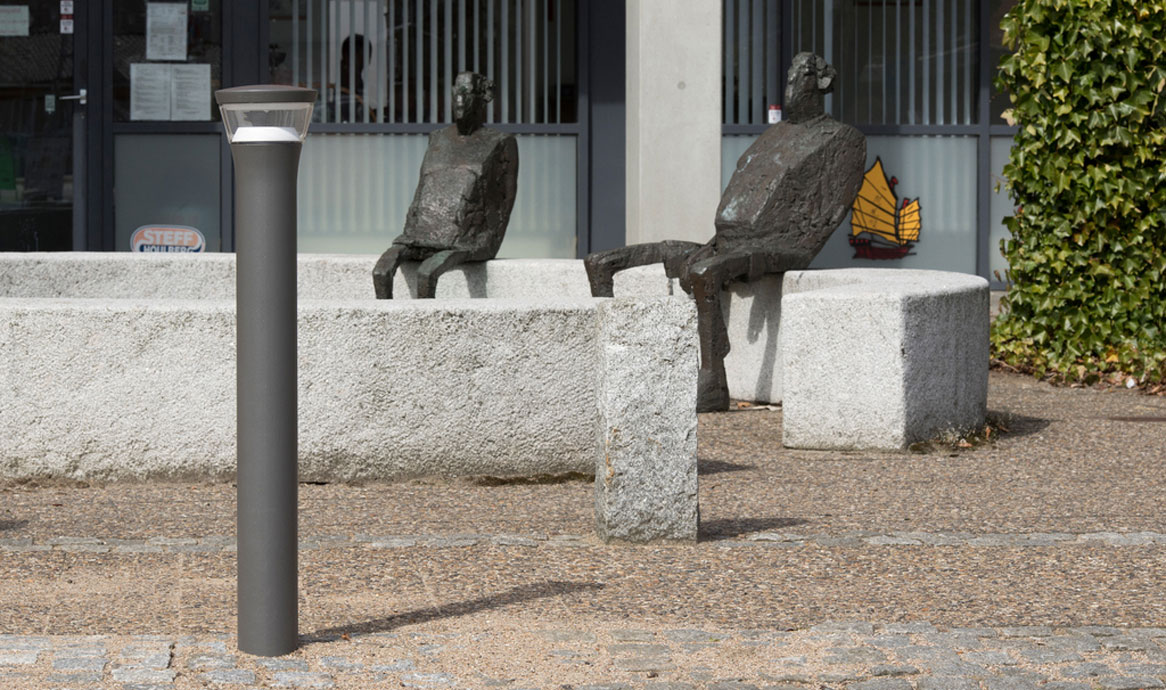

Sky Bollard, graphite grey finish

skypullert_aulum_1166_2

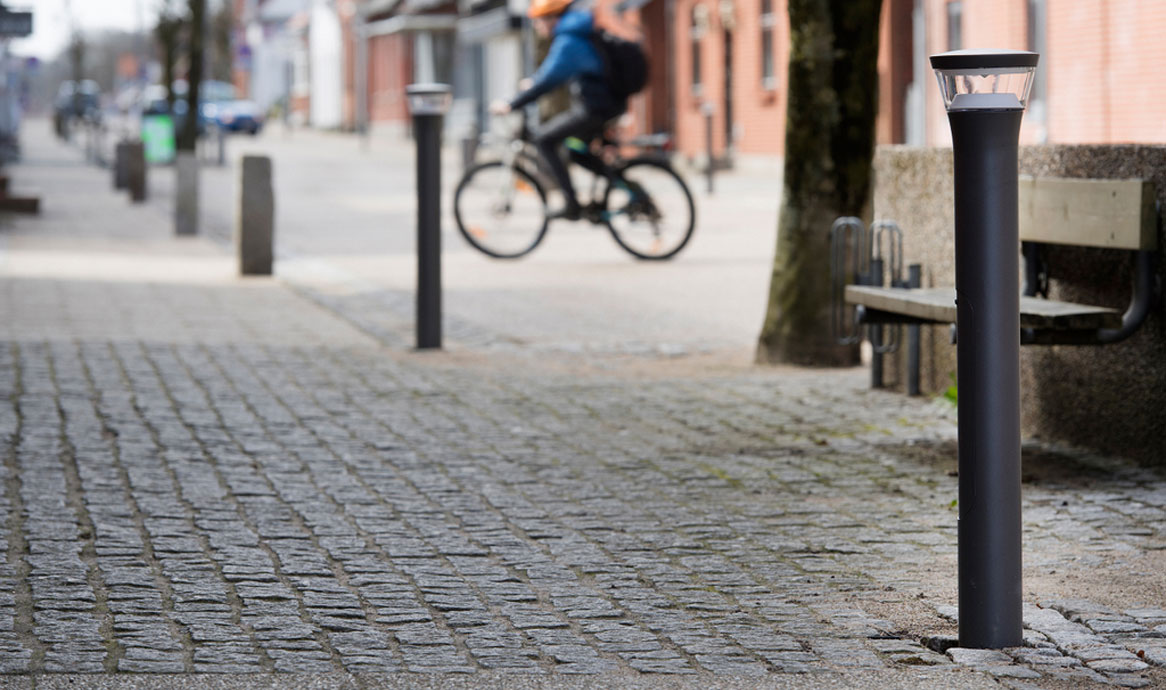

Sky Bollard illuminates the city centre.

skypullert_mosede_1166_1

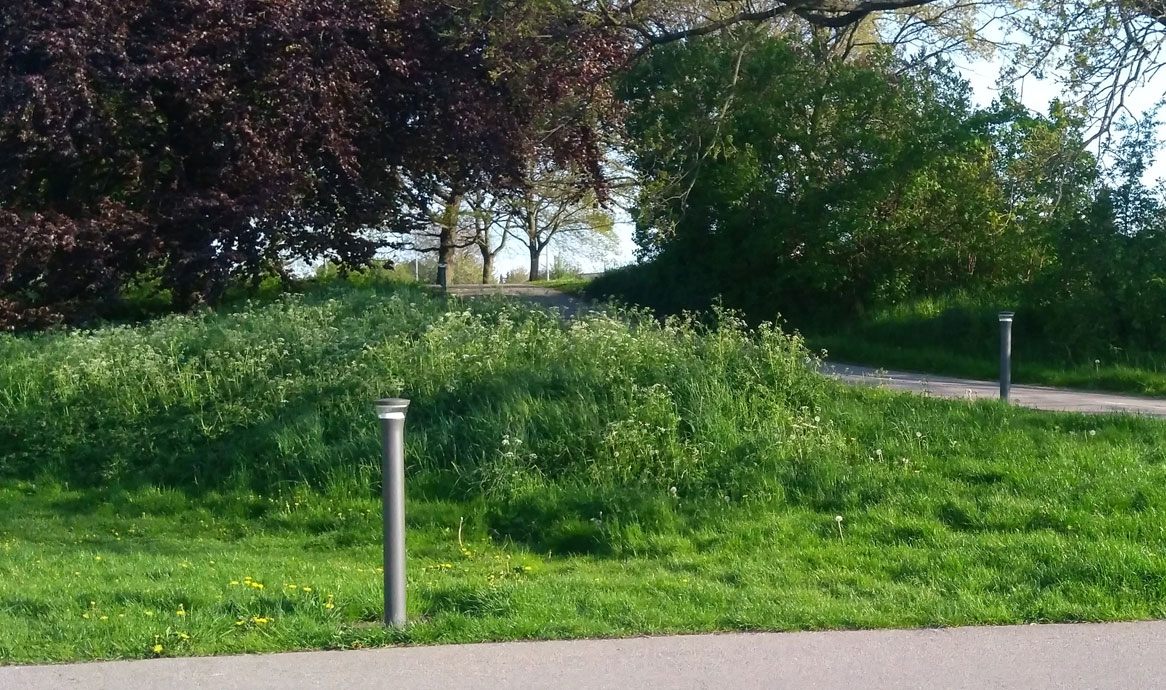

Sky Bollard, graphite grey - Greve Kommune

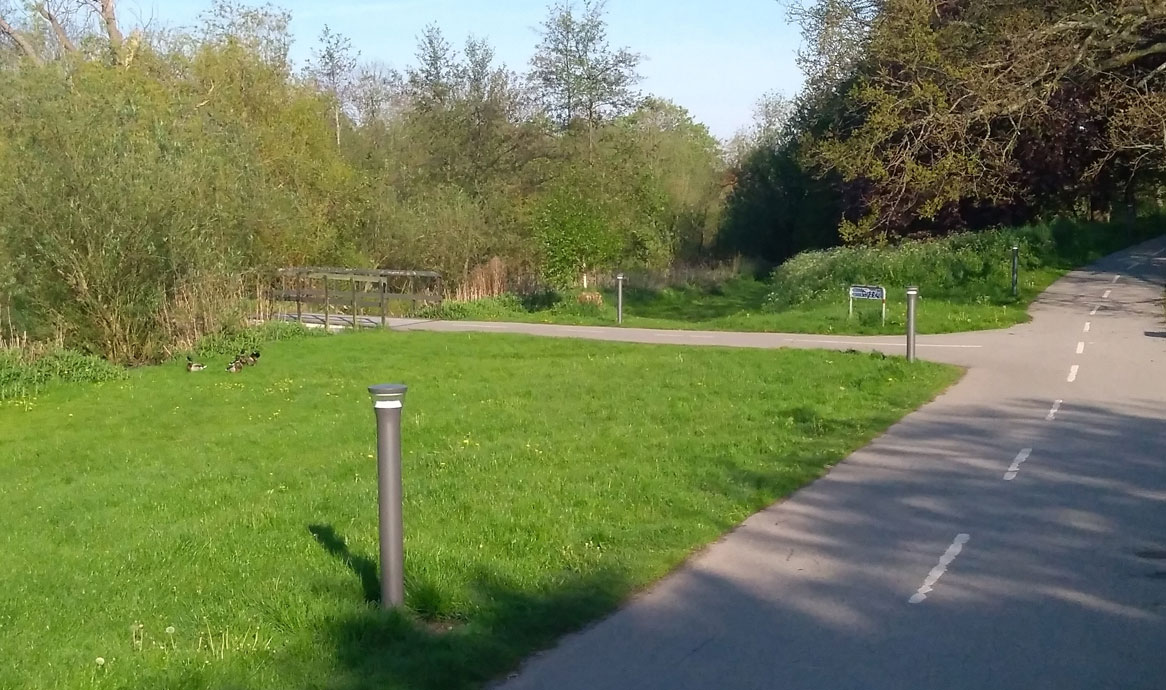

skypullert_mosede_1166_2

Sky Bollard, graphite grey - Greve Kommune

skypullert_askim_1166_1

In this application at Askim, south of Gothenburg, Sweden, the Sky Bollard is closed at one side in order to avoid light into the surroundings.

Umbraco.Cms.Core.Models.Link More images from Askim
skypullert_askim_1166_2

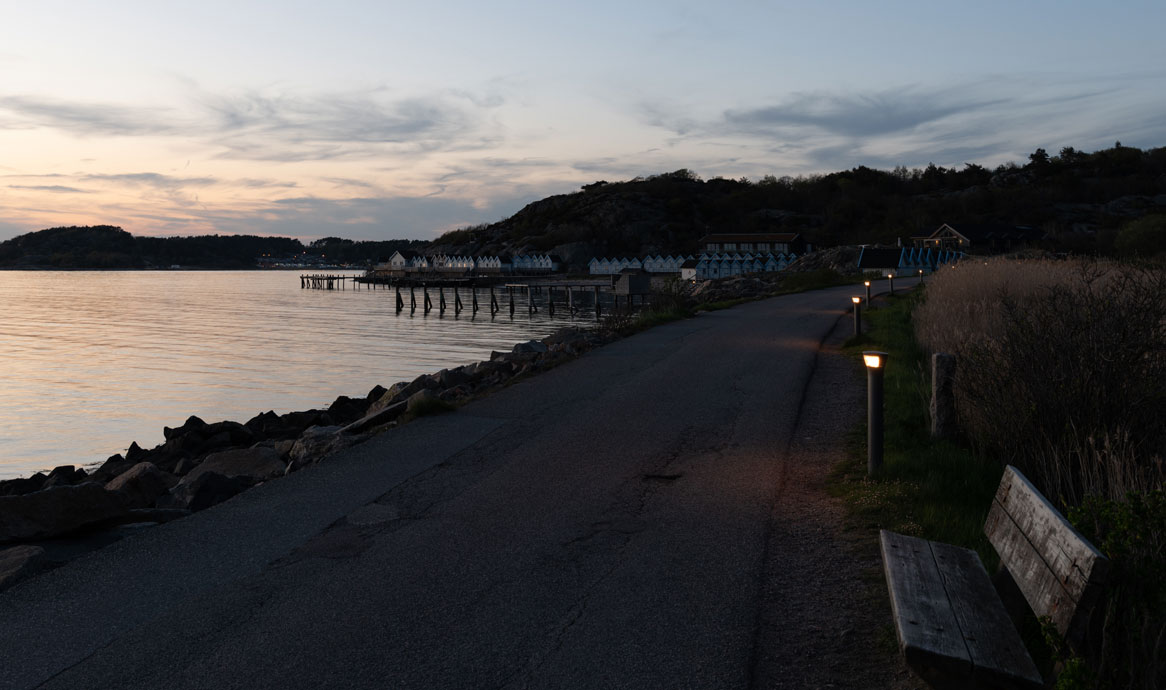

Sky Bollard at Askim south of Gothenburg, Sweden.

Umbraco.Cms.Core.Models.Link More images from Askim
skypullert_askim_1166_4

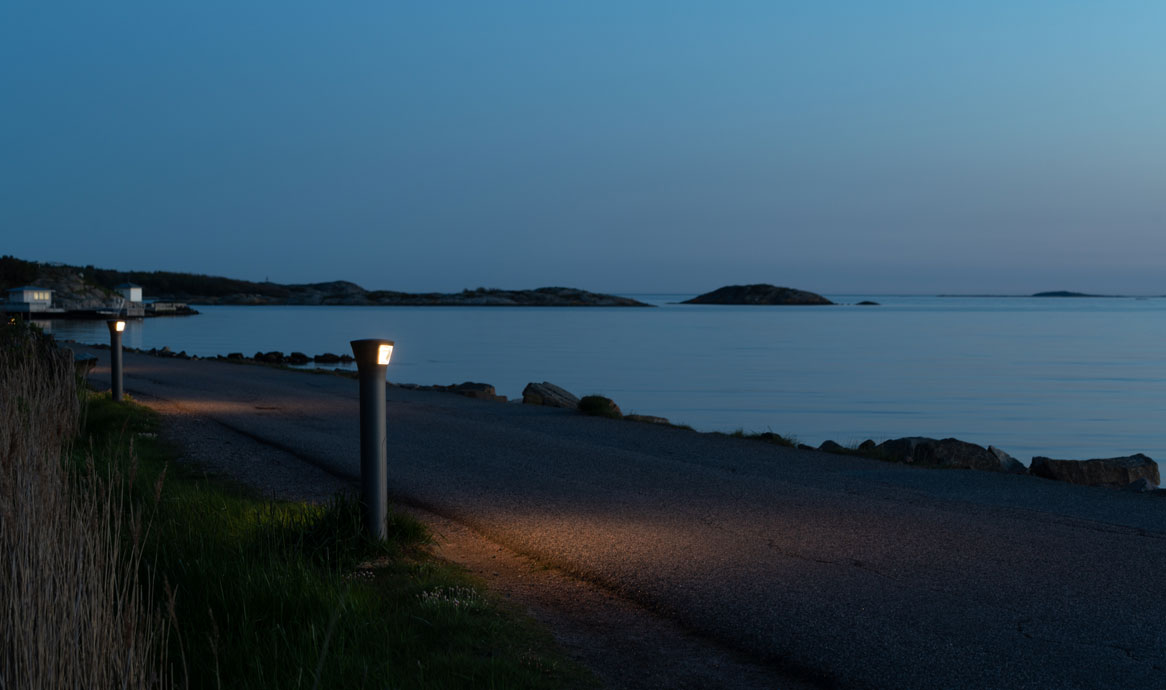

In this application at Askim, south of Gothenburg, Sweden, the Sky Bollard is closed at one side in order to avoid light into the surroundings.

Umbraco.Cms.Core.Models.Link More images

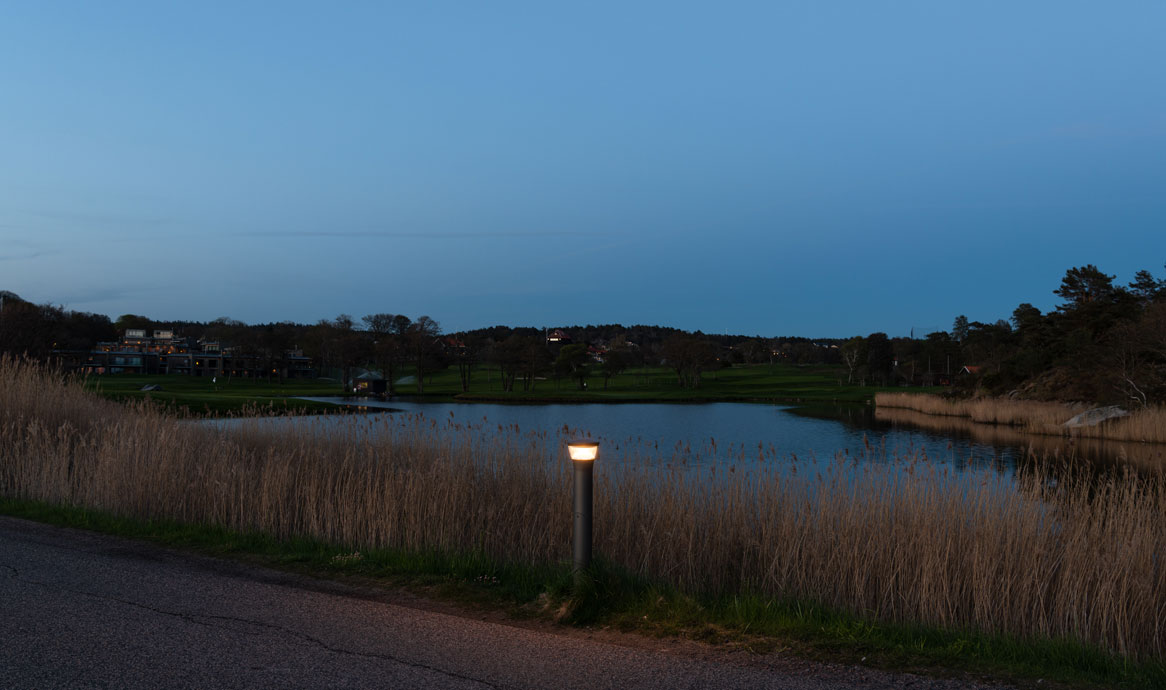

skypullert_askim_1166_3

Sky Bollard, Askim, Gothenburg, Sweden

Umbraco.Cms.Core.Models.Link More images

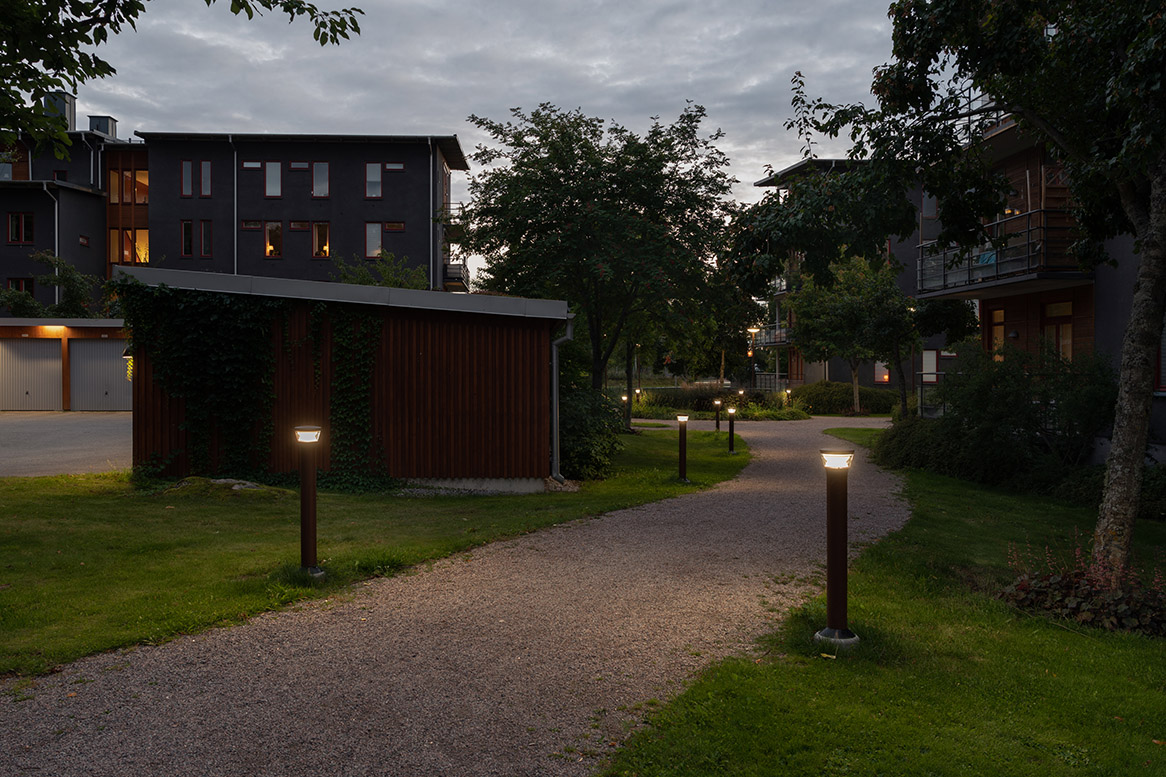

skypullert_oerebro_1166_1

Sky Bollard, corten brown, residential area in Örebro, Sweden

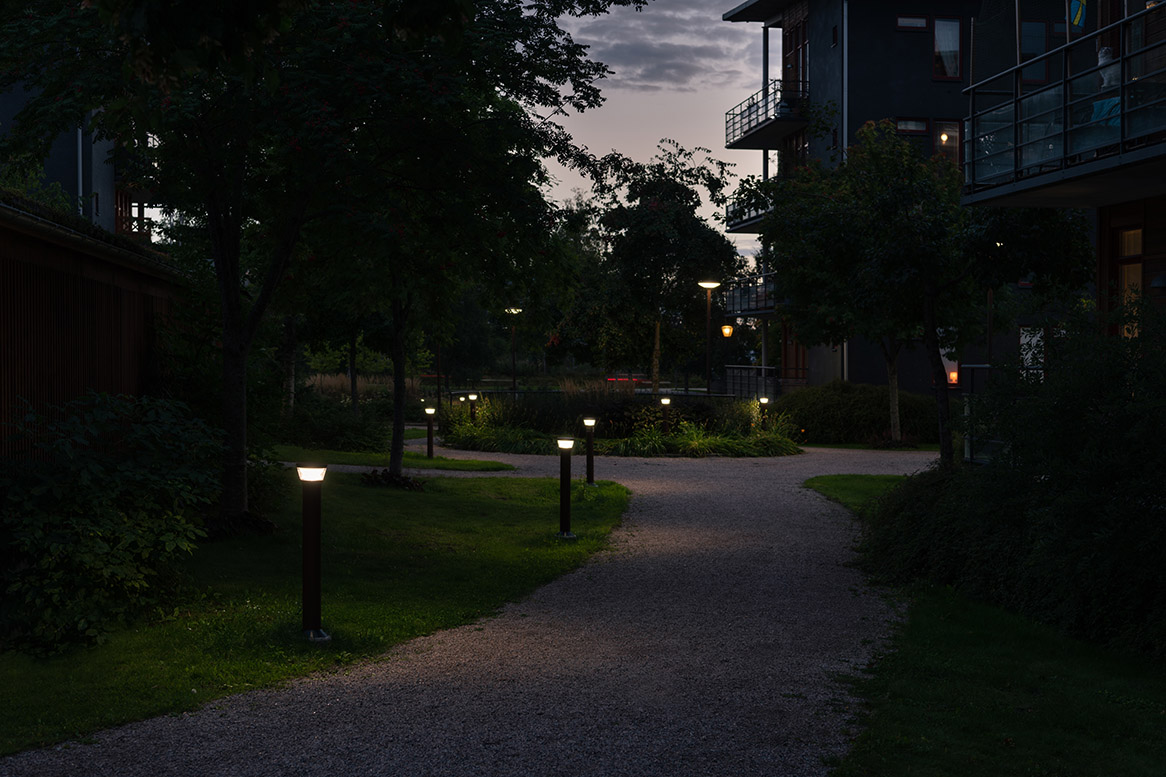

skypullert_oerebro_1166_2

Sky Bollard and Space, corten brown, residential area in Örebro, Sweden

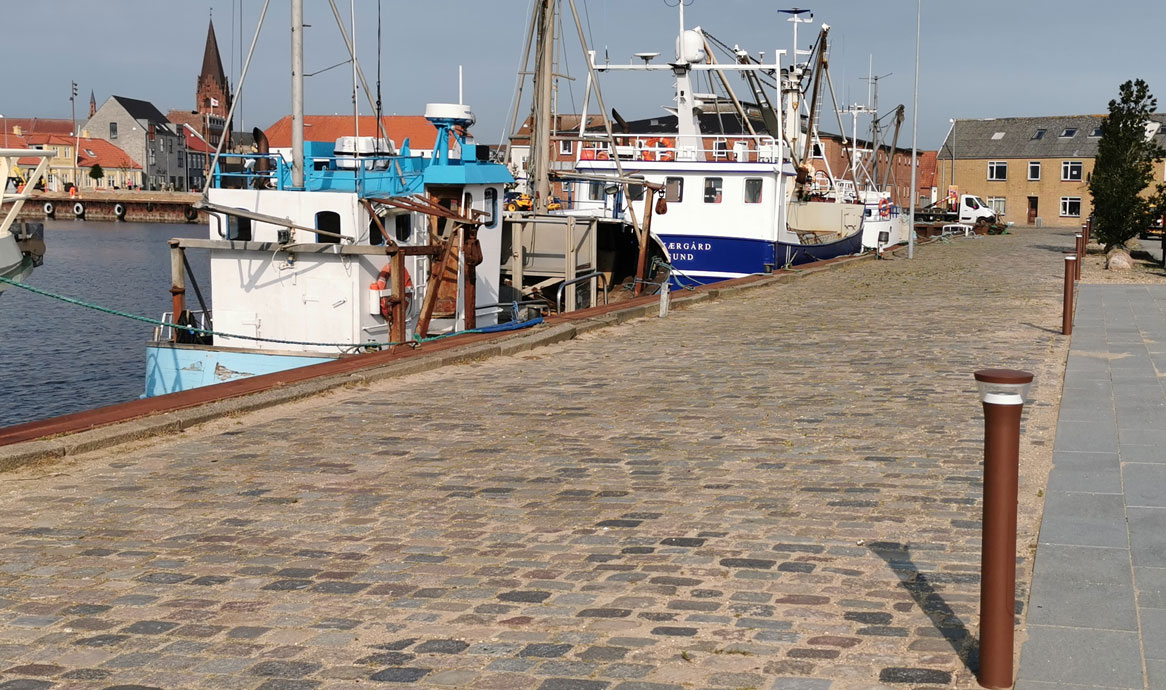

skypullert_morsoe1_1166

Sky Bollard, corten brown, at the harbour in Nykøbing, Morsø Kommune

skypullert_morsoe2_1166

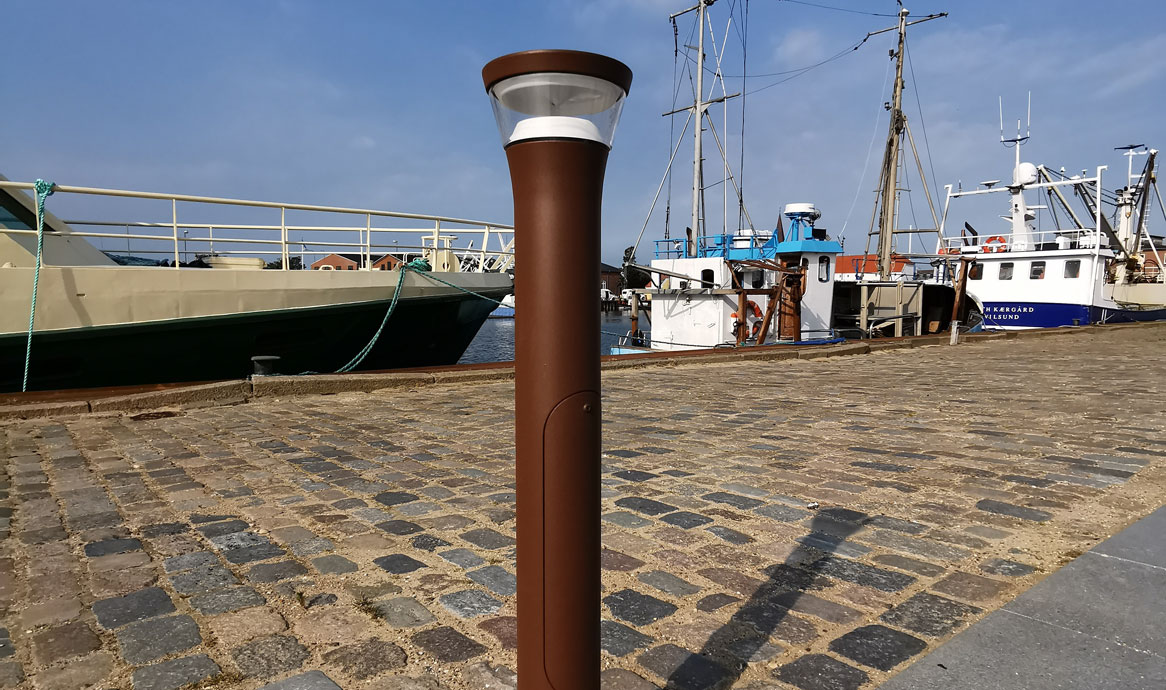

Sky Bollard, corten brown, at the harbour in Nykøbing, Morsø Kommune

skypullert_tampere_1166

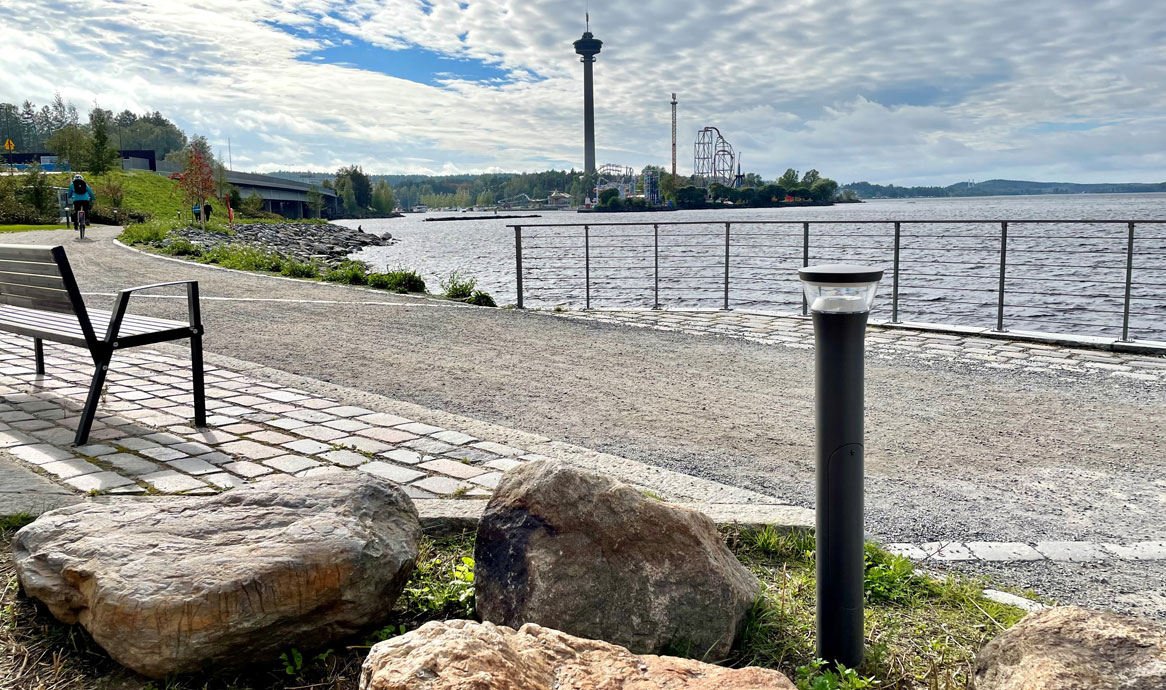

Sky Bollard, graphite grey, Tampere, Finland

skypullert_tampere_1166_1

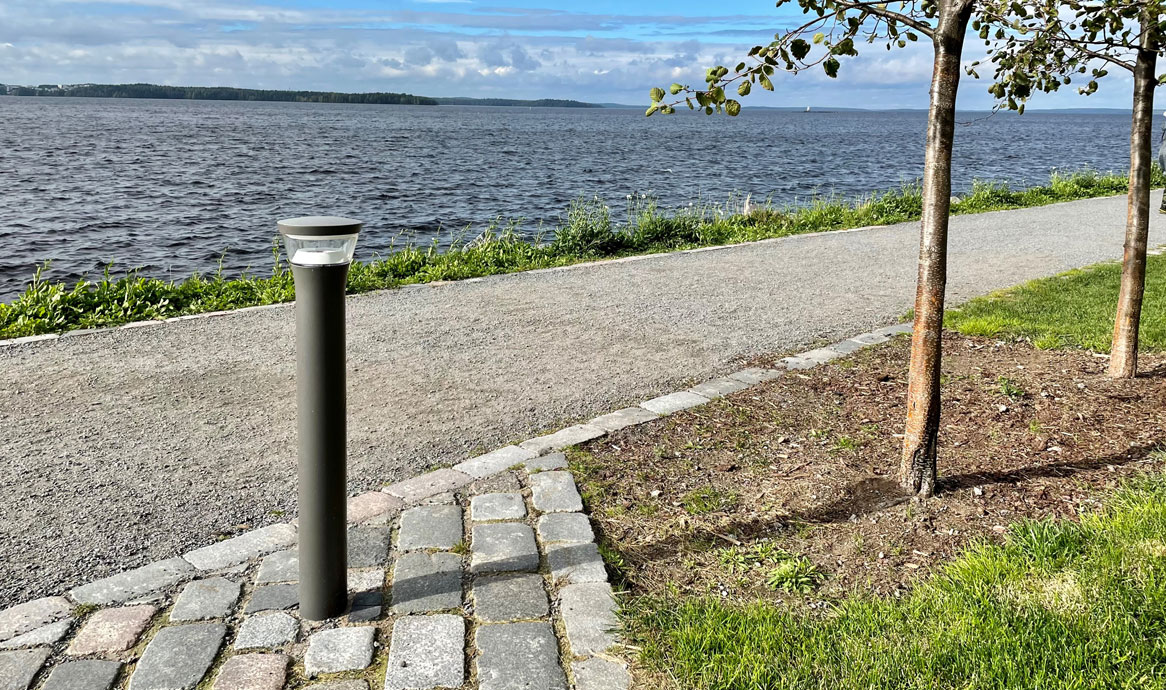

Sky Bollard, graphite grey, Tampere, Finland

skypullert_delta8_1166_2

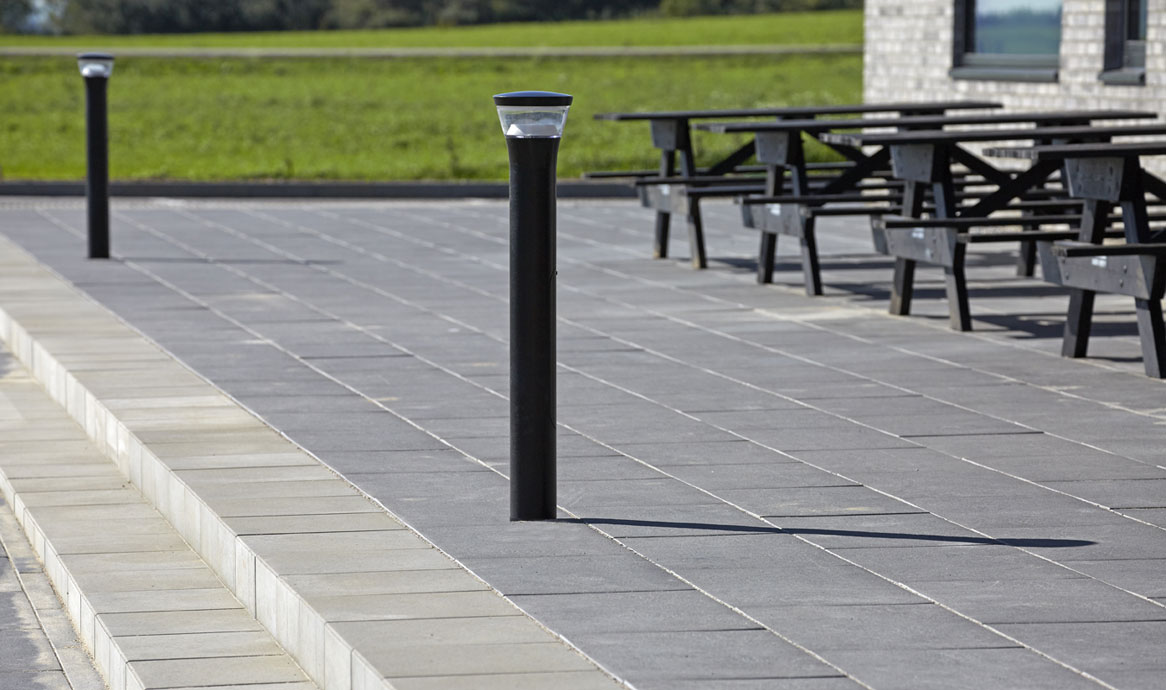

Sky Bollard, black, Delta 8 Business Park, Hinnerup.

skypullert_delta8_1166_1

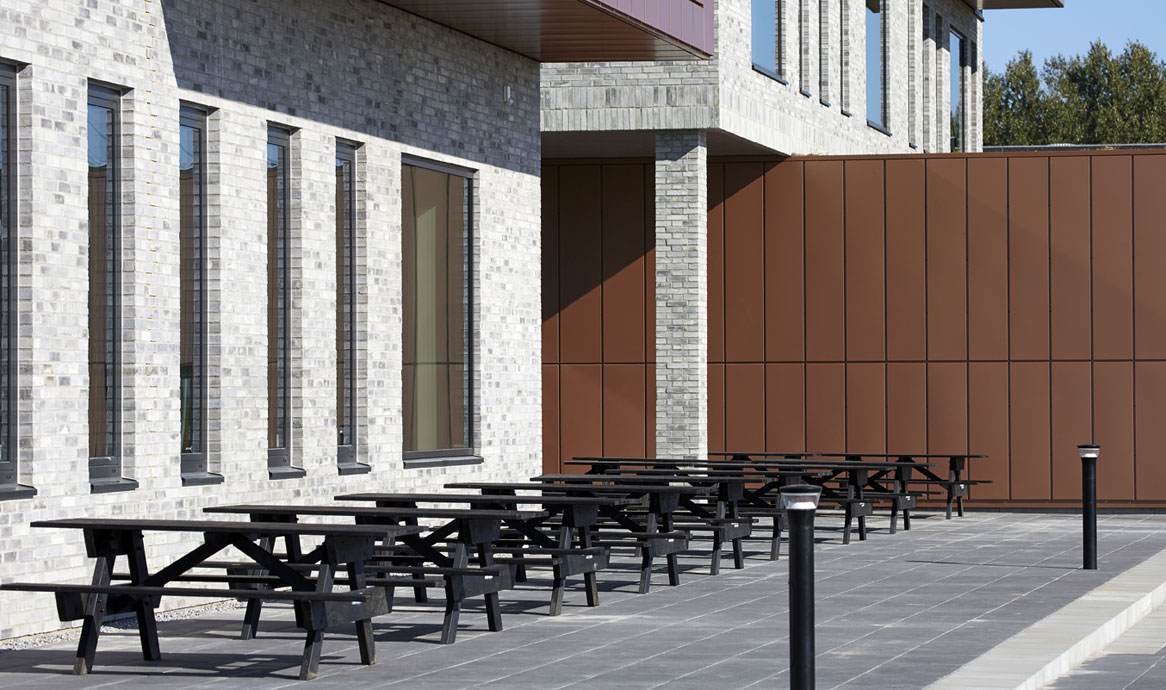

Sky Bollard, black, Delta 8 Business Park, Hinnerup.

skypullert-beder_1166

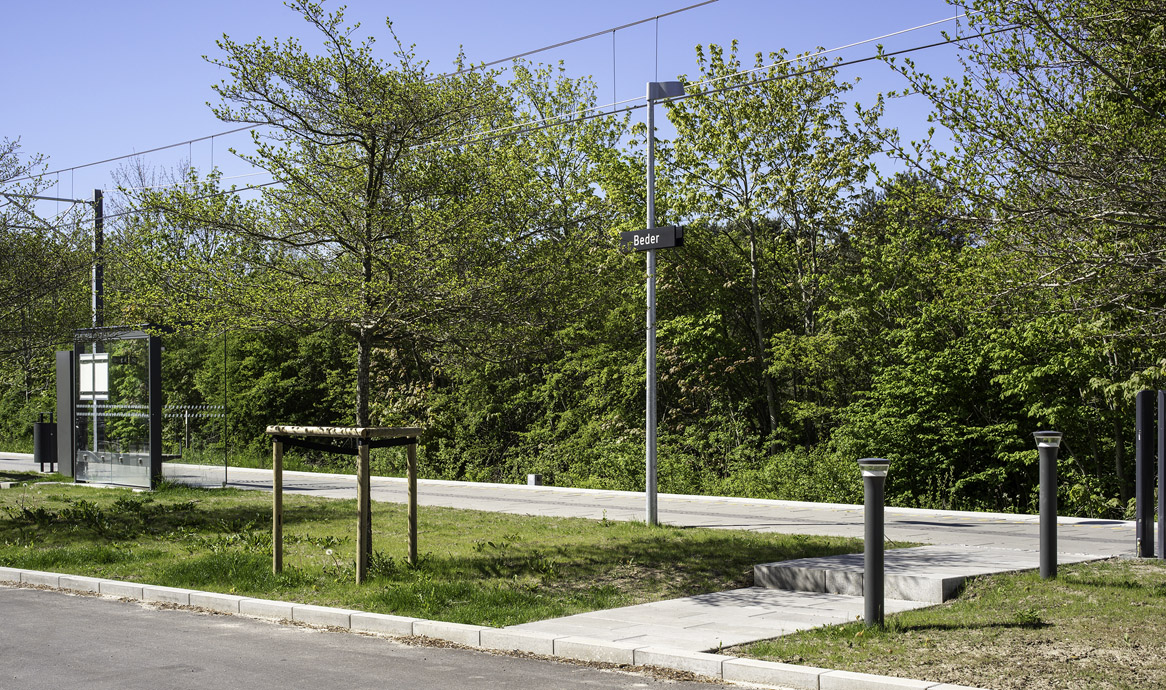

Sky Bollard and Sky Park are widely used at the Aarhus Light Rail stations - here with Nyx 330 at Beder Station.

Umbraco.Cms.Core.Models.Link More photos from Aarhus

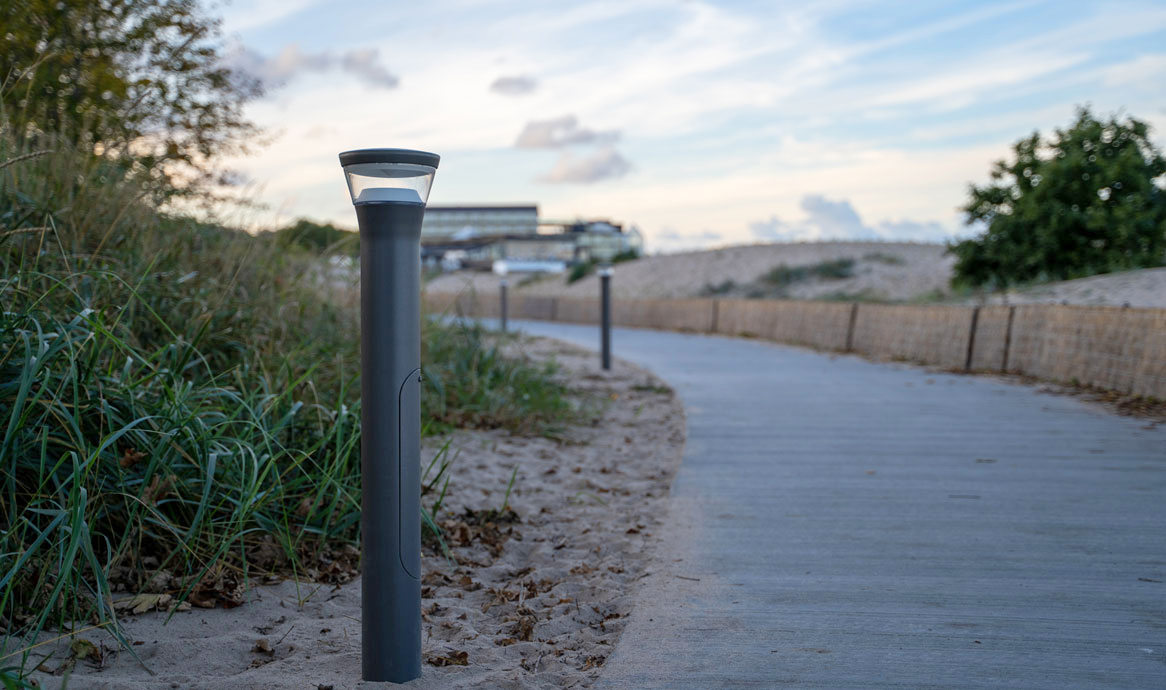

skyp_helsingor_10_1166_ny

Sky Bollard, graphite grey, residential area at the waterfront in Helsingor.

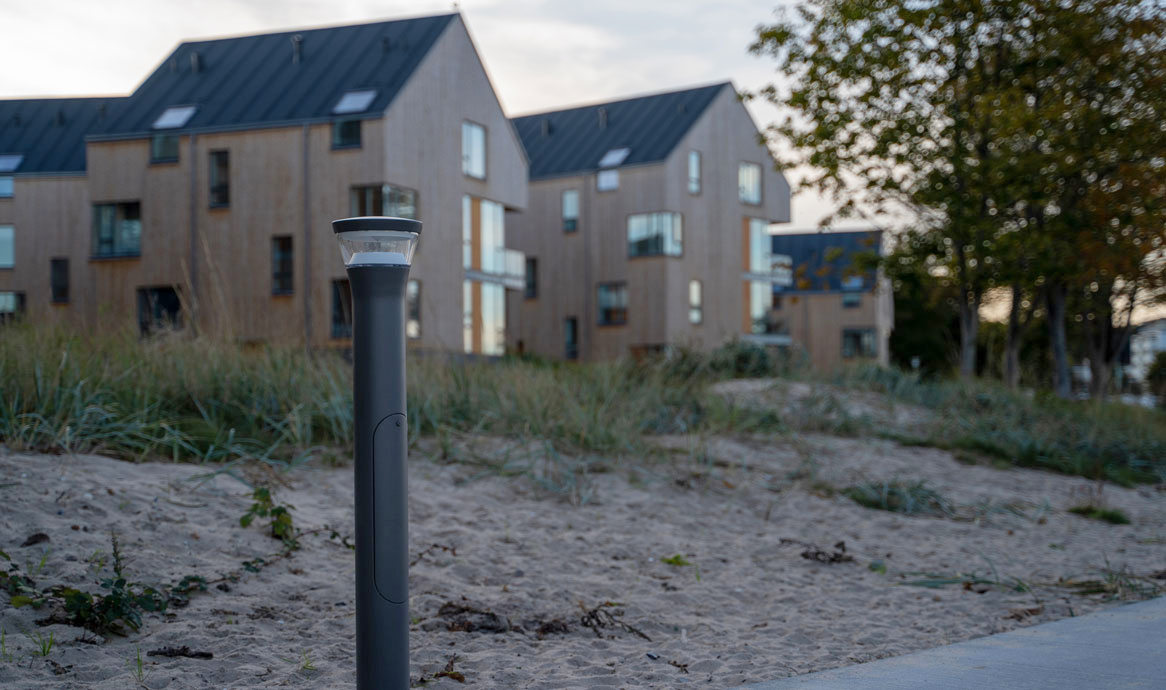

skyp_helsingor_12_1166_ny

Architema Architects have designed 24 timber houses at the Helsingor Waterfront. Lighting in terrain: Sky Bollard

skyp_nyborg_21577_1166

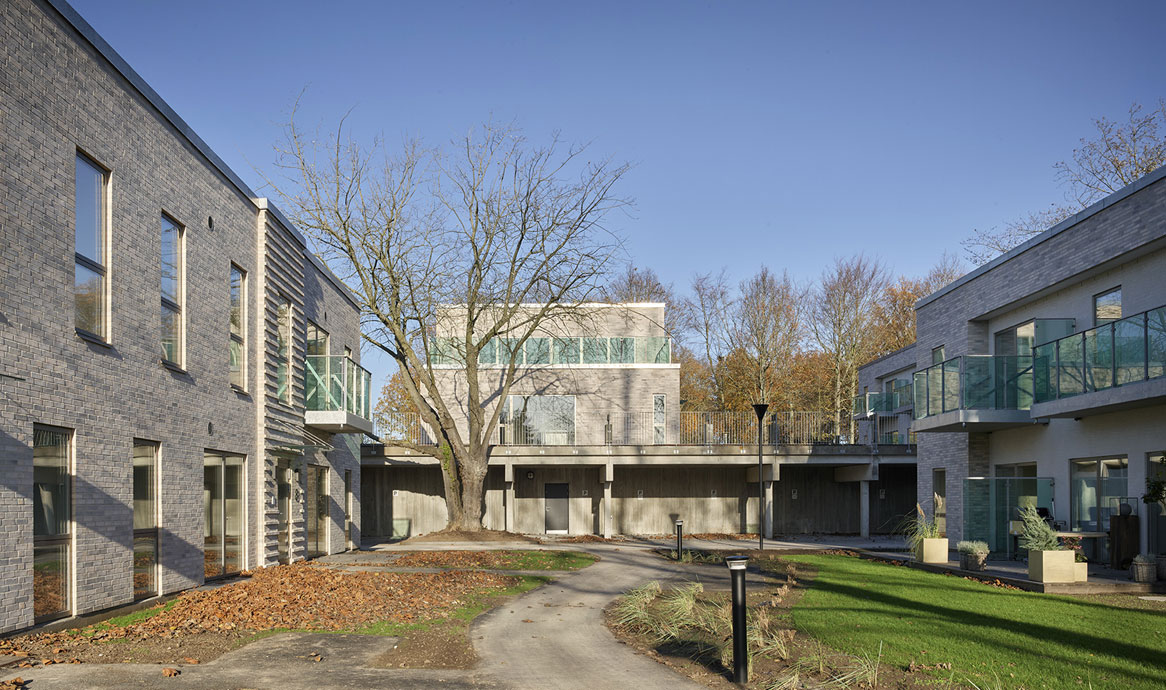

Sky Bollard, black, Strandhøjen, Nyborg. Photo: Kirstine Mengel

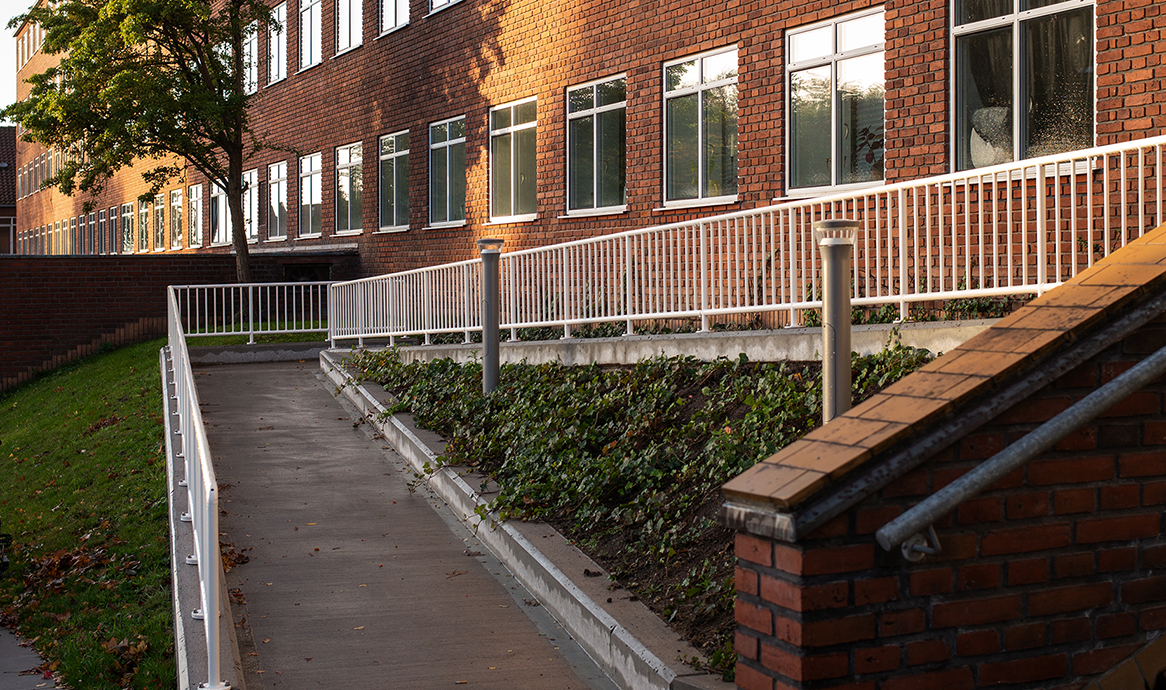

skypullert_studieboliger_1166_1

Sky Bollard at the former Kommunehospital in Aarhus. Today it is students' housing (AART Architects)

skypullert_studieboliger_1166_2

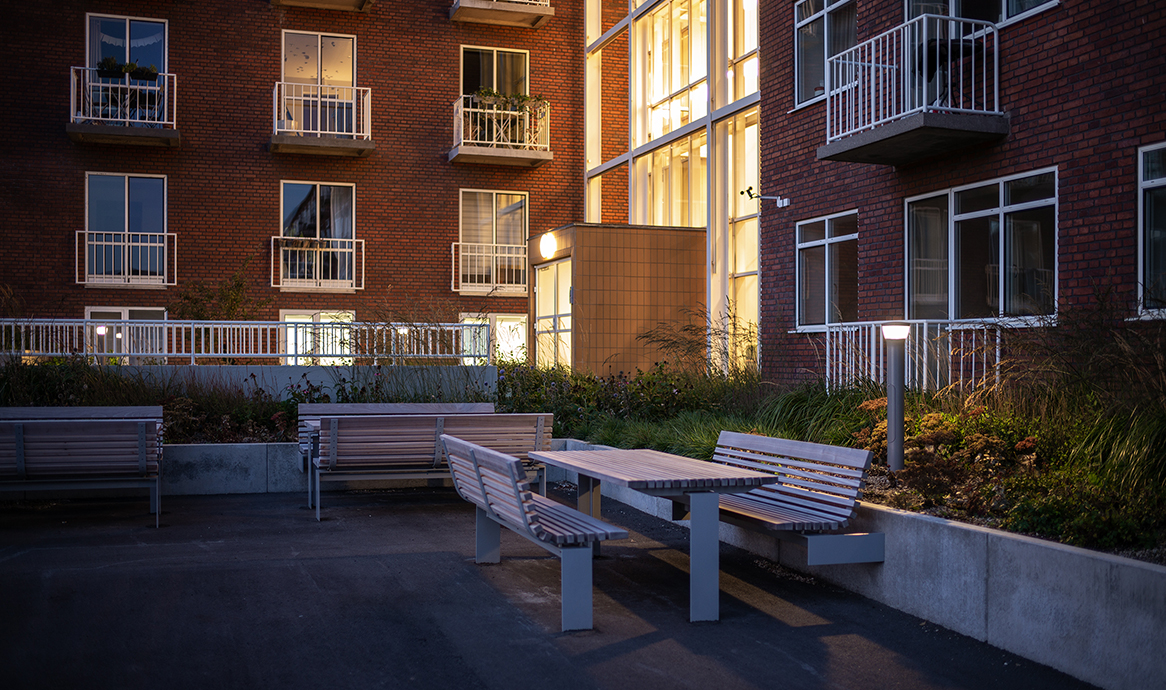

Sky Bollard at the former Kommunehospital in Aarhus. Today it is students' housing (AART Architects)

skypullert_studieboliger_1166_3

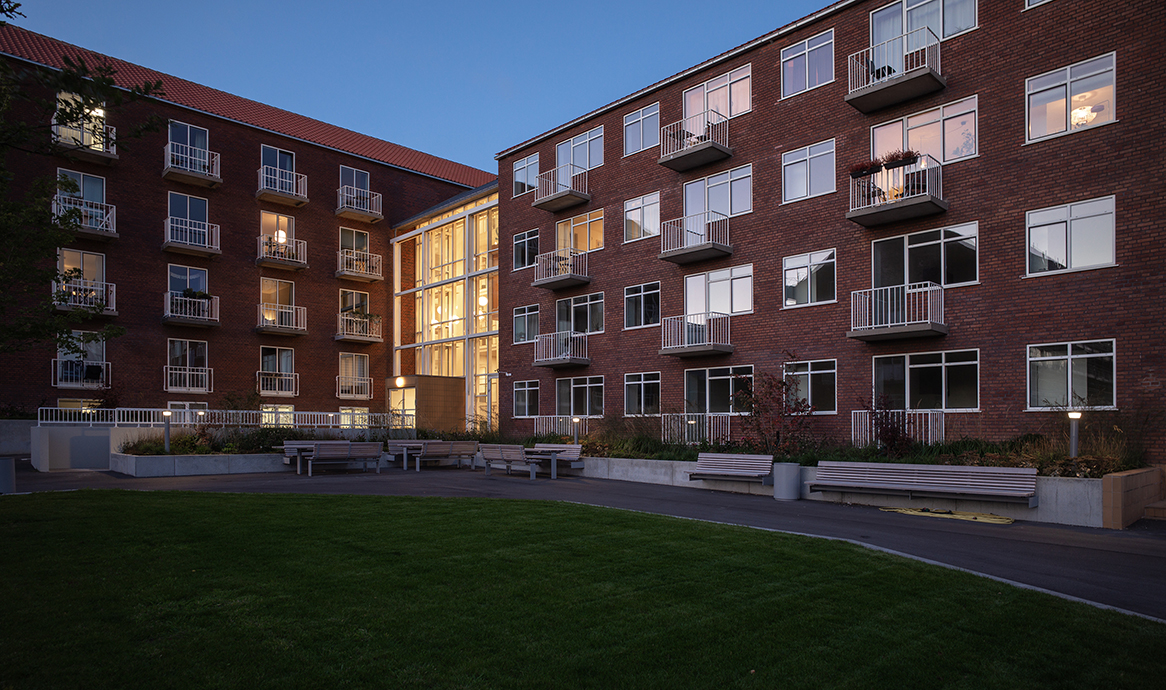

Sky Bollard at the former Kommunehospital in Aarhus. Today it is students' housing (AART Architects)

DesignAART Designers

AART designers have created Sky as a minimalist luminaire blending discretely into its  surroundings. However, on second glance, it stands out and presents its elegant proportions, deliberately contrasting materials, as well as beautifully and functionally integrated lighting technology – both with the light on and off.
