Created for outdoor spaces, the chaste design and simple materials are as inspirational inside as out. For halls and hallways. Alone or together, in rows or perfect squares.

Simplicity liberates imagination.

Specifications

270 exterior

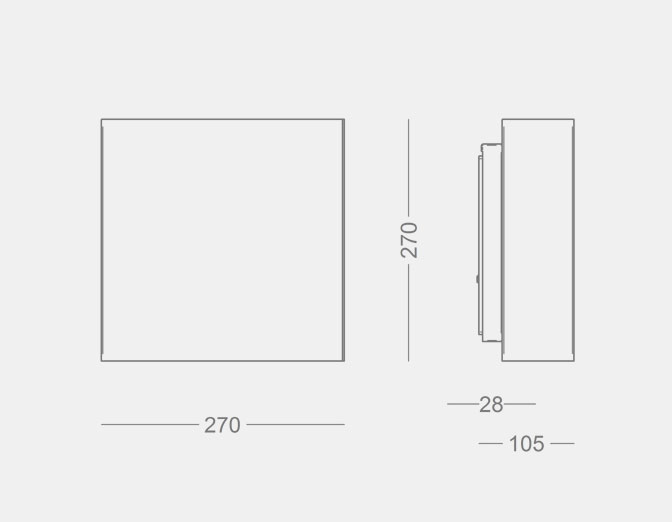

square270_skitse

Luminaire

SQUARE 270
Material Galvanised or coated steel, or copper
Coating White: RAL 9010
Black: RAL 9005
Black: Noir 900 Sablé, SN351F
Graphite grey: YW355F
Corten brown: YX355F
Shade Opal-white polycarbonate
Cut-out Digits can be cut in the front. See specification in the pdf with product data.
Mounting On wall or wall box
Connection Max two cables into 5 x 2.5 mm2 terminal block
Classification IP45, class I or II
Impact resistance IK09
Weight 2.5 kg

LED and driver data

LED type Bridgelux Vero 10 + V6
Operational life min 100,000 hours at ta max 25° C, L90B10
Total consumption 15 or 20 W
Total consumption, downwards 12 W
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 90 Ra
Colour accuracy 3 steps SDCM
Output ratio 62%

Driver LED driver, 20 or 32 W
Dimming optional
Operational life min 100,000 hours
Alternative Driver and sensor (radar) for wireless control

Variants

Item No. Square 270 exterior
6824- 15 W LED, 350 mA
6827- 20 W LED, 500 mA
6825- 12 W LED, 350 mA, downwards only

Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
1 = white 927 = 2700 K, 90 Ra
3 = black RAL 9005 930 = 3000 K, 90 Ra
4 = graphite grey 940 = 4000 K, 90 Ra
8 = brushed copper
9 = galvanised
17 = corten brown
66 = noir 900

Dimming Classification
empty = no dimming empty = class I
V = 1-10 V K = class II
D = DALI
R = bluetooth sensor

Laser cutting in front
C = Cutting of digits in front

Example Item No.: 6824-66927 = Square 270, 15 W LED, noir 900, 2700 K, 90 Ra, Dali, class I

Media & downloads

musholm_square_1166

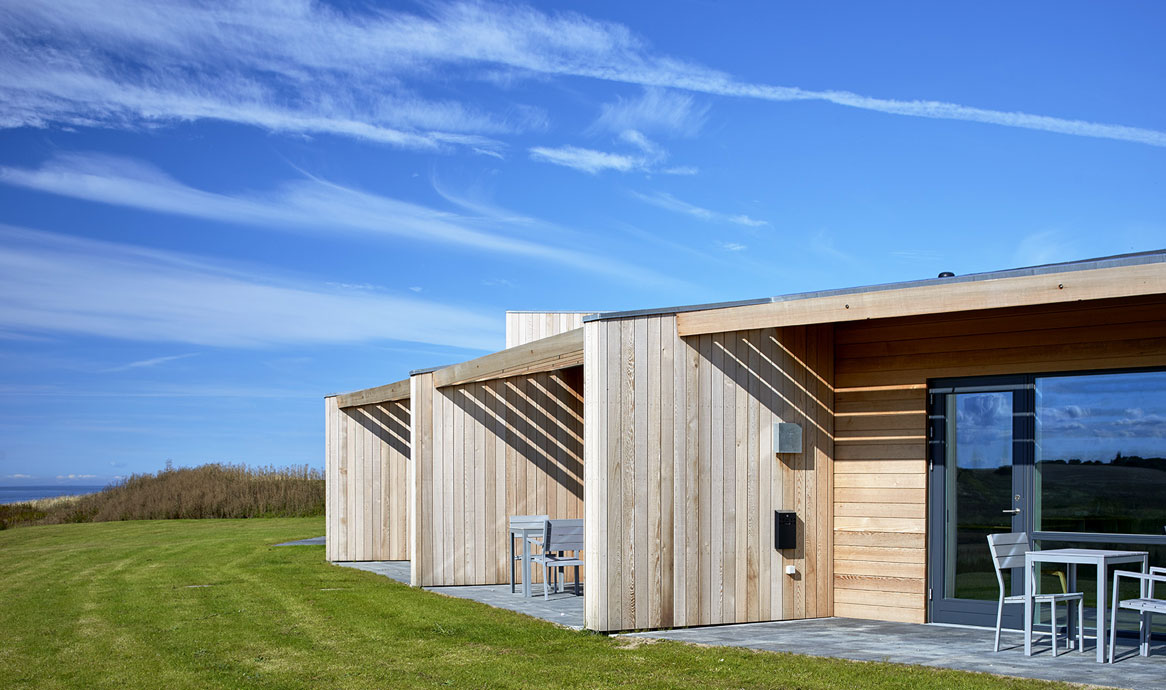

Square 270, Musholm holiday resort, Korsør.

Umbraco.Cms.Core.Models.Link Se flere billeder fra Musholm Feriecenter.
square_nyborg_21586_1166

Square luminaires underline the architecture at Strandhøjen, Nyborg. Photo: Kirstine Mengel

square_nyborg_21589_1166

Square luminaires underline the architecture at Strandhøjen, Nyborg. Photo: Kirstine Mengel

square250_sort_odder_1166

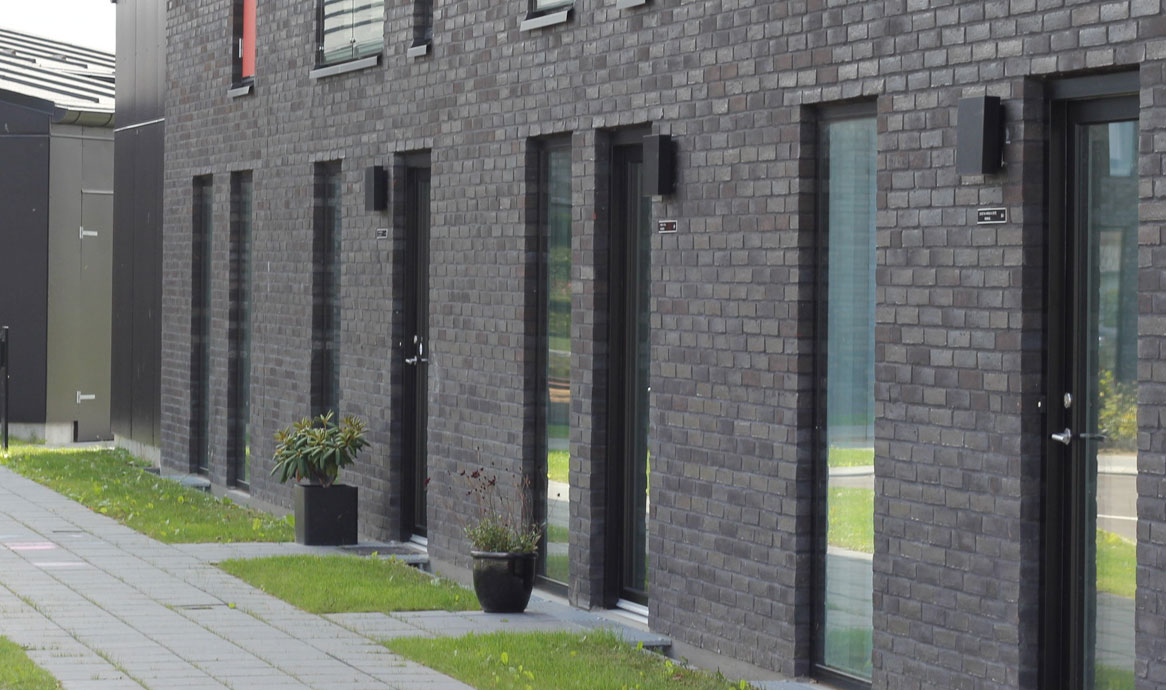

Square 250 black - Odder Residential Association

Umbraco.Cms.Core.Models.Link More Square here
squarestd_sort_odder_1166

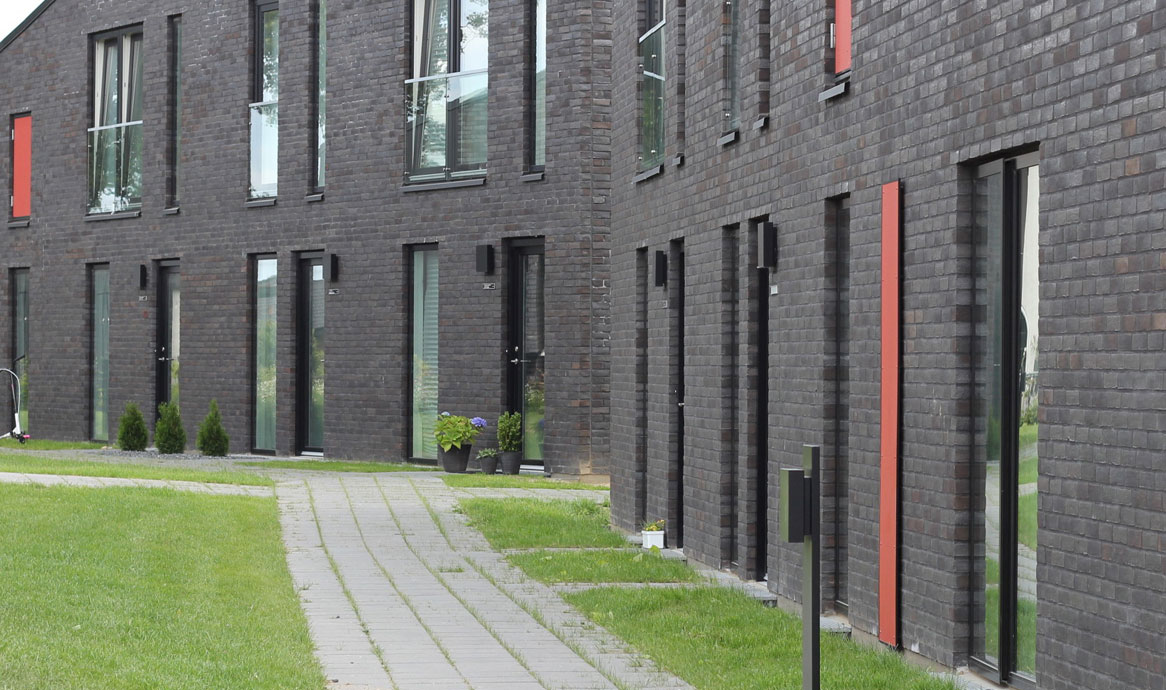

Square Bollard + Square 250 black, Odder

fyrkildevej_9325_1166

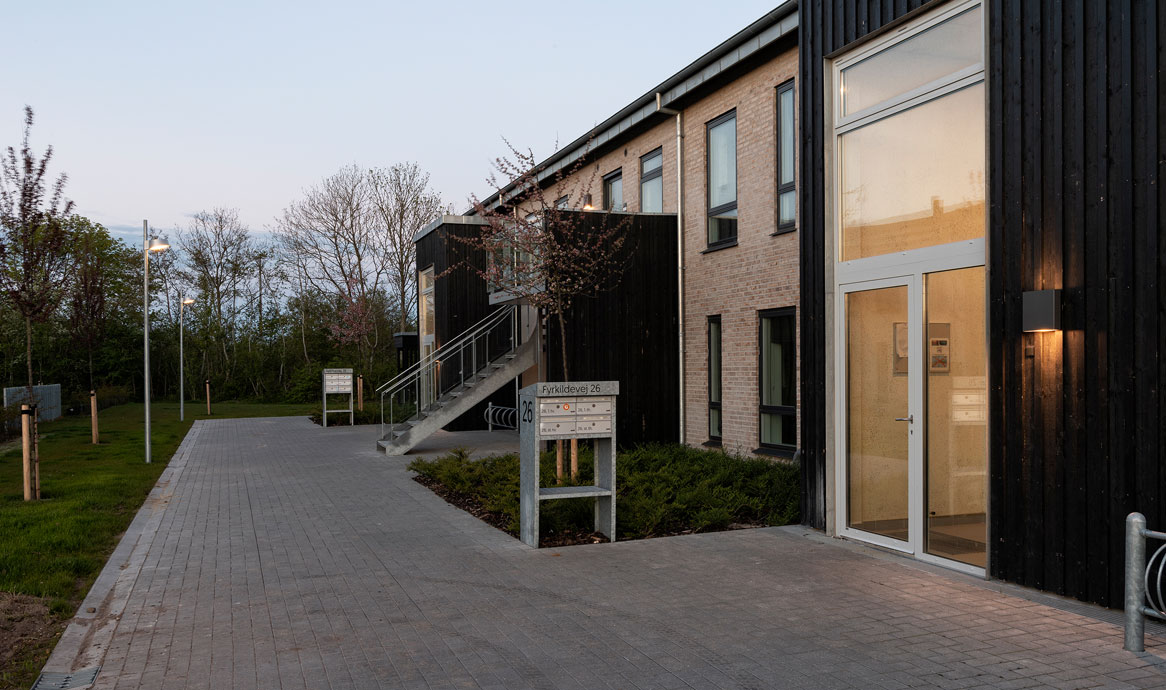

Square 250 graphite grey and Nyx 330 silver grey illuminate the newly renovated Aalborg East area.

fyrkildevej_9342_1166

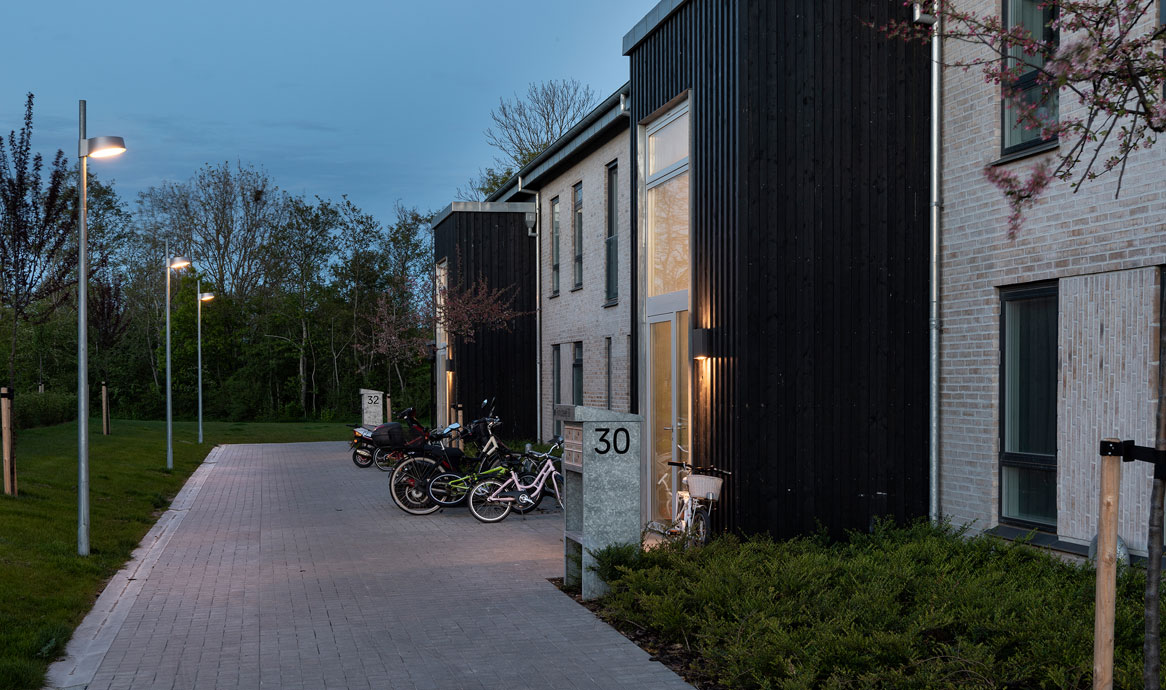

Square 250 graphite grey and Nyx 330 silver grey illuminate the newly renovated Aalborg East area.

square_8285_close_1166

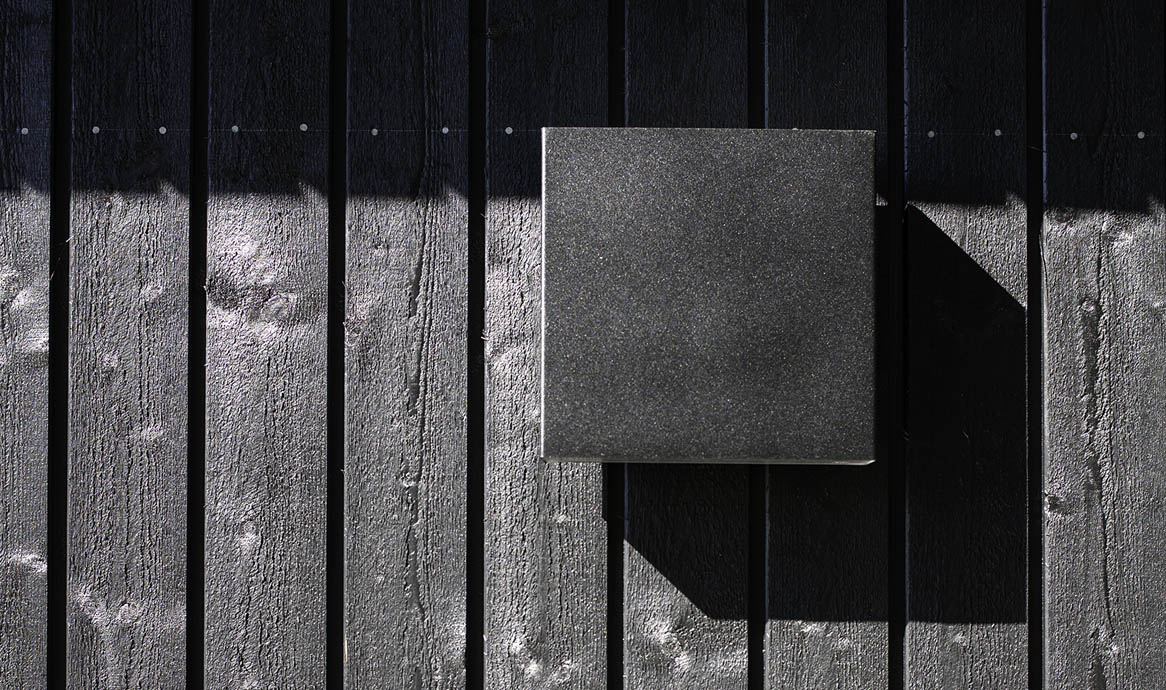

Square in black noir 900 at black wood. Cubo summer cottage near Aarhus.

Umbraco.Cms.Core.Models.Link More photos
square_8263_1166

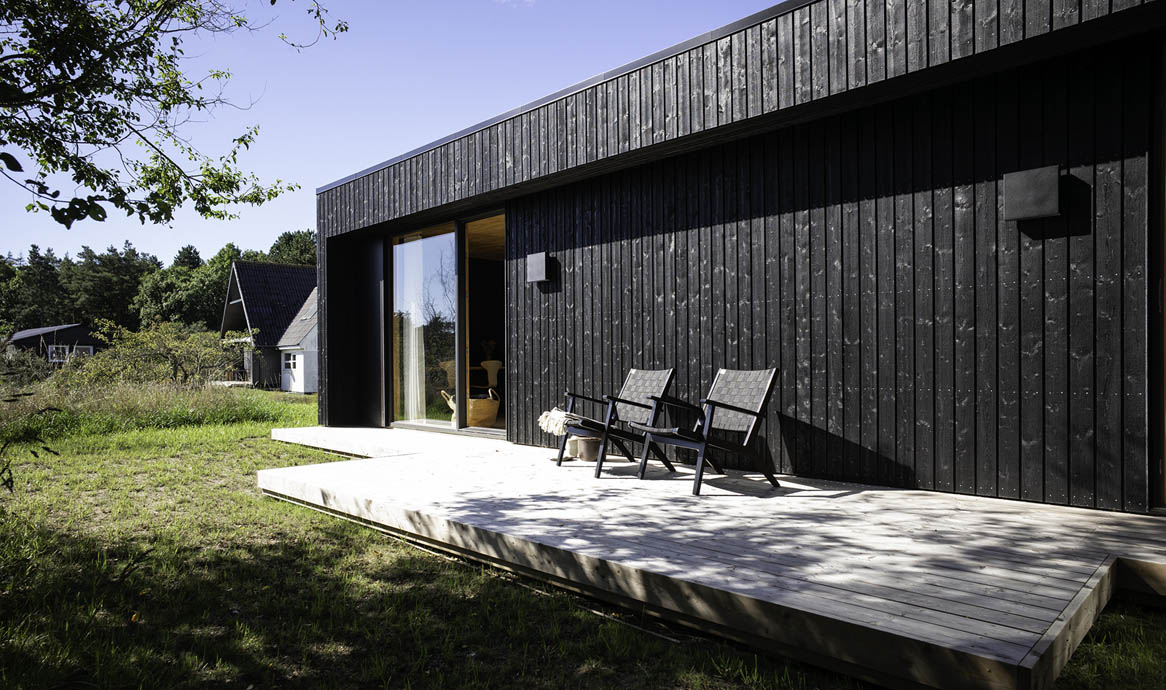

Elegant black versions of Square and Pelée are used in two summer cottages by Cubo Architects.

Umbraco.Cms.Core.Models.Link More photos
sq250_ladegd_1166_3

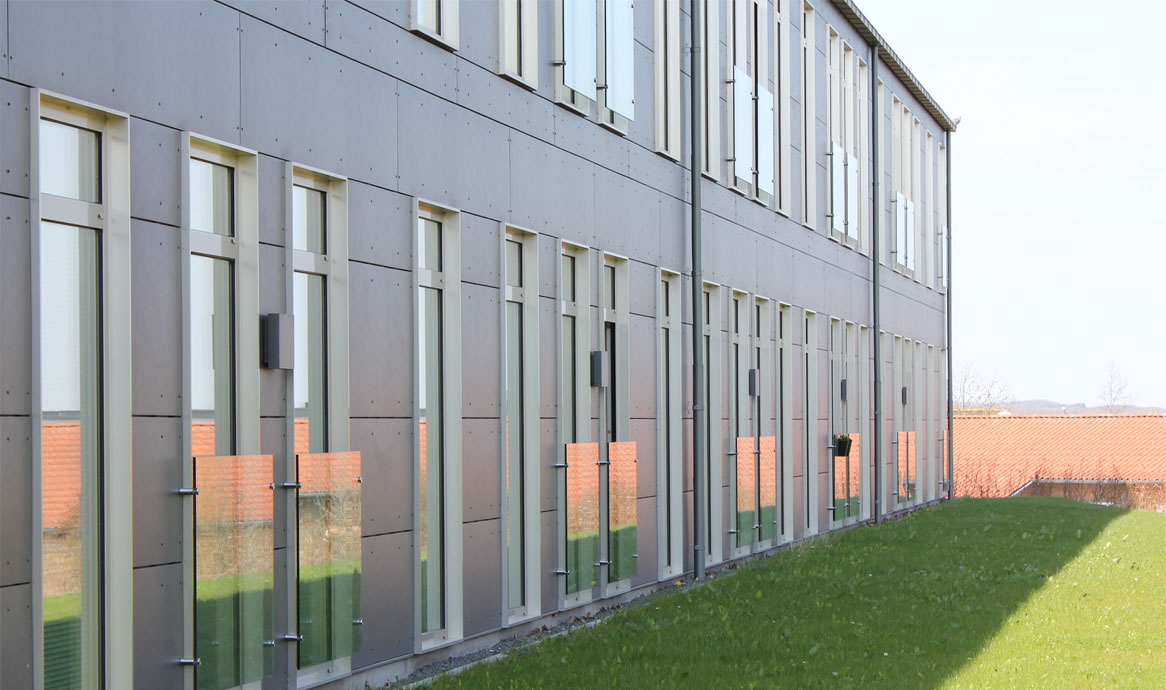

Square 250 graphite grey - Ladegaard College, Aarhus

Umbraco.Cms.Core.Models.Link More photos here
square250_christiansgd_1166

Square 250 black - Christiansgade, Aarhus

Designschmidt hammer lassen design

Square - and Sticks - are designed in 1999, and both designs have pathed the way within their fields of application.

The simple, minimalist design enhances the form, and the light is not dominant.

More about schmidt hammer lassen here.
