H+M PENDANT 300

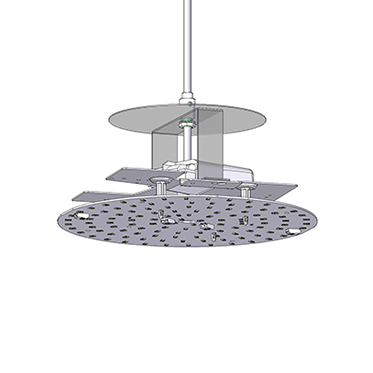

Complete LED module for easy and energy-efficient upgrade of existing H+M 300 pendants.
Specifications
H+M PENDANT 300
LED and driver data
| LED type | 244 mm board |
|---|---|
| Operational life | min 50,000 hours at ta max 25° C, L80B10 |
| Total consumption | 11 or 15 W |
| Colour temperature | 2700, 3000 or 4000 Kelvin |
| alternatively 2700-6500 dynamic | |
| Energy eff. class | 2700 K: E, 3000/4000/6500 K: D |
| Colour rendering | min 90 Ra |
| Colour accuracy | 3 steps SDCM |
| Driver | LED driver, 20 W |
|---|---|
| Dimming optional | |
| Inrush current | max 5 A (50% after 50 µs) |
| Operational life | min 50,000 hours |
Variants
| Item No. | |
|---|---|
| 1905- | 11 W, 350 mA |
| 1906- | 15 W, 500 mA |
Combine with
| Colour temperature | Dimming |
|---|---|
| 927 = 2700 K, 90 Ra | V = 1-10 V |
| 930 = 3000 K, 90 Ra | D = Dali |
| 940 = 4000 K, 90 Ra | |
| 9WD = 2700-6500 K, Dali, 90 Ra |
