NYX 330 COMFORT

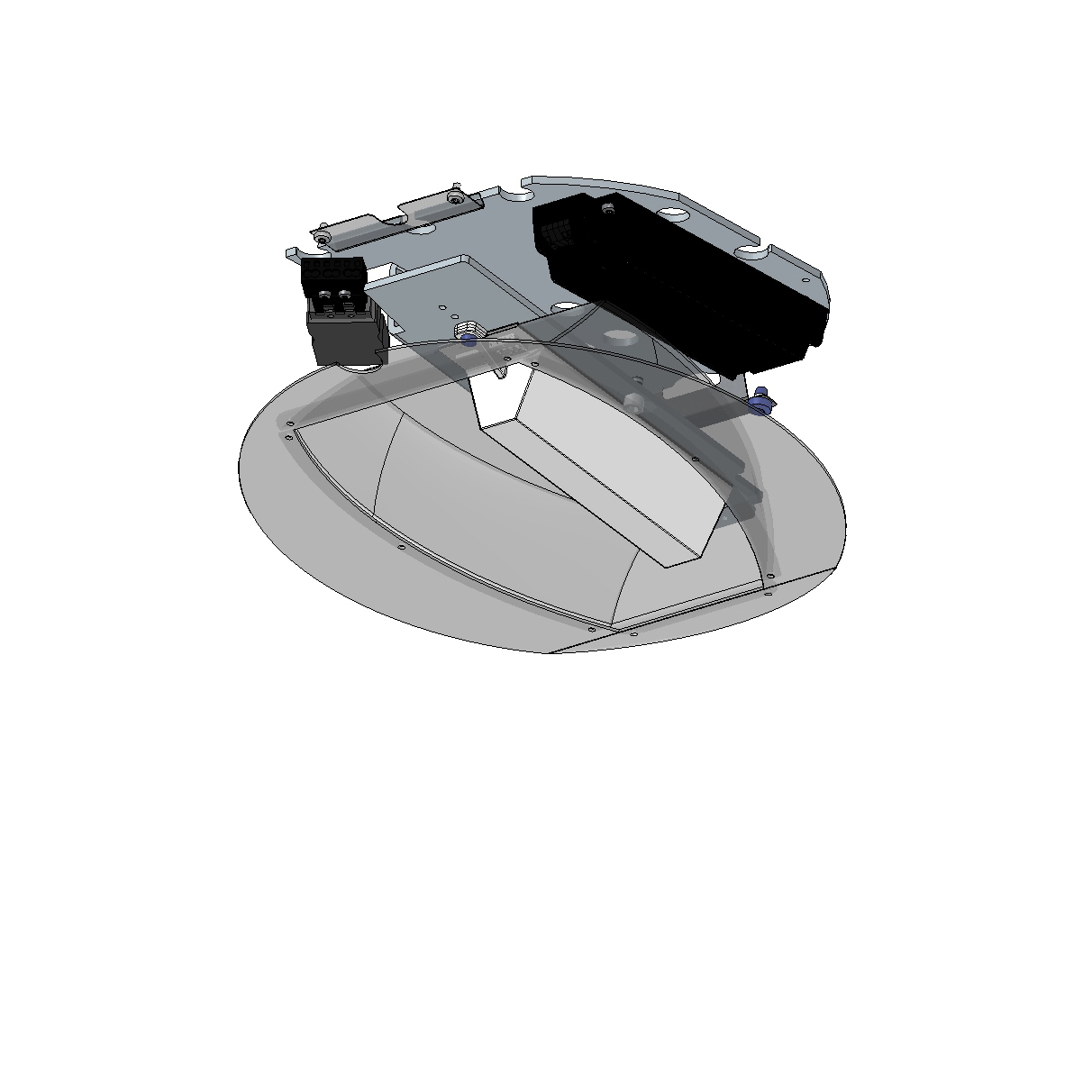

Complete LED modules for easy and energy-efficient upgrade of existing Nyx 330 luminaires.
Specifications
Specification
LED and driver data
| LED type | Comfort, programmable |
|---|---|
| Operational life | min 100,000 hours at ta max 25° C, L90B10 |
| Constant lumen output | |
| Temperature range | -30 to +35° C |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Colour rendering | Ra 70 or 80 |
| Colour accuracy | 5 steps SDCM |
| Luminous flux | The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire. |
| LED-lumen, 80 Ra | 2700K: 300-3000 lm |
| 3000K: 300-3150 lm | |
| 4000K: 300-3350 lm | |
| LED-lumen, 70 Ra | up to 3850 lm |
| Output ratio | 74% |
| Glare index class | D4 |
| Driver | Xitanium Full Xi FP 40 W 0.3-1.0 A, programmable |
|---|---|
| Inrush current | max 22 A (50% after 290 µs) |
| Surge protection | L/N-GND: 10 kV, (SR driver: 8 kV) |
| L-N: 6 kV | |
| Operational life | min 100,000 hours |
| Dimming/programming | 5 steps dimming within the lumen intervals |
| Other control options | Dali-2, LineSwitch or |
| via Zhaga book 18 socket |
Variants and options
| Item No. | |
|---|---|
| 1920- | 32 W, 2x6 DA |
| Options | |
|---|---|
| Shade prepared for Zhaga socket |
Combine with
| Colour temperature | Dimming/control |
|---|---|
| 730 = 3000 K, 70 Ra | empty = programmable |
| 740 = 4000 K, 70 Ra | D = Dali-2 (4/5 conductor) |
| 827* = 2700 K, 80 Ra | F = LineSwitch |
| 830* = 3000 K, 80 Ra | S = Zhaga book 18 socket, downwards* |
| 840* = 4000 K, 80 Ra | * New shade required |
| * Note: longer lead time |
| Protection class | |
|---|---|
| empty = class II | |
| J = class I |
