QUARTO 380

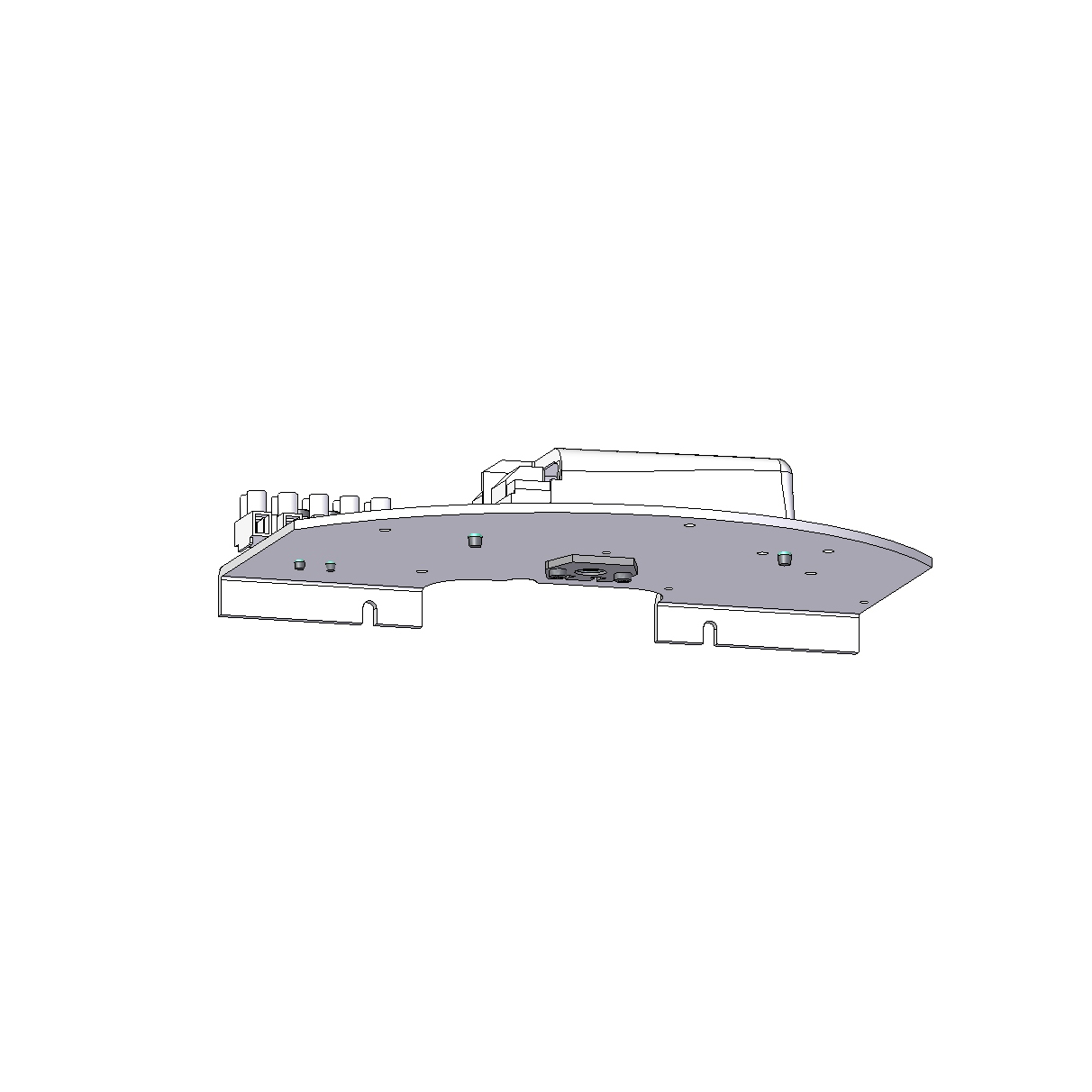

Complete LED modules for easy and energy-efficient upgrade of existing Quarto 380 luminaires.
Specifications
Specifikationer
LED and driver data
| LED type | Bridgelux V8 |
|---|---|
| Operationeal life | min 100,000 hours at ta max 25° C, L90B10 |
| Total consumption | 12 or 17 W |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Energy eff. class | F |
| Colour rendering | min 90 Ra |
| Colour accuracy | 3 steps SDCM |
| Insulation class | The LED modules fit class I and II installations |
| Driver | LED driver, 20 W |
|---|---|
| Dimming optional | |
| Inrush current | max 5 A (50% after 50 µs) |
| Operational life | min 100,000 hours |
| Alternatively | Available with driver and radar for wireless control (bluetooth) |
Variants
| Item No. | |
|---|---|
| 1913- | 12 W, 500 mA |
| 1914- | 17 W, 700 mA |
Combine with
| Colour temperature | Dimming |
|---|---|
| 927 = 2700 K, 90 Ra | V = 1-10 V |
| 930 = 3000 K, 90 Ra | D = Dali |
| 940 = 4000 K, 90 Ra | R = bluetooth sensor |
