SQUARE 270

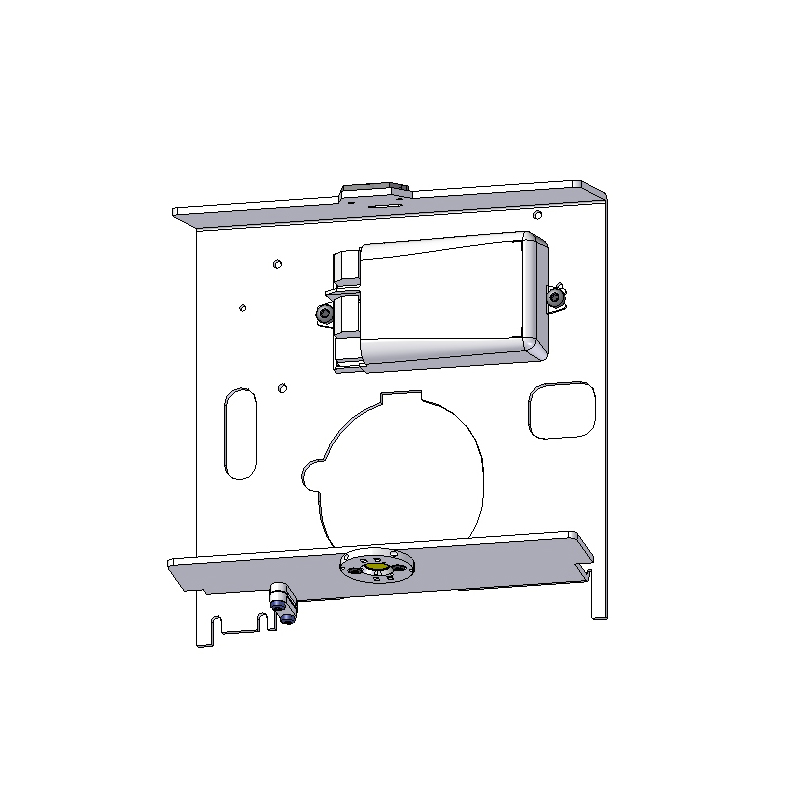

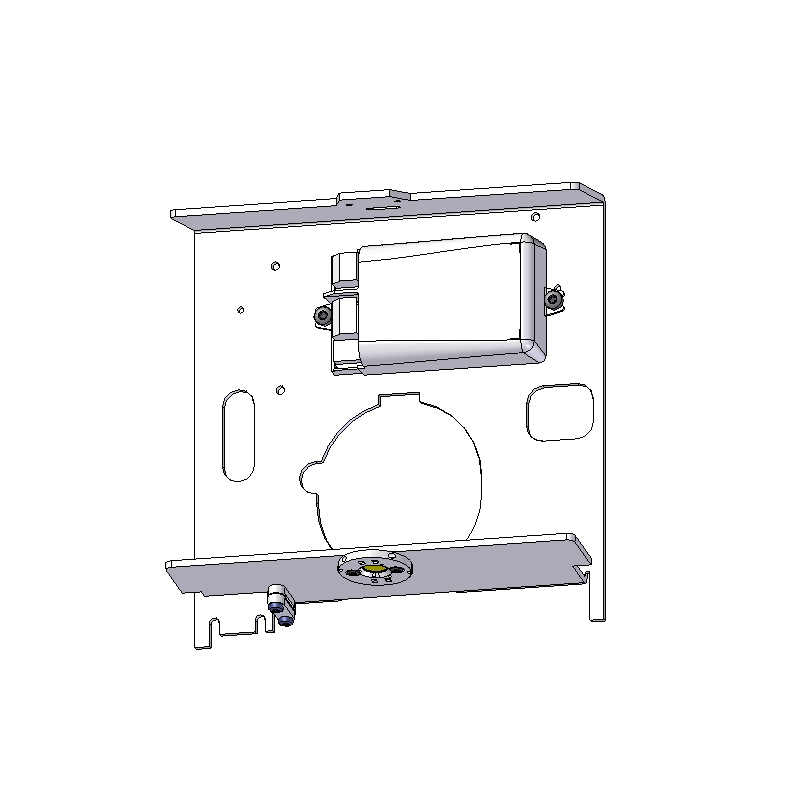

Complete LED modules for easy and energy-efficient upgrade of existing Square 270 luminaires.
Specifications
Specifikationer
LED and driver data
| LED type | Bridgelux Vero 10 + V6 |
|---|---|
| Operational life | min 100,000 hours at ta max 25° C, L90B10 |
| Total consumption | 15 or 20 W |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Energy eff. class | F |
| Colour rendering | min 90 Ra |
| Colour accuracy | 3 steps SDCM |
| Insulation class | The LED modules fit class I and II installations |
| Driver | LED driver |
|---|---|
| Dimming optional | |
| Operational life | min 100,000 hours |
| Alternatively | Available with driver and radar for wireless control (bluetooth) |
Variants
| Item No. | Wall box included |
|---|---|
| 1916- | 15 W, 350 mA |
| 1954- | 20 W, 500 mA |
| Item No. | Wall box not included |
|---|---|
| 1915- | 15 W, 350 mA |
| 1978- | 20 W, 500 mA |
Combine with
| Colour temperature | Dimming |
|---|---|
| 927 = 2700 K, 90 Ra | V = 1-10 V |
| 930 = 3000 K, 90 Ra | D = Dali |
| 940 = 4000 K, 90 Ra | R = bluetooth sensor |
For models before 2015, use item No. with new wall box.
LED and driver data
| LED type | Bridgelux Vero 10 |
|---|---|
| Operational life | min 100,000 hours at ta max 25° C, L90B10 |
| Total consumption | 8 or 12 W |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Energy eff. class | F |
| Colour rendering | min 90 Ra |
| Colour accuracy | 3 steps SDCM |
| Insulation class | The LED modules fit class I and II installations |
| Driver | LED driver, 20 W |
|---|---|
| Dimming optional | |
| Inrush current | max 5 A (50% after 50 µs) |
| Operational life | min 100,000 hours |
| Alternatively | Available with driver and radar for wireless control (bluetooth) |
Variants
| Item No. | |
|---|---|
| 1977- | 8 W, 250 mA |
| 1950- | 12 W, 350 mA |
Combine with
| Colour temperature | Dimming |
|---|---|
| 927 = 2700 K, 90 Ra | V = 1-10 V |
| 930 = 3000 K, 90 Ra | D = Dali |
| 940 = 4000 K, 90 Ra | R = bluetooth sensor |
