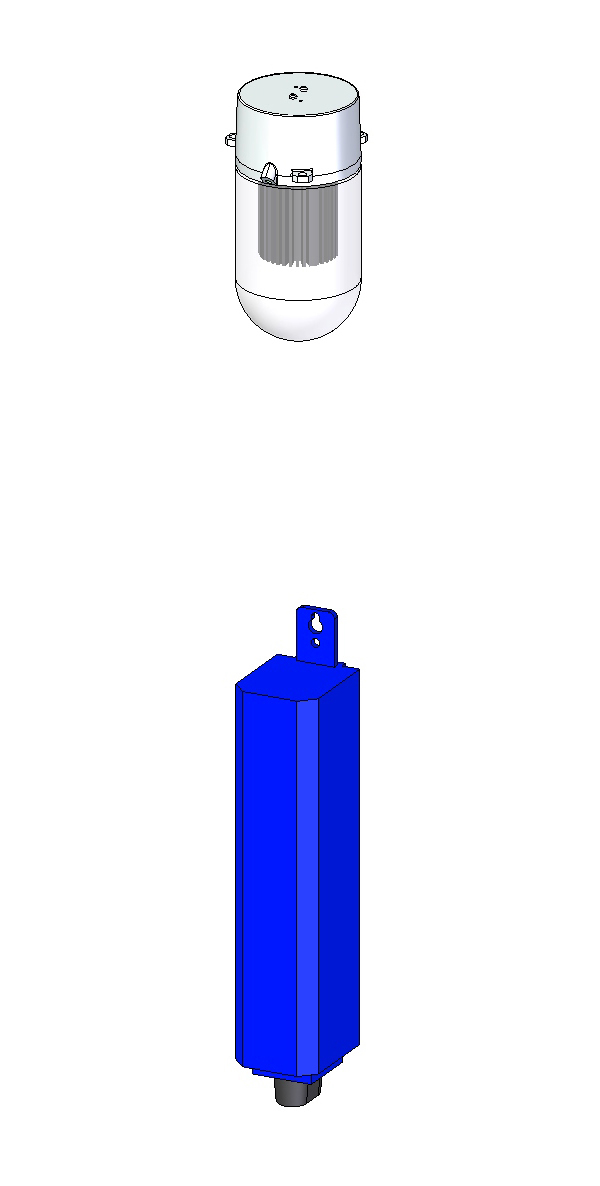

TEMA BOLLARD 1000 with door
Complete LED module for easy and energy-efficient upgrade of existing Tema Bollard 1000 (Tema Pullerten Lille).
Incl. shade and sealing for top cover.
Option for class II.
Specifications
TEMA BOLLARD 1000 with door
LED and driver data
| LED type | Bridgelux Vero 10 |
|---|---|
| Operationeal life | min 100,000 hours at ta max 25° C, L90B10 |
| Total consumption | 8, 12, or 16 W |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Energy eff. class | F |
| Colour rendering | min 90 Ra |
| Colour accuracy | 3 steps SDCM |
| Driver | LED driver, 20 W |
|---|---|
| Dimming optional | |
| Inrush current | max 5 A (50% after 50 µs) |
| Operational life | min 100,000 hours |
Variants
| Item No. | |
|---|---|
| 1976- | 8 W, 250 mA |
| 1964- | 12 W, 350 mA |
| 1965- | 16 W, 500 mA |
| Options | |
|---|---|
| 12-045 | Bracket for models before 1996 |
Combine with
| Colour temperature | Dimming |
|---|---|
| 927 = 2700 K, 90 Ra | V = 1-10 V |
| 930 = 3000 K, 90 Ra | D = Dali |
| 940 = 4000 K, 90 Ra | E = programmable |
| Protection class | |
|---|---|
| empty = class I | |
| K = class II |
