TEMA BUEN
Complete LED modules for easy and energy-efficient upgrade of existing Tema Buen luminaires.

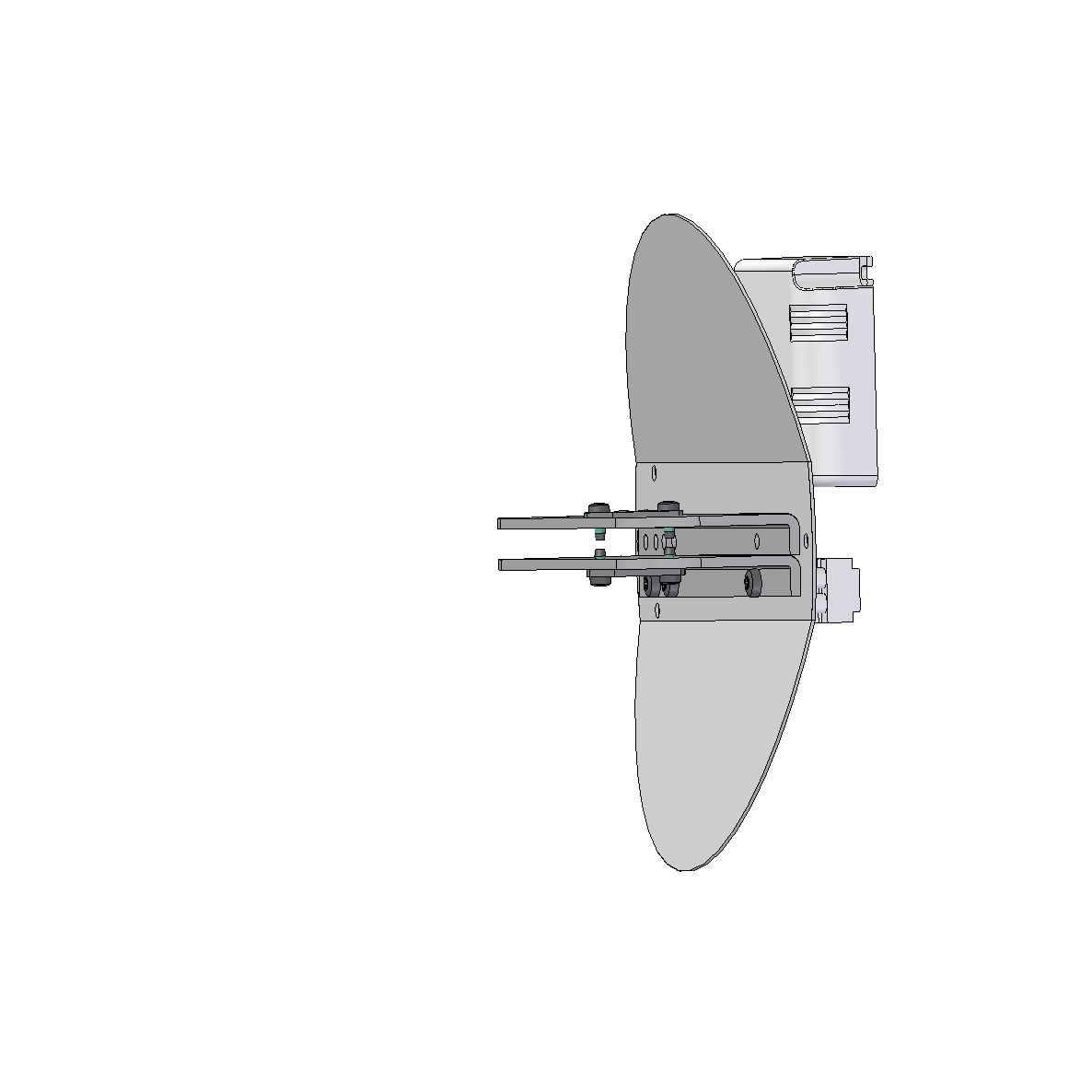

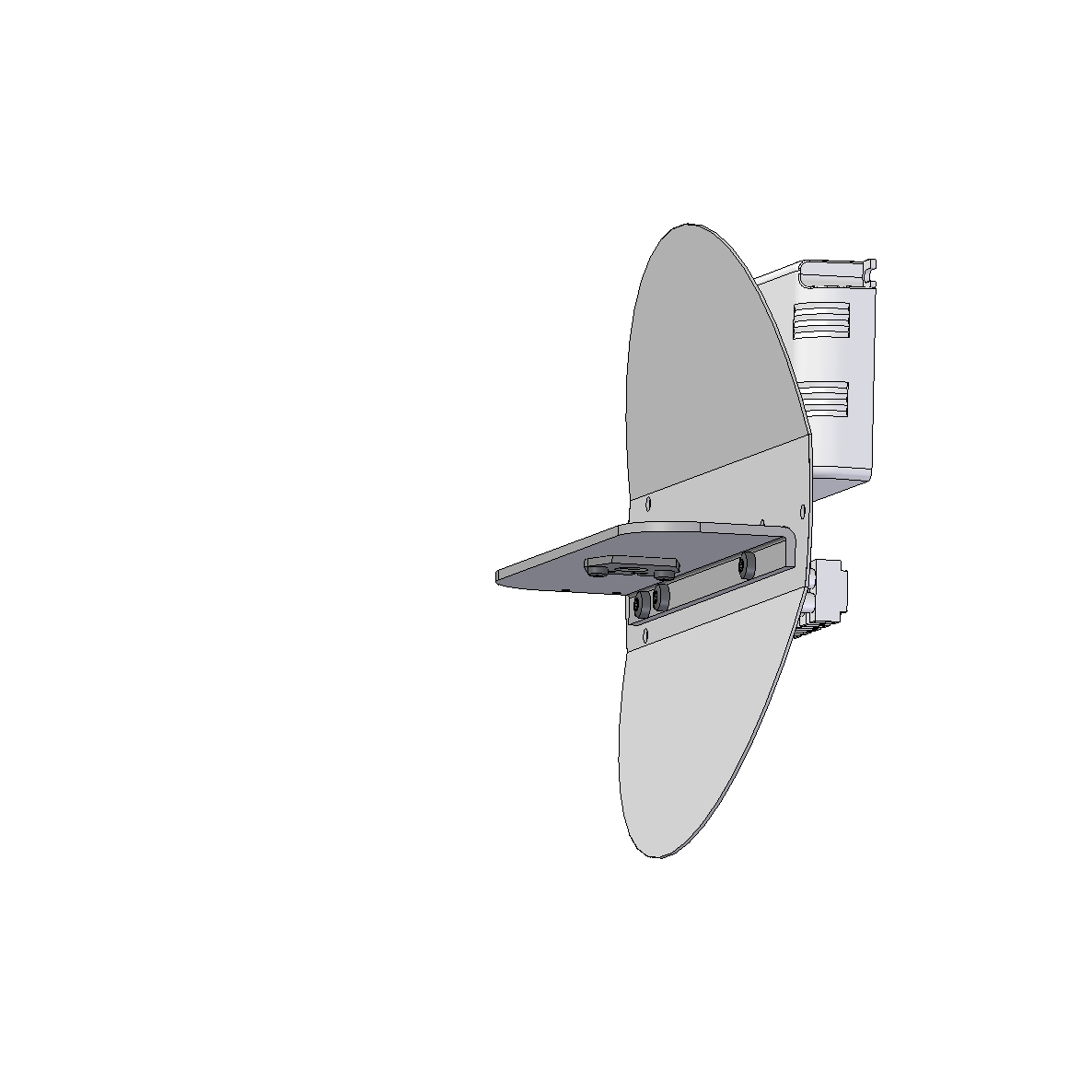

Available with up and downwards light, or downwards only. In case of shift to downwards light, we recommend to blend the upper shade, prohibiting view to electric parts. See "Combine with" below.
Specifications
Specifikationer
LED and driver data
| LED type | 1 x Bridgelux V8 |
|---|---|
| Operational life | min 100,000 hours at ta max 25° C, L90B10 |
| Total consumption | 8 or 11 W |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Energy eff. class | F |
| Colour rendering | min 90 Ra |
| Colour accuracy | 3 steps SDCM |
| Insulation class | The LED modules fit class I and II installations |
| Driver | LED driver, 20 W |
|---|---|
| Dimming optional | |
| Inrush current | max 5 A (50% after 50 µs) |
| Operational life | min 100,000 hours |
Variants
| Item No. | |
|---|---|
| 1929- | 8 W, 350 mA |
| 1930- | 11 W, 500 mA |
Combine with
| Colour temperature | Dimming |
|---|---|
| 927 = 2700 K, 90 Ra | V = 1-10 V |
| 930 = 3000 K, 90 Ra | D = Dali |
| 940 = 4000 K, 90 Ra |
| Shade | |
|---|---|
| H = cover for upper half of shade |
LED and driver data
| LED type | 2 x Bridgelux V8 |
|---|---|
| Operational life | min 100,000 hours at ta max 25° C, L90B10 |
| Total consumption | 10, 14, or 20 W |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Energy eff. class | F |
| Colour rendering | min 90 Ra |
| Colour accuracy | 3 steps SDCM |
| Insulation class | The LED modules fit class I and II installations |
| Driver | LED driver |
|---|---|
| Dimming optional | |
| Operational life | min 100,000 hours |
Variants
| Item No. | |
|---|---|
| 1981- | 10 W, 250 mA |
| 1951- | 14 W, 350 mA |
| 1952- | 20 W, 500 mA |
Combine with
| Colour temperature | Dimming |
|---|---|
| 927 = 2700 K, 90 Ra | V = 1-10 V |
| 930 = 3000 K, 90 Ra | D = Dali |
| 940 = 4000 K, 90 Ra |
