BECCO PARK

Please choose

BECCO is born with LED, and the LED components are integrated in the luminaire design. An example is the heat sink, forming the characteristic link between bollard and top, as well as carrying the LED module. The light source is not visible, and the indirect light, being spread by the sloping roof top, is pleasant and non-glaring.

Specifications

BECCO BOLLARD

Please choose

Luminaire

BECCO BOLLARD
Material	Top in aluminium and cast silumin, bollard in galvanised steel
Powder coating	Graphite grey: YW355F, Akzo Nobel
	Silver grey: Y2370I, Akzo Nobel
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
Screen	Clear polycarbonate with UV-resistant acrylate on both sides
Mounting	Rooted or flanged base
Connection	max 3 cables, 5x16 mm2
Classification	IP65, class II; use code for class I
Impact resistance	IK10
Weight	ca. 10 kg

LED and driver data

LED type	Bridgelux V8
Operational life	min 100,000 hours at ta max 25° C, L80B10
Total consumption	9 or 12 W
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SDCM
Output ratio	58%

Driver	Helvar LED driver
	350 or 500 mA
Operational life	min 50,000 hours

Variants

Item No.	Becco Bollard, rooted base
7811-	9 W LED, 350 mA
7812-	12 W LED, 500 mA

Item No.	Becco Bollard, flanged base
7821-	9 W LED, 350 mA
7822-	12 W LED, 500 mA

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Colour temperature
4 = graphite grey	927 = 2700 K, 90 Ra
9 = silver grey	930 = 3000 K, 90 Ra
7 = silver grey top, galvanised bollard	940 = 4000 K, 90 Ra
66 = noir 900

Dimming	Protection class
empty = no dimming	empty = class II
V = 1-10 V	J = class I
D = Dali

Example Item No.: 7811-3930J = Becco Bollard, 9 W LED, black, 3000 K, 90 Ra, class I

Media &

downloads

Product information

Product data, Becco Bollard PDF Mounting instructions, Becco Bollard PDF RoHS Declaration PDF

3D files

Becco Bollard RFA Becco Bollard GSM Becco Bollard SKP Becco Bollard FBX Becco Bollard DWG

Fotos

Product image, Becco Bollard JPG

Photometric data

LED 9 W, 2700 K LDT LED 9 W, 2700 K PDF LED 9 W, 3000 K LDT LED 9 W, 3000 K PDF LED 9 W, 4000 K LDT LED 9 W, 4000 K PDF LED 12 W, 2700 K LDT LED 12 W, 2700 K PDF LED 12 W, 3000 K LDT LED 12 W, 3000 K PDF LED 12 W, 4000 K LDT LED 12 W, 4000 K PDF

All ldt files

LDT.zip ZIP

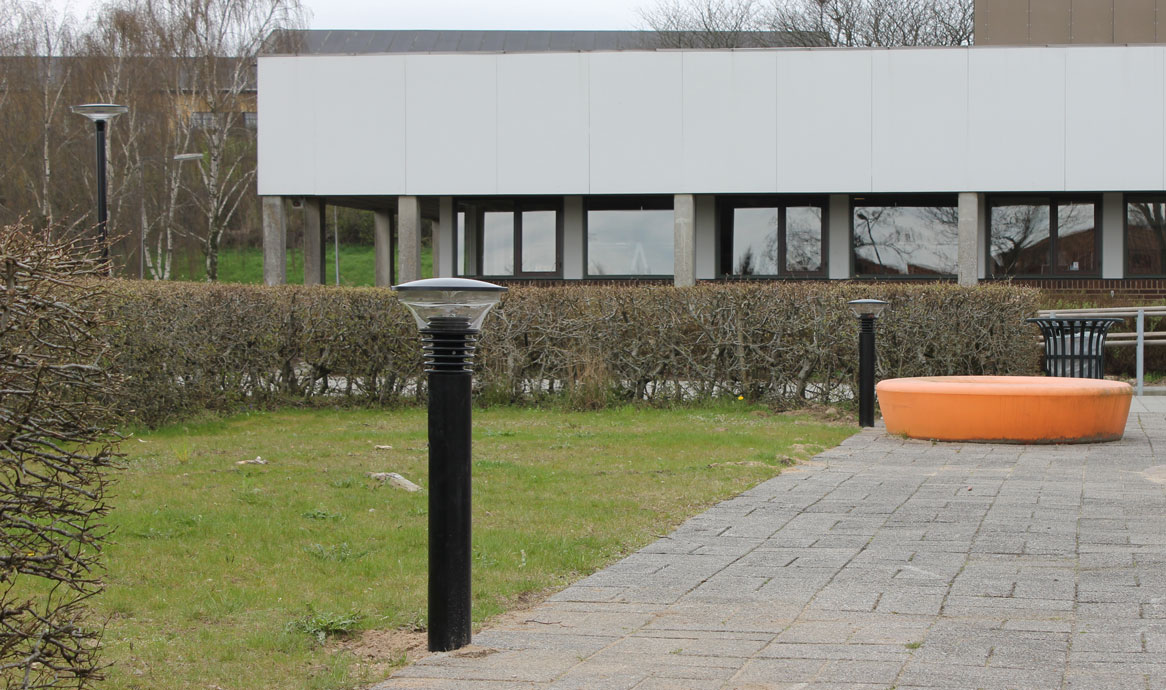

Becco Bollard, black, Lunderskov Library. Becco Park in the background.

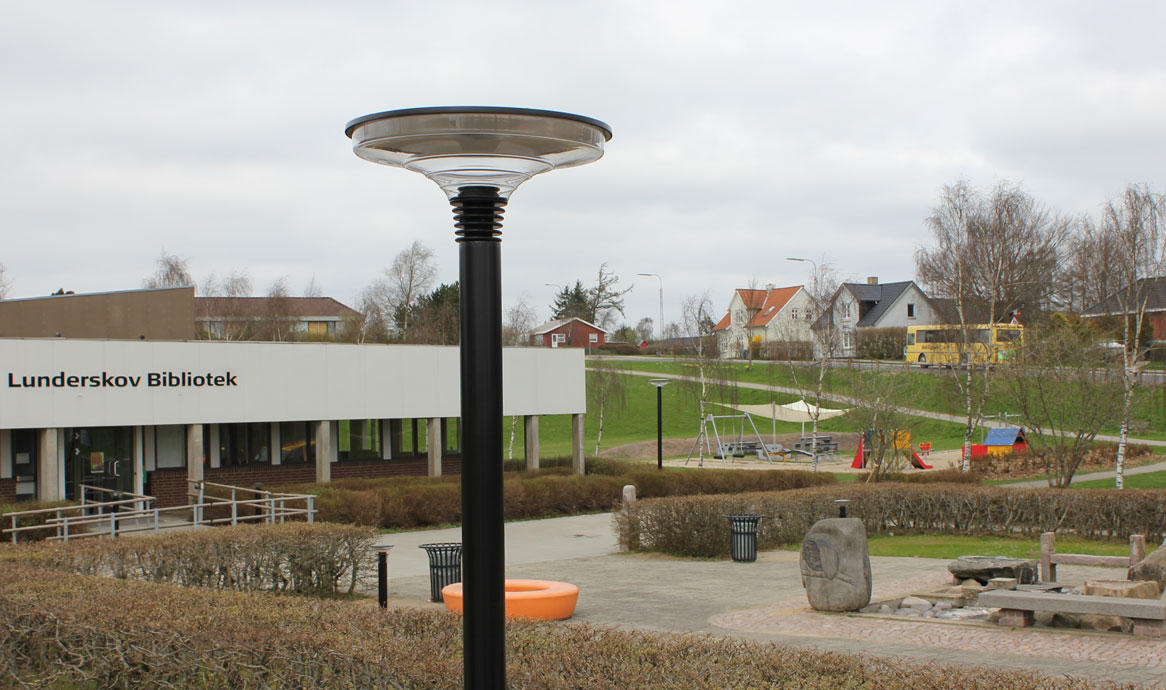

Becco Park black, Ø114 post, Lunderskov Library. In the background: Becco Bollard.

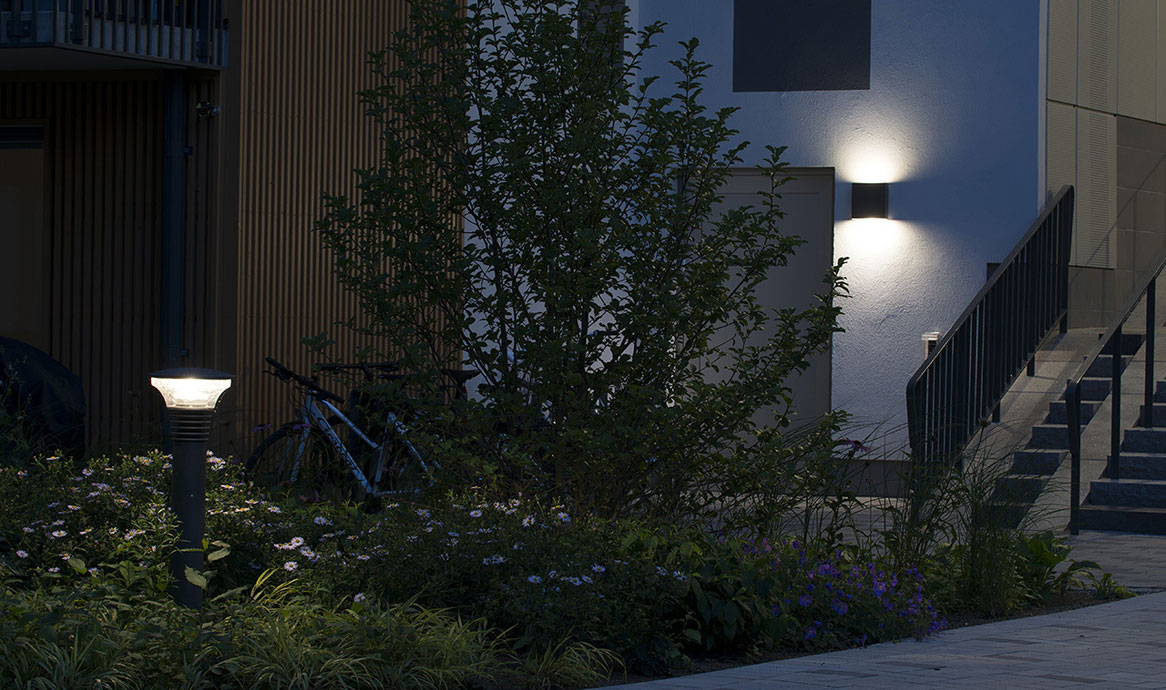

Becco Park and Becco Bollard in residential area, Stockholm.

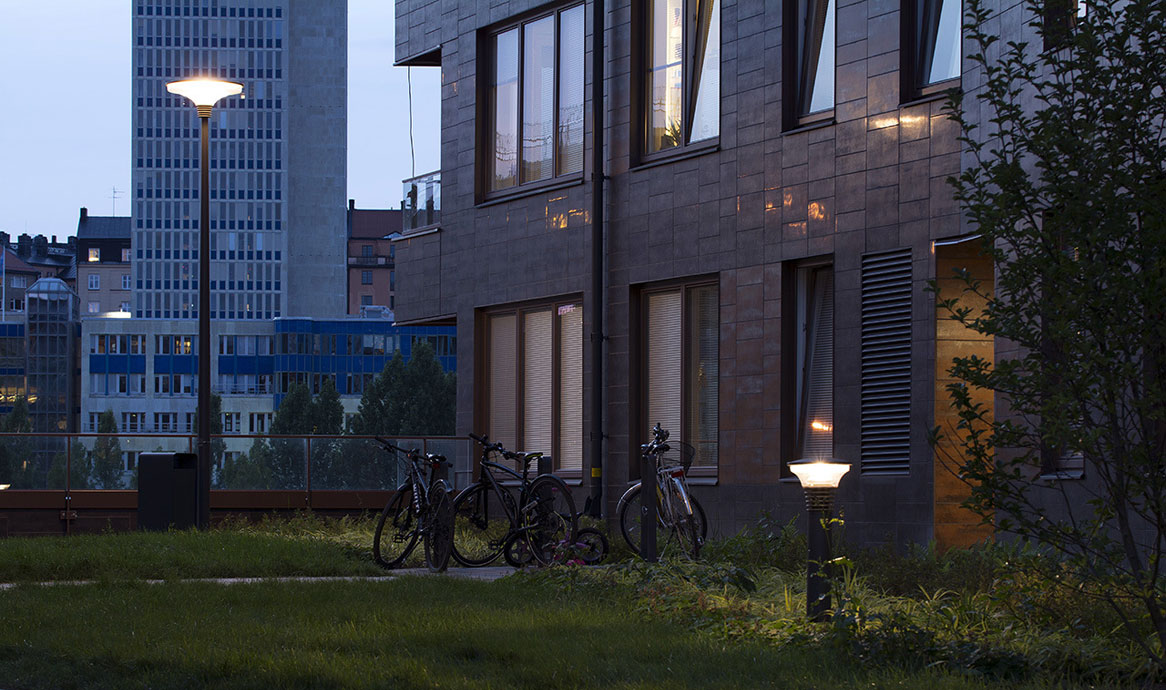

Becco and other Focus luminaires are used in residential area, Stockholm.

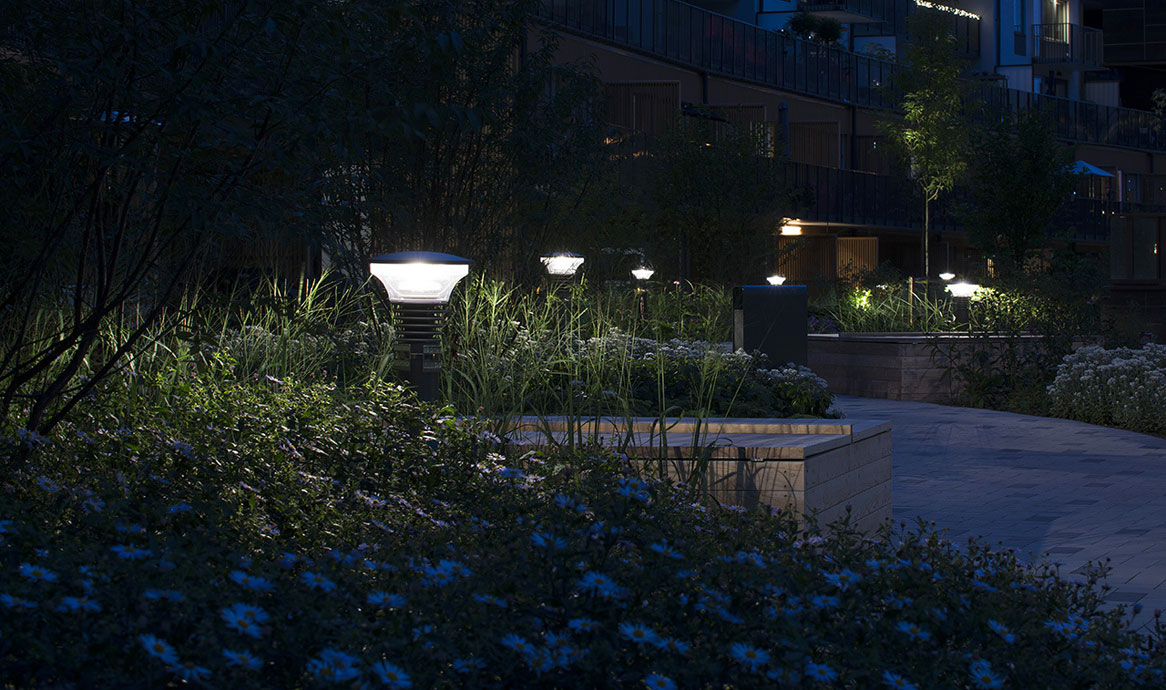

Becco bollards - comfortable light in residential area, Stockholm.

Design

Grønlund & KSA Design

BECCO is born with LED, and the LED components are an integral part of the design. Susanne Grønlund, one of the architects behind Becco about the design: ”The luminaire is characterised by the form of the base, acting as heat sink, continuing into the screen. Like light-breaking waves spreading in water."

More about the designers, Susanne Grønlund & Karin Andersen.
