DUA BOLLARD LOW

Dua Bollard Low leads the way and will combine buildings and facilities that are spread over a large area, for instance at schools, factories, hospitals etc.

Specifications

Specification

Luminaire

DUA BOLLARD LOW
Material	Aluminium
Finish	Raw anodized
	Graphite grey: YW355F, Akzo Nobel
	Silver grey: Y2370I, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
Shade	Tube with inside spinned grooves, UV-resistant polycarbonate
Mounting	Rooted or flanged base
Connection	max two cables 5x6 mm2
Classification	IP55, class II; use code for class I
Impact resistance	IK10
Weight	Flanged model: 6 kg
	With spike for embedment: 8 kg

LED and driver

LED type	Bridgelux V8
Operational life	min 100,000 hours at ta max 25° C, L90B10
Power consumption	6 or 8 W (250-350 mA)
Colour temperature	2700, 3000 or 4000 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SDCM

Driver	LED driver, 20 W
Inrush current	max 5 A (50% after 25 µs)
Dimming/Control	optional at extra cost
Operational life	min 100,000 hours

Variants

Item No.	Dua Bollard Low, rooted base w. cross bars
7983-	6 W LED, 250 mA
7856-	8 W LED, 350 mA

Item No.	Dua Bollard Low, flanged base
7984-	6 W LED, 250 mA
7859-	8 W LED, 350 mA

Item No.	Dua Bollard Low, rooted base for concrete
7985-	6 W LED, 250 mA
7854-	8 W LED, 350 mA

Combine with

Select colour, colour temperature etc. in the table below.

Colour	Colour temperature, LED
01 = raw anodized	927 = 2700 K, 90 Ra
4 = graphite grey	930 = 3000 K, 90 Ra
9 = silver grey	940 = 4000 K, 90 Ra
17 = corten brown
66 = black noir 900

Dimming	Protection class
V = 1-10 V	empty = class II
D = DALI-2 (4/5-conductor cable)	J = class I

Example item No.: 7856-66930 = Dua Bollard Low for embedment, 8 W LED, black noir 900, 3000 K, 90 Ra

Media & downloads

Product data

Product data, Dua BollardsPDF Mounting instructionsPDF MaintenancePDF RoHS DeclarationPDF

3D filer

Dua Bollard Low, flanged baseRFA Dua Bollard Low, flanged baseLCF Dua Bollard Low, flanged baseDWG Dua Bollard Low, flanged base3DS Dua Bollard Low, embedmentRFA Dua Bollard Low, embedmentLCF Dua Bollard Low, embedmentDWG Dua Bollard Low, embedment3DS

Photos

Product image, Dua bollards, bothJPG Product image, Dua Bollard Low, black noir 900JPG Product image, Dua Bollard Low, three coloursJPG

Photometric data

V8, 6 W, 2700 KLDT V8, 6 W, 2700 KPDF V8, 6 W, 3000 KLDT V8, 6 W, 3000 KPDF V8, 6 W, 4000 KLDT V8, 6 W, 4000 KPDF V8, 8 W, 2700 KLDT V8, 8 W, 2700 KPDF V8, 8 W, 3000 KLDT V8, 8 W, 3000 KPDF V8, 8 W, 4000 KLDT V8, 8 W, 4000 KPDF

All ldt files

LDT.zipZIP

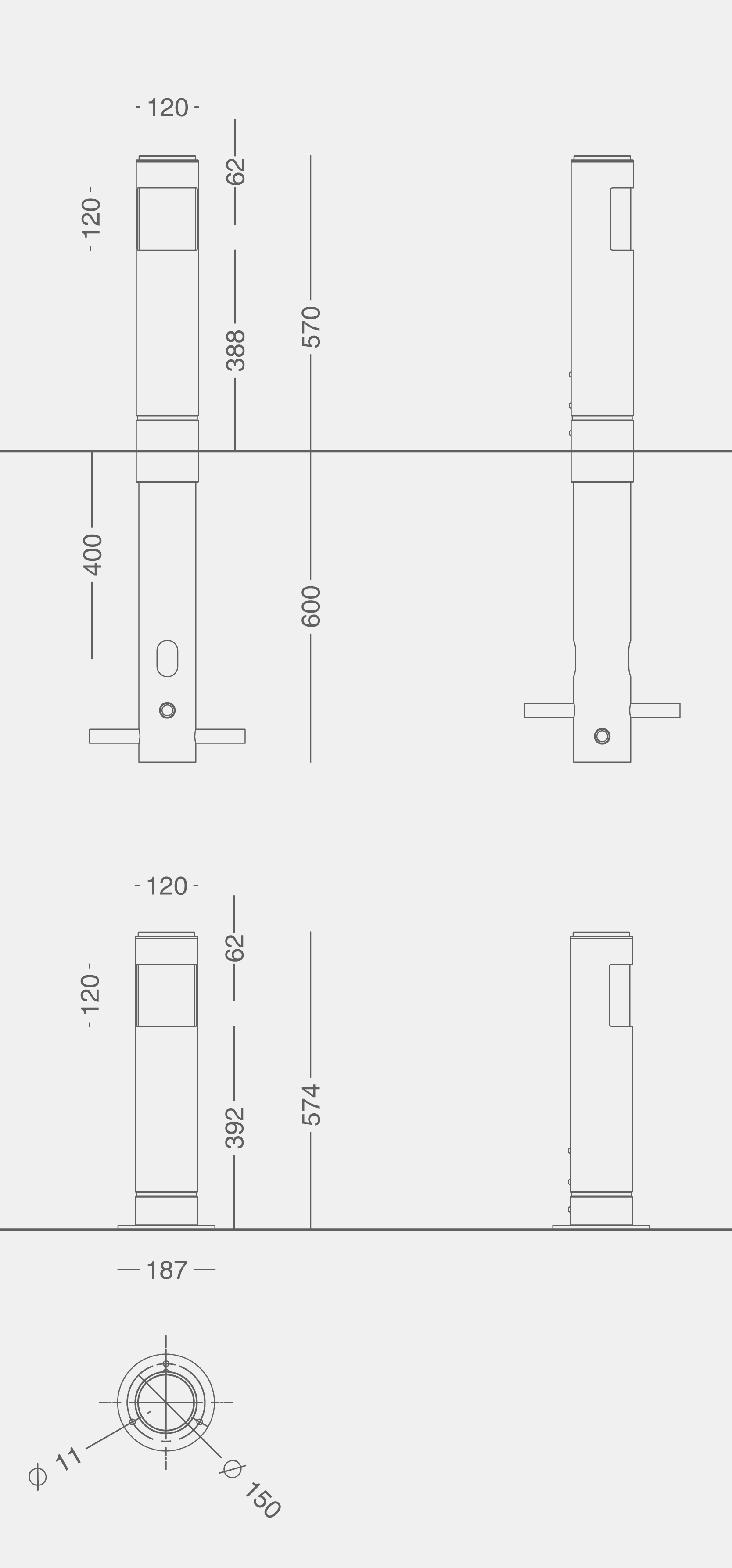

Dua Bollard in two sizes: H 100 and H 57 cm; both with 12 cm diameter

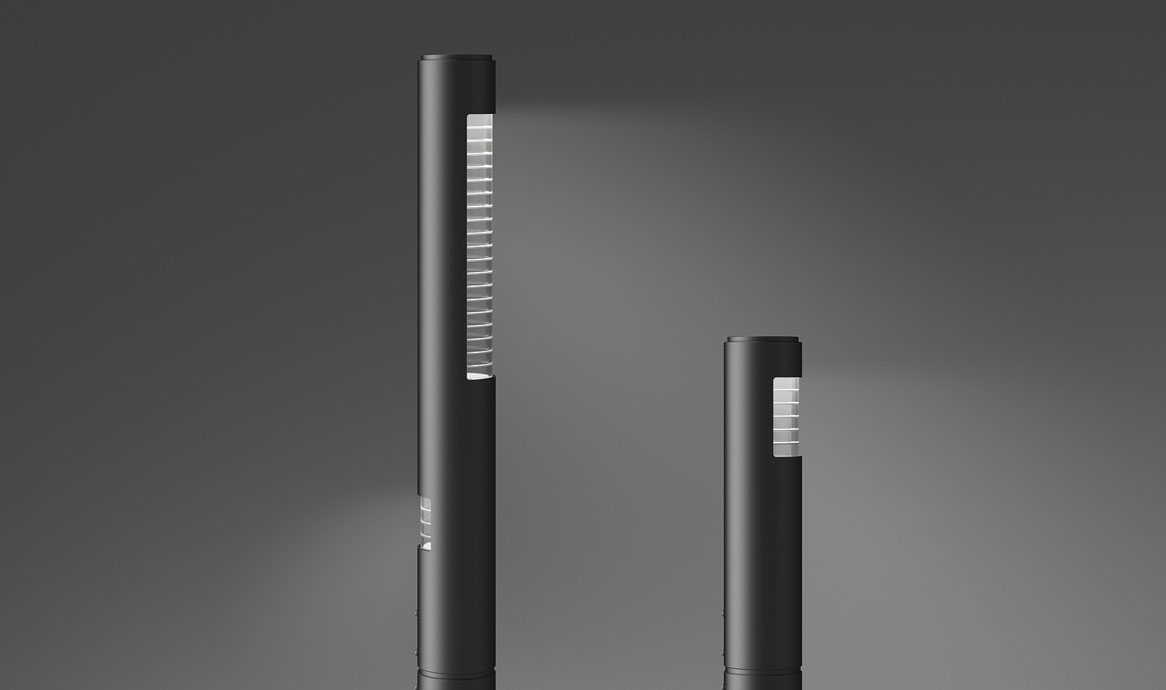

Dua Bollard and Dua Bollard Low

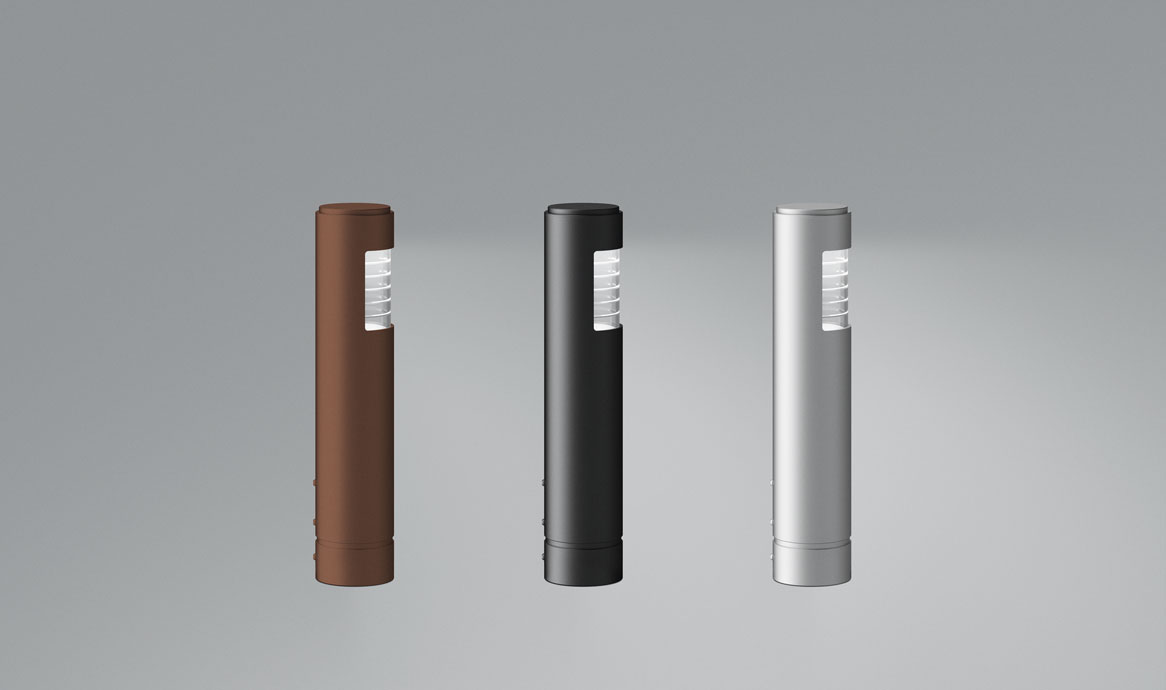

Dua Bollard Low: corten brown, black noir 900, silver grey

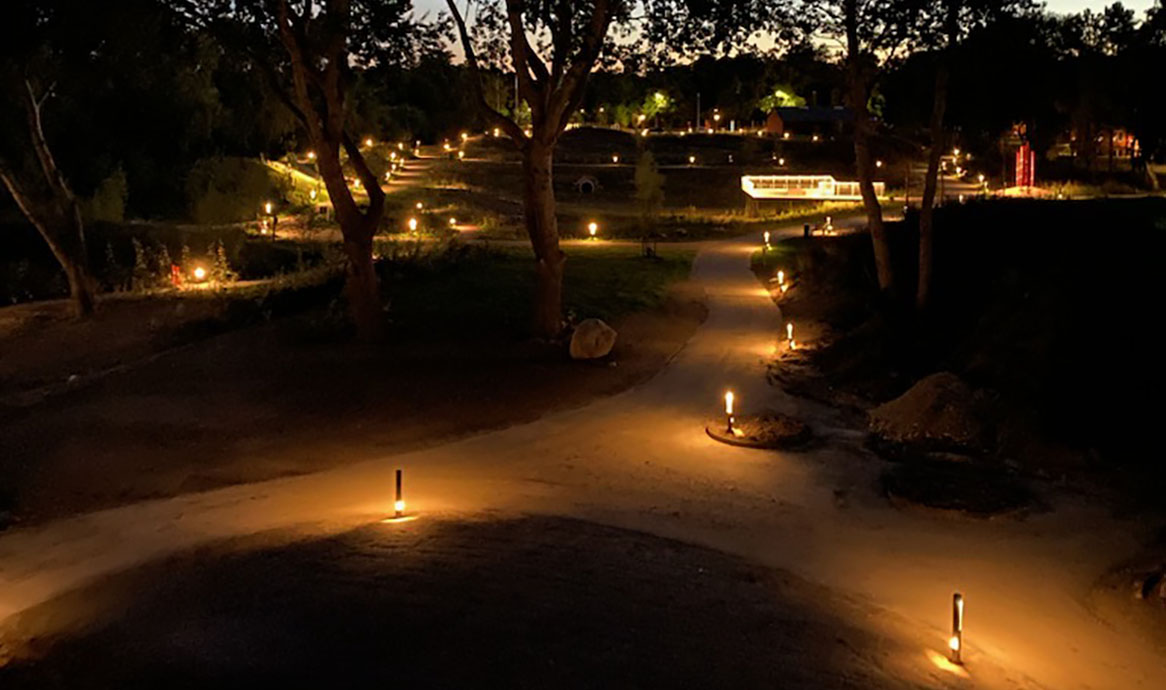

View over Pulsparken, Odense, with Dua Bollard and Dua Bollard Low.

DesignJuul | Frost Architects

Juul | Frost Architects have designed two minimalistic and yet characteristic bollards by combining the slim, cylindric shape with asymmetry. Dua Bollard Low leads the way and will combine buildings and facilities that are spread over a large area, for instance at schools, factories, hospitals etc.
