DUA HIGH

The minimalist Dua family is characterised by the slim lines and the light diffusion, softened by the groves in the shade.

Specifications

Specification

Luminaire

DUA HIGH
Material	Aluminium
Finish	Raw anodized
	Graphite grey: YW355F, Akzo Nobel
	Silver grey: Y2370I, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
Shade	Tube with inside spinned grooves, UV-resistant polycarbonate
Mounting	Rooted or flanged base
Connection	max 3 cables 5x16 mm2
Classification	IP55, class II; class I optional
Impact resistance	IK10
Corrosion class	C4
Weight	Flanged model: 15 kg
	With spike for embedment: 17 kg

LED and driver

LED type	Bridgelux V18 COB
Operational life	min 100,000 hours at ta max 25° C, L100B10
Energy consumption	13 or 19 W
Colour temperatur	2700, 3000, or 4000 Kelvin
Colour rendering	min 80 Ra
Colour accuracy	3 steps SDCM

Driver, standard	LED, 350 or 500 mA, -25° C
Inrush current	max 5 A (50% after 50 µs)
Dimming	Dimming optional
Operational life	min 100,000 hours

Driver, programmable	Xitanium Full Xi FP
Dimming	5 steps dimming within the lumen intervals
Surge protection	L/N-GND: 8 kV, L-N: 6 kV
Operational life	min 100,000 hours

Variants

Item No.	Dua High, single light slit
8940-	13 W, 350 mA, rooted base
8941-	13 W, 350 mA, flanged base
8946-	19 W, 500 mA, rooted base
8947-	19 W, 500 mA, flanged base

Item No.	Dua High, double light slit
8942-	13 W, 350 mA, rooted base
8943-	13 W, 350 mA, flanged base
8948-	19 W, 500 mA, rooted base
8949-	19 W, 500 mA, flanged base

Combine with

Select colour, colour temperature etc. in the table below.

Colour	Colour temperature
01 = raw anodized	827 = 2700 K, 80 Ra
4 = graphite grey	830 = 3000 K, 80 Ra
9 = silver grey	840 = 4000 K, 80 Ra
17 = corten brown
66 = black noir 900

Dimming	Protection class
D = DALI-2 (4/5-conductor cable)	empty = class II
E = programmable	J = class I

Ekstra surge protection
X = 10 kV

Example item No: 8942-4830 = Dua High, double light slit, for embedment, 14 W LED, graphite grey, 3000 K, 80 Ra

Media & downloads

Product data

Product data, Dua HighPDF Mounting instructionsPDF MaintenancePDF RoHS DeclarationPDF

Udbudstekster

DuaPullert_udbudstekst.docxDOCX DuaPullert_udbudstekst.pdfPDF

3D filer

Dua High, RevitRFA Dua High, ArchicadLCF Dua High, 3DDWG Dua High, 2DDWG Dua High3DS Dua HighFBX Dua HighSKP Dua HighSTL Dua High, IESZIP

Photos

Product image, Dua High, close-up, corten brownJPG Product image, Dua High, close-up, noir 900JPG Product image, Dua High, close-up, silver greyJPG Product image, Dua High, corten brownJPG Product image, Dua High, noir 900JPG Product image, Dua High, silver greyJPG

Photometric data

V18, 13 W, 2700 K, single sidedLDT V18, 13 W, 2700 K, single sidedPDF V18, 13 W, 3000 K, single sidedLDT V18, 13 W, 3000 K, single sidedPDF V18, 13 W, 4000 K, single sidedLDT V18, 13 W, 4000 K, single sidedPDF V18, 13 W, 2700 K, double sidedLDT V18, 13 W, 2700 K, double sidedPDF V18, 13 W, 3000 K, double sidedLDT V18, 13 W, 3000 K, double sidedPDF V18, 13 W, 4000 K, double sidedLDT V18, 13 W, 4000 K, double sidedPDF V18, 19 W, 2700 K, single sidedLDT V18, 19 W, 2700 K, single sidedPDF V18, 19 W, 3000 K, single sidedLDT V18, 19 W, 3000 K, single sidedPDF V18, 19 W, 4000 K, single sidedLDT V18, 19 W, 4000 K, single sidedPDF V18, 19 W, 2700 K, double sidedLDT V18, 19 W, 2700 K, double sidedPDF V18, 19 W, 3000 K, double sidedLDT V18, 19 W, 3000 K, double sidedPDF V18, 19 W, 4000 K, double sidedLDT V18, 19 W, 4000 K, double sidedPDF

All ldt files

LDT.zipZIP

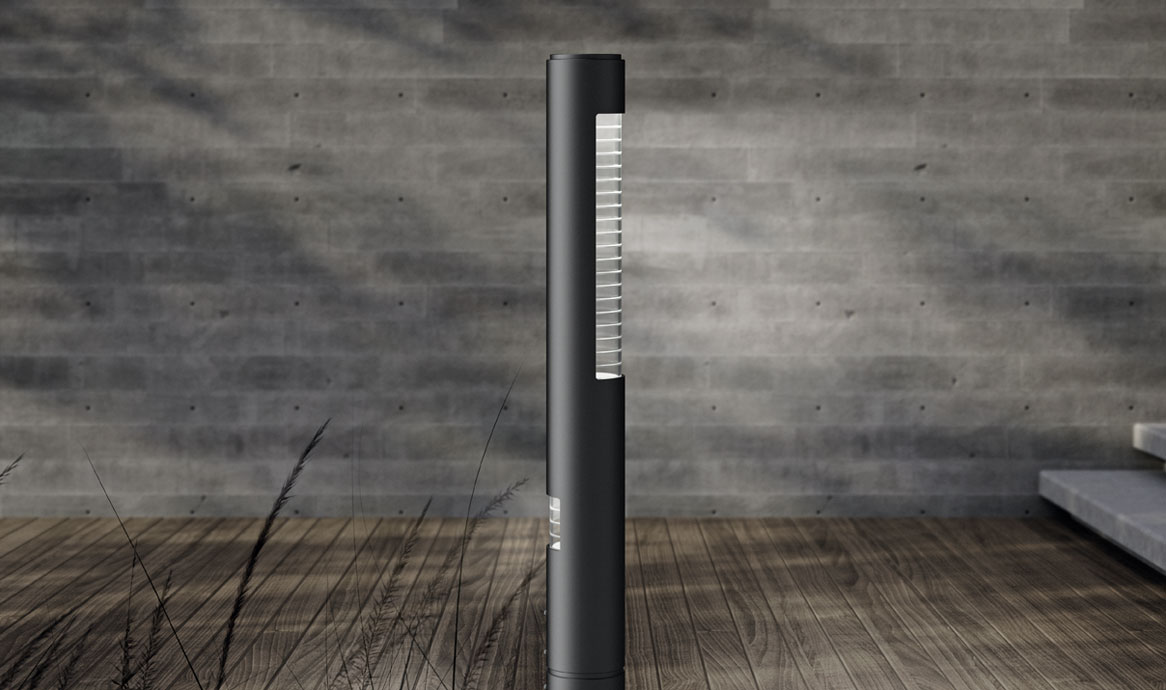

Dua Pullert, sort noir 900, H 1000 mm

Dua Pullert fås i to højder: 57 eller 100 cm over jord. Begge er 12 cm i diameter.

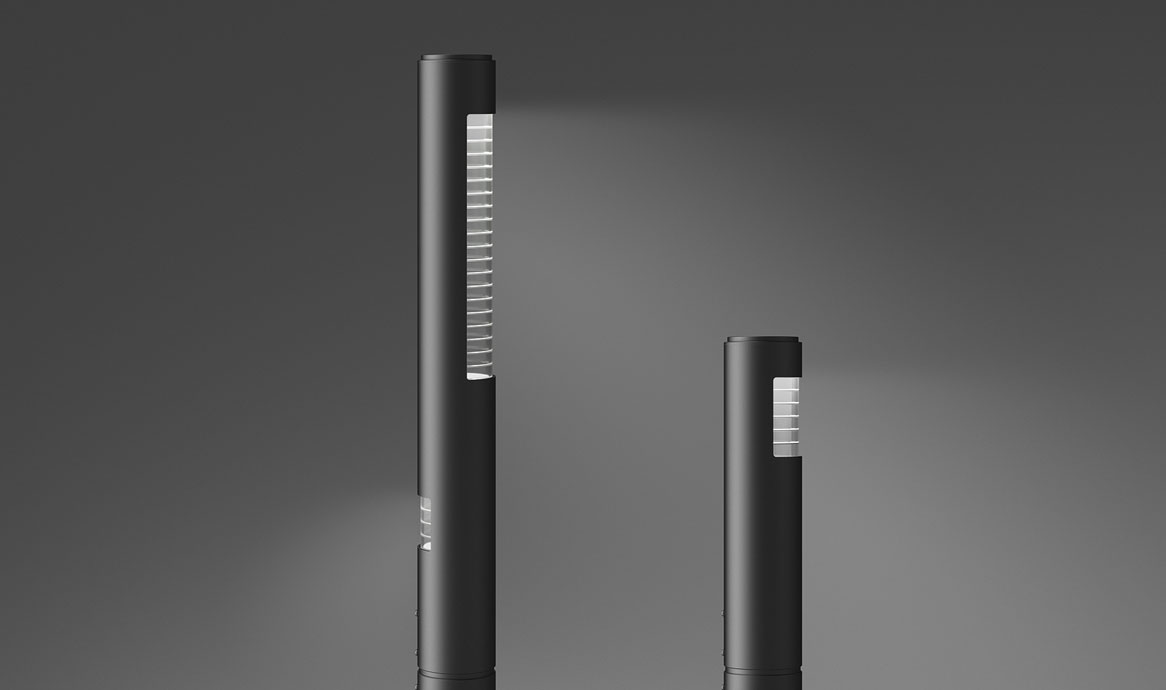

Dua Pullert og Dua Pullert Low

DesignJuul | Frost Architects

Juul | Frost Architects have designed Dua, a family of minimalist and yet characteristic park and bollard luminaires. The slim, cylindrical main shape is opened by light in opposite directions. The light is softened by the inside groves in the shade.
