H+M PENDANT

Please choose

The H+M Pendant is used for general illumination of halls, shops and other large rooms as well as spot light on working and dining tables.

Like the other luminaires in the H+M family, the pendant is available in two sizes and three standard colours.

Specifications

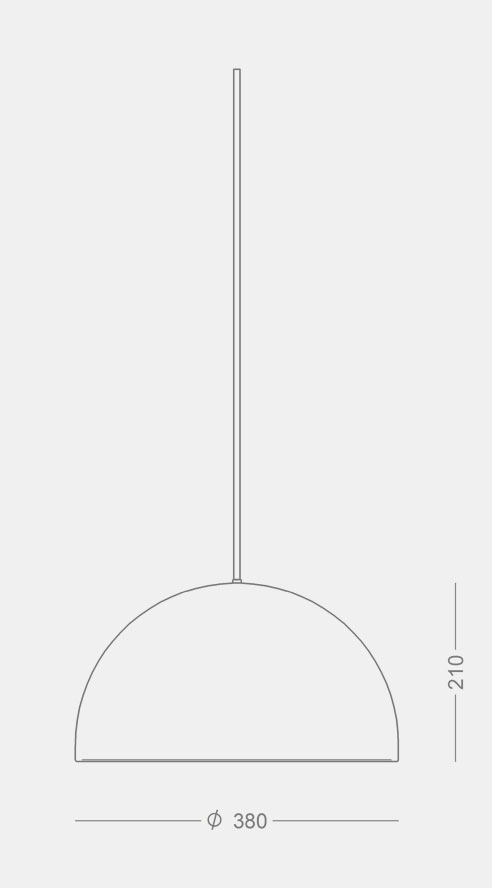

Ø 380

Luminaire

H+M PENDANT 380
Material	Aluminium
Coating	White, black, or graphite grey
Shade	Opal-white polycarbonate
Lead	3 m PKAJ, white or black
	Support heat resistant to 140°
Connection	3 x 4 mm²
Classification	IP20, class I or II
Weight	1-3 kg

LED and driver data

LED type	324 mm board
Operational life	min 50,000 hours at ta max 25° C, L80B10
Total consumption	17, 23 or 33 W (500/700/1050 mA)
Colour temperature	2700, 3000, or 4000 Kelvin
	Tunable White: 2700-6500 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SCDM
Output ratio	82%

Driver 17-23 W	Helvar LED driver, 350-700 mA
Operational life	min 50,000 hours

Driver 33 W	TCI LED driver, 1050 mA, Dali
Operational life	min 50,000 hours

Variants

Item No.	H+M 380 pendant
1818-	17 W LED, 500 mA
1819-	23 W LED, 700 mA
1820-	33 W LED, 1050 mA

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Shade
1 = white	empty = polycarbonate
3 = black
4 = graphite grey

Colour temperature	Dimming
927 = 2700 K, 90 Ra	empty = no dimming
930 = 3000 K, 90 Ra	V = 1-10 V
940 = 4000 K, 90 Ra	D = Dali
9WD = tunable white, Dali, 90 Ra

Classification	Lead colour
empty = class I	empty = white
K = class II	Y = black

Example Item No.: 1818-4930V = H+M pendant Ø380, 17 W LED, graphite grey, 3000 K, 90 Ra, 1-10 V dimming

Luminaire

H+M PENDANT 380
Material	Aluminium
Coating	White, black, or graphite grey
Shade	Opal-white polycarbonate
Lead	3 m PKAJ, white or black, SSH 180°
	Support heat resistant to 140°
Connection	3 x 4 mm²
Classification	IP20, class I or II
Weight	1-3 kg

Lamp type

E27	max 77 W, max length: 140 mm

Variants

Item No.	H+M 380 Pendant
1008-	max 77 W, max length 140 mm

Combine with

Select colour, shade, etc. in the table below.

Colour	Classification
1 = white	empty = class I
3 = black	K = class II
4 = graphite grey

Lead colour
empty = white
Y = black

Example Item No.: 1008-3 = H+M pendant Ø380, E27, black

Media & downloads

Product information

Product data, H+M PendantPDF MaintenancePDF RoHS DeclarationPDF

3D files

H+M pendantGSM H+M 300 pendantRFA H+M 300 pendant3DS H+M 300 pendantDWG

Photos

Product image, H+M pendantJPG

Photometric data

H+M 380, 17 W, 2700 KLDT H+M 380, 17 W, 2700 KPDF H+M 380, 17 W, 3000 KLDT H+M 380, 17 W, 3000 KPDF H+M 380, 17 W, 4000 KLDT H+M 380, 17 W, 4000 KPDF H+M 380, 23 W, 2700 KLDT H+M 380, 23 W, 2700 KPDF H+M 380, 23 W, 3000 KLDT H+M 380, 23 W, 3000 KPDF H+M 380, 23 W, 4000 KLDT H+M 380, 23 W, 4000 KPDF H+M 380, 33 W, 2700 KLDT H+M 380, 33 W, 2700 KPDF H+M 380, 33 W, 3000 KLDT H+M 380, 33 W, 3000 KPDF H+M 380, 33 W, 4000 KLDT H+M 380, 33 W, 4000 KPDF

All ldt files

LDT.zipZIP

DesignChristian Hvidt Design

H+M Pendant, designed by Christian Hvidt in 1976, is out-and-out retro with modern technology. The height of the luminaire is reduced by 30 mm, and the new minimalist version appears light and blend into the preferred style.
The H+M luminaires are classics within interior lighting and rank high as some of the most downloaded fittings in the 3D portal BimObject.

Christian Hvidt is active as a freelance designer for Danish and international companies, especially within furniture and lighting.
