H+M RECESSED

Please choose

The H+M luminaires are easy to install and to maintain. Safety is high with the shade in impact-resistant acrylate and no direct entry to the light source. The shade is also available in flame-proof polycarbonate.

The H+M for recession is also available with shade in sand-blasted acrylate. The sand-blasting proces is excellent for high opacity and superior light diffusion. The sandblasted shade is an integral part of the luminaire, whereas the standard shade lies loose in the housing edge.

Specifications

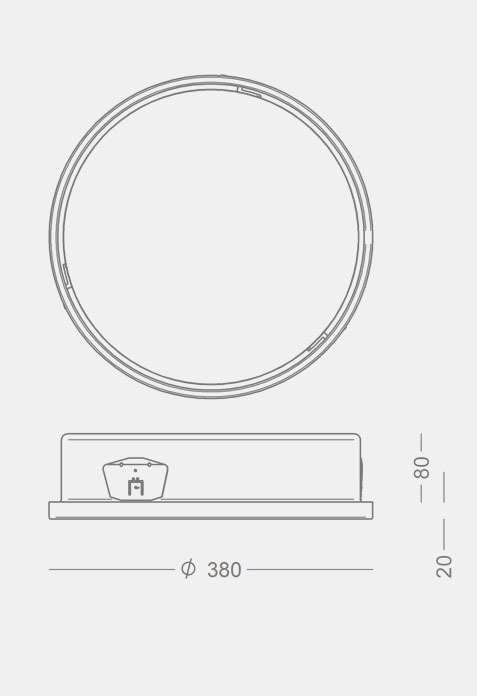

Ø 380

Luminaire

H+M RECESSED 380
Material	Aluminium
Finish	White or grey metallic
Shade, loose	Opal-white polycarbonate
Shade, firm	Satinated or micro prismatic acrylate
Mounting	To be recessed, option for reinforcement of ceiling
Cut-out	Ø355-360 mm
Thickness of plate	10-40 mm
Built-in height	100 mm from lower ceiling edge, cables included
	Recommended distance to construction: 50 mm
Connection	max 2 cables, 5 x 1.5 mm², into 5-pole terminal block, 2 x 2.5 mm²
Classification	IP20, class I
Weight	2 kg

LED and driver data

LED type	324 mm board
Operational life	min 50,000 hours at ta max 25° C, L80B10
Total consumption	17, 23 or 33 W (500/700/1050 mA)
Colour temperature	2700, 3000, or 4000 Kelvin
	Tunable White: 2700-6500 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SDCM
Output ratio	82%

Driver 17-23 W	Helvar LED driver, 350-700 mA, option for dimming
Operational life	min 50,000 hours

Driver 33 W	TCI LED driver, 1050 mA, Dali
Operational life	min 50,000 hours

Variants and options

Item No.	H+M recessed 380, LED
2866-	17 W LED, 500 mA
2867-	23 W LED, 700 mA
2868-	33 W LED, 1050 mA

Options
2834-20	Reinforcement of soft ceilings, H+M 380

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Shade
1 = white	P = polycarbonate
3 = black	M = micro prismatic acrylate
9 = grey metallic	Q = satinated acrylate

Colour temperature	Dimming
927 = 2700 K, 90 Ra	empty = no dimming
930 = 3000 K, 90 Ra	V = 1-10 V
940 = 4000 K, 90 Ra	D = Dali
9WD = tunable white, Dali, 90 Ra

Example: 2867-1P930V = H+M recessed Ø380, 23 W, white, 3000 K, dimmable 1-10 V

Media & downloads

Product information

Product data, H+M recessedPDF LED modules for H+M 380PDF Mounting instructions H+M 380, recessedPDF Mounting instructions H+M 380, recessed, fixed shadePDF MaintenancePDF RoHS DeclarationPDF

3D files

H+M recessedGSM H+M 380 downlighterRFA H+M 380 downlighter3DS H+M 380 downlighterDWG

Photos

Product image, H+M recessedJPG

Photometric data

H+M 380, polycarbonate shade

H+M 380, 17 W, 2700 KLDT H+M 380, 17 W, 2700 KPDF H+M 380, 17 W, 3000 KLDT H+M 380, 17 W, 3000 KPDF H+M 380, 17 W, 4000 KLDT H+M 380, 17 W, 4000 KPDF H+M 380, 23 W, 2700 KLDT H+M 380, 23 W, 2700 KPDF H+M 380, 23 W, 3000 KLDT H+M 380, 23 W, 3000 KPDF H+M 380, 23 W, 4000 KLDT H+M 380, 23 W, 4000 KPDF H+M 380, 33 W, 2700 KLDT H+M 380, 33 W, 2700 KPDF H+M 380, 33 W, 3000 KLDT H+M 380, 33 W, 3000 KPDF H+M 380, 33 W, 4000 KLDT H+M 380, 33 W, 4000 KPDF

H+M 380, prismatic shade

H+M 380, 17 W, 2700 K, prismaticLDT H+M 380, 17 W, 2700 K, prismaticPDF H+M 380, 17 W, 3000 K, prismaticLDT H+M 380, 17 W, 3000 K, prismaticPDF H+M 380, 17 W, 4000 K, prismaticLDT H+M 380, 17 W, 4000 K, prismaticPDF H+M 380, 23 W, 2700 K, prismaticLDT H+M 380, 23 W, 2700 K, prismaticPDF H+M 380, 23 W, 3000 K, prismaticLDT H+M 380, 23 W, 3000 K, prismaticPDF H+M 380, 23 W, 4000 K, prismaticLDT H+M 380, 23 W, 4000 K, prismaticPDF H+M 380, 33 W, 2700 K, prismaticLDT H+M 380, 33 W, 2700 K, prismaticPDF H+M 380, 33 W, 3000 K, prismaticLDT H+M 380, 33 W, 3000 K, prismaticPDF H+M 380, 33 W, 4000 K, prismaticLDT H+M 380, 33 W, 4000 K, prismaticPDF

All ldt files

LDT.zipZIP

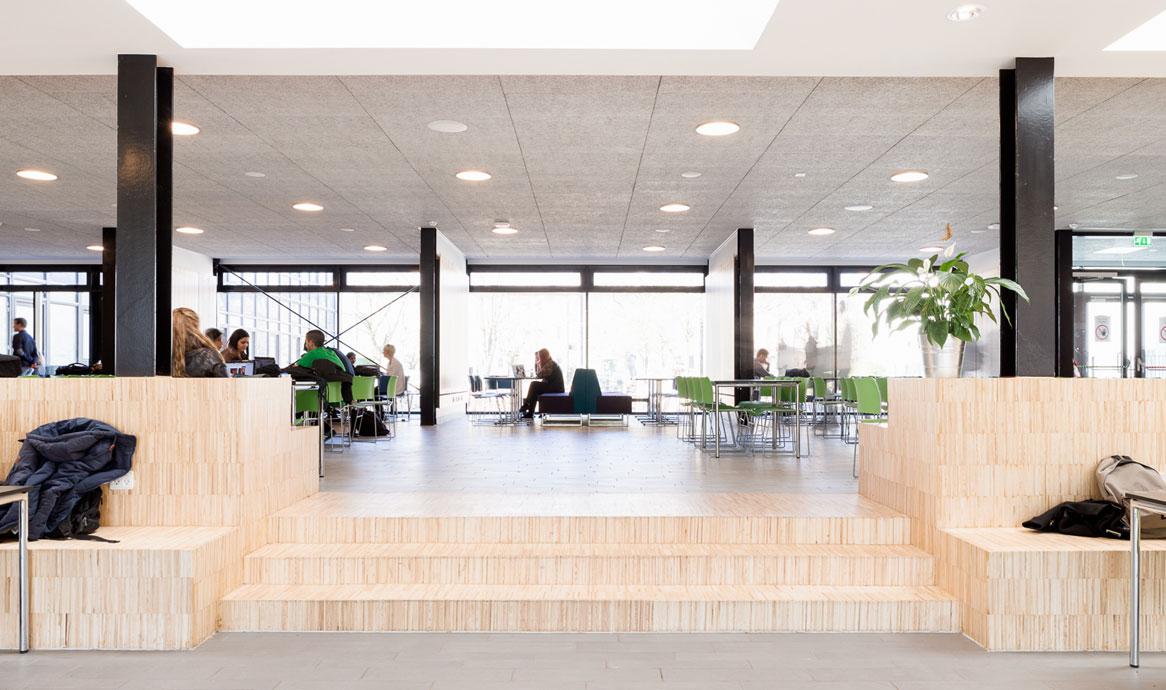

Sweco Architects have used the H+M 380 in grey metallic at Nørre Gymnasium, Copenhagen.

Umbraco.Cms.Core.Models.Link More photos here.

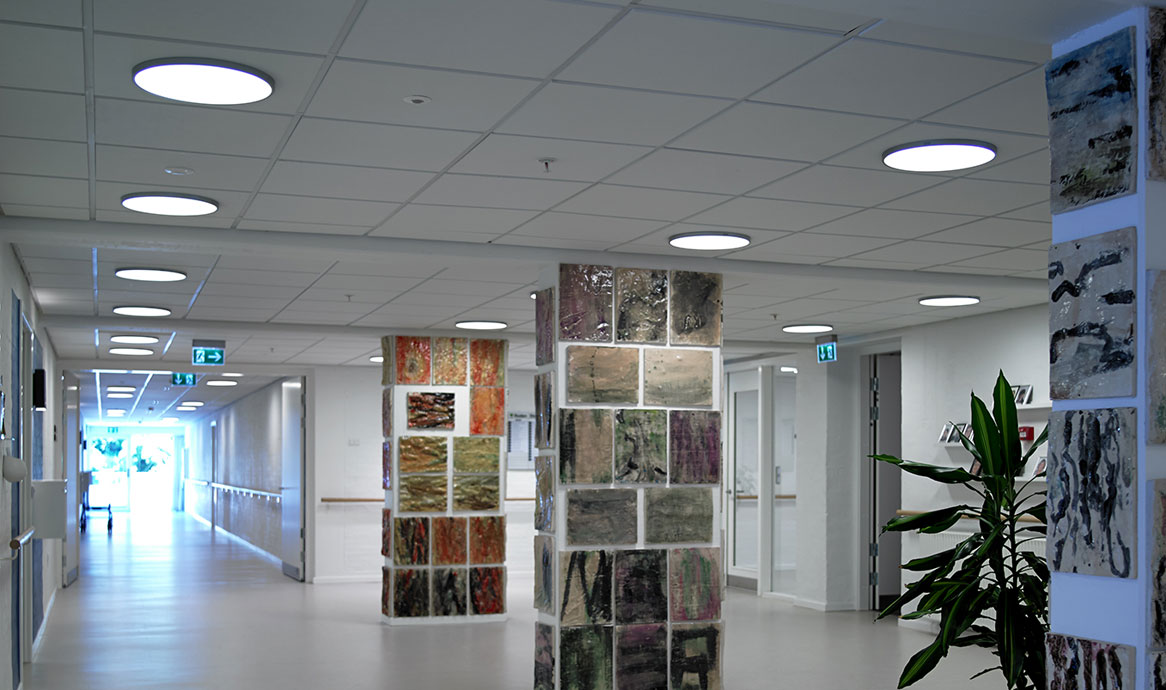

H+M 380 recessed, Rosenvang Care Centre, Aarhus.

Umbraco.Cms.Core.Models.Link More photos of H+M

DesignChristian Hvidt Design

The H+M luminaires, designed by Christian Hvidt in the 80'es, are out-and-out retro with modern technology. The new minimalist versions appear light and blend into the preferred style.
The H+M luminaires are classics within interior lighting and rank high as some of the most downloaded fittings in the 3D portal BimObject.

Christian Hvidt is active as a freelance designer for Danish and international companies, especially within furniture and lighting.
