H+M SURFACE MOUNTED

Please choose

The H+M luminaires are easy to install and to maintain. Safety is high with the shade in impact-resistant and flame-proof polycarbonate and no direct entry to the light source.

Specifications

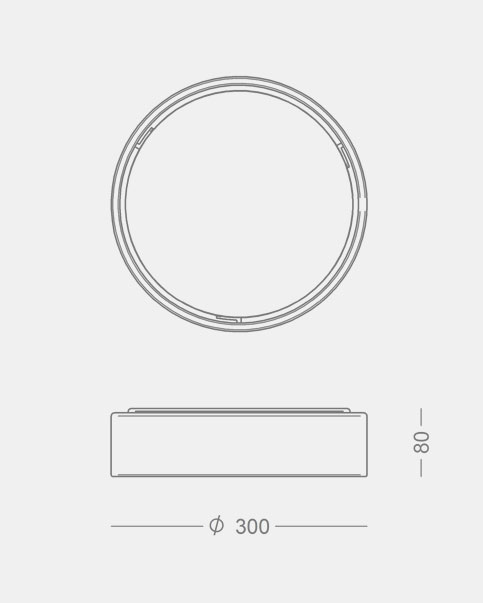

Ø 300

Luminaire

H+M SURFACE-MOUNTED 300
Material	Aluminium
Coating	White, black, or grey metallic
Shade	Opal-white polycarbonate, option for prismatic
Mounting	On ceiling or wall
Connection	max two cables, 5 x 1.5 mm², into 5-pole terminal block, 2 x 2.5 mm²
Classification	IP20, class I
Weight	1.5 kg

LED and driver data

LED type	244 mm board
Operational life	min 50,000 hours at ta max 25° C, L80B10
Total consumption	11 or 15 W
Colour temperature	2700, 3000, or 4000 Kelvin
	Tunable White: 2700-6500 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SCDM
Output ratio	80%

Driver	LED driver, 20 W, dimming optional
Inrush current	max 5 A (50% after 50 µs)
Operational life	min 50,000 hours

Variants

Item No.	H+M 300 surface-mounting
2870-	11 W LED, 350 mA
2871-	15 W LED, 500 mA

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Shade
1 = white	P = polycarbonate
3 = black	MP = micro prismatic polycarbonate
9 = grey metallic

Colour temperature	Dimming
927 = 2700 K, 90 Ra	empty = no dimming
930 = 3000 K, 90 Ra	V = 1-10 V
940 = 4000 K, 90 Ra	D = Dali
9WD = tunable white, Dali, 90 Ra

Spings for wall mounting
F = two springs

Example Item No.: 2871-3P9WD = H+M 300 surface-mounted, 15 W LED, black, tunable white, 90 Ra, Dali

Media & downloads

Product information

Product data, H+M surface mountedPDF LED modules for H+M 300PDF Mounting instructions H+M surface mountingPDF MaintenancePDF RoHS DeclarationPDF

3D files

H+M surface-mountedGSM H+M 300 surface mountingRFA H+M 300 surface mounting3DS H+M 300 surface mountingDWG

Photos

Product image, H+M surface-mountingJPG

Photometric data

H+M 300, 11 W, 2700 KLDT H+M 300, 11 W, 2700 KPDF H+M 300, 11 W, 3000 KLDT H+M 300, 11 W, 3000 KPDF H+M 300, 11 W, 4000 KLDT H+M 300, 11 W, 4000 KPDF H+M 300, 15 W, 2700 KLDT H+M 300, 15 W, 2700 KPDF H+M 300, 15 W, 3000 KLDT H+M 300, 15 W, 3000 KPDF H+M 300, 15 W, 4000 KLDT H+M 300, 15 W, 4000 KPDF

All ldt files

LDT.zipZIP

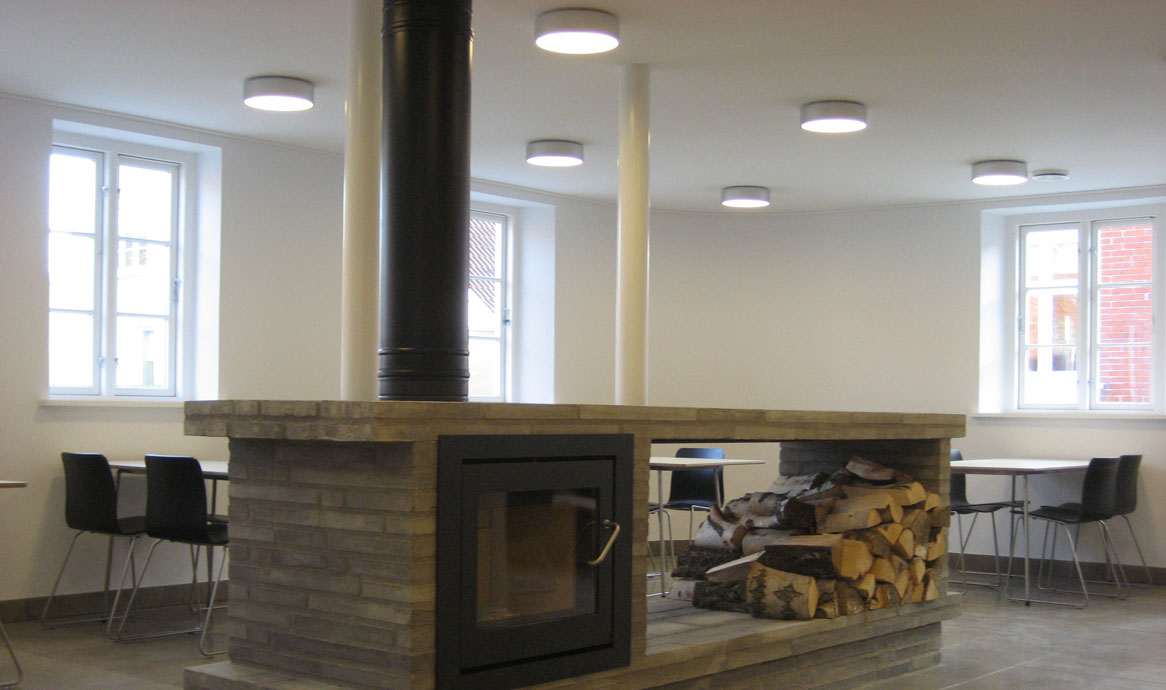

Architects Buchardt have used the surface-mounted H+M for the 2006 refurbishment of the Youth Hostel at the island of Marstal.
