H+M SURFACE MOUNTED

Please choose

The H+M luminaires are easy to install and to maintain. Safety is high with the shade in impact-resistant and flame-proof polycarbonate and no direct entry to the light source.

Specifications

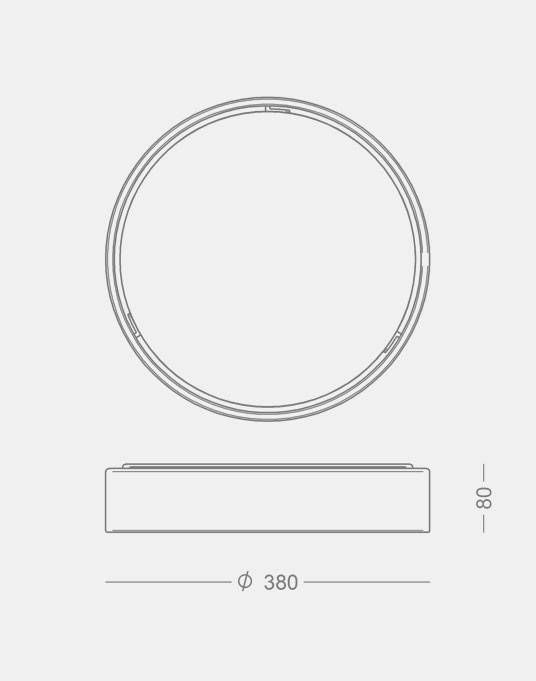

Ø 380

Please choose

Luminaire

H+M SURFACE-MOUNTED 380
Material	Aluminium
Coating	White, black, or grey metallic
Shade	Opal-white polycarbonate, option for prismatic
Mounting	On ceiling or wall
Connection	max two cables, 5 x 1.5 mm², into 5-pole terminal block, 2 x 2.5 mm²
Classification	IP20, class I
Weight	2 kg

LED and driver data

LED type	324 mm board
Operational life	min 50,000 hours at ta max 25° C, L80B10
Total consumption	17, 23 or 33 W (500/700/1050 mA)
Colour temperature	2700, 3000, or 4000 Kelvin
	Tunable White: 2700-6500 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SCDM
Output ratio	82%

Driver 17-23 W	Helvar LED driver, 350-700 mA
Operational life	min 50,000 hours

Driver 33 W	TCI LED driver, 1050 mA, Dali
Operational life	min 50,000 hours

Variants - LED

Item No.	H+M 380 surface-mounting
2876-	17 W LED, 500 mA
2877-	23 W LED, 700 mA
2878-	33 W LED, 1050 mA

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Shade
1 = white	P = polycarbonate
3 = black	MP = micro prismatic polycarbonate
9 = grey metallic

Colour temperature	Dimming
927 = 2700 K, 90 Ra	empty = no dimming
930 = 3000 K, 90 Ra	V = 1-10 V
940 = 4000 K, 90 Ra	D = Dali
9WD = tunable white, Dali, 90 Ra

Spings for wall mounting
F = two springs

Example Item No.: 2876-1P930D = H+M 380 surface-mounted, 17 W LED, white, 3000 K, 90 Ra, Dali

Media &

downloads

Product information

Product data, H+M surface mounted PDF LED modules for H+M 380 PDF Mounting instructions H+M surface mounting PDF Maintenance PDF RoHS Declaration PDF

3D files

H+M surface-mounted GSM H+M 380 surface mounting RFA H+M 380 surface mounting 3DS H+M 380 surface mounting DWG

Photos

Product image, H+M surface-mounting JPG

Photometric data

H+M 380, 17 W, 2700 K LDT H+M 380, 17 W, 2700 K PDF H+M 380, 17 W, 3000 K LDT H+M 380, 17 W, 3000 K PDF H+M 380, 17 W, 4000 K LDT H+M 380, 17 W, 4000 K PDF H+M 380, 23 W, 2700 K LDT H+M 380, 23 W, 2700 K PDF H+M 380, 23 W, 3000 K LDT H+M 380, 23 W, 3000 K PDF H+M 380, 23 W, 4000 K LDT H+M 380, 23 W, 4000 K PDF H+M 380, 33 W, 2700 K LDT H+M 380, 33 W, 2700 K PDF H+M 380, 33 W, 3000 K LDT H+M 380, 33 W, 3000 K PDF H+M 380, 33 W, 4000 K LDT H+M 380, 33 W, 4000 K PDF

All ldt files

LDT.zip ZIP

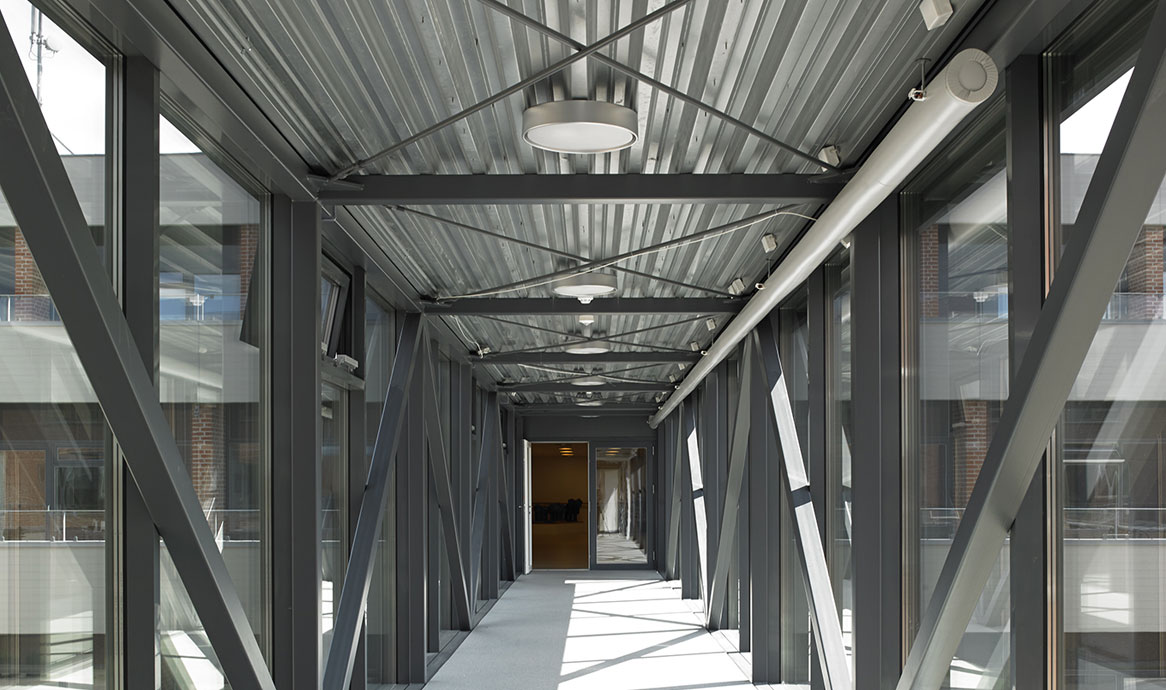

H+M 380 is used at the Rosenvang Care Centre, Aarhus Kommune. Both H+M for recession and for surface-mounting are used.

More photos here.

Design

Christian Hvidt Design

The H+M luminaires, designed by Christian Hvidt in the 80'es, are out-and-out retro with modern technology. The new minimalist versions appear light and blend into the preferred style.
The H+M luminaires are classics within interior lighting and rank high as some of the most downloaded fittings in the 3D portal BimObject.

Christian Hvidt is active as a freelance designer for Danish and international companies, especially within furniture and lighting.
