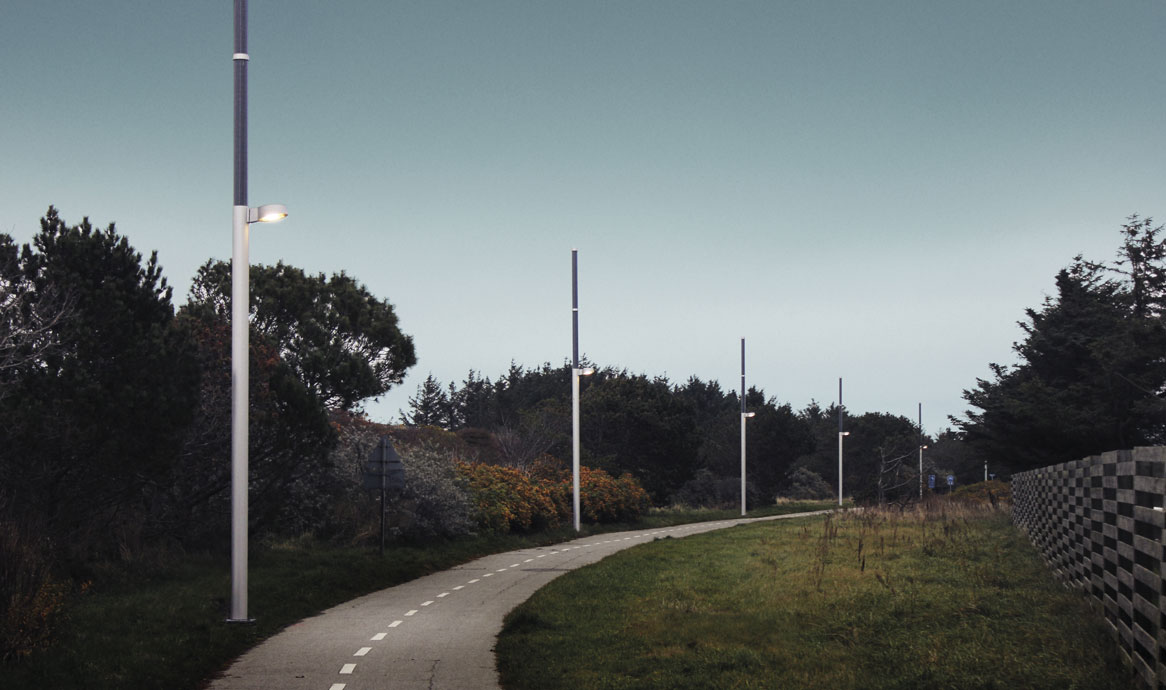

Nyx 330 wall fitting - also for solar and other customized poles.
| NYX 330 WALL | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: MY2370I, Akzo Nobel | |
| Black: RAL 9005, SN805G, Akzo Nobel | |
| Black: Noir 900 Sablé, SN351F, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Shade | Polycarbonate, frosted or opal white |
| Mounting | On wall or special pole, double cable entry |
| Option for base for visible installation | |
| Connection | 5 x 2.5 mm2 into terminal block |
| Classification | IP65, class I or II |
| Impact resistance | IK10 |
| Corrosion class | C4, C5 optional |
| Weight | 6.5 kg |
| LED type | Comfort, programmable |
|---|---|
| Operational life | min 100,000 hours at ta max 25° C, L100B10 |
| Constant lumen output | |
| Temperature range | -30 to +35° C |
| Colour temperature | 2700, 3000, or 4000 K |
| Colour rendering | Ra 70 or 80 |
| Colour accuracy | 5 steps SDCM |
| Luminous flux | The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire. |
| LED-lumen, Ra 80 | 2700K: 300-3000 lm |
| 3000K: 300-3150 lm | |
| 4000K: 300-3350 lm | |
| LED-lumen, Ra 70 | up to 3850 lm |
| Output ratio | 74% |
| Driver | Xitanium Full Xi FP 40 W 0.3-1.0 A, programmable |
|---|---|
| Inrush current | max 22 A (50% after 290 µs) |
| Dimming | 5 steps dimming within the lumen intervals |
| Other dimming | DALI-2, LineSwitch |
| Surge protection | L/N-GND: 8 kV |
| L-N: 6 kV | |
| Operational life | min 100,000 hours |
| Item No. | Nyx 330 wall |
|---|---|
| 6990- | LED Comfort, programmable, max 42 W |
| Option | |
|---|---|
| 1721- | Base for visible installation, combine with colour code |
Select colour, colour temperature, etc. in the table below.
| Colour | Colour temperature |
|---|---|
| 01 = raw anodized | 827 = 2700 K, 80 Ra |
| 3 = black RAL 9005 | 830 = 3000 K, 80 Ra |
| 4 = graphite grey | 840 = 4000 K, 80 Ra |
| 9 = silver grey | 730 = 3000 K, 70 Ra |
| 17 = corten brown | 740 = 4000 K, 70 Ra |
| 66 = noir 900 |
| Shade type | Dimming |
|---|---|
| empty = frosted shade | empty = programmable |
| O = opalised shade | D = DALI-2 (4/5-conductor cable) |
| F = LineSwitch |
| Protection class | Corrosion protection |
|---|---|
| empty = class I | empty = C4 |
| K = class II | C5 = C5 coating (add C5 after the colour code) |
Example Item No.: 6990-9830 = Nyx 330 Comfort, silver grey, 3000 K 80 Ra, class I
The story of Nyx begins in 2004 when Vilhelm Lauritzen Architects present the first draft for a wall fitting in two sizes. The design was simple, but characteristic and easily recognisable. Furthermore, Nyx differed from other luminaires of the time by the fact that it is cast in aluminium. Soon the series grew by lanterns and bollards, and especially the lanterns have shown great potential in street lighting.
