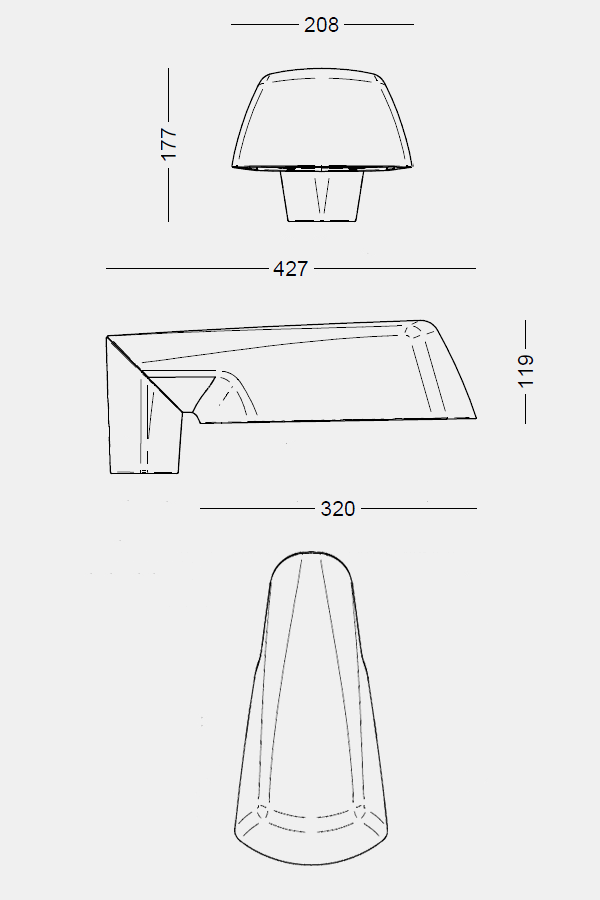

Peak 320 is a multifunctional luminaire designed to set new standards with a simple and flexible design that ensures installations for both pole and arm.
| PEAK 320 | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Black: Noir 900 Sablé, SN351F, Akzo Nobel | |
| Screen | 4 mm hardened glass |
| Mounting | On pole with 60 mm top diameter |
| Connection | Delivered with 6,5 m lead (post top) or 8,5 m lead (side entry), 2 x 1 mm2 |
| Classification | IP66, Class I or II |
| Impact resistance | IK10 (with SR socket IK09) |
| Corrosion class | C4, C5 optional |
| Weight | 4,5 kg |
| Wind-sweeping area | 0,054 m2 (laterally) |
| LED with lenses | FF-DA T3 for local roads, E-class |
|---|---|
| Service life | min 100,000 hours at ta max 25° C, L100B10 |
| Constant lumen output | |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Colour rendering | Ra 70 and Ra 80 |
| Colour accuracy | 5 steps SDCM |
| Luminous flux | The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire. |
| LED-lumen, 1xFF 22 W, Ra 70 | 3000K: 330-3140 lm, CLO, energy eff class: D |
| 4000K: 350-3380 lm, CLO, energy eff class: D | |
| LED-lumen, 1xFF, Ra 80 | 2700K: 275-2650 lm, CLO, energy eff class: E |
| 3000K: 290-2800 lm, CLO, energy eff class: E | |
| 4000K: 310-2960 lm, CLO, energy eff class: D | |
| LED-lumen, 1xFF, 40W, Ra 70 | 3000K: 430-4800 lm, CLO, energy eff class: D |
| 4000K: 460-5150 lm, CLO, energy eff class: D | |
| LED-lumen, 1xFF, 40W, Ra 80 | 2700K: 365-4050 lm, CLO, energy eff class: E |
| 3000K: 385-4275 lm, CLO, energy eff class: E | |
| 4000K: 410-4500 lm, CLO, energy eff class: D | |
| Output ratio | 97% |
| Luminous intensity class | G*4 |
| Driver 1xFF | Xitanium Full Xi FP 22 W 0,2-0,7 A, program |
|---|---|
| Inrush current | max 22 A (50% after 290 µs) |
| Driver 1xFF | Xitanium Full Xi FP 40 W 0,3-1,0 A, program |
|---|---|
| Inrush current | max 22 A (50% after 290 µs) |
| In rush current | max 22 A (50% after 290 µs) |
| Nominal voltage, AC | 230 Vac |
| Operational input voltage, AC | 80-264 Vac |
| Nominal voltage, DC | 186-250 Vdc |
| Operational input voltage, DC | 168-275 Vdc |
| Nominal input frequency | 50-60 Hz |
| Surge protection | L/N-GND: 10 kV, (D4i driver: 8 kV) L-N: 6 kV |
| Service life | min 100,000 hours |
| Dimming/control | 5 steps dimming within the lumen intervals |
| Other control options | DALI-2 (4/5 conductor cable), LineSwitch or via Zhaga Book 18 socket, D4i |
| Item No. | Peak 320 |
|---|---|
| 8710- | 1 x FF-DA 2x6, T3, low lumen, programmable |
| 8711- | LED 1xFF-DA 2x6, T3, high lumen, programmable |
Select colour, colour temperature, etc. in the table below.
| Colour | Colour temperature |
|---|---|
| 01 = raw anodized | 730 = 3000 K, Ra 70 |
| 4 = graphite grey | 740 = 4000 K, Ra 70 |
| 9 = silver grey | 827 = 2700 K, Ra 80 |
| 66 = noir 900 | 830 = 3000 K, Ra 80 |
| 840 = 4000 K, Ra 80 |
| T = post top | empty = programmable |
|---|---|
| Mounting | Dimming |
| U = side entry | D = DALI-2 |
| U = for arm | D = Dali-2 |
| R = Zhaga book 18 socket, upwards, D4i | |
| RC = City Touch / Interact City, D4i | |
| S = Zhaga book 18 socket, downwards, D4i | |
| RS = Zhaga socket up/down, D4i |
| Protection class | Corrosion class |
|---|---|
| empty = class II | empty = C4 |
| J = class I | C5 = C5 coating |
Example Product Code: 8951-9730TJ = Peak 380 2xFF-DA T3, silver grey, 3000 K, 70 Ra,
