PELÉE LINE

Please choose

The inner conical steps, characteristic for all Pelée luminaires, contribute to a comfortable, non-glaring spread of light. The family comprises luminaires to be recessed, surface-mounted, or suspended.

Pelée Line is available in various lengths up to six metres. The light is directed down and upwards - the ratio is specified below.

Specifications

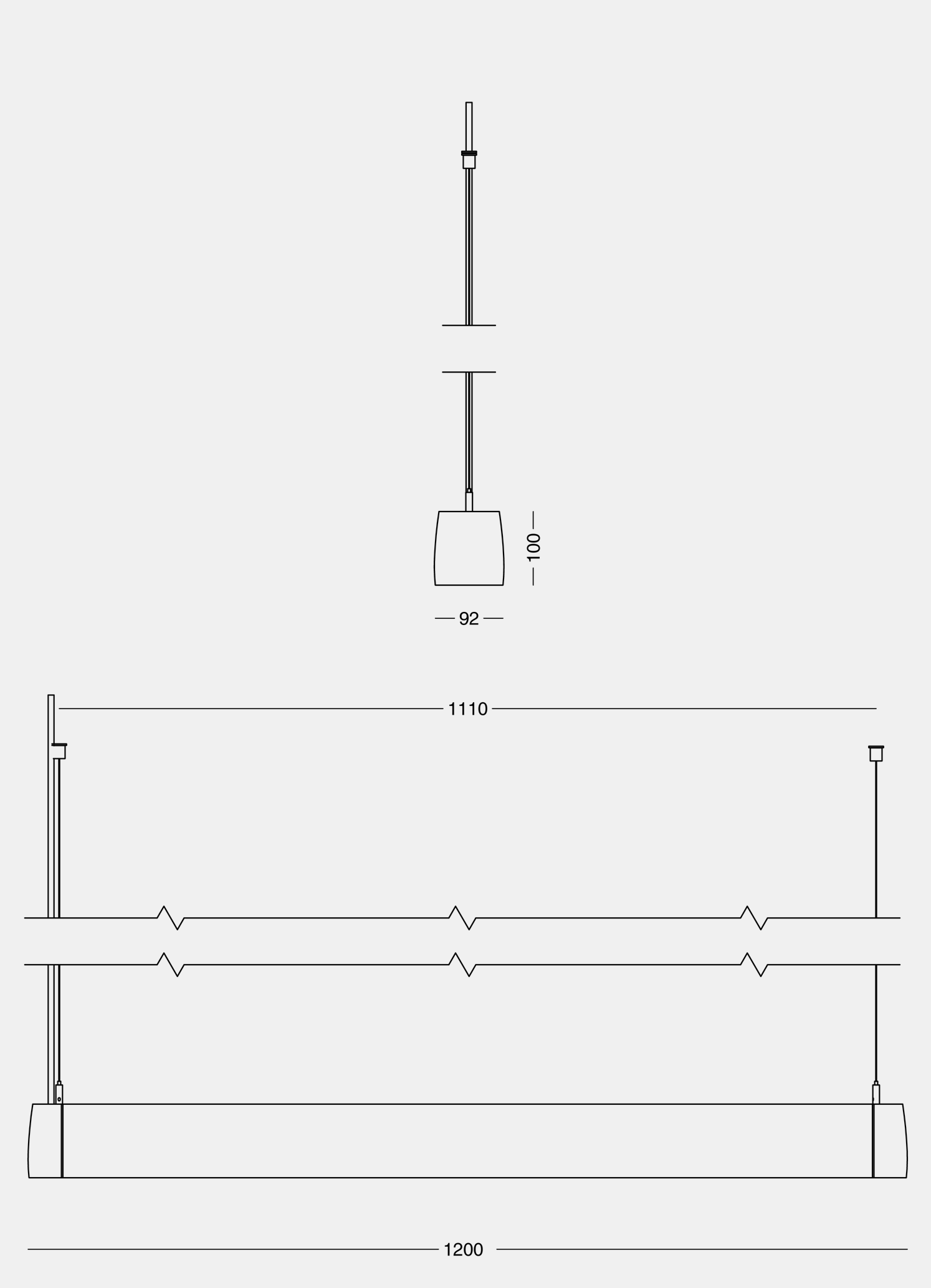

Pelée 1200

Luminaire

PELÉE LINE 1200
Material	Cast aluminium
Powder coating	White: RAL 9010 Textura, SA310G, Akzo Nobel
	Alu-grey: RAL 9006 Textura, SP9965 CWS
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
Downward shade	Microprismatic acrylate
Upward shade	Opalised acrylate
Lead	3 m white or black PKAJ, Ø 8 mm
Suspension	2 x 2 m steel wire, 1.2 mm
Classification	IP20, class I
Weight	ca 5 kg

LED and driver data

LED type	Strips
Operational life	min 50.000 timer, L80B10
Total consumption	42 or 58 W
Luminous power, 100% downwards	max 4000 lm
Luminous power, both directions	max 6000 lm
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	2700K: min 80 Ra, 3000/4000K: min 90 Ra
Colour accuracy	3 steps SDCM
Driver	Dali control

Variants

Item No.	Pelée Line 1200
5109-	2000 lm, 100% downwards
5101-	3000 lm, 100% downwards
5102-	4000 lm, 100% downwards
5103-	5000 lm, 35/65 up/down
5104-	6000 lm, 35/65 up/down
5105-	4000 lm, 50/50 up/down
5106-	6000 lm, 50/50 up/down
5107-	5000 lm, 65/35 up/down
5108-	6000 lm, 65/35 up/down

Combine with

Select colour, colour temperature etc in the table.

Colour	Colour temperature
1 = white	827 = 2700 K, 80 Ra
9 = alu-grey	930 = 3000 K, 90 Ra
17 = corten brown	940 = 4000 K, 90 Ra
66 = black noir 900

Shade	Colour of lead
M = microprismatic	empty = white
	Y = black

Example: 5103-9M930 = Pelée Line 1200, 5000 lm, 35/65, alu-grey, 3000 K, Dali

Media & downloads

Product information

Product data, Pelée LinePDF Mounting instructions, Pelée LinePDF MaintenancePDF RoHS DeclarationPDF

3D files

Pelée Line 1200RFA Pelée Line 1200LCF Pelée Line 1200DWG Pelée Line 12003DS Pelée Line 1200IFC

Photos

Product image, Pelée Line - silver greyJPG Product image, Pelée Line - corten brownJPG Product image, Pelée Line - noir 900JPG Pelée, Augustenborg CastlePDF

Photometric data

Pelée Line 1200, 4000 lm, 100% down, 3000 KLDT Pelée Line 1200, 4000 lm, 100% down, 3000 KPDF Pelée Line 1200, 5000 lm, 35/65, 3000 KLDT Pelée Line 1200, 5000 lm, 35/65, 3000 KPDF Pelée Line 1200, 4000 lm, 50/50, 3000 KLDT Pelée Line 1200, 4000 lm, 50/50, 3000 KPDF Pelée Line 1200, 5000 lm, 65/35, 3000 KLDT Pelée Line 1200, 5000 lm, 65/35, 3000 KPDF

All ldt files

LDT.zipZIP

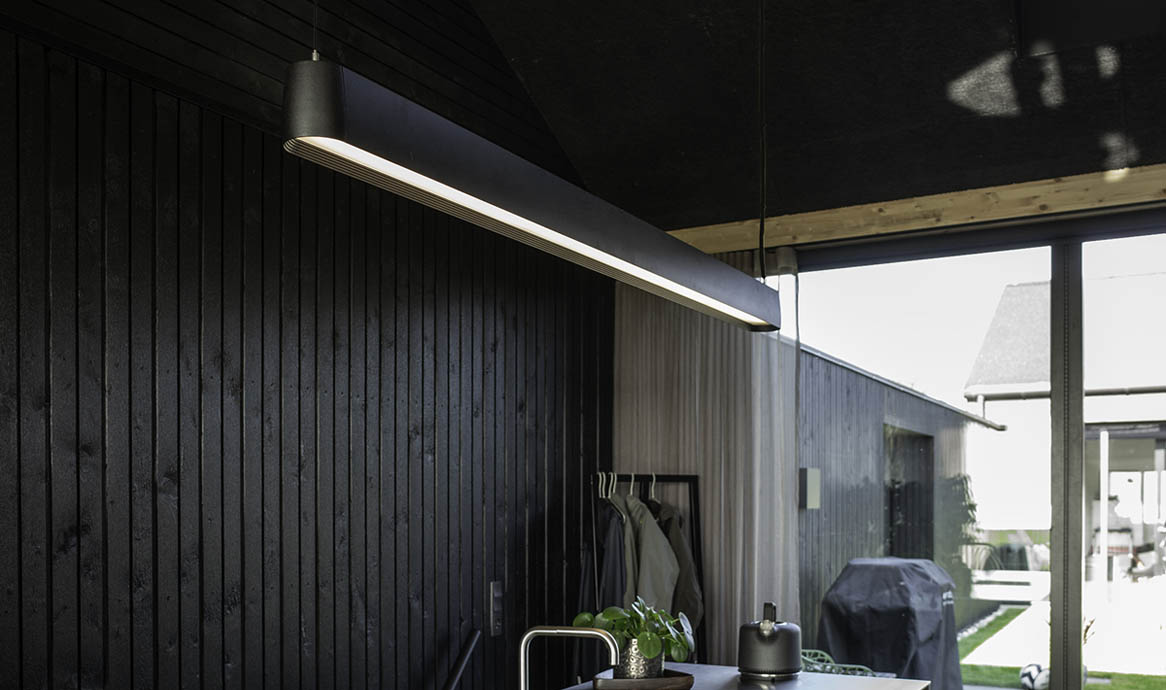

Pelée Pendant and Pelée Line in black lighten up two summer cottages by Cubo Architects.
