PELÉE LINE

Please choose

The inner conical steps, characteristic for all Pelée luminaires, contribute to a comfortable, non-glaring spread of light. The family comprises luminaires to be recessed, surface-mounted, or suspended.

Pelée Line is available in various lengths up to six metres. The light is directed down and upwards - the ratio is specified below.

Specifications

Pelée 2350

Luminaire

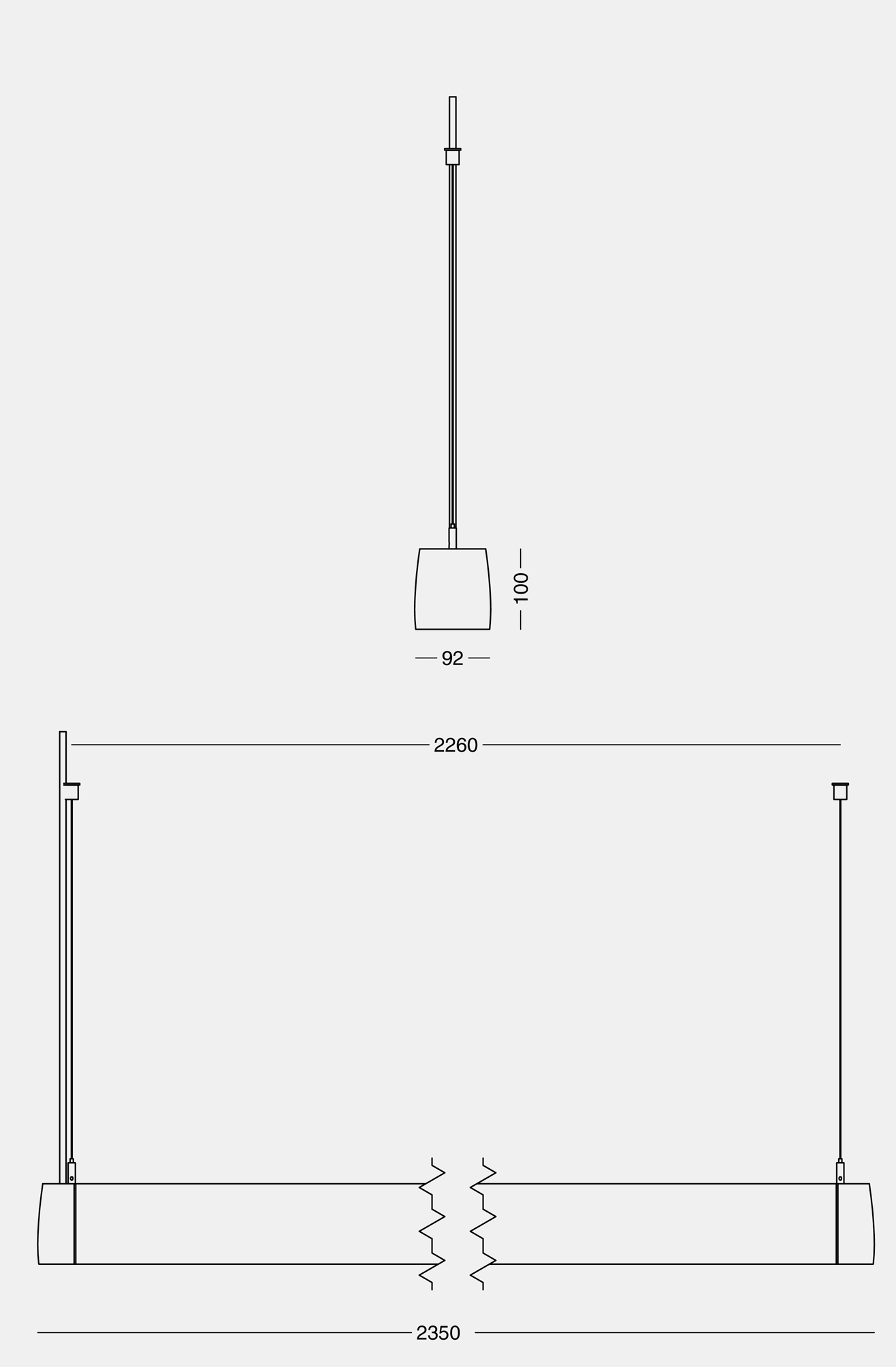

PELÉE LINE 2350
Material	Cast aluminium
Powder coating	White: RAL 9010 Textura, SA310G, Akzo Nobel
	Alu-grey: RAL 9006 Textura, SP9965 CWS
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
Downward shade	Microprismatic acrylate
Upward shade	Opalised acrylate
Lead	3 m white or black PKAJ, Ø 8 mm
Suspension	2 x 2 m steel wire, 1.2 mm
Classification	IP20, class I
Weight	ca 9 kg

LED and driver data

LED type	Strips
Operational life	min 50.000 timer, L80B10
Total consumption	max 103 W
Luminous power, 100% downwards	max 8000 lm
Luminous power, both directions	max 12000 lm
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	2700K: min 80 Ra, 3000/4000K: min 90 Ra
Colour accuracy	3 steps SDCM
Driver	Dali control

Variants

Item No.	Pelée Line 2350
5813-	8000 lm, 100% downwards
5815-	12000 lm, 35/65 up/down
5817-	12000 lm, 50/50 up/down
5819-	12000 lm, 65/35 up/down
	Lower luminous power upon request

Combine with

Select colour, colour temperature etc in the table.

Colour	Colour temperature
1 = white	827 = 2700 K, 80 Ra
9 = alu-grey	930 = 3000 K, 90 Ra
17 = corten brown	940 = 4000 K, 90 Ra
66 = black noir 900

Shade	Colour of lead
M = microprismatic	empty = white
	Y = black

Example: 5815-66M930 = Pelée Line 2350, 12000 lm, 35/65, black noir 900, 3000 K, Dali
