PELÉE PENDANT

Please choose

The inner conical circles of the Pelée pendants contribute to a comfortable, non-glaring spread of light. The opal-white shade offers excellent diffusion and an elegant finish.

Comprising pendants, wall fittings, downlighters and surface-mounted fixtures, the Pelée family covers most indoor applications.

Specifications

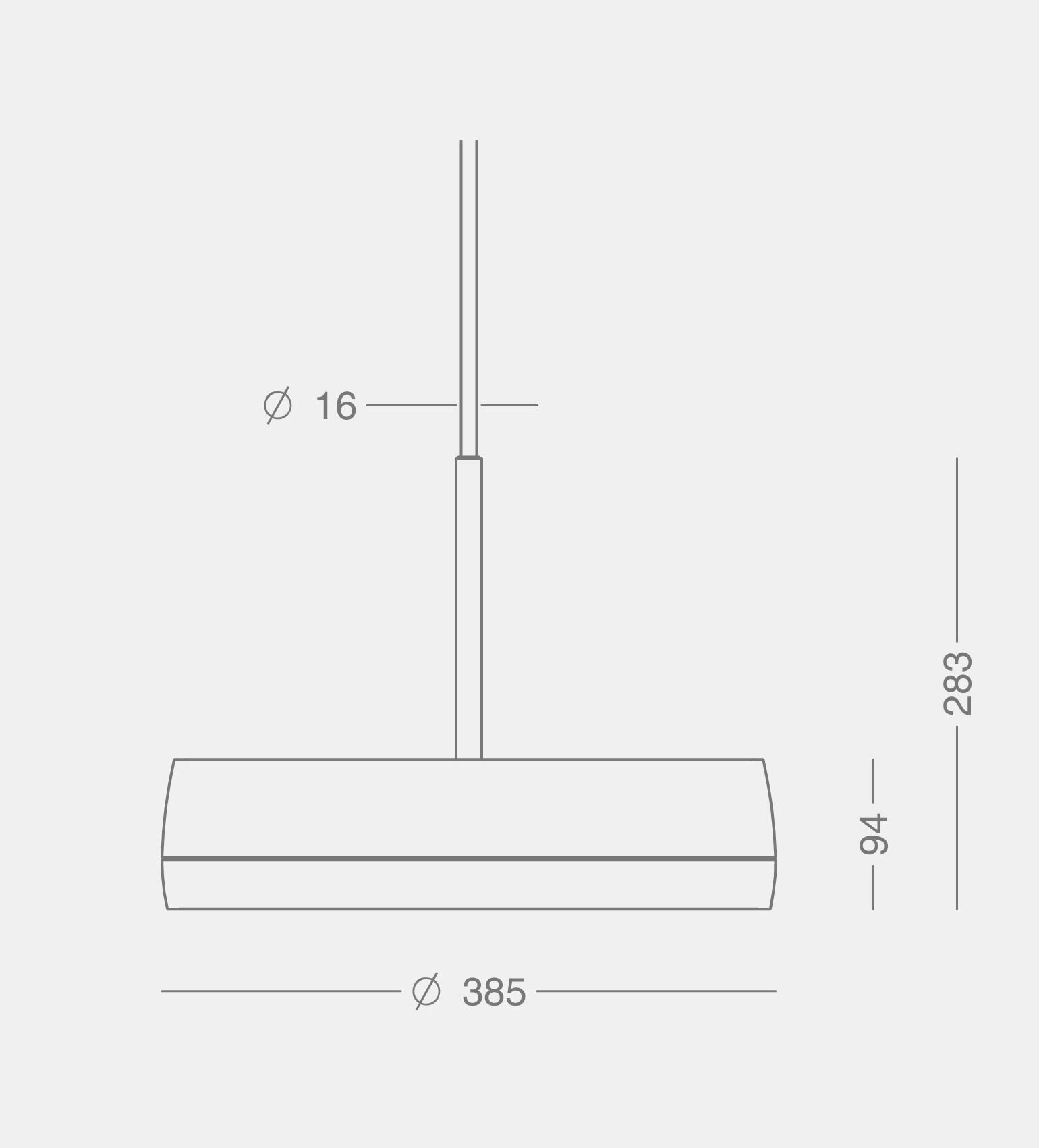

Ø 385

Luminaire

PELÉE 385 PENDANT
Material	Cast aluminium
Powder coating	White: RAL 9010 Textura, SA310G, Akzo Nobel
	Alu-grey: RAL 9006 Textura, SP9965 CWS
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
Shade	Opal-white or micro prismatic acrylate
Lead	3 m white or black PKAJ
Classification	IP20, class I
Weight	4 kg

LED and driver data

LED type	324 mm board
Operational life	min 50,000 hours at ta max 25° C, L80B10
Total consumption	17, 23 or 33 W (500/700/1050 mA)
Colour temperature	2700, 3000, or 4000 Kelvin
	Tunable White: 2700-6500 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SDCM
Output ratio	76%

Driver 17-23 W	Helvar LED driver, 350-700 mA
Operational life	min 50,000 hours

Driver 33 W	TCI LED driver, 1050 mA, Dali
Operational life	min 50,000 hours

Variants - LED

Item No.	Pelée 385 pendant
1840-	17 W LED, 500 mA
1841-	23 W LED, 700 mA
1844-	33 W LED, 1050 mA

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Shade
1 = white	empty = opal-white acrylate
9 = alu-grey	M = micro prismatic acrylate
17 = corten brown
66 = noir 900

Colour temperature	Dimming
927 = 2700 K, 90 Ra	empty = no dimming
930 = 3000 K, 90 Ra	V = 1-10 V
940 = 4000 K, 90 Ra	D = DALI
9WD = tunable white, Dali, 90 Ra

Colour of lead
empty = white
Y = black

Example Item No.: 1840-1930D = Pelée 385 pendant, 17 W LED, white, 3000 K, 90 Ra, Dali dimming

Media & downloads

Product information

Product data, Pelée pendantPDF Mounting instructions, Pelée PendantPDF MaintenancePDF RoHS DeclarationPDF

3D files

Pelée Pendant 3D for RevitRFA Pelée Pendant 3D for ArchicadGSM Pelée Pendant 3D for AutoCadDWG Pelée Pendant 2D for AutoCadDWG Pelée Pendant 3D for 3D Studio3DS Pelée Pendant 3DIFC Pelée Pendant 3DFBX Pelée Pendant 3DSTL

Photos

Product image, Pelée pendantJPG Product image, Pelée Pendant UplightJPG

Photometric data

Pelée 385, opalised shade

Pelée 385, 17 W, 2700 KLDT Pelée 385, 17 W, 2700 KPDF Pelée 385, 17 W, 3000 KLDT Pelée 385, 17 W, 3000 KPDF Pelée 385, 17 W, 4000 KLDT Pelée 385, 17 W, 4000 KPDF Pelée 385, 23 W, 2700 KLDT Pelée 385, 23 W, 2700 KPDF Pelée 385, 23 W, 3000 KLDT Pelée 385, 23 W, 3000 KPDF Pelée 385, 23 W, 4000 KLDT Pelée 385, 23 W, 4000 KPDF Pelée 385, 33 W, 2700 KLDT Pelée 385, 33 W, 2700 KPDF Pelée 385, 33 W, 3000 KLDT Pelée 385, 33 W, 3000 KPDF Pelée 385, 33 W, 4000 KLDT Pelée 385, 33 W, 4000 KPDF

Pelée 385, prismatic shade

Pelée 385, 17 W, 2700 K, prismaticLDT Pelée 385, 17 W, 2700 K, prismaticPDF Pelée 385, 17 W, 3000 K, prismaticLDT Pelée 385, 17 W, 3000 K, prismaticPDF Pelée 385, 17 W, 4000 K, prismaticLDT Pelée 385, 17 W, 4000 K, prismaticPDF Pelée 385, 23 W, 2700 K, prismaticLDT Pelée 385, 23 W, 2700 K, prismaticPDF Pelée 385, 23 W, 3000 K, prismaticLDT Pelée 385, 23 W, 3000 K, prismaticPDF Pelée 385, 23 W, 4000 K, prismaticLDT Pelée 385, 23 W, 4000 K, prismaticPDF Pelée 385, 33 W, 2700 K, prismaticLDT Pelée 385, 33 W, 2700 K, prismaticPDF Pelée 385, 33 W, 3000 K, prismaticLDT Pelée 385, 33 W, 3000 K, prismaticPDF Pelée 385, 33 W, 4000 K, prismaticLDT Pelée 385, 33 W, 4000 K, prismaticPDF

All ldt files

LDT.zipZIP

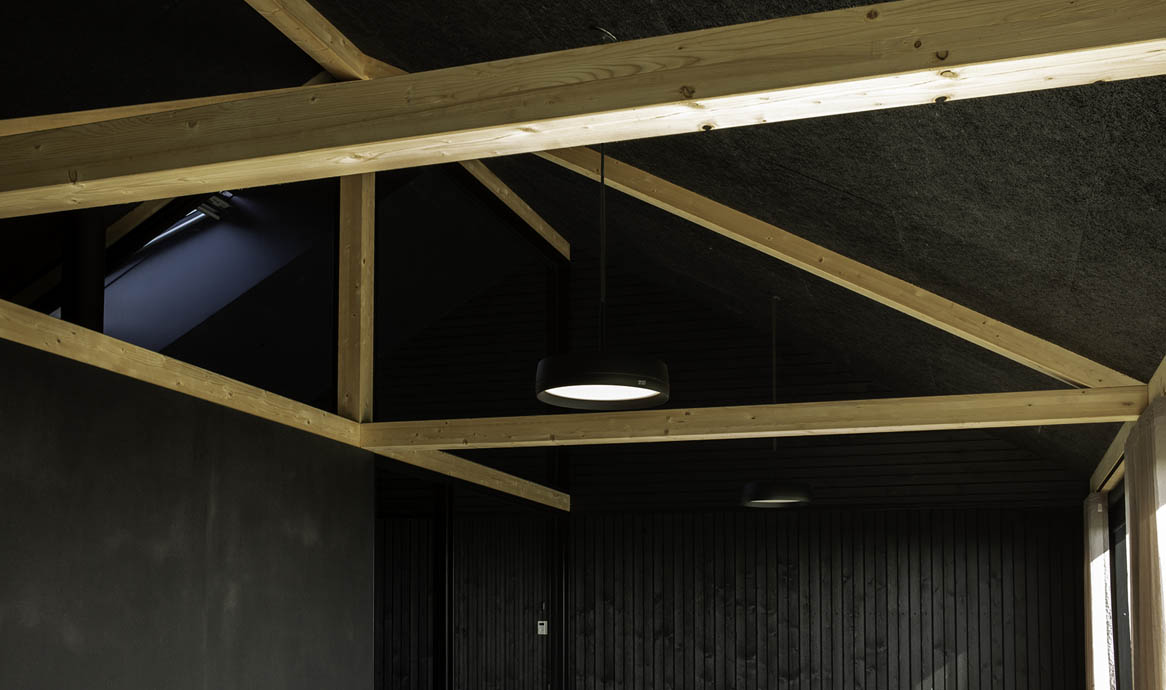

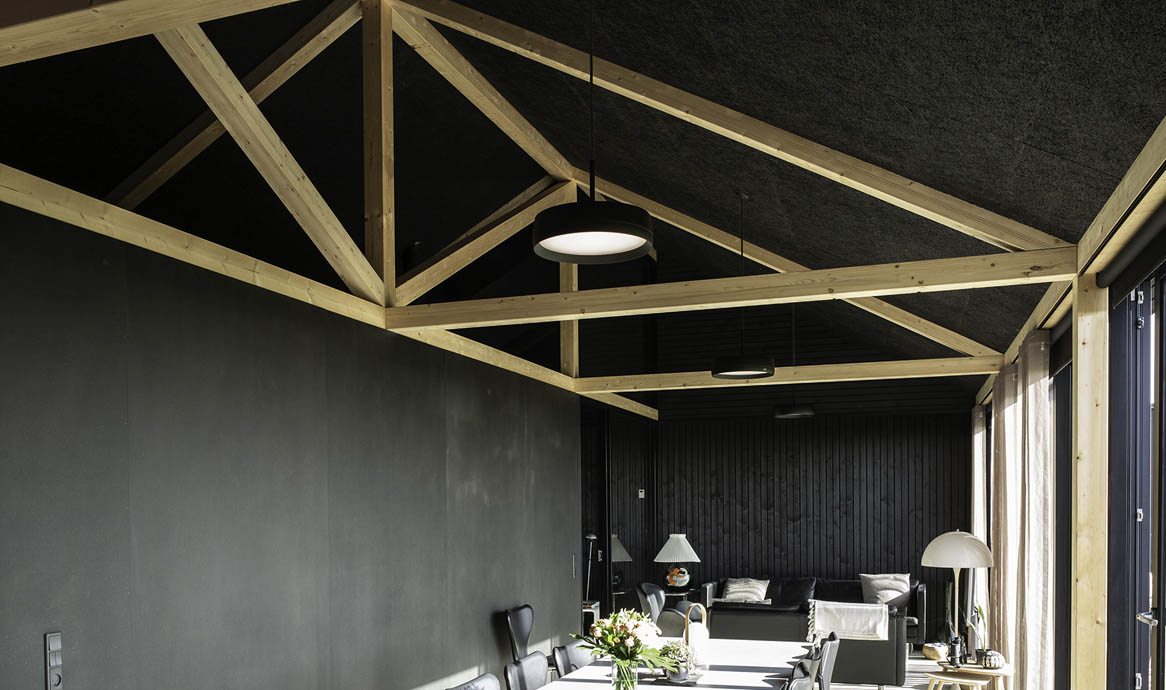

Pelée Pendant and Pelée Line in black lighten up two summer cottages by Cubo Architects.

Pelée Pendant and Pelée Line in black lighten up two summer cottages by Cubo Architects.

Umbraco.Cms.Core.Models.Link More photos

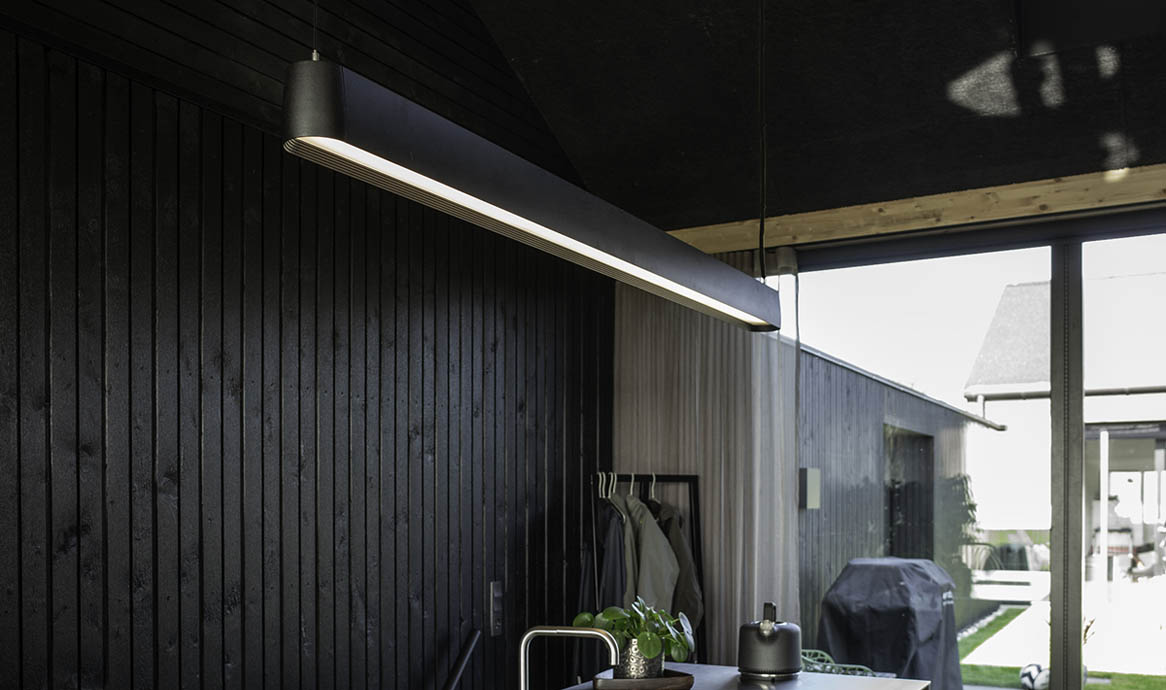

Black Pelée Line, Cubo cottage near Aarhus.
