The inner conical circles of the Pelée downlighters contribute to a comfortable, non-glaring spread of light. The shade in opal-white acrylate offers excellent diffusion and an elegant finish.
Comprising pendants, wall fittings, downlighters and surface-mounted fixtures, the Pelée family covers most indoor applications.

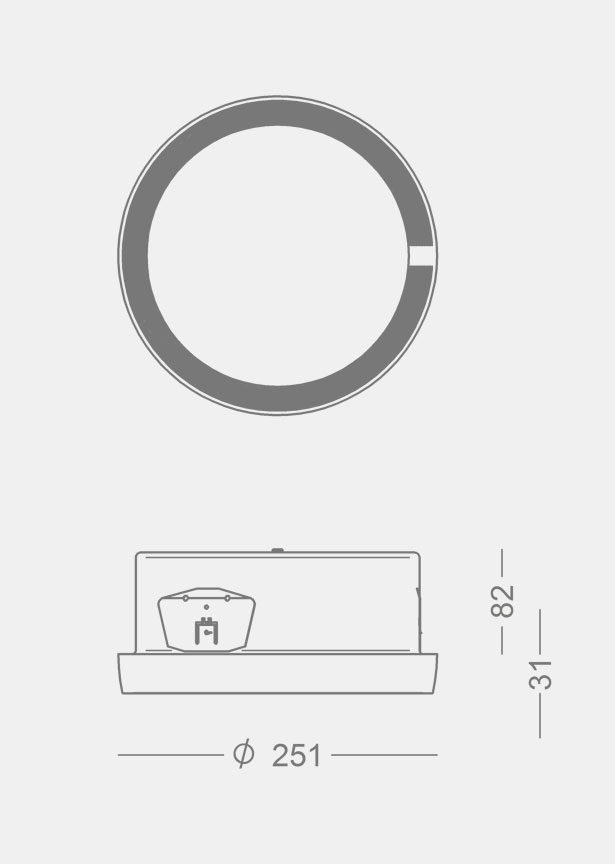

| PELÉE 250 | |
|---|---|
| Material | Cast aluminium |
| Coating/finish | White: RAL 9010 Textura, SA310G, Akzo Nobel |
| Alu-grey: RAL 9006 Textura, SP9965 CWS | |
| Black: Noir 900 Sablé, SN351F, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Sand blasted with transparent coating | |
| Shade | Opalised or micro prismatic acrylate |
| Mounting | To be recessed, option for reinforcement of ceiling |
| Cut-out | Ø229-234 mm |
| Thickness of plate | 10-40 mm |
| Clearances | 100 mm from lower ceiling edge, cables included |
| Recommended distance to construction: 50 mm | |
| Connection | max two cables, 5 x 1.5 mm², into 5-pole terminal block, 2 x 2.5 mm² |
| Classification | IP20, class I - IP23 upon request |
| Weight | 2.2 kg |
| LED type | 213 mm board |
|---|---|
| Operational life | min 50,000 hours at ta max 25° C, L80B10 |
| Total consumption | 10 or 14 W |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Tunable White: 2700-6500 Kelvin | |
| Colour rendering | min 90 Ra |
| Colour accuracy | 3 steps SCDM |
| Output ratio | 69% |
| Driver | LED driver, 20 W, dimming optional |
|---|---|
| Inrush current | max 5 A (50% after 50 µs) |
| Operational life | min 50,000 hours |
| Item No. | Pelée 250 |
|---|---|
| 2837- | 10 W LED, 350 mA |
| 2838- | 14 W LED, 500 mA - OBS: Do not cover! |
| Option | |
|---|---|
| 2832-20 | Reinforcement of soft ceilings, Pelée 250 |
Select colour, colour temperature, etc. in the table below.
| Colour | Shade |
|---|---|
| 1 = white | empty = opal-white acrylate |
| 3 = sand blasted with clear coating | M = micro prismatic acrylate |
| 9 = alu-grey | |
| 17 = corten brown | |
| 66 = noir 900 |
| Colour temperature | Dimming |
|---|---|
| 927 = 2700 K, 90 Ra | empty = no dimming |
| 930 = 3000 K, 90 Ra | V = 1-10 V |
| 940 = 4000 K, 90 Ra | D = DALI |
| 9WD = tunable white, Dali, 90 Ra |
Example Item No.: 2837-1930V = Pelée 250, 10 W LED, white, 3000 K, 90 Ra, 1-10 V dimming
The inspirationen to the new downlighter was found at the island of Martinique where the Pelée volcano has formed uniform steps of ashes and lava.
