PELÉE RECESSED

Please choose

The inner conical circles of the Pelée downlighters contribute to a comfortable, non-glaring spread of light. The shade in opal-white acrylate offers excellent diffusion and an elegant finish.

Comprising pendants, wall fittings, downlighters and surface-mounted fixtures, the Pelée family covers most indoor applications.

Specifications

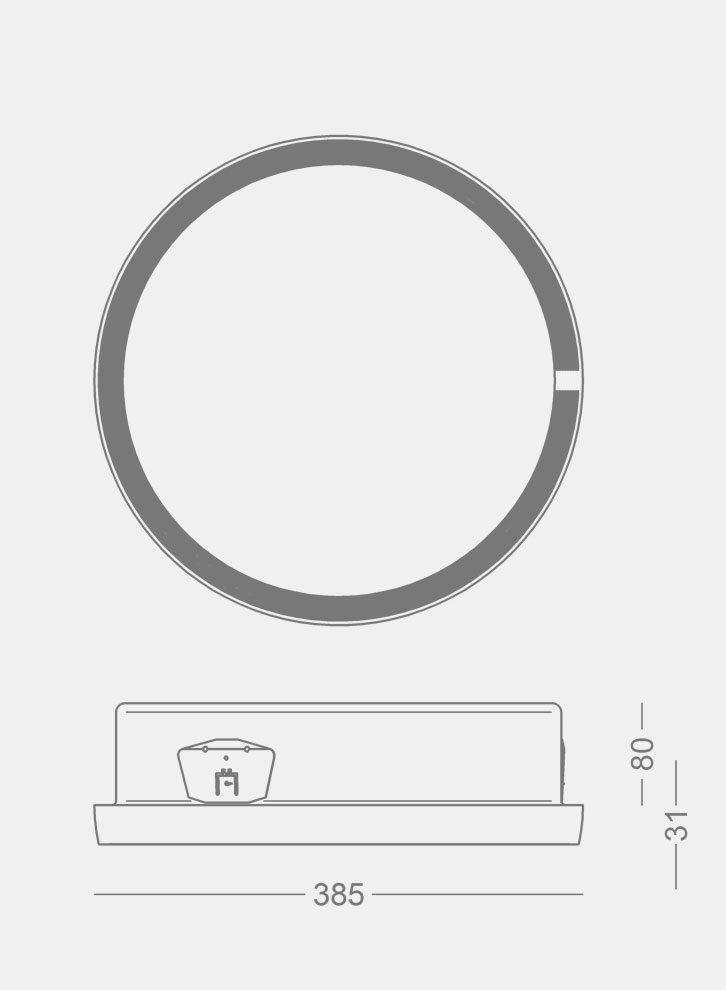

Ø 385

Luminaire

PELÉE 385 RECESSED
Material	Cast aluminium
Coating/finish	White: RAL 9010 Textura, SA310G, Akzo Nobel
	Alu-grey: RAL 9006 Textura, SP9965 CWS
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
	Sand blasted with transparent coating
Shade	Opalised or micro prismatic acrylate
Mounting	To be recessed, option for reinforcement of ceiling
Cut-out	Ø355-360 mm
Thickness of plate	10-40 mm
Clearances	100 mm from lower ceiling edge, cables included
	Recommended distance to construction: 50 mm
Connection	max two cables, 5 x 1.5 mm², into 5-pole terminal block, 2 x 2.5 mm²
Classification	IP20, class I - IP23 upon request
Weight	2.5 kg

LED and driver data

LED type	324 mm board
Operational life	min 50,000 hours at ta max 25° C, L80B10
Total consumption	17, 23 or 33 W (500/700/1050 mA)
Colour temperature	2700, 3000, or 4000 Kelvin
	Tunable White: 2700-6500 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SDCM
Output ratio	76%

Driver 17-23 W	Helvar LED driver, 350-700 mA
Operational life	min 50,000 hours

Driver 33 W	TCI LED driver, 1050 mA, Dali
Operational life	min 50,000 hours

Variants and options

Item No.	Pelée 385 recessed
2840-	17 W LED, 500 mA
2841-	23 W LED, 700 mA
2843-	33 W LED, 1050 mA

Option
2834-20	Reinforcement of soft ceilings, Pelée 385

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Shade
1 = white	empty = opal-white acrylate
3 = sand blasted with clear coating	M = micro prismatic acrylate
9 = alu-grey
17 = corten brown
66 = noir 900

Colour temperature	Dimming
927 = 2700 K, 90 Ra	empty = no dimming
930 = 3000 K, 90 Ra	V = 1-10 V
940 = 4000 K, 90 Ra	D = DALI
9WD = tunable white, Dali, 90 Ra

Example Item No.: 2840-39WD = Pelée 385 recessed, 17 W LED, sand-blasted, tunable white, 90 Ra, Dali

Media & downloads

Product information

Product data, Pelée recessedPDF Mounting instructionsPDF MaintenancePDF RoHS DeclarationPDF

3D files

Pelée recessedGSM Pelée recessedRFA

Photos

Product image, Pelée recessedJPG Pelée, White House, EsbjergPDF Pelée 385, JellingPDF Pelée and Nyx, Ny KærvangPDF

Photometric data

Pelée 385, opalised shade

Pelée 385, 17 W, 2700 KLDT Pelée 385, 17 W, 2700 KPDF Pelée 385, 17 W, 3000 KLDT Pelée 385, 17 W, 3000 KPDF Pelée 385, 17 W, 4000 KLDT Pelée 385, 17 W, 4000 KPDF Pelée 385, 23 W, 2700 KLDT Pelée 385, 23 W, 2700 KPDF Pelée 385, 23 W, 3000 KLDT Pelée 385, 23 W, 3000 KPDF Pelée 385, 23 W, 4000 KLDT Pelée 385, 23 W, 4000 KPDF Pelée 385, 33 W, 2700 KLDT Pelée 385, 33 W, 2700 KPDF Pelée 385, 33 W, 3000 KLDT Pelée 385, 33 W, 3000 KPDF Pelée 385, 33 W, 4000 KLDT Pelée 385, 33 W, 4000 KPDF

Pelée 385, prismatic shade

Pelée 385, 17 W, 2700 K, prismaticLDT Pelée 385, 17 W, 2700 K, prismaticPDF Pelée 385, 17 W, 3000 K, prismaticLDT Pelée 385, 17 W, 3000 K, prismaticPDF Pelée 385, 17 W, 4000 K, prismaticLDT Pelée 385, 17 W, 4000 K, prismaticPDF Pelée 385, 23 W, 2700 K, prismaticLDT Pelée 385, 23 W, 2700 K, prismaticPDF Pelée 385, 23 W, 3000 K, prismaticLDT Pelée 385, 23 W, 3000 K, prismaticPDF Pelée 385, 23 W, 4000 K, prismaticLDT Pelée 385, 23 W, 4000 K, prismaticPDF Pelée 385, 33 W, 2700 K, prismaticLDT Pelée 385, 33 W, 2700 K, prismaticPDF Pelée 385, 33 W, 3000 K, prismaticLDT Pelée 385, 33 W, 3000 K, prismaticPDF Pelée 385, 33 W, 4000 K, prismaticLDT Pelée 385, 33 W, 4000 K, prismaticPDF

All ldt files

LDT.zipZIP

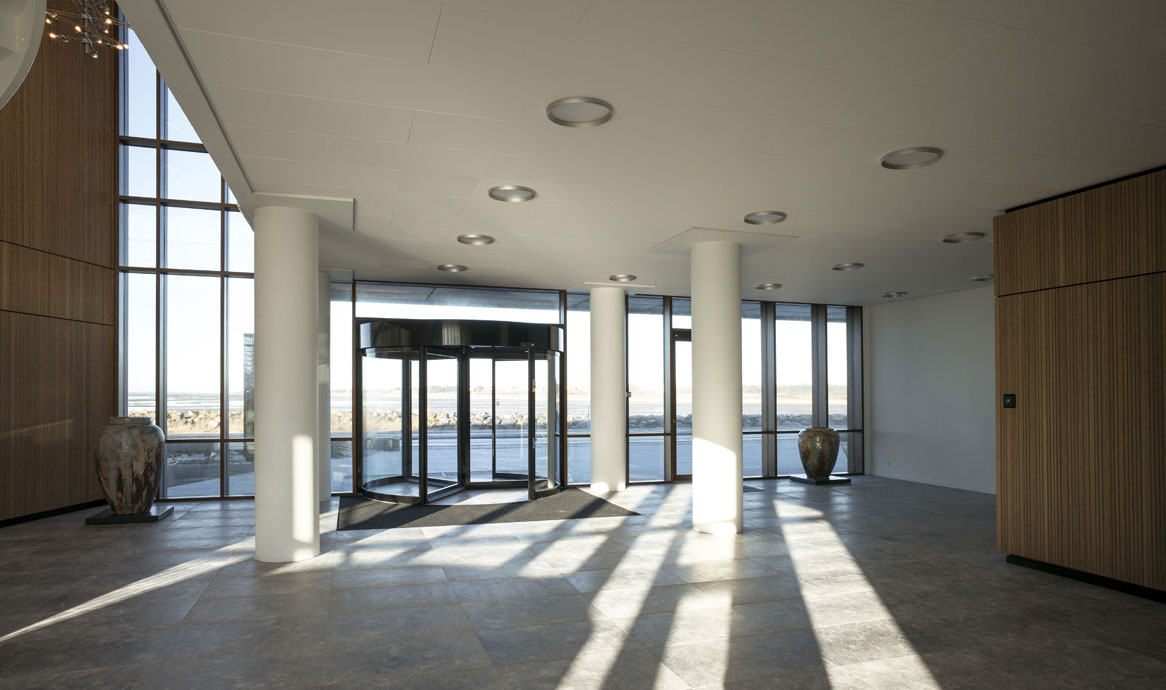

Several variants of the Pelée luminaire are used in the White House, Bryggen Esbjerg. Here the Ø385 recessed, grey metallic.

Umbraco.Cms.Core.Models.Link More photos here

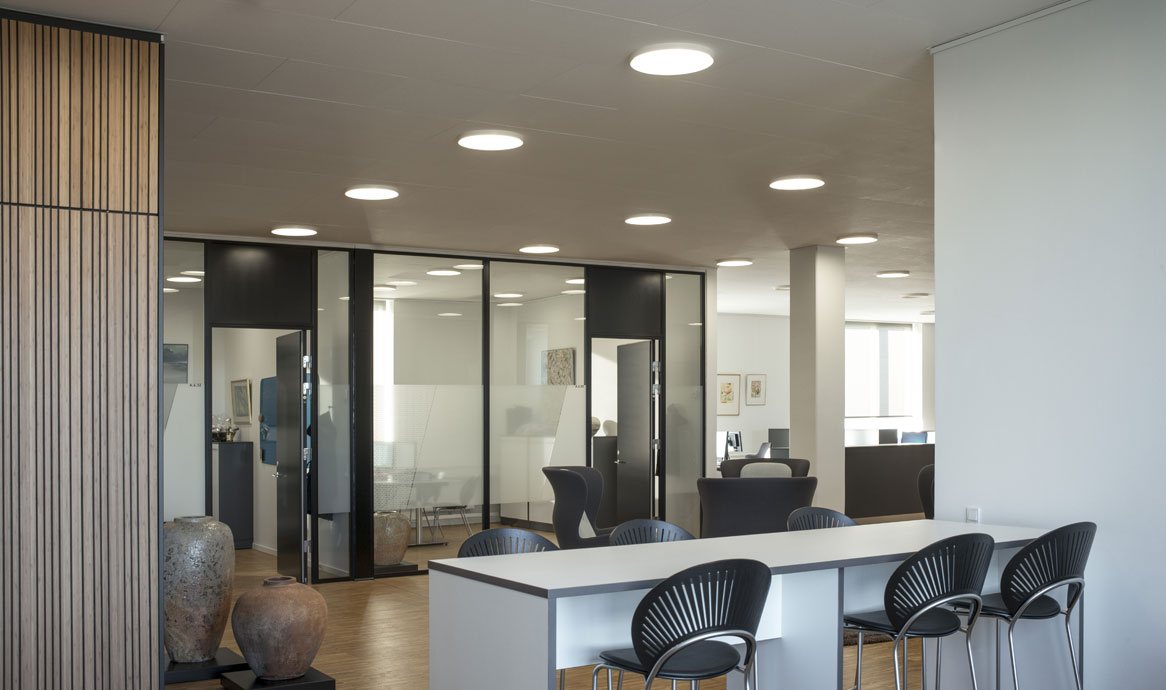

Pelée Ø385 recessed, white, White House, Bryggen Esbjerg. Architects: Friis & Moltke

Umbraco.Cms.Core.Models.Link More photos here

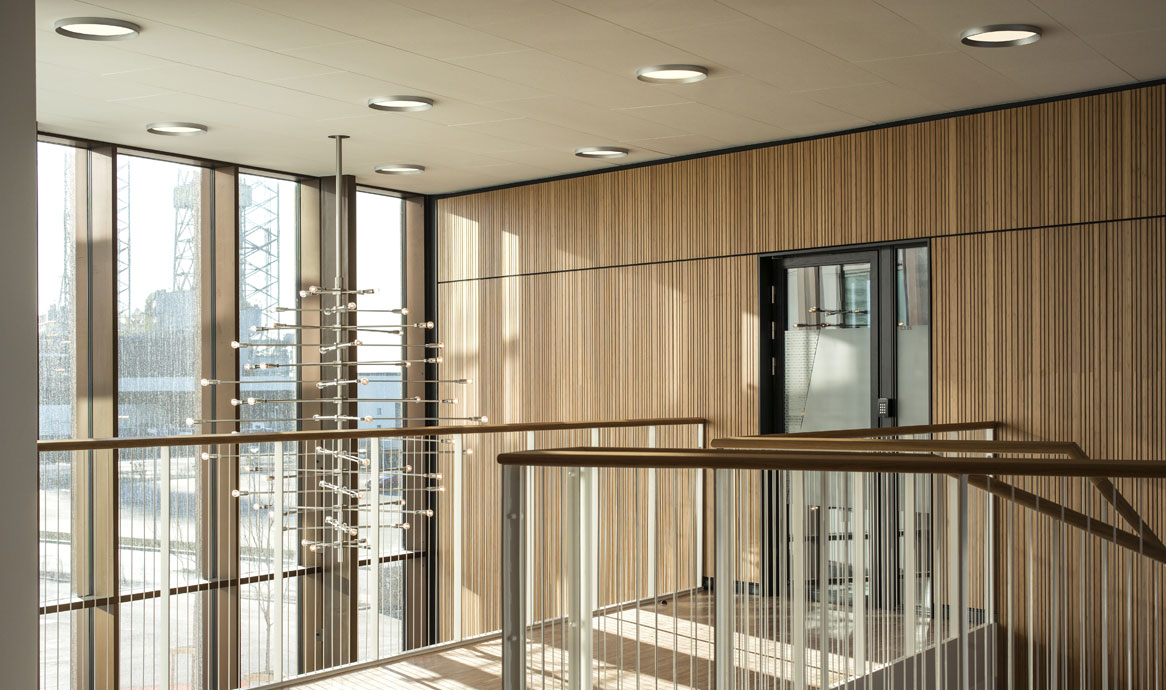

The Pelée luminaires can be seen all over the White House, the new company house of Claus Sørensen Ejendomme at Bryggen, Esbjerg.

Umbraco.Cms.Core.Models.Link More photos here

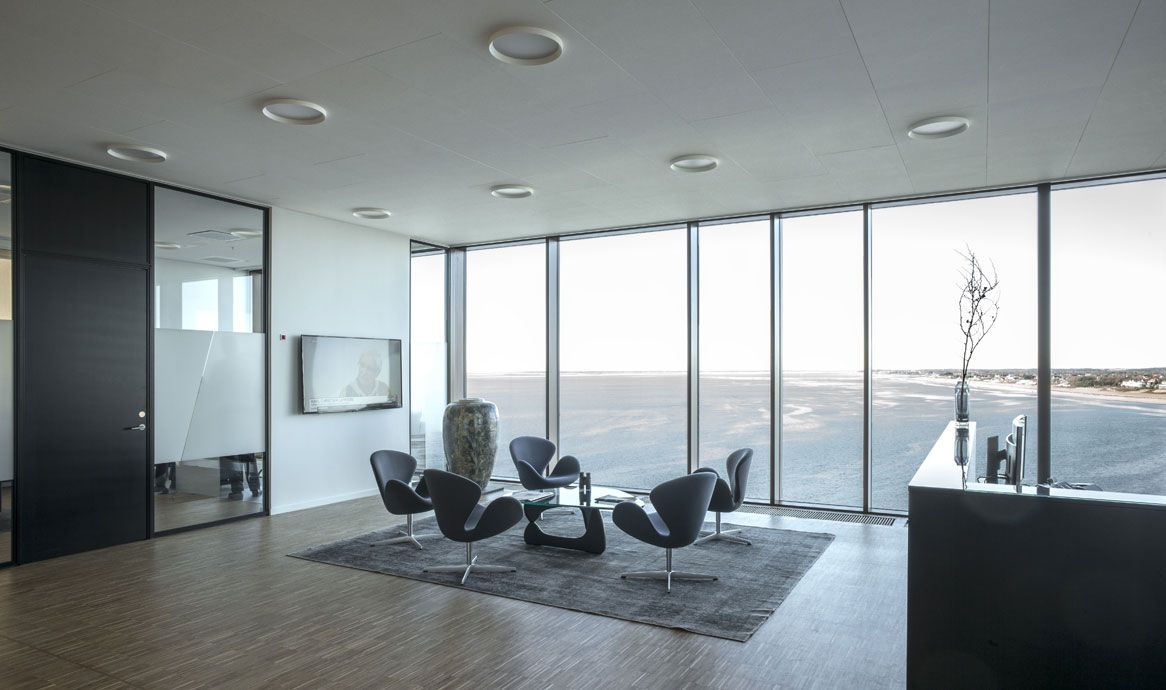

The Pelée luminaires blend into the interiors at White House, Claus Sørensen Ejendomme, Esbjerg. Architects: Friis & Moltke

Umbraco.Cms.Core.Models.Link More photos here

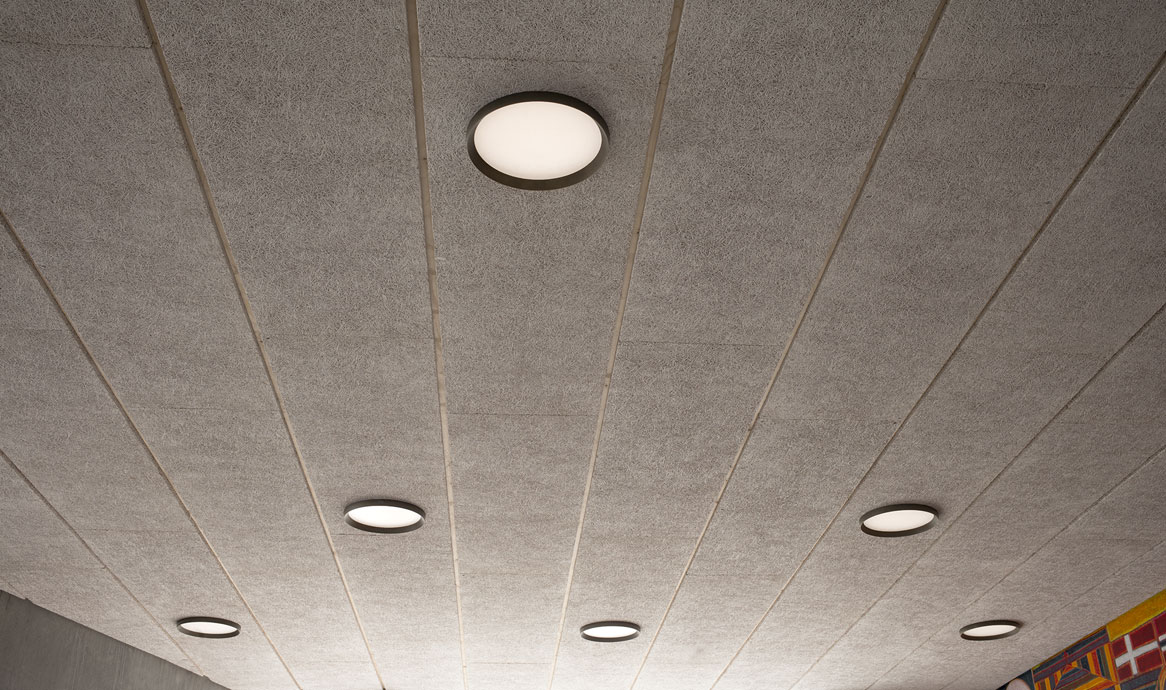

Cubo are the architects behind the new congregation house at Jelling. Here Pelée 385 recessed - bronze brown.

Umbraco.Cms.Core.Models.Link

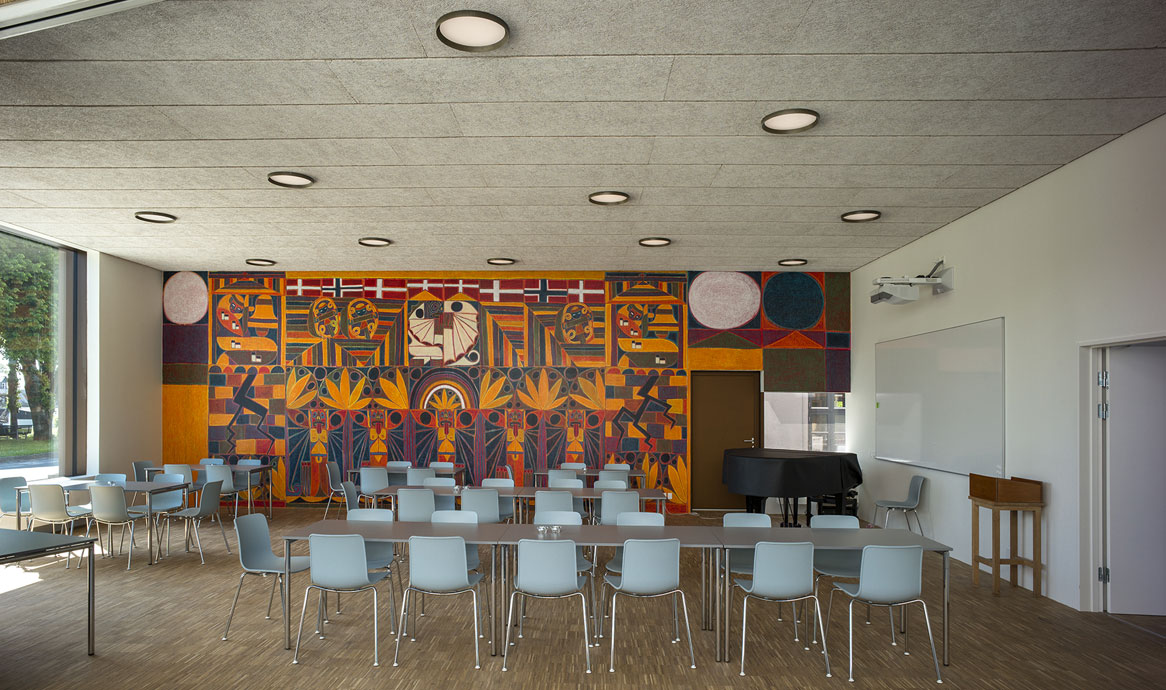

Pelée 385 recessed, Jelling Congregation House.

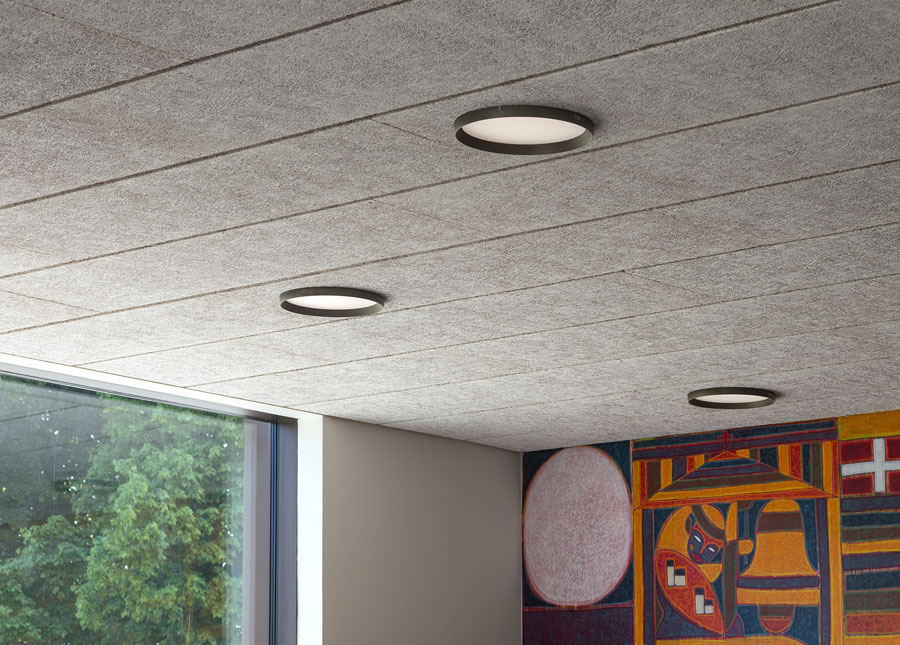

Pelée 385 recessed - bronze brown, Jelling Congregation House.

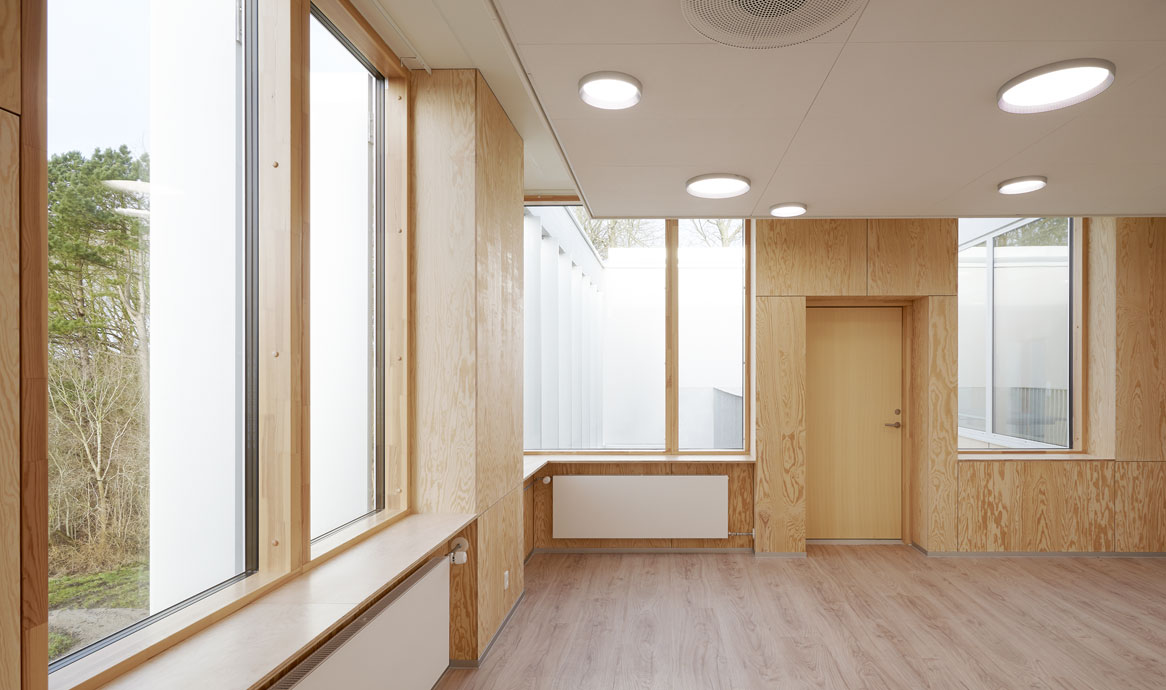

The creative use of Pelée recessed in both sizes is unconventional for an institution. The luminaires are equipped with tunable white (2700-6500 K).

Umbraco.Cms.Core.Models.Link More photos from Ny Kærvang

Many variants of the Pelée luminaire characterize the new Kærvang and underline Cubo's unconventional, non-institutional architecture.

Umbraco.Cms.Core.Models.Link More photos from Ny Kærvang

DesignCubo Architects

The inspirationen to the new downlighter was found at the island of Martinique where the Pelée volcano has formed uniform steps of ashes and lava.
