PELÉE SURFACE MOUNTED

Please choose

The inner conical circles of the Pelée downlighters contribute to a comfortable, non-glaring spread of light. The shade in opal-white acrylate offers excellent diffusion and an elegant finish.

Comprising pendants, wall fittings, downlighters and surface-mounted fixtures, the Pelée family covers most indoor applications.

Specifications

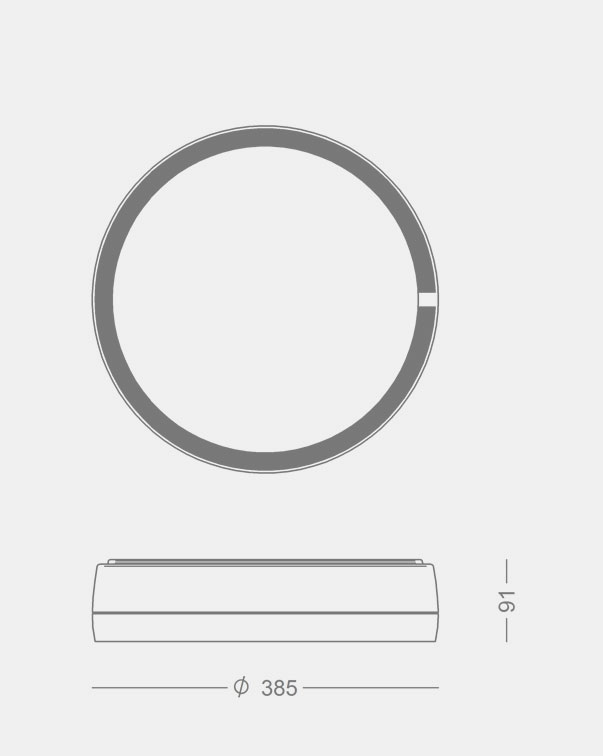

Ø 385

Luminaire

PELÉE 385 SURFACE-MOUNTED
Material	Cast aluminium
Powder coating	White: RAL 9010 Textura, SA310G, Akzo Nobel
	Alu-grey: RAL 9006 Textura, SP9965 CWS
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
Shade	Opal-white or micro prismatic acrylate
Mounting	On ceiling
Connection	max two cables, 5 x 1.5 mm², into 5-pole terminal block, 2 x 2.5 mm²
Classification	IP20, class I - IP23 upon request
Weight	3.3 kg

LED and driver data

LED type	324 mm board
Operational life	min 50,000 hours at ta max 25° C, L80B10
Total consumption	17, 23 or 33 W (500/700/1050 mA)
Colour temperature	2700, 3000, or 4000 Kelvin
	Tunable White: 2700-6500 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SDCM
Output ratio	76%

Driver 17-23 W	Helvar LED driver, 350-700 mA
Operational life	min 50,000 hours

Driver 33 W	TCI LED driver, 1050 mA, Dali
Operational life	min 50,000 hours

Variants - LED

Item No.	Pelée 385 surface-mounting
2886-	17 W LED, 500 mA
2887-	23 W LED, 700 mA
2888-	33 W LED, 1050 mA

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Shade
1 = white	empty = opal-white acrylate
9 = alu-grey	M = micro prismatic acrylate
17 = corten brown
66 = noir 900

Colour temperature	Dimming
927 = 2700 K, 90 Ra	empty = no dimming
930 = 3000 K, 90 Ra	V = 1-10 V
940 = 4000 K, 90 Ra	D = DALI
9WD = tunable white, Dali, 90 Ra

Example Item No.: 2886-19WD = Pelée 385 surface-mounting, 17 W LED, white, tunable white, 90 Ra, Dali

Media & downloads

Product information

Product data, Pelée surface mountedPDF Mounting instructions, Pelée 385PDF MaintenancePDF RoHS DeclarationPDF

3D files

Pelée 385 surface mounting, LOD 300RFA Pelée 385, Revit objects descriptionPDF

Photos

Product image, Pelée surface-mountingJPG Pelée 385, JellingPDF Pelée, White House, EsbjergPDF

Photometric data

Pelée 385, opalised shade

Pelée 385, 17 W, 2700 KLDT Pelée 385, 17 W, 2700 KPDF Pelée 385, 17 W, 3000 KLDT Pelée 385, 17 W, 3000 KPDF Pelée 385, 17 W, 4000 KLDT Pelée 385, 17 W, 4000 KPDF Pelée 385, 23 W, 2700 KLDT Pelée 385, 23 W, 2700 KPDF Pelée 385, 23 W, 3000 KLDT Pelée 385, 23 W, 3000 KPDF Pelée 385, 23 W, 4000 KLDT Pelée 385, 23 W, 4000 KPDF Pelée 385, 33 W, 2700 KLDT Pelée 385, 33 W, 2700 KPDF Pelée 385, 33 W, 3000 KLDT Pelée 385, 33 W, 3000 KPDF Pelée 385, 33 W, 4000 KLDT Pelée 385, 33 W, 4000 KPDF

Pelée 385, prismatic shade

Pelée 385, 17 W, 2700 K, prismaticLDT Pelée 385, 17 W, 2700 K, prismaticPDF Pelée 385, 17 W, 3000 K, prismaticLDT Pelée 385, 17 W, 3000 K, prismaticPDF Pelée 385, 17 W, 4000 K, prismaticLDT Pelée 385, 17 W, 4000 K, prismaticPDF Pelée 385, 23 W, 2700 K, prismaticLDT Pelée 385, 23 W, 2700 K, prismaticPDF Pelée 385, 23 W, 3000 K, prismaticLDT Pelée 385, 23 W, 3000 K, prismaticPDF Pelée 385, 23 W, 4000 K, prismaticLDT Pelée 385, 23 W, 4000 K, prismaticPDF Pelée 385, 33 W, 2700 K, prismaticLDT Pelée 385, 33 W, 2700 K, prismaticPDF Pelée 385, 33 W, 3000 K, prismaticLDT Pelée 385, 33 W, 3000 K, prismaticPDF Pelée 385, 33 W, 4000 K, prismaticLDT Pelée 385, 33 W, 4000 K, prismaticPDF

All ldt files

LDT.zipZIP

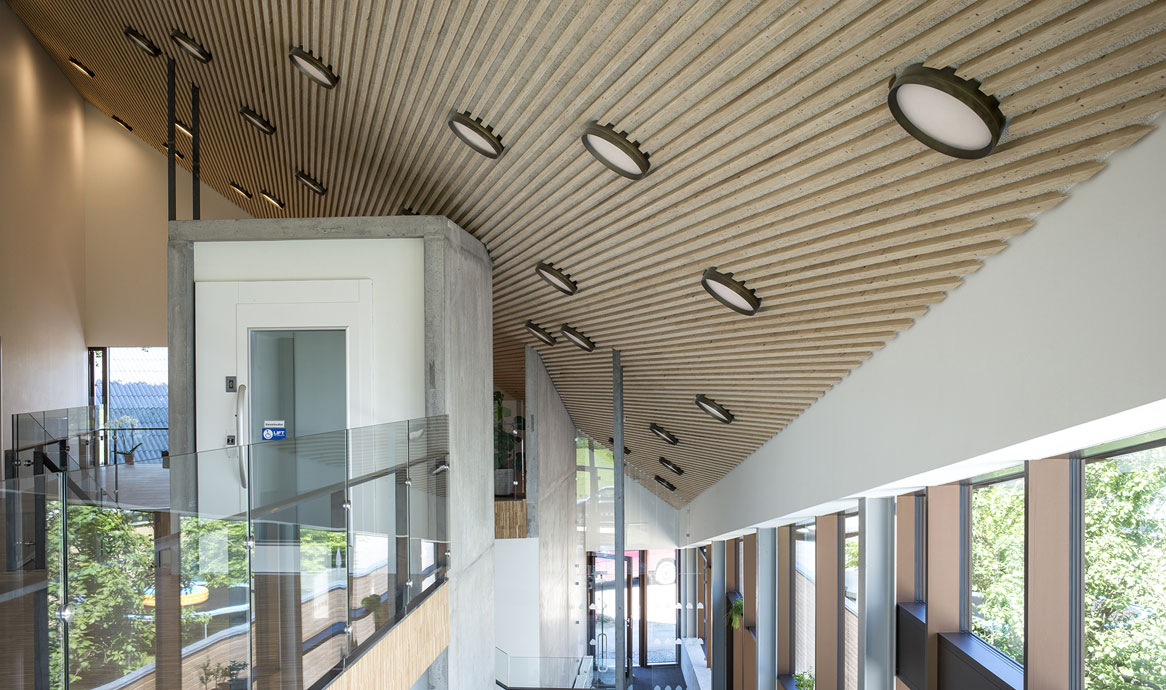

Cubo are the architects behind the new congregation house at Jelling. Here Pelée 385 surface-mounted - bronze brown.

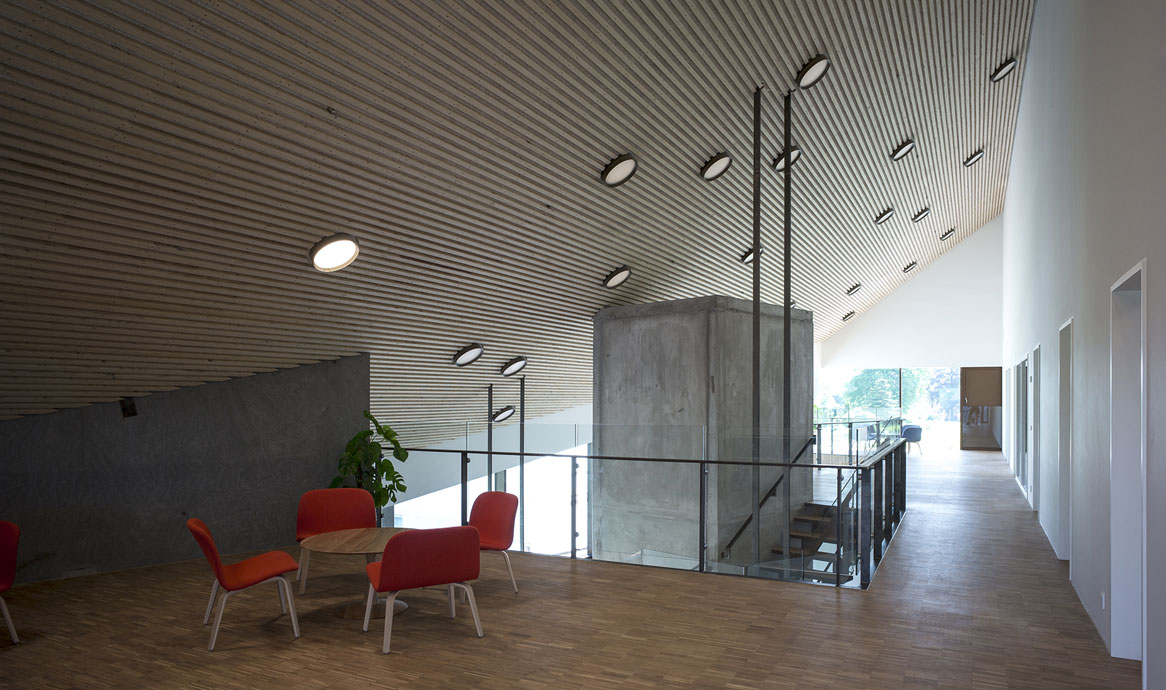

Pelée 385 surface-mounted, Jelling Congregation House.

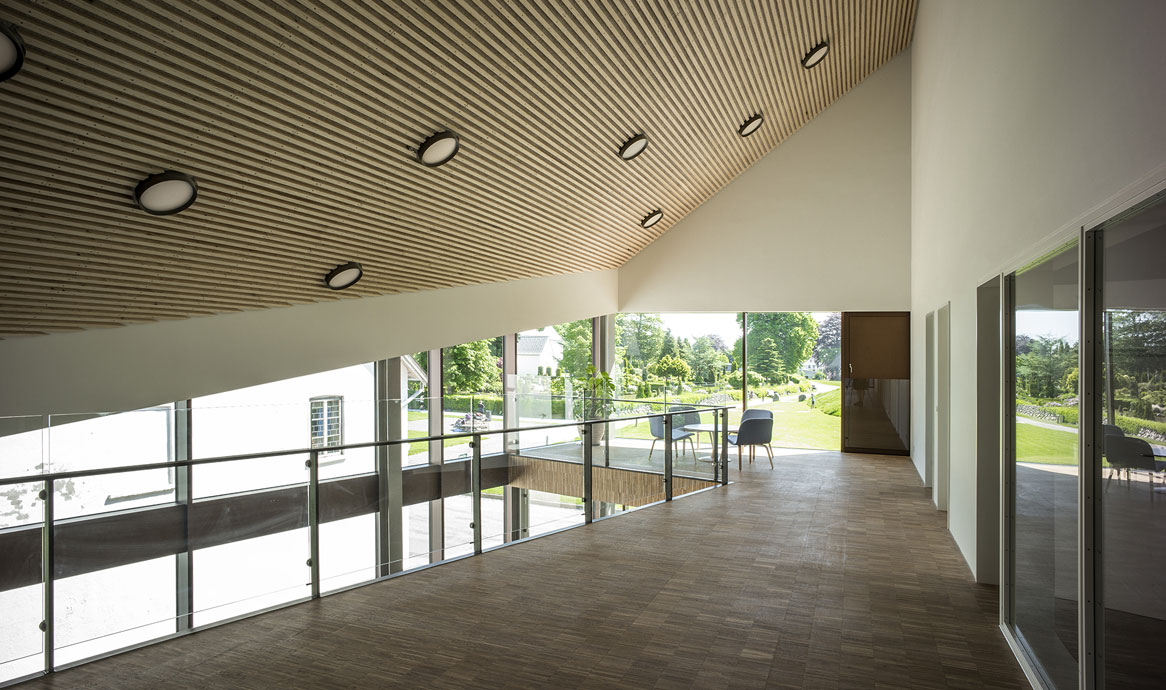

Pelée 385 surface-mounted - bronze brown, Jelling Congregation House.

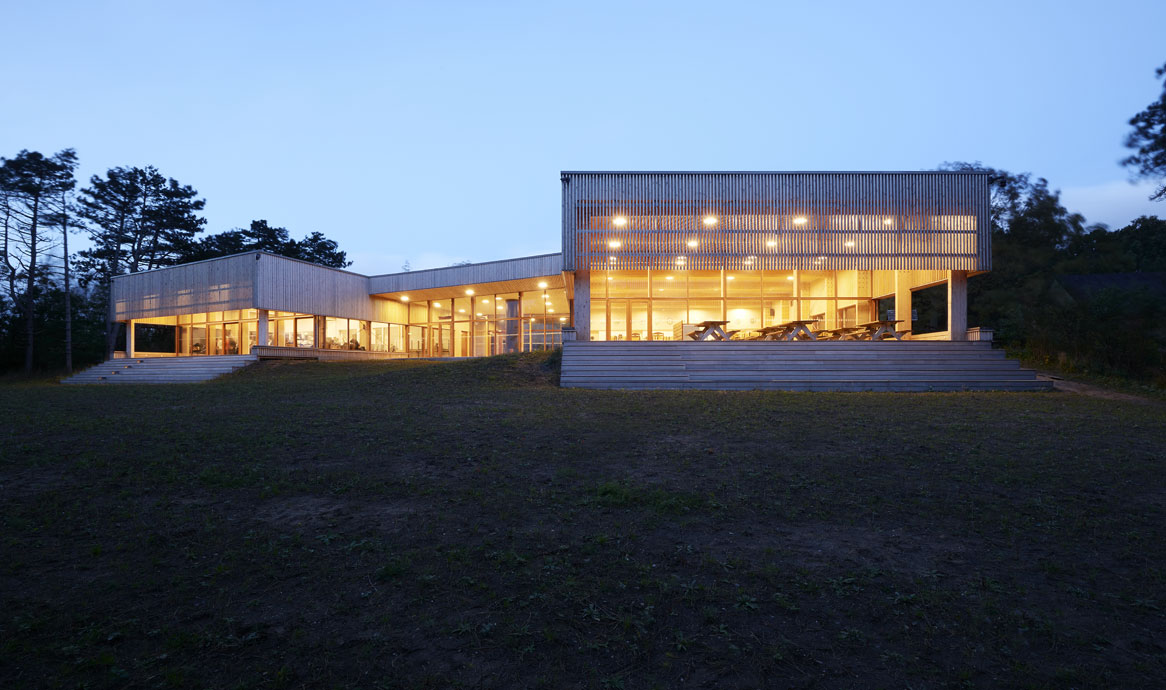

Cubo are the architects behind the new main house at the FDF country site, Jomsborg, at Isefjord, and have used the Pelée 385 luminaires for general lighting.

The Pelée 385 luminaires are used for general lighting in the new main house at the FDF country site, Jomsborg, at Isefjord; design: Cubo Architects

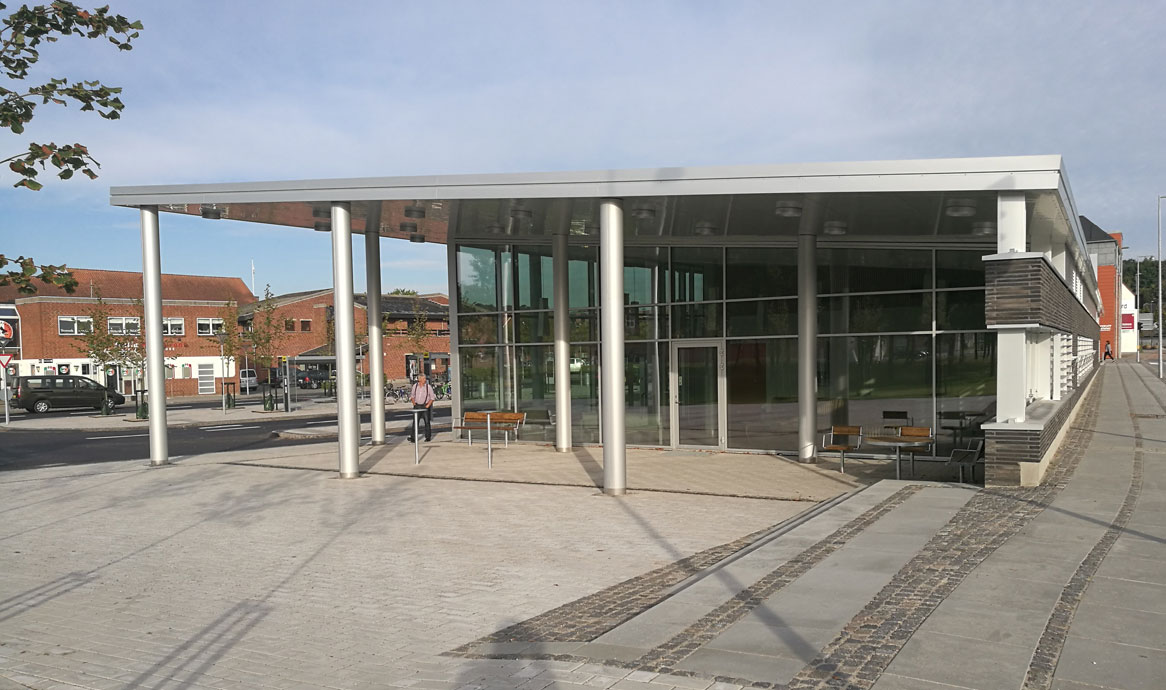

Pelée 385, Hobro Bus Terminal

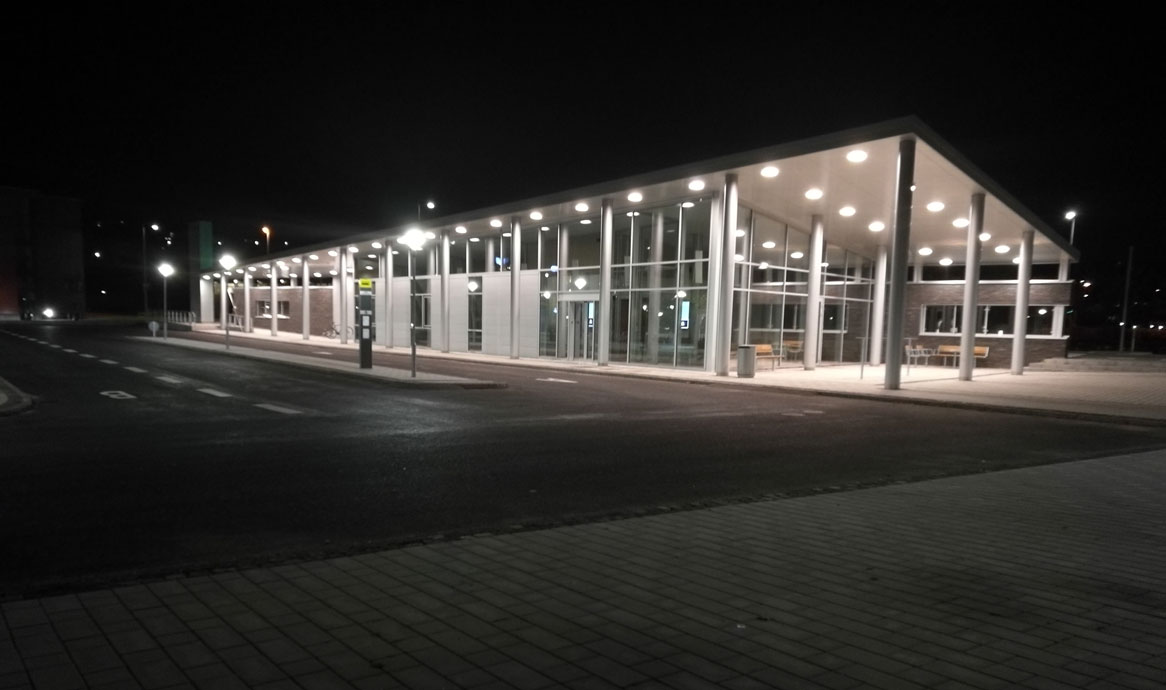

Pelée 385, Hobro Bus Terminal

DesignCubo Architects

The inspirationen to the new downlighter was found at the island of Martinique where the Pelée volcano has formed uniform steps of ashes and lava.
