The inspirationen to the Pelée luminaires was found at the island of Martinique where the Pelée volcano has formed uniform steps of ashes and lava.
More about Cubo Architects.
Media &
downloads
PELÉE WALL
The Pelée family is characterised by elegant finish and comfortable light. The common feature in form of the inner conical circles contributes to the characteristic design and to the comfortable, non-glaring spread of light.

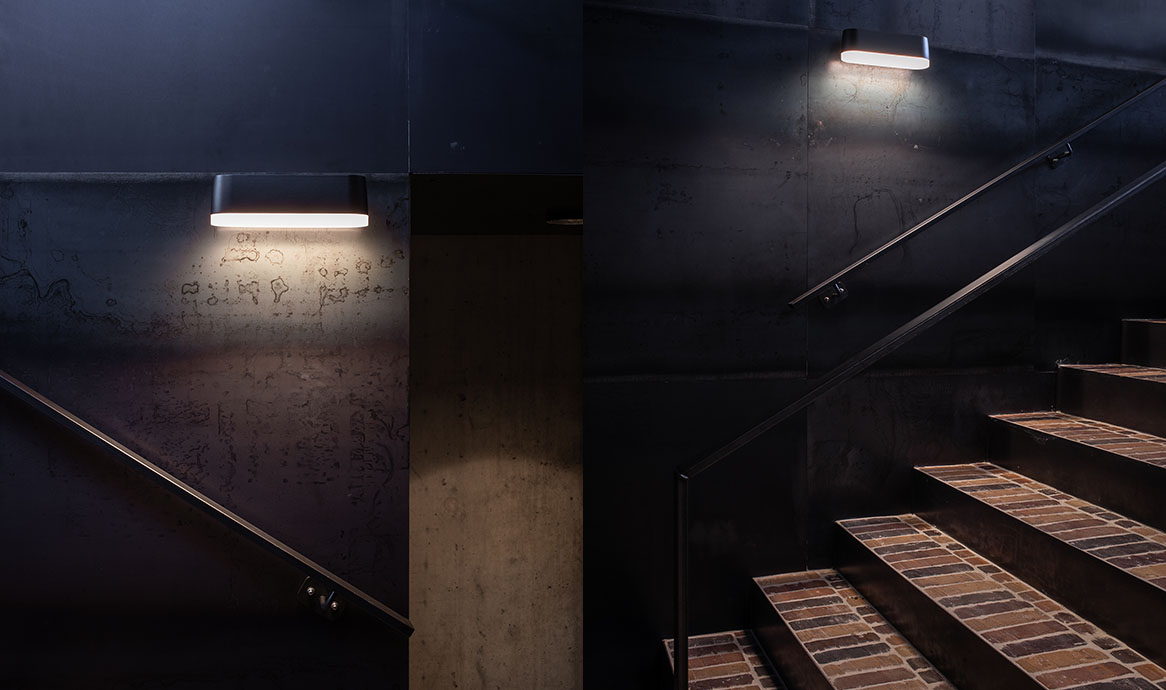

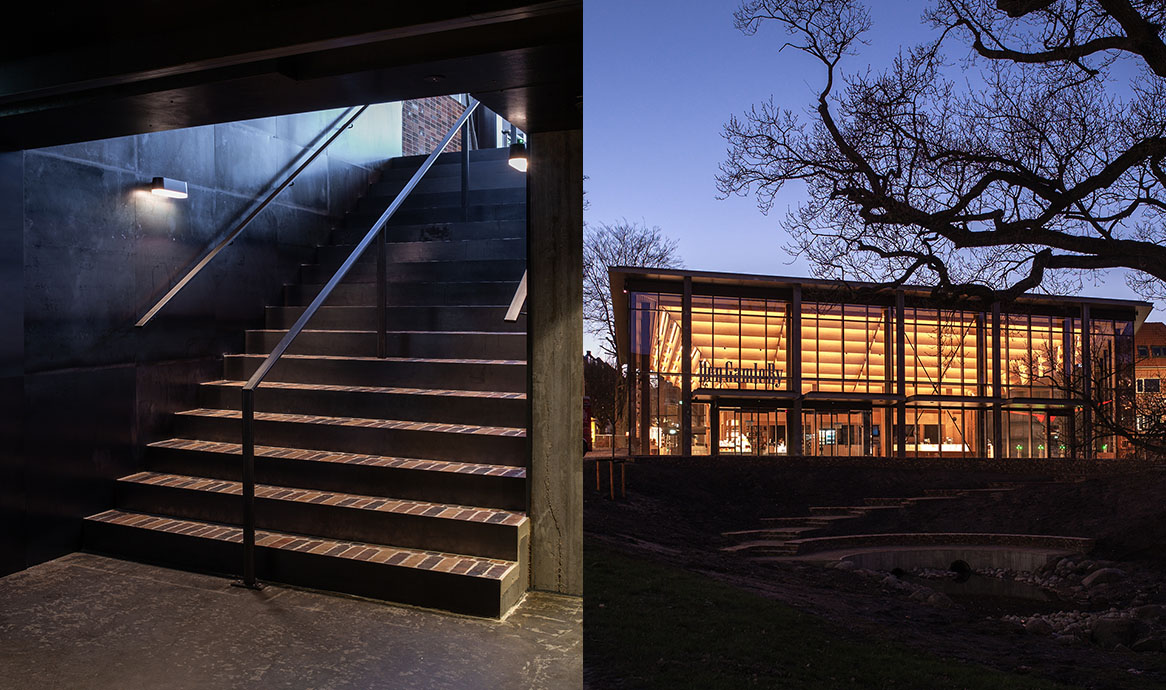

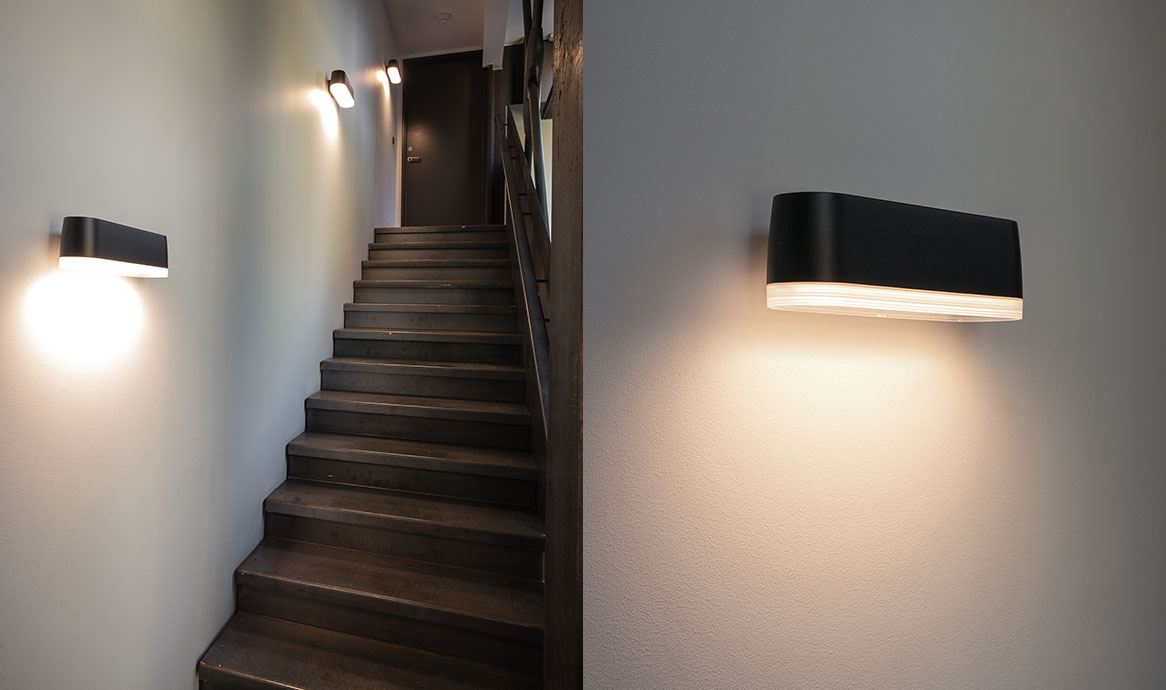

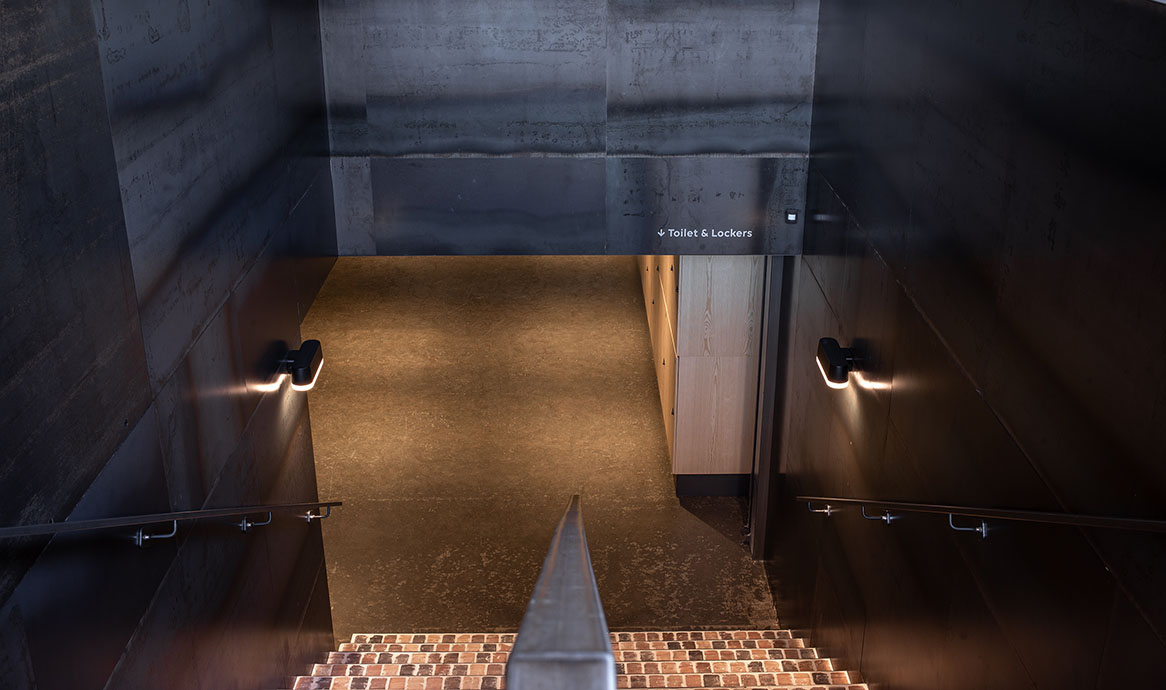

Pelée Wall is IP66 and can be used outside and in. In this case the conical finish is part of the screen, and the glowing edge adds to a pleasant atmosphere and optical guidance.
Specifications
Specifikationer
Luminaire
| PELÉE WALL | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw untreated |
| Raw anodized | |
| White: RAL 9010 Textura, SA310G, Akzo Nobel | |
| Alu-grey: RAL 9006 Textura, SP9965 CWS | |
| Black: Noir 900 Sablé, SN351F, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Shade | Polycarbonate, opalised |
| Mounting | On wall, double cable entry |
| Connection | Max two cables, 5 x 2.5 mm2 |
| Classification | IP66, class I or II |
| Impact resistance | IK08 |
| Weight | 1.5 kg |
LED and driver data
| LED type | Linear LED module |
|---|---|
| Total consumption | 9 or 13 W |
| Luminous power | 1020-1570 lumen |
| Operational life | min 50,000 hours at ta max 25°C, L80B10 |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Colour rendering | min 90 Ra |
| Colour accuracy | 3 steps SDCM |
| Output ratio | 76% |
| Driver | LED driver, 20 W, 350-500 mA |
|---|---|
| Dimmable upon request | |
| Operational life | min 100,000 hours |
| Alternatively | Available with driver and sensor (radar) for wireless control (bluetooth) |
Variants and options
| Item No. | Pelée Wall |
|---|---|
| 6891- | 9 W, 350 mA |
| 6892- | 13 W, 500 mA |
| Option | |
|---|---|
| 1723- | Base for visible installation, combine with colour code |
Combine with
Select colour, colour temperature etc. in the table and add to the item number.
| Colour | Colour temperature |
|---|---|
| 0 = raw untreated | 927 = 2700 K, 90 Ra |
| 01 = raw anodized | 930 = 3000 K, 90 Ra |
| 1 = white | 940 = 4000 K, 90 Ra |
| 9 = alu-grey | |
| 17 = corten brown | |
| 66 = noir 900 |
| Dimming | Classification |
|---|---|
| empty = no dimming | empty = class I |
| V = 1-10 V | K = class II |
| D = DALI-2 (4/5-conductor cable) | |
| R = bluetooth sensor |
Example: 6891-9930 = Pelée Wall, 9 W, alu-grey, 3000 K, class I
