| PUNKT LAMP 200 | |
|---|---|
| Material | Aluminium |
| Shade | Mouth-blown, opal-white glass |
| Mounting | Recessed; 24 W in unisolated ceilings only |

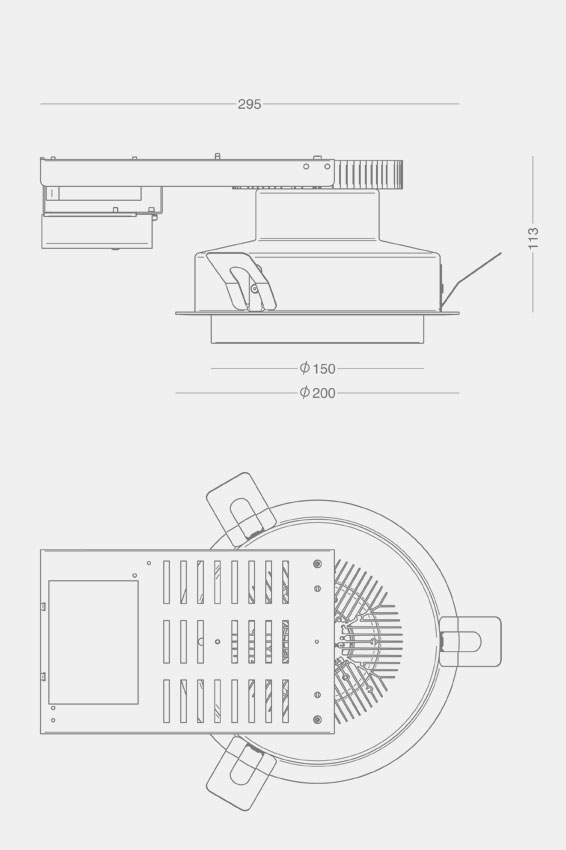

| Cut-out | Ø178-180 mm in 6-15 mm plate |
| Ø182-184 mm in 15-35 mm plate | |
| Clearances | Horizontally: min 67 mm |
| Built-in height | min 113 mm from lower edge of ceiling |
| Connection | 230 V, 5-pole terminal block |
| Classification | IP20, class I |
| Weight | 1.2 kg |
| LED type | Bridgelux Vero18 |
|---|---|
| Total consumption | 24 W (700 mA), alt. 18 W (500 mA) |
| Operational life | min 100,000 hours at ta max 25°C, L80B10 |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Colour rendering | min 90 Ra |
| Colour accuracy | 3 steps SDCM |
| Driver | Helvar LED driver, 350-700 mA |
|---|---|
| Operational life | min 100,000 hours |
| Item No. | Punkt Lamp 200 |
|---|---|
| 2894- | 18 W, 500 mA |
| 2897- | 24 W, 700 mA |
| Options | |
|---|---|
| 20202 | 3 mm glass shade |
| 2040-20 | Ring for soft ceilings |
Select colour, colour temperature, etc. in the table below.
| Colour | Colour temperature |
|---|---|
| 2 = white | 927 = 2700 K, 90 Ra |
| 9 = grey metallic | 930 = 3000 K, 90 Ra |
| 940 = 4000 K, 90 Ra |
| Dimming | |
|---|---|
| empty = no dimming | |
| V = 1-10 V | |
| D = Dali |
Example Item No.: 2897-2927V = Punkt Lamp 200, 24 W, white, 2700 K, 90 Ra, dimmable 1-10 V
The Punkt Lamp is designed in 1976 by the founder of Focus, Nils Kristiansen. The largest of the five downlighters, 200 mm, completed the family in 2002.
The simplicity in design and quality in material has made the Punkt Lamp the preferred downlighter among architects. The design is dominated by the inner shade in mouth-blown glass, spreading the light in a pleasant and beautiful way without glaring.
