Quarto was designed by Torsten Thorup and Claus Bonderup back in the 80'es, but is still going strong due to its classic circular shape. However, the Quarto from Focus Lighting differs from the many similar products because it ends up in a cylindrical shape. This completes and adds harmony to the shape. Throughout the years Quarto has proven its ability to both adding quality to and adjusting to its environment.

Specifications

380 mm

Luminaire

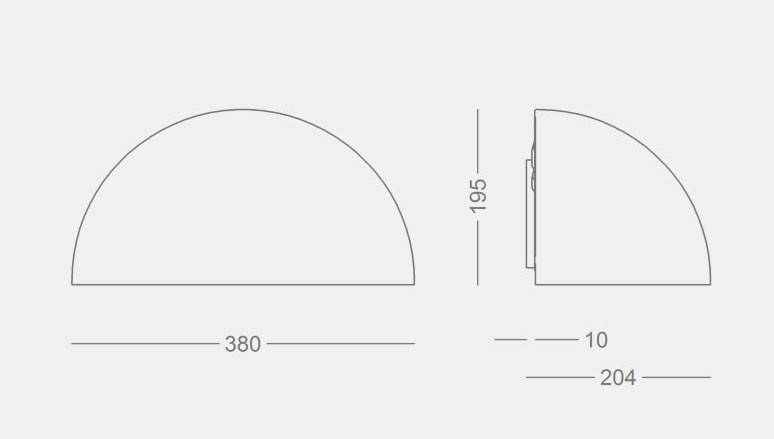

QUARTO 380 exterior
Material	Hot-dipped galvanised steel, brass, or copper
Coating	White: RAL 9010
	Black: RAL 9005
	Black: Noir 900 Sablé, SN351F
	Graphite grey: YW355F
	Corten brown: YX355F
Shade	Flame-proof, opal-white polycarbonate
Mounting	On wall or wall box
Connection	Max two cables, 1.5 mm2, into 3-pole terminal block, 4 mm2
Classification	IP45, class I, IK04
Weight	2.3 kg

LED and driver data

LED type	Bridgelux V8
Operational life	min 100,000 hours at ta max 25° C, L100B10
Total consumption	8, 11, or 16 W
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SDCM
Output ratio	74%

Driver	LED driver, 20 W
	Dimming optional
Operational life	min 100,000 hours
Alternative	Driver and sensor (radar) for wireless control

Variants

Item No.	Quarto 380
6808-	8 W LED, 350 mA
6809-	11 W LED, 500 mA
6810-	16 W LED, 700 mA

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Colour temperature
1 = white	927 = 2700 K, 90 Ra
3 = black	930 = 3000 K, 90 Ra
4 = graphite grey	940 = 4000 K, 90 Ra
6 = polished brass
8 = polished copper
9 = galvanised
17 = corten brown
66 = noir 900

Dimming	Protection class
empty = no dimming	empty = class I
V = 1-10 V	K = class II
D = DALI
R = bluetooth sensor

Example Item No.: 6810-9930V = Quarto 380, 16 W LED, galvanised, 3000 K, 90 Ra, 1-10 V dimming, class I

Luminaire

QUARTO 380
Material	Hot-dipped galvanised steel, brass, or copper
Coating	White: RAL 9010
	Black: RAL 9005
	Black: Noir 900 Sablé, SN351F
	Graphite grey: YW355F
	Corten brown: YX355F
Shade	Flame-proof, opal-white polycarbonate
Mounting	On wall or wall box
Connection	Max two cables, 1.5 mm2, into 3-pole terminal block, 4 mm2
Classification	IP45, class I, IK04
Weight	2.1 kg

Lamp type

E27	max 116 W, max length 145 mm
	We recommend Philips Core Pro LED, 15 W, 15,000 hours operation.
Output ratio	58%

Variants and options

Item No.	Quarto 380
6004-	max 116 W, E27

Option
1100-4	E27 LED, Philips Core Pro LED 15 W, 2700 K, 80 Ra, 15,000 hours operation
1100-5	E27 LED, Philips Core Pro LED 15 W, 3000 K, 80 Ra, 15,000 hours operation

Combine with

Select colour in the table below.

Colour	Protection class
1 = white	empty = class I
3 = black	K = class II
4 = graphite grey
6 = polished brass
8 = polished copper
9 = galvanised
17 = corten brown
66 = noir 900

Example of product code: 6004-9 = Quarto 380, E27, galvanised, class I
