SPACE ASYMMETRICAL

Space with asymmetrical light distribution is an innovative solution maintaining the harmony and the perception of a round luminaire. Space is fully enlighted both with symmetrical and asymmetrical light distribution.

The high lighting comfort of Space remains the same, and in many applications, the asymmetrical distributions will result in energy savings compared to round-symmetrical.

More information in the Space publication here.

Specifications

SPACE ASYMMETRICAL

Luminaire

SPACE
Material	Cast aluminium
Finish	Raw anodized
	Graphite grey: YW355F, Akzo Nobel
	Silver grey: Y2370I, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
Shade	Clear long-life polycarbonate with UV resistant acrylate on both sides
Mounting	Post top/pipe: Ø60 x H100 mm or Ø76 x H50 mm
	5.5 m PKL lead, 2 x 1 mm2, is included
Connection	In the post
Classification	IP66, class II; use code for class I
Impact resistance	IK10; with Zhaga socket IK09
Corrosion class	C4, C5 optional
Weight	10 kg
Wind sweeping area	0.09 m2

LED High lumen

LED High lumen	Bridgelux V22
Operational life	min 100,000 hours at ta max 25° C, L100B10
	Constant lumen output
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 80, typically 85 Ra
	option for 90 Ra, 3000 K, with R9 = 72
	OBS: longer lead times for Ra 90
Colour accuracy	3 steps SDCM
Luminous flux	The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 80 Ra	2700K: 625-6800 lm
	3000K: 625-6950 lm
	4000K: 650-7025 lm
LED-lumen, 90 Ra	3000K: 525-5200 lm
Output ratio	Type IV: 74%
	Type II: 68%
Luminous intensity class, 13201-2 2015	G*1
Glare index class	D5

LED Low lumen

LED Low lumen	Bridgelux V18
Operational life	min 100,000 hours at ta max 25° C, L100B10
	Constant lumen output
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 80, typically 85 Ra
	option for 90 Ra, 3000 K, with R9 = 72
	OBS: longer lead times for Ra 90
Colour accuracy	3 steps SDCM
Luminous flux	The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 80 Ra	2700K: 325-3950 lm
	3000K: 325-4025 lm
	4000K: 325-4050 lm
LED-lumen, 90 Ra	3000K: 275-3000 lm
Output ratio	Type IV: 74%
	Type II: 68%
Luminous intensity class, 13201-2 2015	G*1
Glare index class	D6

Drivers

Driver, High lumen	Xitanium Full Xi FP 40 W 0,3-1,0 A, programmable
Inrush current	max 22 A (50% after 290 µs)

Driver, Low lumen	Xitanium Full Xi FP 22 W 0,2-0,7 A, programmable
Inrush current	max 15 A (50% after 295 µs)

Nominal voltage, AC	220-240 Vac
Operational input voltage, AC	80-264 Vac
Nominal voltage, DC	186-250 Vdc
Operational input voltage, DC	168-275 Vdc
Nominal frequency range	50-60 Hz
Operational frequency range	45-66 Hz
Max pre-protection	16 A
Surge protection	L/N-GND: 10 kV, (D4i driver: 8 kV)
	L-N: 6 kV
Operational life	min 100,000 hours
Dimming/control	5 steps dimming within the lumen intervals
Other control options	DALI-2, LineSwitch or
	via Zhaga book 18 socket, D4i

Variants and options

Item No.	Space asymmetrical type IV
8901-	V18, Low lumen, programmable, max 25 W
8902-	V22, High lumen, programmable, max 40 W

Item No.	Space asymmetrical type II
8884-	V18, Low lumen, programmable, max 25 W
8885-	V22, High lumen, programmable, max 40 W

Optional
8016-	Distance ring for Ø88/90 mm post - combine with colour code
8017-	Shade in coated aluminium - combine with colour code

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Colour temperature
01 = raw anodized	827 = 2700 K, 80 Ra
4 = graphite grey	830 = 3000 K, 80 Ra
9 = silver grey	840 = 4000 K, 80 Ra
17 = corten brown	930 = 3000 K, 90 Ra
66 = black noir 900

Mounting	Dimming/control
empty = Ø60 mm pole	empty = programmable
M76 = Ø76 mm pole	D = DALI-2 (4/5-conductor cable)
	F = LineSwitch
	R = Zhaga book 18 socket, upwards
	RC = Zhaga book 18 socket, City Touch / Interact City
	S = Zhaga book 18 socket, downwards

Protection class	Corrosion class
empty = class II	empty = C4
J = class I	C5 = C5 coating (add C5 after the colour code)

Example: 8902-9830J = Space asymmetrical type IV, High lumen, programmable, silver grey, 3000 K, 80 Ra, Ø60 post, class I

Media & downloads

Product information

Brochure, SpacePDF Product data, Space asymmetricalPDF Mounting options, SpacePDF Mounting of shade for SpacePDF Dimensions, Space with Zhaga socketsPDF How many per fuse - recommendedPDF Mounting instructions, asymmetricalPDF Link to video with Service InstructionsPDF MaintenancePDF RoHS DeclarationPDF

Udbudstekster

Space_sym_udbudstekst.docxDOCX Space_sym_udbudstekst.pdfPDF

3D files

Space for RevitRFA Space for ArchicadLCF Space for Ø60 post, AutocadDWG Space for Ø90 post, AutocadDWG Space for Ø60 post, 3DS3DS Space for Ø90 post, 3DS3DS Space, IFCIFC

Photos

Product image, Space symmetrical, silver greyJPG Product image, Space asymmetrical, silver greyJPG Product image, Space symmetrical, conical postJPG Product image, Space asymmetrical, conical postJPG Product image, Space, Ø60 mm post top, noir 900JPG Space, Delft, NetherlandsPDF

Photometric data

Space, asymmetrical type IV

Information: Light centre heightDOCX High Lumen, 40 W, 2700 K, Type IVLDT High Lumen, 40 W, 2700 K, Type IVPDF High Lumen, 40 W, 3000 K, Type IVLDT High Lumen, 40 W, 3000 K, Type IVPDF High Lumen, 40 W, 4000 K, Type IVLDT High Lumen, 40 W, 4000 K, Type IVPDF Low Lumen, 24 W, 2700 K, Type IVLDT Low Lumen, 24 W, 2700 K, Type IVPDF Low Lumen, 24 W, 3000 K, Type IVLDT Low Lumen, 24 W, 3000 K, Type IVPDF Low Lumen, 24 W, 4000 K, Type IVLDT Low Lumen, 24 W, 4000 K, Type IVPDF

Space, asymmetrical type II

Information: Light centre heightDOCX High Lumen, 40 W, 2700 K, Type IILDT High Lumen, 40 W, 2700 K, Type IIPDF High Lumen, 40 W, 3000 K, Type IILDT High Lumen, 40 W, 3000 K, Type IIPDF High Lumen, 40 W, 4000 K, Type IILDT High Lumen, 40 W, 4000 K, Type IIPDF Low Lumen, 24 W, 2700 K, Type IILDT Low Lumen, 24 W, 2700 K, Type IIPDF Low Lumen, 24 W, 3000 K, Type IILDT Low Lumen, 24 W, 3000 K, Type IIPDF Low Lumen, 24 W, 4000 K, Type IILDT Low Lumen, 24 W, 4000 K, Type IIPDF

Space, symmetrical

Information: Light centre heightDOCX High Lumen, 40 W, 2700 KLDT High Lumen, 40 W, 2700 KPDF High Lumen, 40 W, 3000 KLDT High Lumen, 40 W, 3000 KPDF High Lumen, 40 W, 4000 KLDT High Lumen, 40 W, 4000 KPDF Low Lumen, 24 W, 2700 KLDT Low Lumen, 24 W, 2700 KPDF Low Lumen, 24 W, 3000 KLDT Low Lumen, 24 W, 3000 KPDF Low Lumen, 24 W, 4000 KLDT Low Lumen, 24 W, 4000 KPDF

All ldt files

LDT.zipZIP

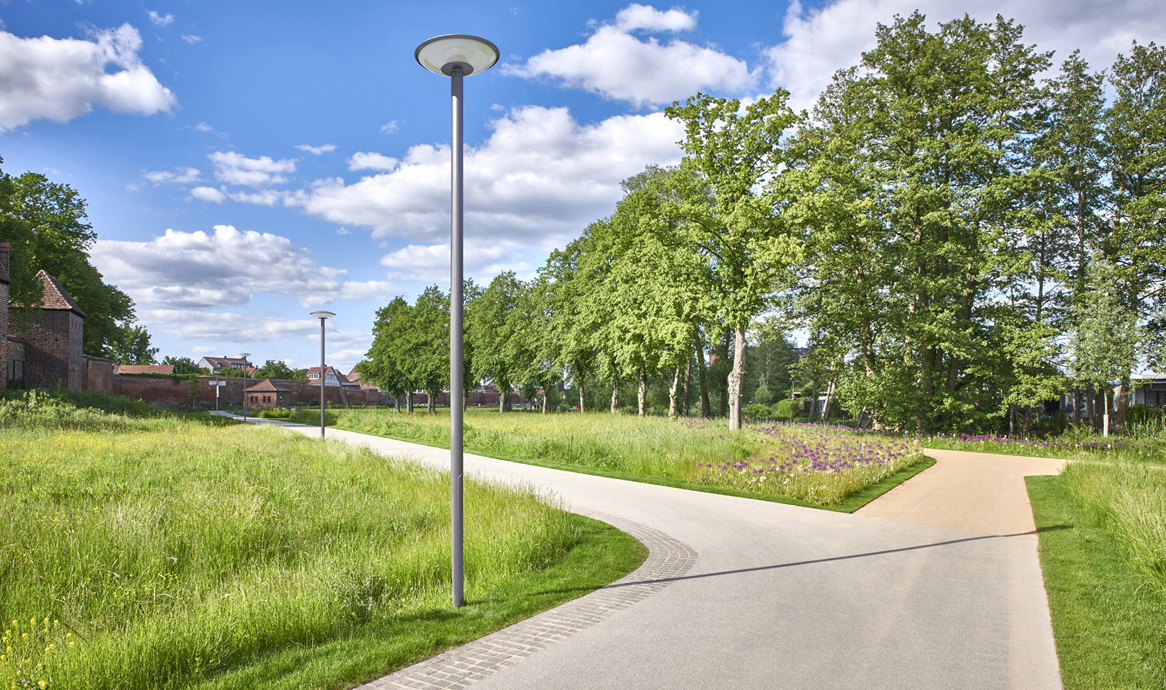

At 4 meter posts, Space meets P4 with 27 meters between posts. At 5 meter, P4 is met with 32 meters between posts. In both cases a path width of 3 meters.

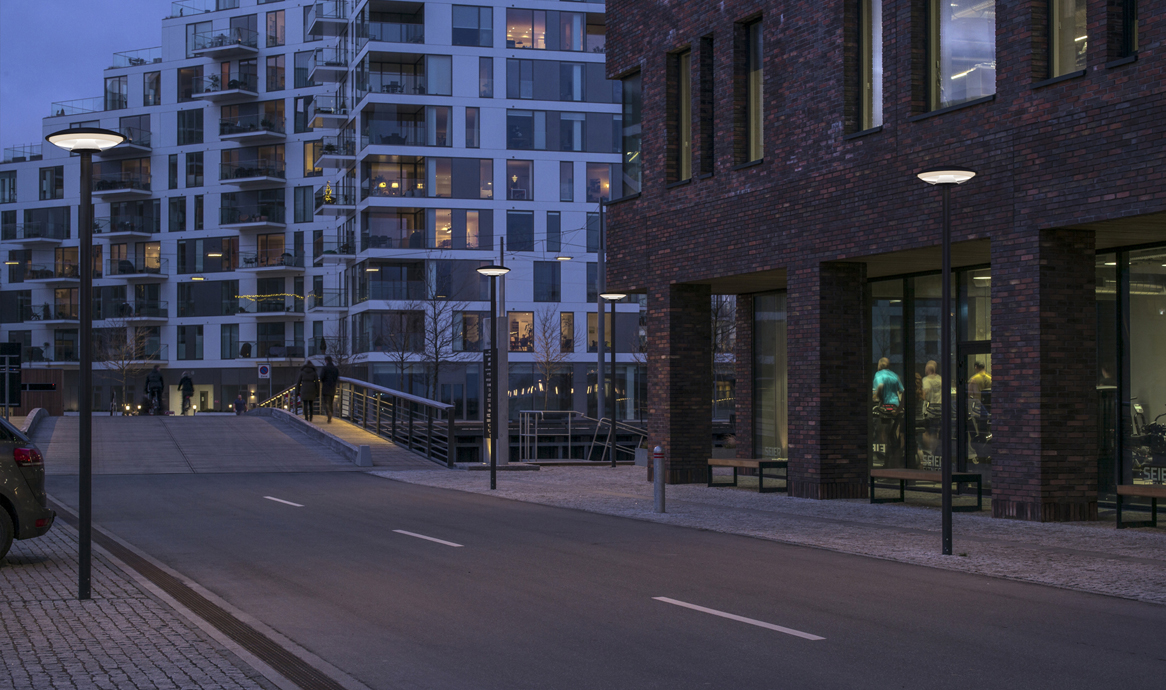

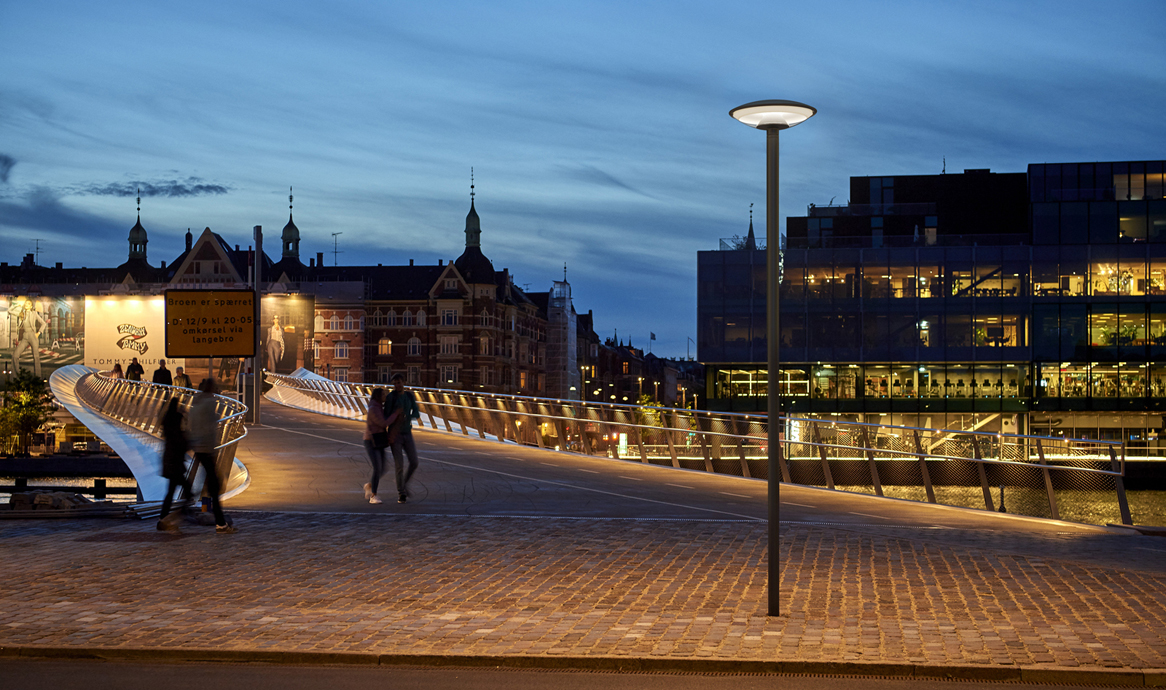

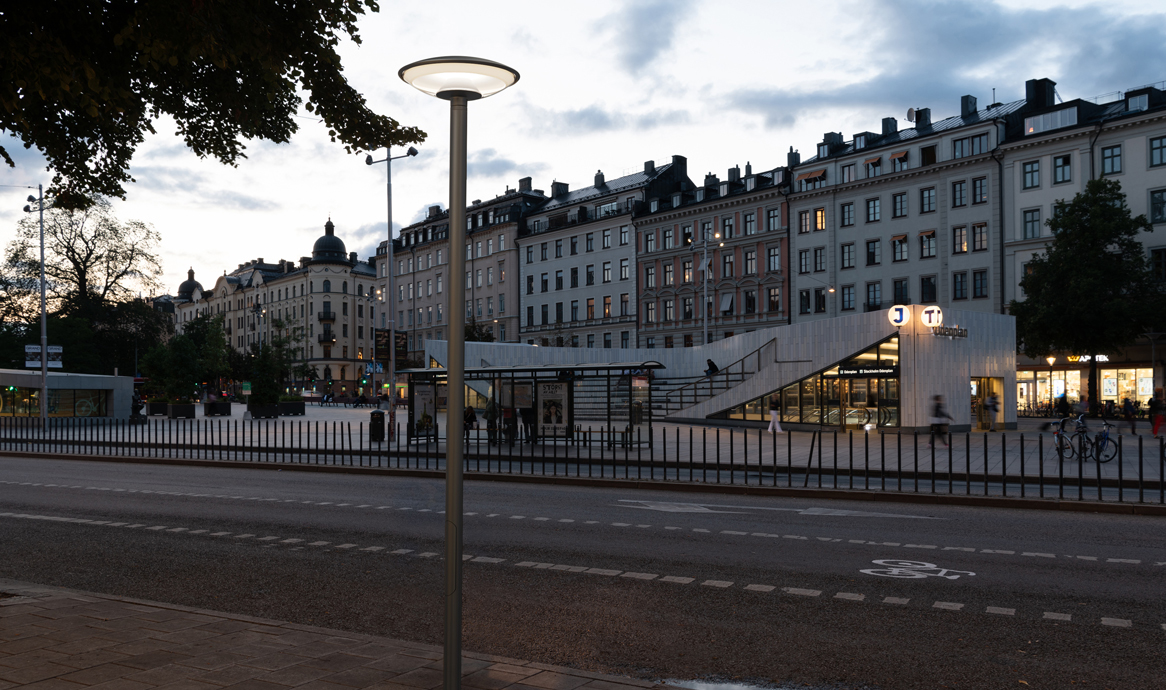

Space is 640 mm wide, and with light broadened out into the whole housing, the luminaire is powerful and elegant at high and low posts.

Due to the innovative combination of indirect, direct, and shaded light, the Space luminaire offers comfortable human lighting in a fine balance with highly efficient and uniform lighting distributions.

Space's graduated light is pleasant and lively. Space creates living spaces with atmosphere without disturbing the dark sky.

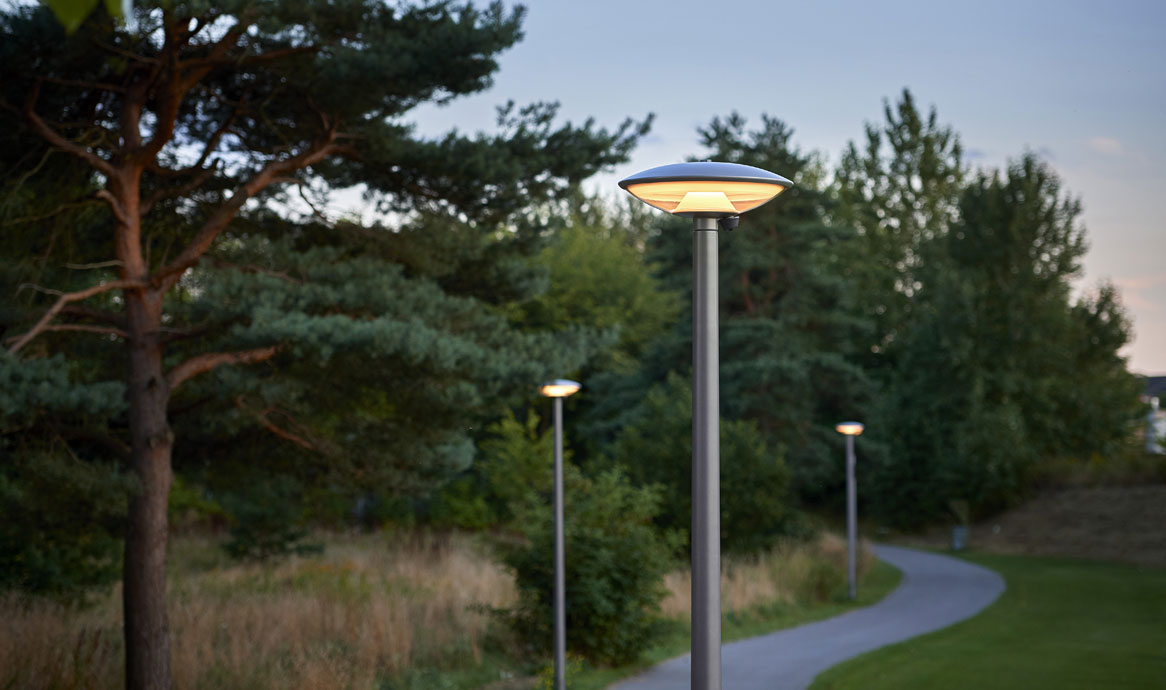

Space, graphite grey, 4 m pole, Zhaga sockets up/down, DOLL - Living Lab

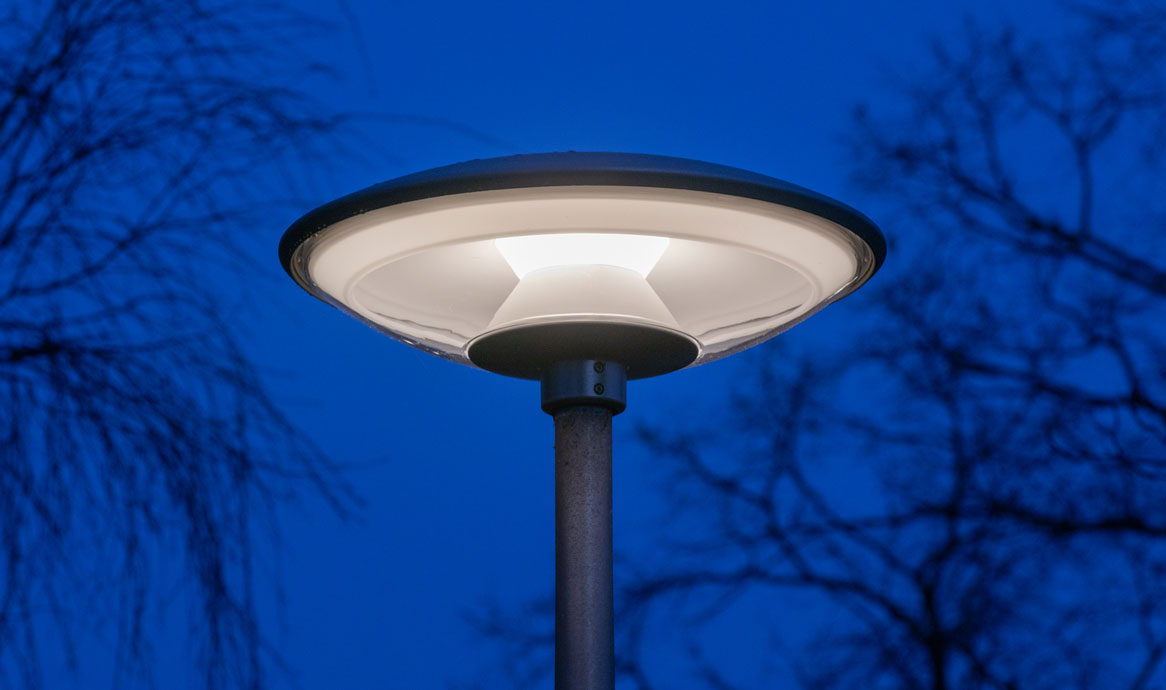

Space at 60 mm Ø alu post. Test presentation in Delft, Netherlands.

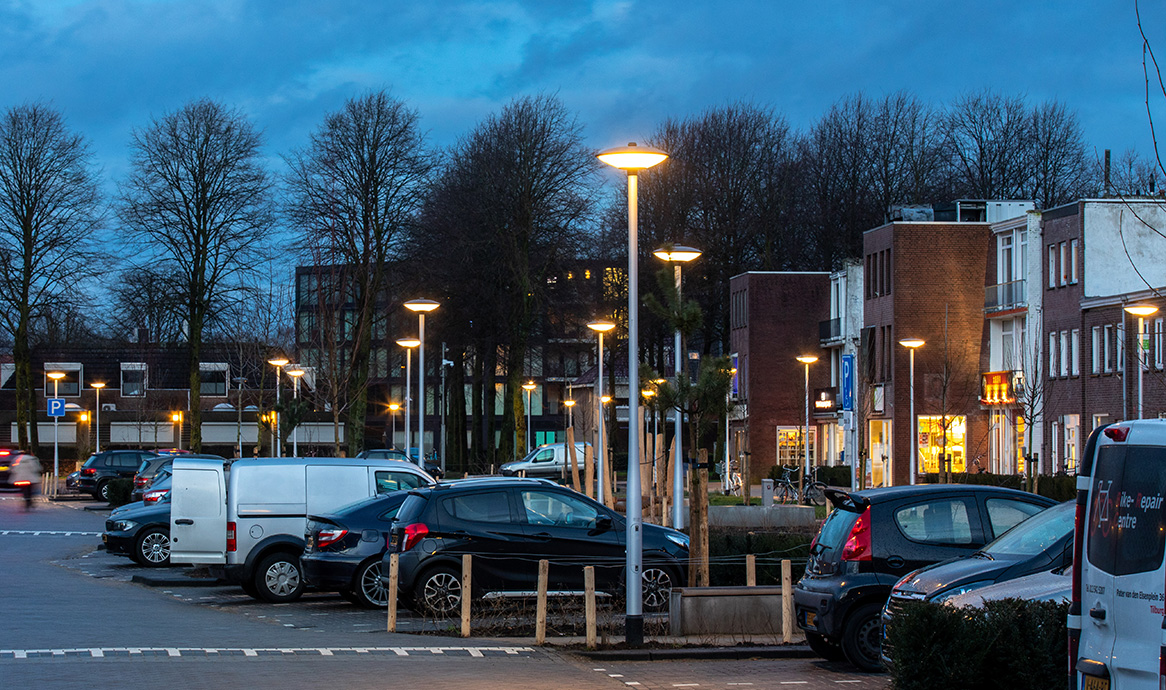

Space at 4 m aluminium poles in a large residential area in Tilburg, Holland

Umbraco.Cms.Core.Models.Link More photos from Tilburg

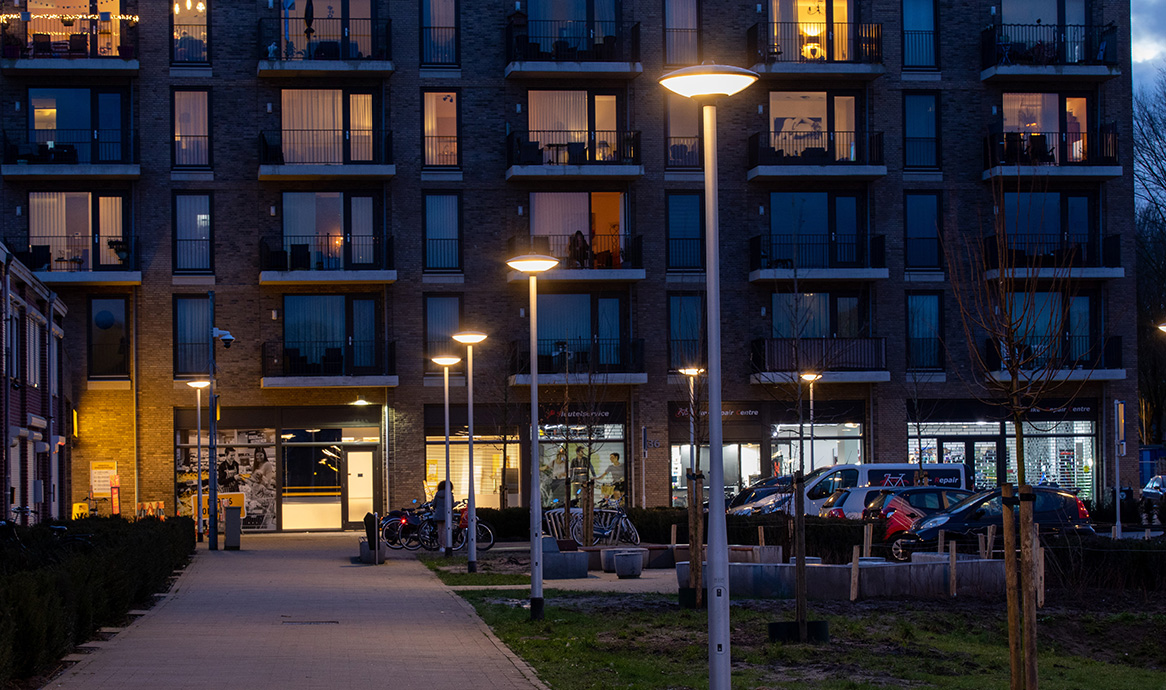

Space at 4 m alu pole, with Zhaga socket on top, Tilburg, Holland

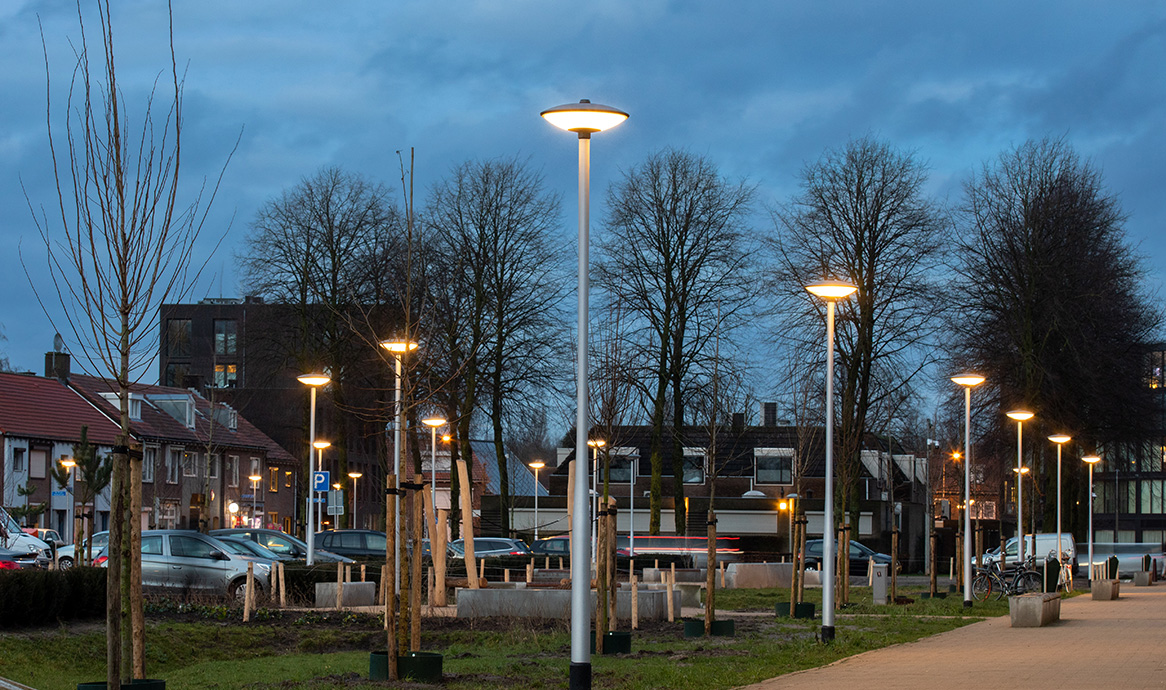

Space at 4 m aluminium poles in a large residential area in Tilburg, Holland

Umbraco.Cms.Core.Models.Link More photos from Tilburg

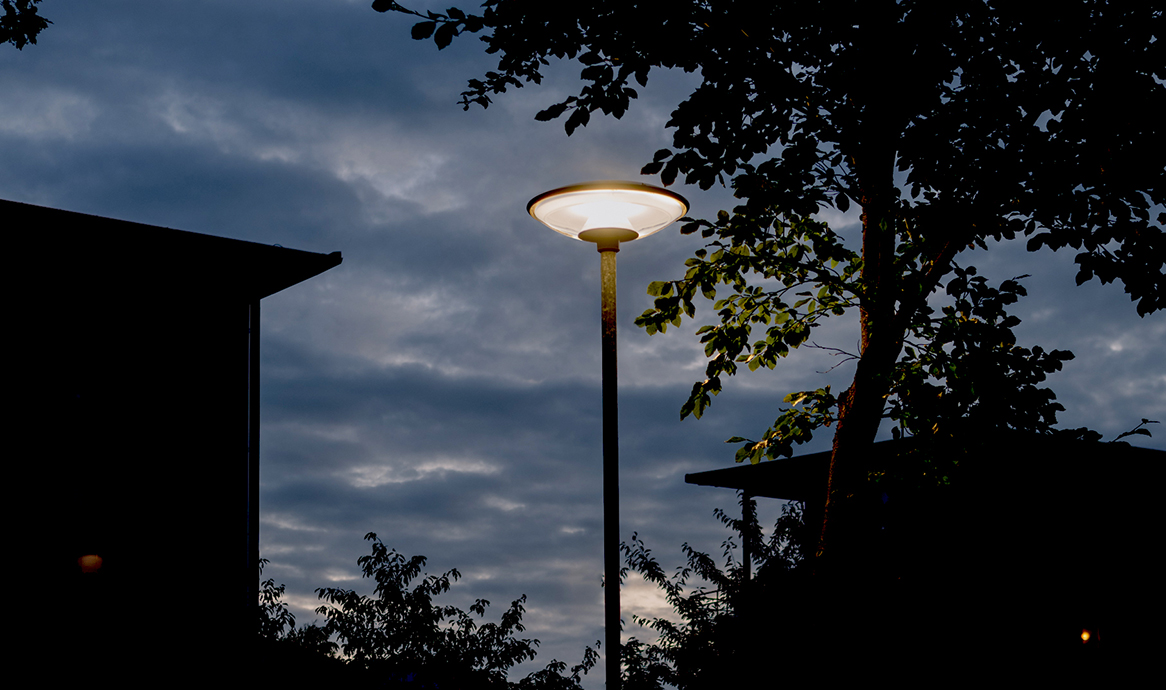

Space on 4 meter pole, symmetrical light, corten brown, Örebro, Sweden

DesignAART Designers

- Space has an appealing and easy understandable design language, based on simplicity and interaction between form and function. A central light source surrounded by circular elements creates a precise and harmonic composition. Transparent and calm by day, and at night - when the light is on - a wide warm and glowing scene of direct and indirect light framed by a translucent shielding. - Morten Hove Lasthein, AART Designers

Watch the video here

More on AART Designers here.

Read Morten Lasthein's article on the birth of Space here.
