SQUARE

Please choose

Created for outdoor spaces, the chaste design and simple materials are as inspirational inside as out. For halls and hallways. Alone or together, in rows or perfect squares.

Simplicity liberates imagination.

Specifications

250 exterior

Luminaire

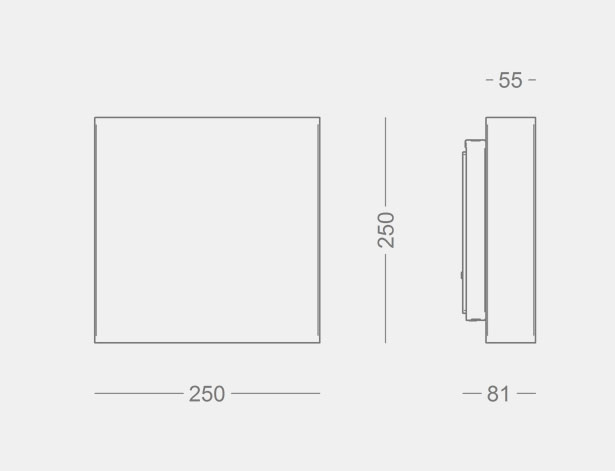

SQUARE 250
Material	Galvanised or coated steel, or copper
Coating	White: RAL 9010
	Black: RAL 9005
	Black: Noir 900 Sablé, SN351F
	Graphite grey: YW355F
	Corten brown: YX355F
Shade	Opal-white polycarbonate

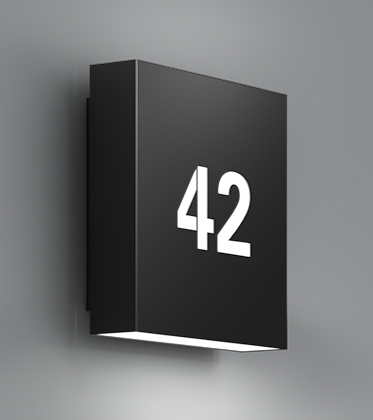

Cut-out	Digits can be cut in the front. See specification in the pdf with product data.
Mounting	On wall or wall box
Connection	Max two cables into 5 x 2.5 mm2 terminal block
Classification	IP45, class I or II
Impact resistance	IK09
Weight	2 kg

LED and driver data

LED type	Bridgelux Vero 10 + V6
Operational life	min 100,000 hours at ta max 25° C, L90B10
Total consumption	10 or 15 W
Total consumption, downwards	8 or 12 W
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SDCM
Output ratio	63%

Driver	LED driver, 20 W
	Dimming optional
Inrush current	max 5 A (50% after 50 µs)
Operational life	min 100,000 hours
Alternative	Driver and sensor (radar) for wireless control

Variants

Item No.	Square 250 exterior
6828-	10 W LED, 250 mA
6820-	15 W LED, 350 mA
6829-	8 W LED, 250 mA, downwards only
6826-	12 W LED, 350 mA, downwards only

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Colour temperature
1 = white	927 = 2700 K, 90 Ra
3 = black	930 = 3000 K, 90 Ra
4 = graphite grey	940 = 4000 K, 90 Ra
8 = brushed copper
9 = galvanised
17 = corten brown
66 = noir 900

Dimming	Classification
empty = no dimming	empty = class I
V = 1-10 V	K = class II
D = DALI
R = bluetooth sensor

Laser cutting in front
C = Cutting of digits in front

Example Item No.: 6820-66927D = Square 250, 15 W LED, noir 900, 2700 K, 90 Ra, Dali, class I

Luminaire

SQUARE 250
Material	Galvanised or coated steel, or copper
Coating	White: RAL 9010
	Black: RAL 9005
	Black: Noir 900 Sablé, SN351F
	Graphite grey: YW355F
	Corten brown: YX355F
Shade	Opal-white polycarbonate
Cut-out	Digits can be cut in the front. See specification in the pdf with product data.
Mounting	On wall or wall box
Connection	Max two cables into 5 x 2.5 mm2 terminal block
Classification	IP45, class I or II
Impact resistance	IK07
Weight	2 kg

Lamp type

E27	max 30 W
	Example: Deco Aurora LED dimmable, 7.5 W, 2700 K, 20,000 hours operation
Output ratio	20%

Variants and options

Item No.	Square 250 exterior
6002-	max 30 W, E27
6006-	max 30 W, E27, downwards only

Options
1100-6	E27 LED, Deco Aurora dimmable, 7.5 W, 2700 K, 80 Ra, 20,000 hours operation

Combine with

Select colour in table below.

Colour	Protection class
1 = white	empty = class I
3 = black	K = class II
4 = graphite grey
8 = brushed copper
9 = galvanised
17 = corten brown
66 = noir 900

Laser cutting in front
C = Cutting of digits in front

Example Item No.: 6002-1 = Square 250, E27, white, class I

Media & downloads

Product information

Product data, Square 250PDF Square laser cuttingsPDF LED modules for Square 250PDF Quick guide, Bluetooth sensorPDF Mounting instructionsPDF MaintenancePDF RoHS DeclarationPDF

3D files

SquareGSM SquareLCF Square 250RFA Square 250DWG Square 2503DS

Photos

Product image, Square 270, black noir 900JPG Product image, Square 270, corten brownJPG Product image, SquareJPG

Photometric data

LED up and downwards

LED 10 W, 2700 KLDT LED 10 W, 2700 KPDF LED 10 W, 3000 KLDT LED 10 W, 3000 KPDF LED 10 W, 4000 KLDT LED 10 W, 4000 KPDF LED 15 W, 2700 KLDT LED 15 W, 2700 KPDF LED 15 W, 3000 KLDT LED 15 W, 3000 KPDF LED 15 W, 4000 KLDT LED 15 W, 4000 KPDF

LED downwards

LED 8 W, 2700 K, downwards onlyLDT LED 8 W, 2700 K, downwards onlyPDF LED 8 W, 3000 K, downwards onlyLDT LED 8 W, 3000 K, downwards onlyPDF LED 8 W, 4000 K, downwards onlyLDT LED 8 W, 4000 K, downwards onlyPDF LED 12 W, 2700 K, downwards onlyLDT LED 12 W, 2700 K, downwards onlyPDF LED 12 W, 3000 K, downwards onlyLDT LED 12 W, 3000 K, downwards onlyPDF LED 12 W, 4000 K, downwards onlyLDT LED 12 W, 4000 K, downwards onlyPDF

E27 variants

E27, 13 W LED, 2700 KLDT E27, 13 W LED, 2700 KPDF E27, 13 W LED, 3000 KLDT E27, 13 W LED, 3000 KPDF E27, 13 W LED, 4000 KLDT E27, 13 W LED, 4000 KPDF

All ldt files

LDT.zipZIP

Square 250 black - Christiansgade, Aarhus

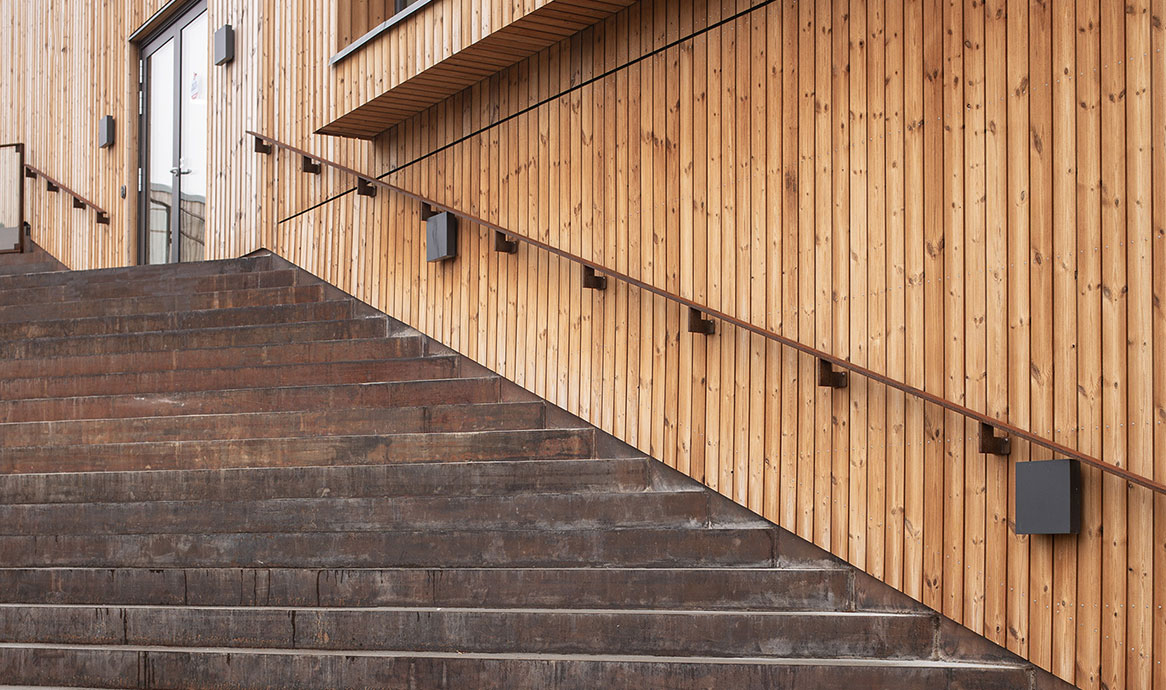

Square 250, grey, Sports Academy Denmark, Odense, Photo: Helene Høyer Mikkelsen

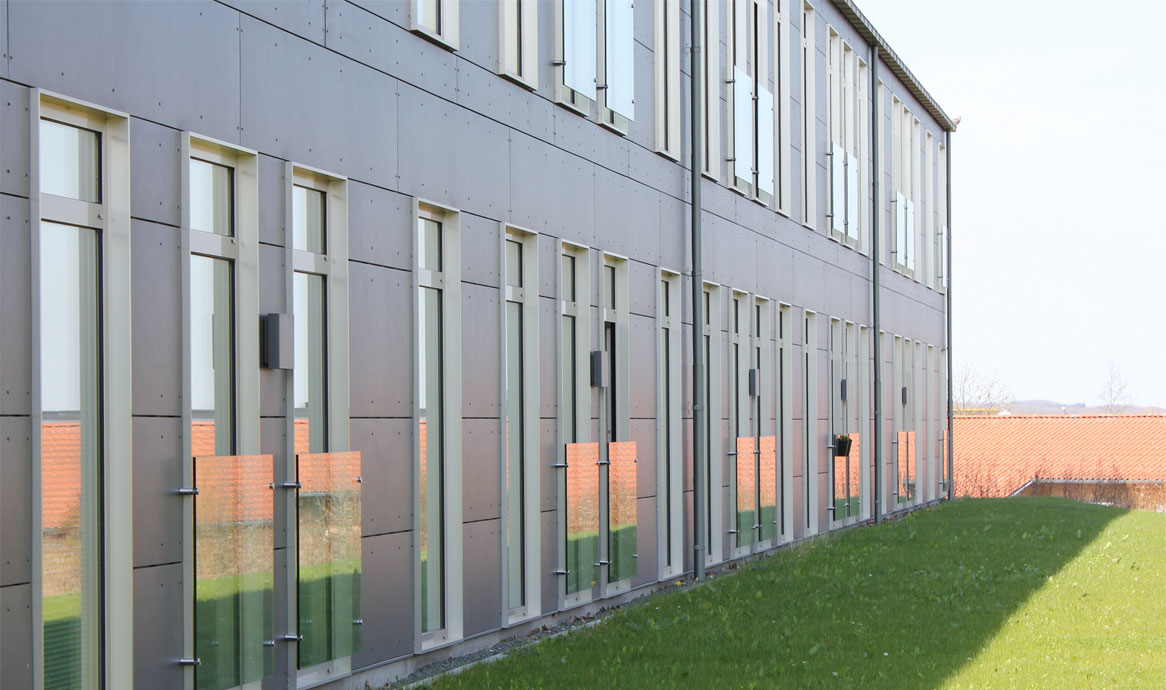

Square 250 graphite grey - Ladegaard College, Aarhus

Umbraco.Cms.Core.Models.Link More photos here

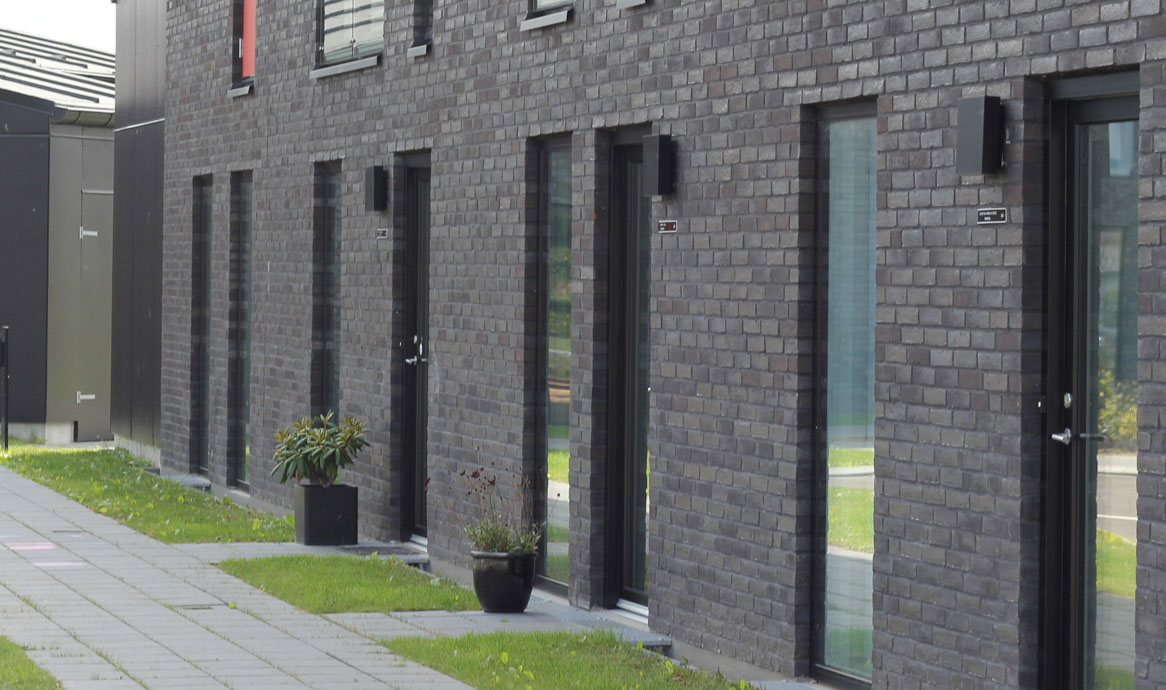

Square 250 black - Odder Residential Association

Umbraco.Cms.Core.Models.Link More Square here

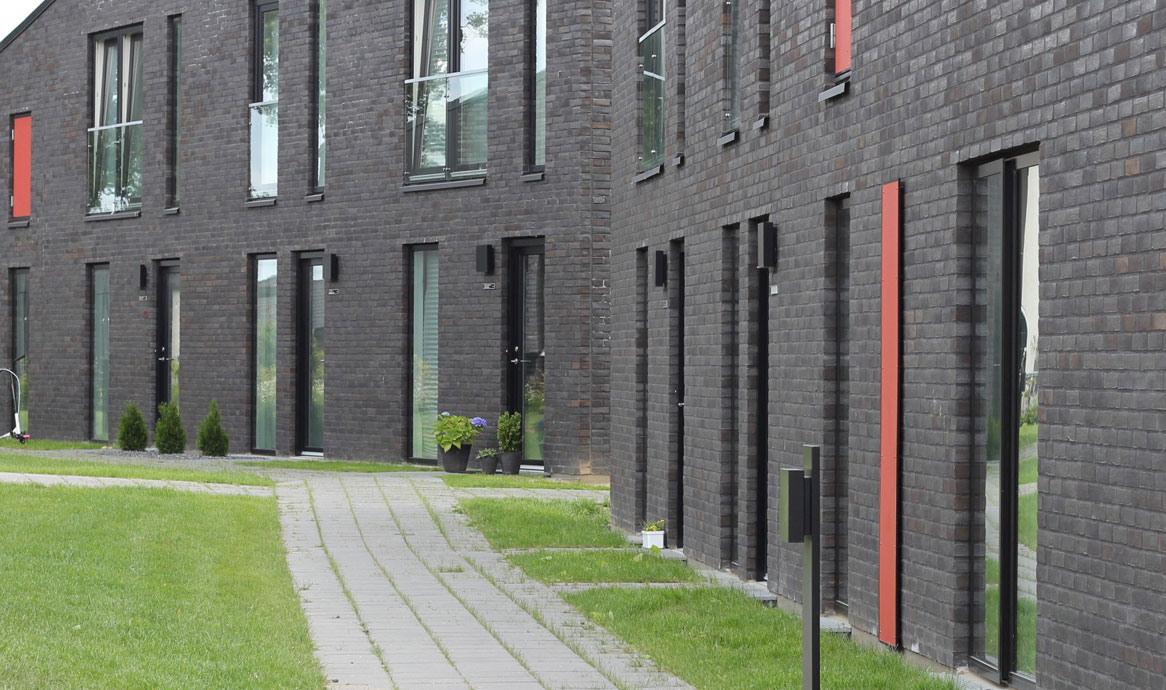

Square Bollard + Square 250 black, Odder

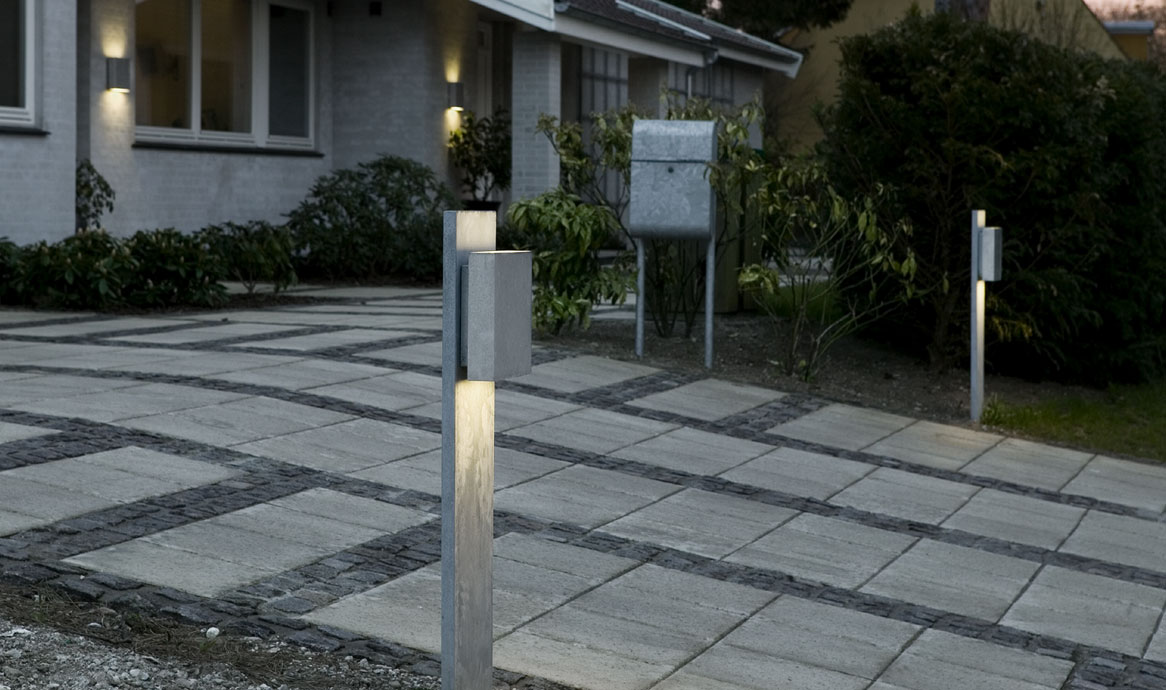

Square Bollard galvanised - private house at Vedbæk

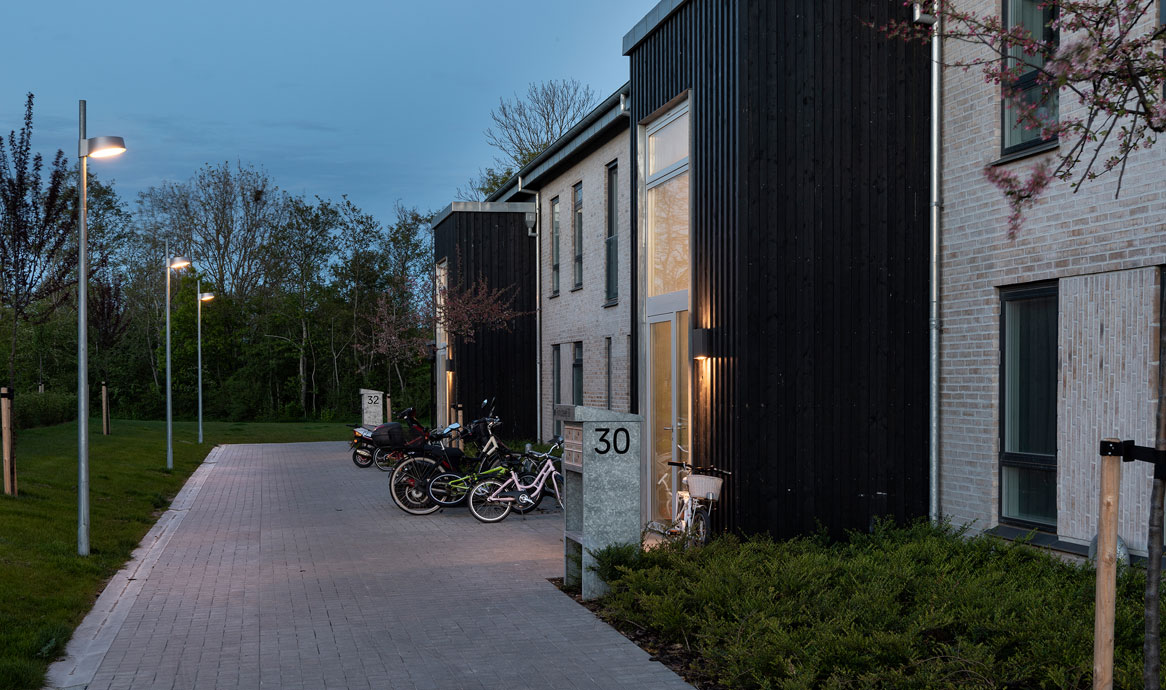

Square 250 graphite grey and Nyx 330 silver grey illuminate the newly renovated Aalborg East area.

Square 250 graphite grey and Nyx 330 silver grey illuminate the newly renovated Aalborg East area.

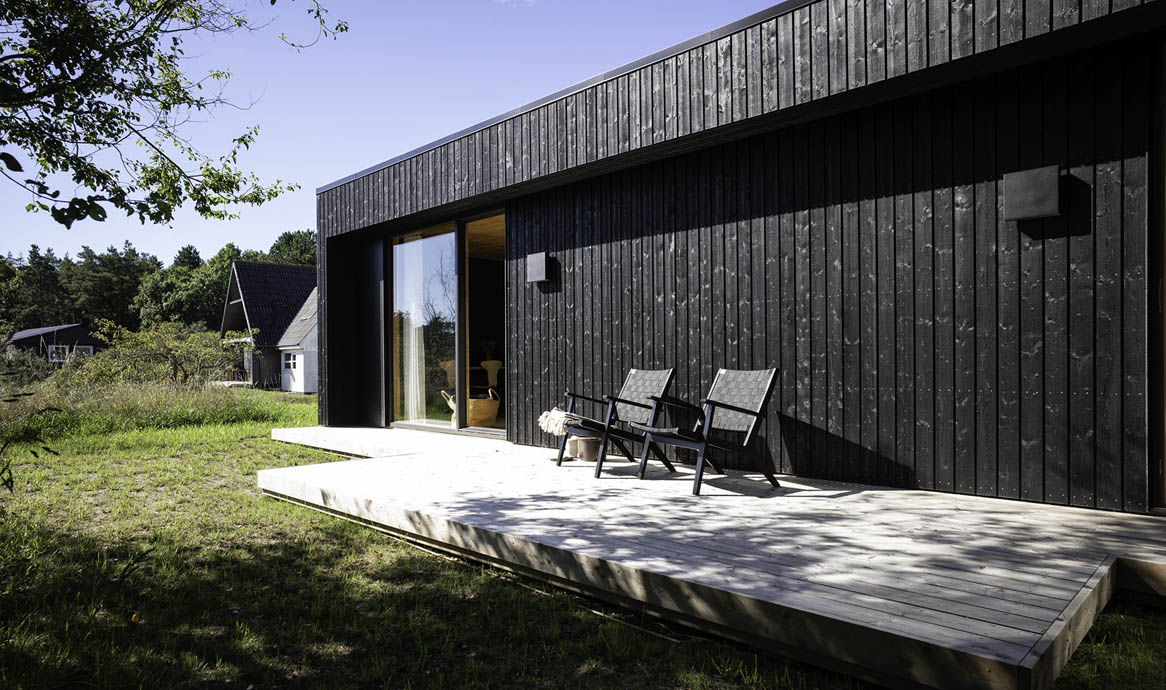

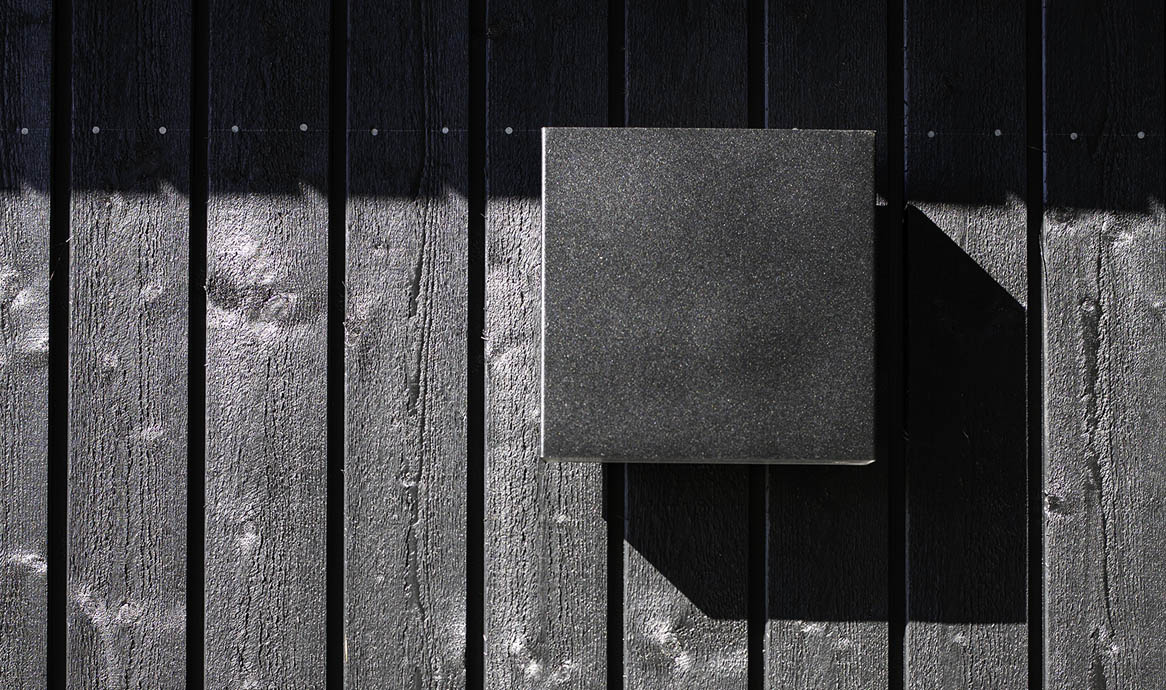

Square in black noir 900 at black wood. Cubo summer cottage near Aarhus.

Umbraco.Cms.Core.Models.Link More photos

Elegant black versions of Square and Pelée are used in two summer cottages by Cubo Architects.

Umbraco.Cms.Core.Models.Link More photos

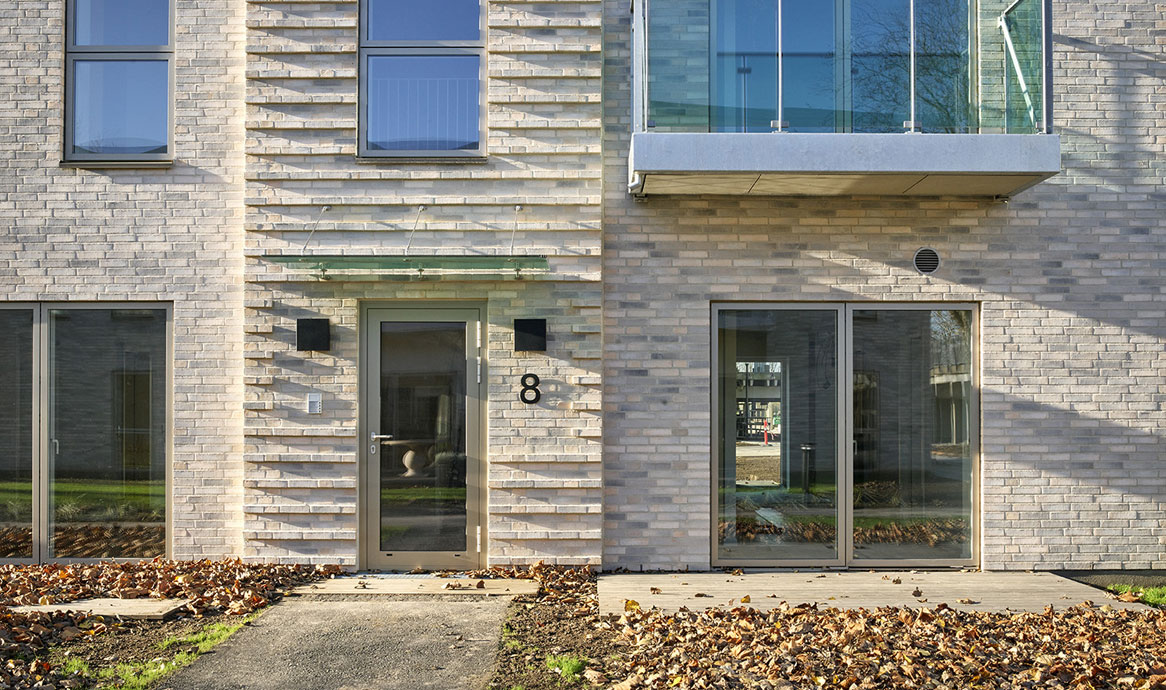

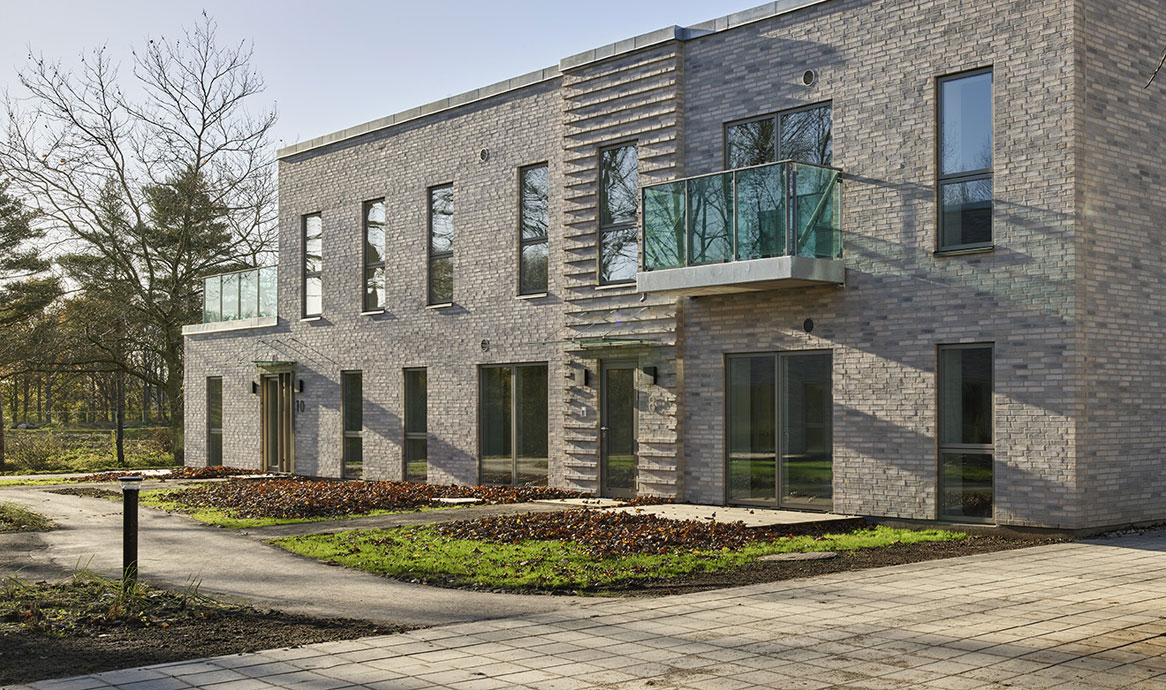

Square luminaires underline the architecture at Strandhøjen, Nyborg. Photo: Kirstine Mengel

Square luminaires underline the architecture at Strandhøjen, Nyborg. Photo: Kirstine Mengel

Designschmidt hammer lassen design

Square - and Sticks - are designed in 1999, and both designs have pathed the way within their fields of application.

The simple, minimalist design enhances the form, and the light is not dominant.
