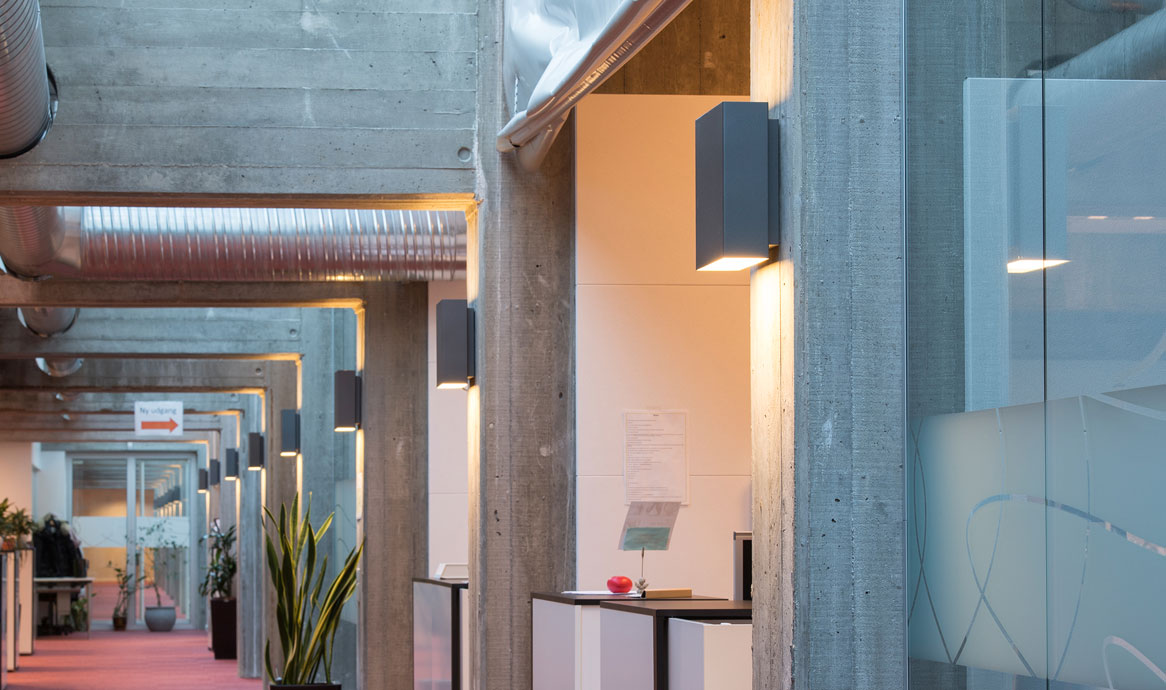

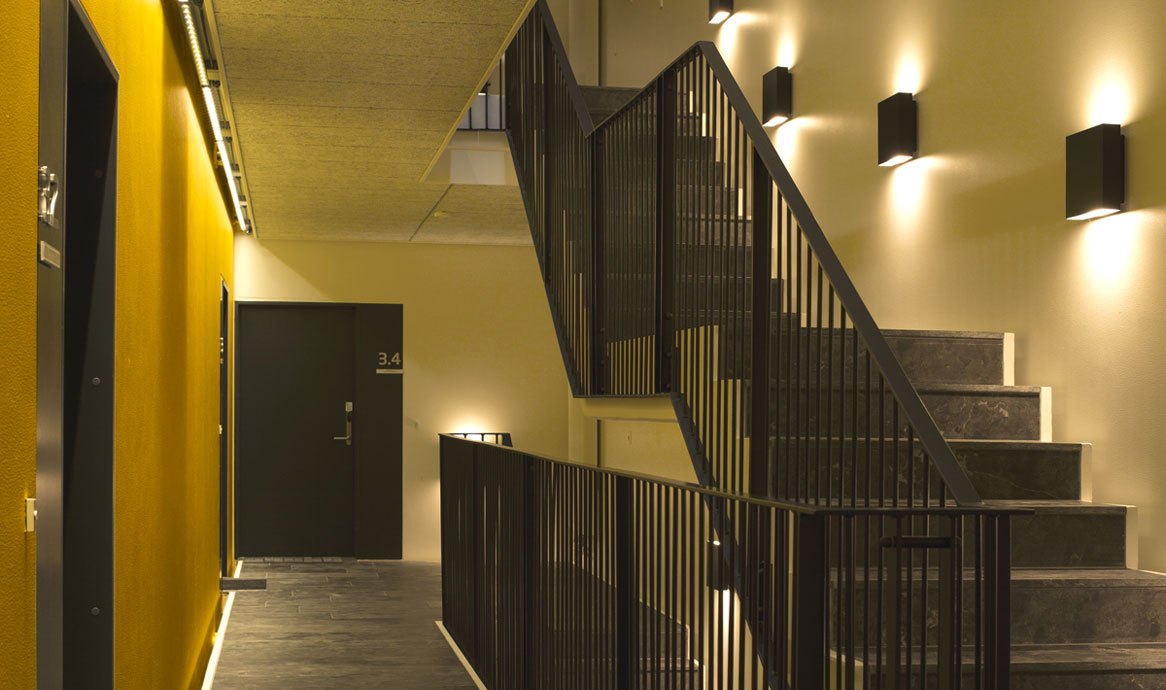

Created for outdoor spaces, the chaste design and simple materials are as inspirational inside as out. For halls and hallways. Alone or together, in rows or perfect squares.
Simplicity liberates imagination.

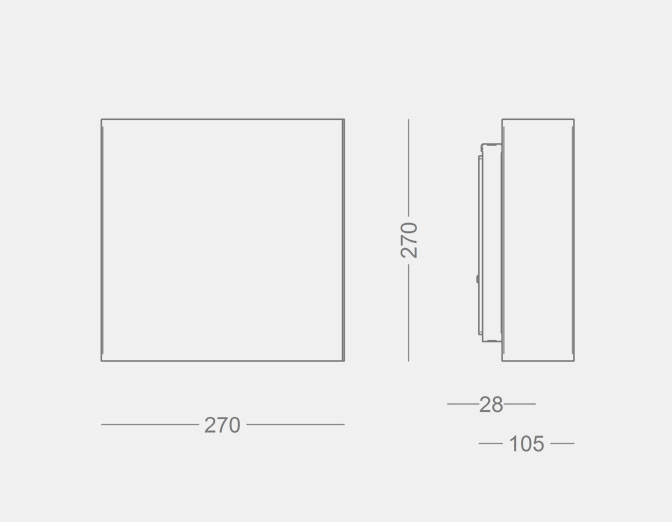

| SQUARE 270 interior | |
|---|---|
| Material | Galvanised steel |
| Coating | White: RAL 9010 |
| Black: RAL 9005 | |
| Graphite grey: YW355F | |
| Shade | Opal-white polycarbonate |
| Cut-out | Digits can be cut in the front. See specification in the pdf with product data. |
| Mounting | On wall or wall box |
| Connection | Max two cables into 5 x 2.5 mm2 terminal block |
| Classification | IP20, class I |
| Weight | 2.5 kg |
| LED type | Bridgelux Vero 10 + V6 |
|---|---|
| Operational life | min 100,000 hours at ta max 25° C, L90B10 |
| Total consumption | 15 W, 350 mA |
| Total consumption, downwards | 12 W, 350 mA |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Colour rendering | min 90 Ra |
| Colour accuracy | 3 steps SDCM |
| Output ratio | 62% |
| Driver | LED driver, 20 W |
|---|---|
| Dimming optional | |
| Inrush current | max 5 A (50% after 50 µs) |
| Operational life | min 100,000 hours |
| Alternative | Driver and sensor (radar) for wireless control |
| Item No. | Square 270 interior |
|---|---|
| 4824- | 15 W LED, 350 mA |
| 4825- | 12 W LED, 350 mA, downwards only |
Select colour, colour temperature, etc. in the table below.
| Colour | Colour temperature |
|---|---|
| 1 = white | 927 = 2700 K, 90 Ra |
| 3 = black | 930 = 3000 K, 90 Ra |
| 4 = graphite grey | 940 = 4000 K, 90 Ra |
| Dimming | Protection class |
|---|---|
| empty = no dimming | empty = class I |
| V = 1-10 V | K = class II |
| D = DALI | |
| R = bluetooth sensor |
| Laser cutting in front | |
|---|---|
| C = Cutting of digits in front |
Example Item No.: 4824-3927V = Square 270 interior, 15 W LED, black, 2700 K, 90 Ra, 1-10 V dimming
| SQUARE 270 interior | |
|---|---|
| Material | Galvanised steel |
| Coating | White: RAL 9010 |
| Black: RAL 9005 | |
| Graphite grey: YW355F | |
| Shade | Opal-white polycarbonate |
| Cut-out | Digits can be cut in the front. See specification in the pdf with product data. |
| Mounting | On wall or wall box |
| Connection | Max two cables into 5 x 2.5 mm2 terminal block |
| Classification | IP20, class I |
| Weight | 2.5 kg |
| E27 | max 30 W |
|---|---|
| We recommend Deco Aurora LED dimmable, 7.5 W, 2700 K, 20,000 hours operation |
| Item No. | Square 270 interior |
|---|---|
| 4010- | max 30 W, E27 |
| 4013- | max 30 W, E27, downwards only |
| Options | |
|---|---|
| 1100-6 | E27 LED, Deco Aurora dimmable, 7.5 W, 2700 K, 80 Ra, 20,000 hours operation |
Select colour in table below.
| Colour | Laser cutting in front |
|---|---|
| 1 = white | C = Cutting of digits in front |
| 3 = black | |
| 4 = graphite grey |
Example Item No.: 4010-1 = Square 270 interior, E27, white
Square - and Sticks - are designed in 1999, and both designs have pathed the way within their fields of application.
The simple, minimalist design enhances the form, and the light is not dominant.
