STOA

Stoa by Anne Qvist Design Office is characterised by the large surface offering excellent illumination.

Stoa can be used outside and in, and it meets the safety demands in emergency areas. For this purpose it comes with a shade in opal-white, flame-proof polycarbonate. For other applications we recommend Stoa with a shade in UV-resistant acrylate with a very elegant appearance.

Specifications

Specifikationer

Luminaire

STOA
Material	Cast aluminium
Coating	White or black
Shade	Opal-white acrylate PMMA or polycarbonate
Mounting	On ceiling or wall
Connection	max two cables, 5 x 1.5 mm², into 5-pole terminal block, 2 x 2.5 mm²
Classification	IP54, class I, class II optional
Impact resistance	IK07
Weight	2 kg

LED and driver data

LED type	213 mm board
Operational life	min 50,000 hours at ta max 25° C
Total consumption	10 or 14 W
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 90 Ra
Output ratio	62% (acrylate), 75% (polycarbonate)

Driver	LED driver, 20 W, dimming optional
Inrush current	max 5 A (50% after 50 µs)
Operational life	min 100,000 hours

Variants

Item No.	Stoa
6830-	10 W LED, 350 mA
6831-	14 W LED, 500 mA

Combine with

Select colour, shade, etc. in the table below.

Colour	Shade
1 = white	A = acrylate
3 = black	P = polycarbonate

Colour temperature	Dimming
927 = 2700 K, 90 Ra	empty = no dimming
930 = 3000 K, 90 Ra	V = 1-10 V
940 = 4000 K, 90 Ra	D = Dali

Protection class
empty = class I
K = class II

Example Item No.: 6830-1A930D = Stoa, 10 W, white, shade in acrylate, 3000 K 90 Ra, Dali, class I

Media & downloads

Product information

Product dataPDF LED modules for StoaPDF Mounting instructionsPDF Mounting preparationsPDF MaintenancePDF RoHS DeclarationPDF

3D files

StoaRFA StoaGSM StoaLCF Stoa3DS StoaDWG

Photos

Product image, StoaJPG

Photometric data

Stoa, acrylate screen

LED 10 W, 2700 K, acrylate screenLDT LED 10 W, 2700 K, acrylate screenPDF LED 10 W, 3000 K, acrylate screenLDT LED 10 W, 3000 K, acrylate screenPDF LED 10 W, 4000 K, acrylate screenLDT LED 10 W, 4000 K, acrylate screenPDF LED 14 W, 2700 K, acrylate screenLDT LED 14 W, 2700 K, acrylate screenPDF LED 14 W, 3000 K, acrylate screenLDT LED 14 W, 3000 K, acrylate screenPDF LED 14 W, 4000 K, acrylate screenLDT LED 14 W, 4000 K, acrylate screenPDF

Stoa, polycarbonate screen

LED 10 W, 2700 K, polycarbonate screenLDT LED 10 W, 2700 K, polycarbonate screenPDF LED 10 W, 3000 K, polycarbonate screenLDT LED 10 W, 3000 K, polycarbonate screenPDF LED 10 W, 4000 K, polycarbonate screenLDT LED 10 W, 4000 K, polycarbonate screenPDF LED 14 W, 2700 K, polycarbonate screenLDT LED 14 W, 2700 K, polycarbonate screenPDF LED 14 W, 3000 K, polycarbonate screenLDT LED 14 W, 3000 K, polycarbonate screenPDF LED 14 W, 4000 K, polycarbonate screenLDT LED 14 W, 4000 K, polycarbonate screenPDF

All ldt files

LDT.zipZIP

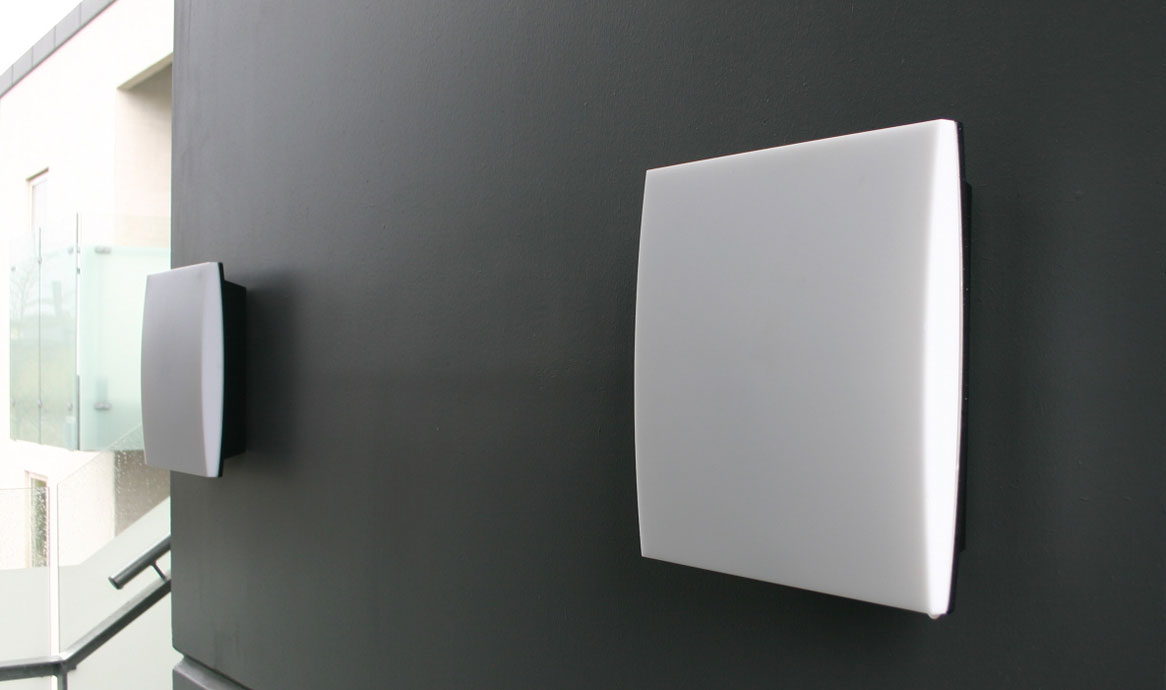

Stoa interior and exterior for stairways - Emiliedalen

Umbraco.Cms.Core.Models.Link More Stoa projects here

Stoa - private residence

DesignAQDO

Stoa is designed by Anne Qvist Design Office. The principal idea with Stoa was to create a fitting with a large illuminated area and fine light qualities.

More about AQDO here.
