TEMA BOLLARD

The Tema luminaires are strong simplicity in material and design. The zinc-coated surface requires no maintenance. Minor damages to this coating will not cause corrosion. The voltaic element created by the zinc-steel reaction will simply heal up the wounds, and no corrosion will occur.

Specifications

Specifikationer

Luminaire

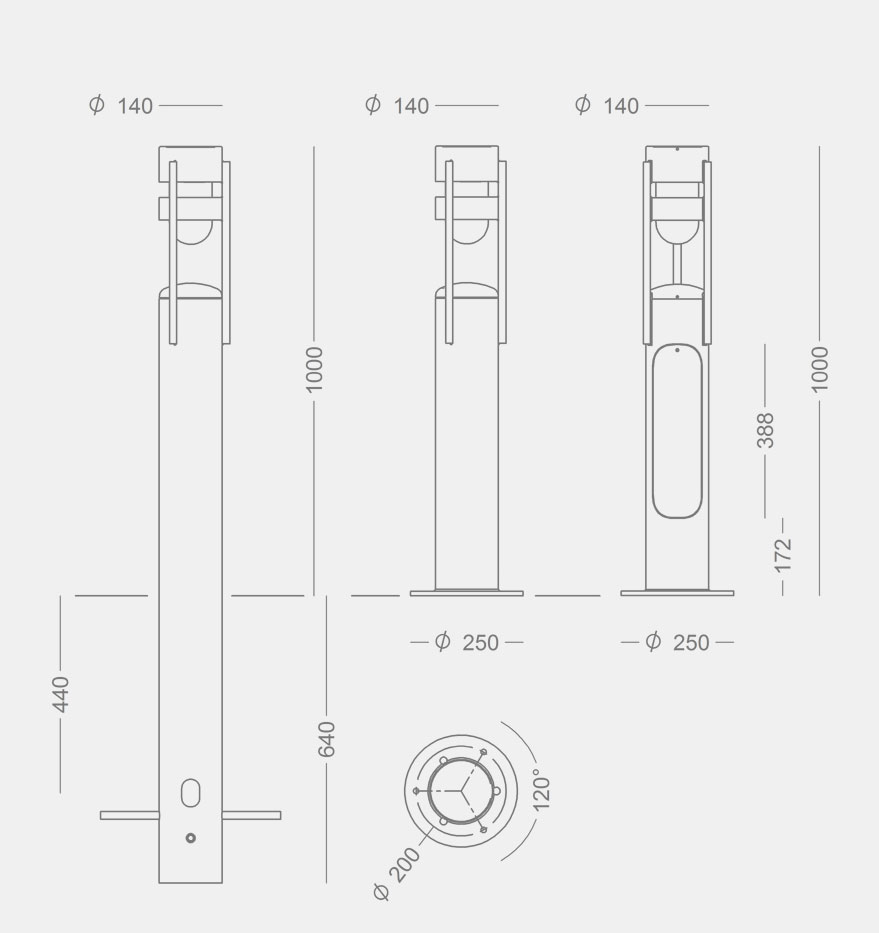

TEMA BOLLARD 1000
Material	Hot-dipped galvanised steel
Shade	Clear polycarbonate with anti-glare
Mounting	Rooted or flanged base
Connection	Two cables, 6 mm2, into 5 x 25 mm2 terminal block
Classification	IP54, class I, without door
	Class II with door and fuse box upon request
Impact resistance	IK10
Weight	26 kg

LED and driver data

LED type	Bridgelux Vero 10
Operational life	min 100,000 hours at ta max 25° C, L90B10
Total consumption	8, 12, or 16 W
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SDCM
Output ratio	74%

Driver, standard	LED driver, 20 W
	Dimming optional
Inrush current	max 5 A (50% after 50 µs)
Operational life	min 100,000 hours

Driver, programmable	Xitanium Full Xi FP 22 W, 0.3-1.0 A
Inrush current	max 14 A (50% after 400 µs)
Dimming/control	5 steps dimming within the lumen intervals
Operational life	min 100,000 hours

Variants and options

Item No.	Tema Bollard 1000, rooted base w. cross bars
7886-	8 W LED, 250 mA
7887-	12 W LED, 350 mA
7888-	16 W LED, 500 mA

Item No.	Tema Bollard 1000, flanged base
7871-	8 W LED, 250 mA
7872-	12 W LED, 350 mA
7873-	16 W LED, 500 mA

Item No.	Tema Bollard 1000, rooted base for concrete
7860-	8 W LED, 250 mA
7862-	12 W LED, 350 mA
7863-	16 W LED, 500 mA

Options
70620	Preparation for socket outlet

Combine with

Select colour temperature, etc. in the table below.

Colour	Colour temperature
9 = galvanised	927 = 2700 K, 90 Ra
	930 = 3000 K, 90 Ra
	940 = 4000 K, 90 Ra

Dimming	Protection class
empty = no dimming	empty = class I (without door)
V = 1-10 V	K = class II (with door and fuse box)
D = DALI
E = programmable

Example Item No.: 7887-9930 = Tema Bollard 1000, rooted base, 12 W LED, galvanised, 3000 K, 90 Ra, class I

Luminaire

TEMA BOLLARD 1000
Material	Hot-dipped galvanised steel
Shade	Clear polycarbonate with anti-glare
Mounting	Rooted or flanged base
Connection	Two cables, 6 mm2, into 5 x 25 mm2 terminal block
Classification	IP54, class I, without door
	Class II with door and fuse box upon request
Impact resistance	IK10
Weight	26 kg

Lamp type

E27	max 57 W, max length 140 mm, max diameter 56 mm

Variants and options

Item No.	Tema Bollard 1000, rooted base w. cross bars
7061-	max 57 W, max length 140 mm, max diameter 56 mm

Item No.	Tema Bollard 1000, flanged base
7064-	max 57 W, max length 140 mm, max diameter 56 mm

Item No.	Tema Bollard 1000, rooted base for concrete
7062-	max 57 W, max length 140 mm, max diameter 56 mm

Options
70620	Preparation for socket outlet

Combine with

Select colour in the table below.

Colour	Protection class
9 = galvanised	empty = class I (without door)
	K = class II (with door and fuse box)

Example Item No.: 7061-9 = Tema Bollard 1000, rooted base, E27, galvanised, class I

Media & downloads

Product information

Product data, Tema BollardPDF LED module for Tema Bollard 1000 without doorPDF LED module for Tema Bollard 1000 with doorPDF Mounting instructionsPDF Flange dimensionsPDF MaintenancePDF RoHS DeclarationPDF

3D files

Tema BollardRFA Tema BollardFBX Tema BollardDWG

Photos

Product image, Tema BollardJPG

Photometric data

LED 8 W, 2700 KLDT LED 8 W, 2700 KPDF LED 8 W, 3000 KLDT LED 8 W, 3000 KPDF LED 8 W, 4000 KLDT LED 8 W, 4000 KPDF LED 12 W, 2700 KLDT LED 12 W, 2700 KPDF LED 12 W, 3000 KLDT LED 12 W, 3000 KPDF LED 12 W, 4000 KLDT LED 12 W, 4000 KPDF LED 16 W, 2700 KLDT LED 16 W, 2700 KPDF LED 16 W, 3000 KLDT LED 16 W, 3000 KPDF LED 16 W, 4000 KLDT LED 16 W, 4000 KPDF

All ldt files

LDT.zipZIP

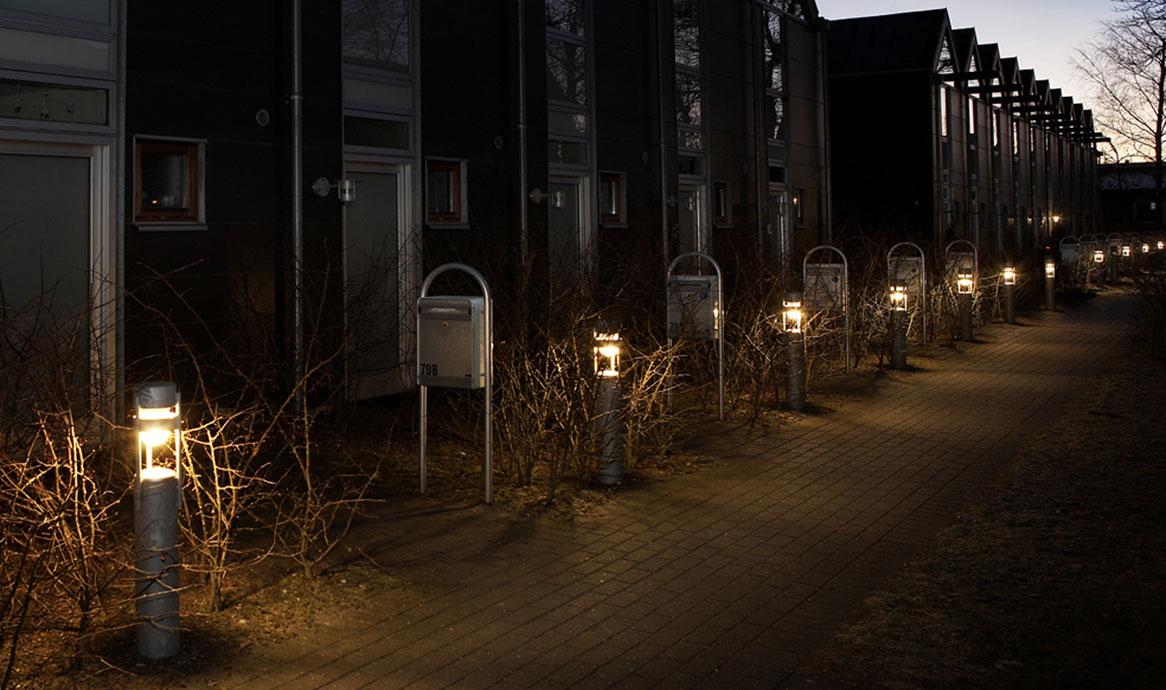

Tema Pullert and Tema Grønnegade - 3-meter-houses, Silkeborg

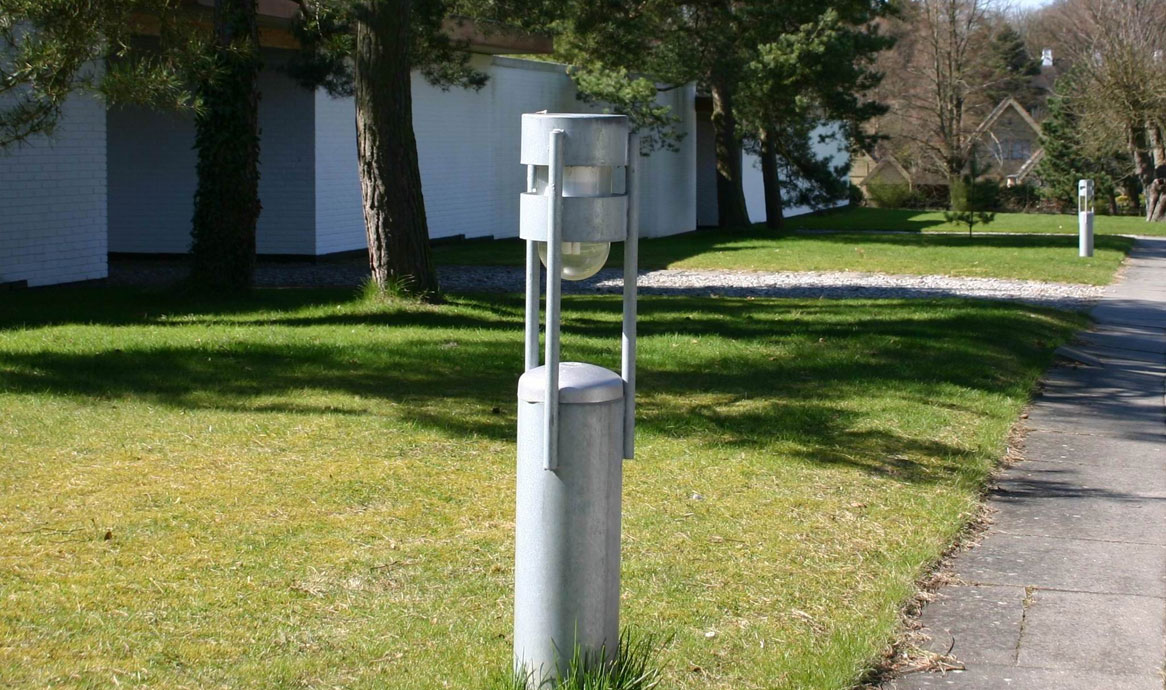

Tema Pullert 1000 - here with low light point height.

DesignTorben Rix, Leif Jensen & Ole Bruhn

The Tema Bollard is designed in 1980 for the former Tema Lamper. It is part of a strong outdoor series: Klampen, Grønnegade, Tema Bollard, and Tema Park, all of which have the same design characteristics. The Tema luminaires are conceived in galvanised steel in order to withstand wear and tear in public areas.

Cooperation between Tema Lamper and Focus began back in 1995, and year 2000 the two manufacturers merged into Focus Lighting.

Slide show of the Focus history available here.
