Turn is a new luminaire series by FRIIS & MOLTKE Design for Focus Lighting.
More on FRIIS & MOLTKE Design here.
Media &
downloads
TURN GOBO

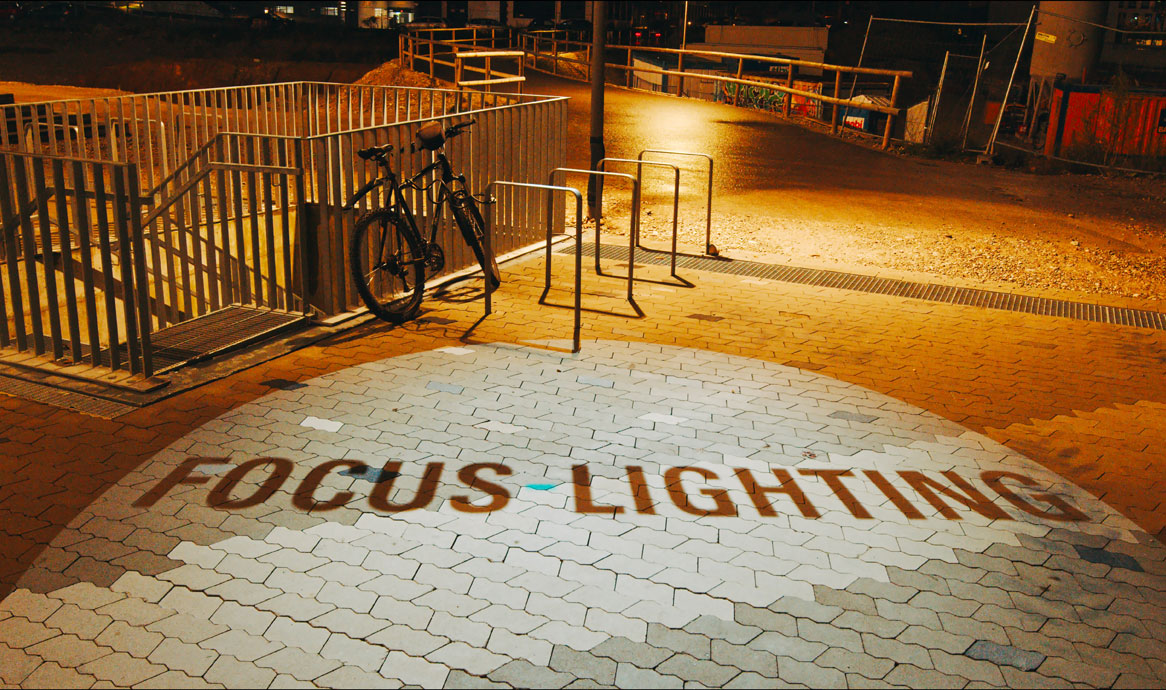

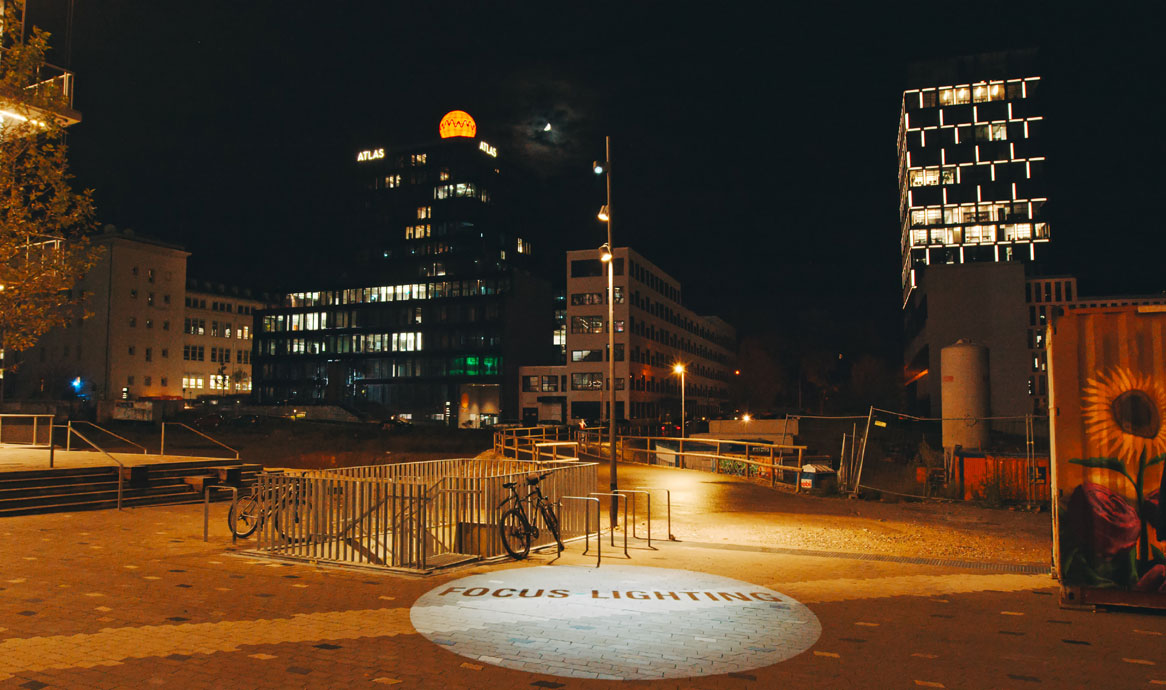

Turn is available as gobo with illuminated projection of graphics or messages.
Combine Turn Gobo and Turn Spot for a flexible installation in Friis & Moltke's minimalistic design.

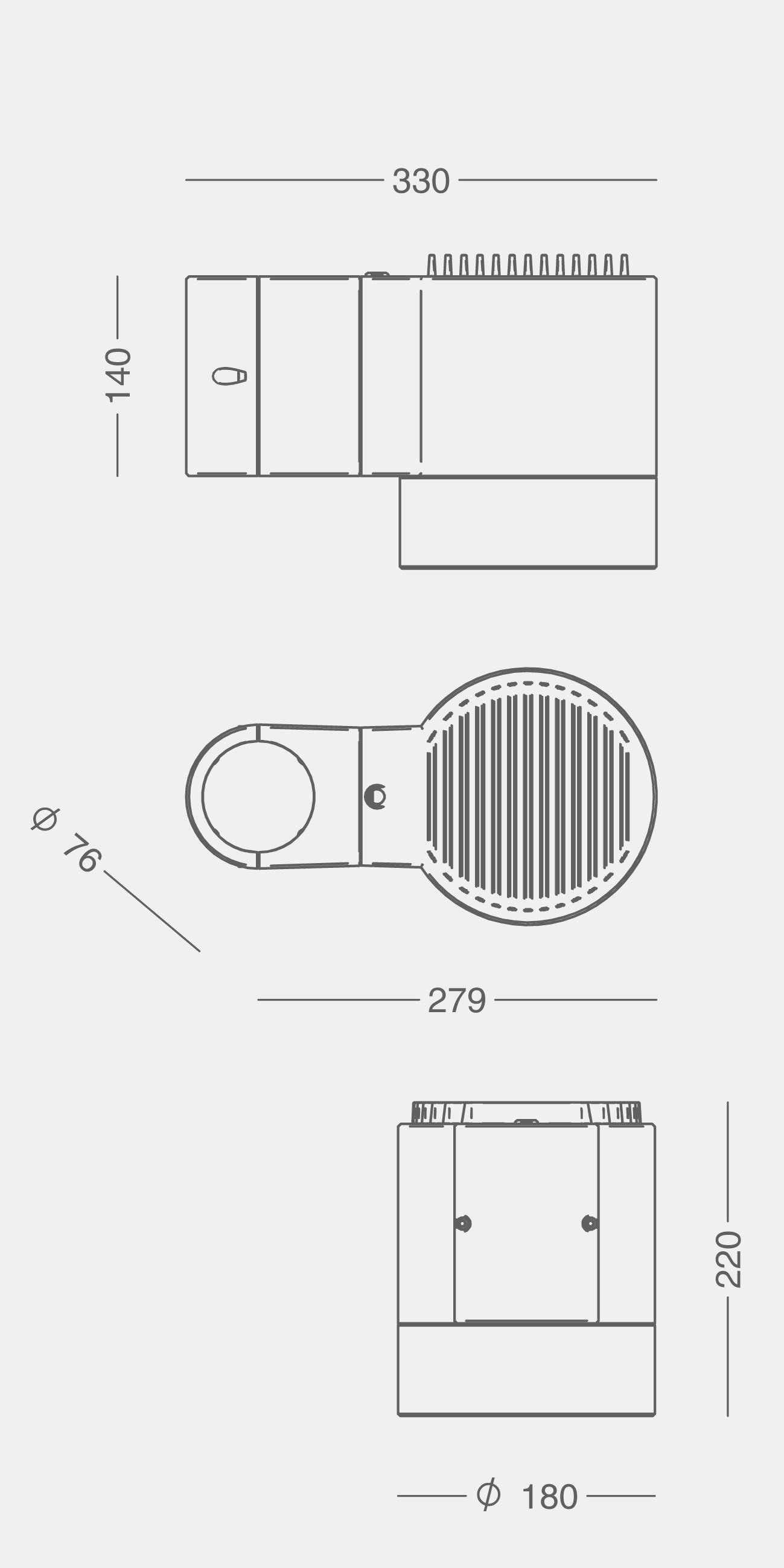

Specifications
Specification
Luminaire
| TURN GOBO | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black: Noir 900 Sablé, SN351F, Akzo Nobel | |
| Screen | Clear glass with silked edge |
| Mounting | Standard brackets for Ø76 mm cylindrical pole |
| Adjustable brackets for conical pole and cylindrical > Ø76 mm | |
| Adapter for Ø60 mm pole optional | |
| Delivered with 8.5 m lead, 2 x 1 mm2 | |
| Connection | In the pole |
| Classification | IP66, class II; use code for class I |
| Impact resistance | IK08 |
| Corrosion class | C4, C5 optional |
| Weight | 6.8 kg |
| Wind sweeping area | 0.053 m2 |
| Cooling | Active cooling, 25 dBA |
| LED | 40 W |
Gobo-data
| See also product data sheet below | |
|---|---|
| Projection distance | 3-8 m |
| Lens | 85 mm standard or 63 mm wide |
| Other lens types upon request | |
| Gobo glass and colour filters - see below |
Variants and options
| Order code | Turn Gobo |
|---|---|
| 8846- | 40 W LED, 85 mm standard lens |
| 8848- | 40 W LED, 63 mm wide lens |
| Optional | Gobo glass and colour filters |
|---|---|
| Max image diameter: 40 mm | |
| 8846-008 | Gobo glass 50 mm, black/white |
| 8846-0081 | Gobo glass 50 mm, black + 1 colour or colour temperature correction |
| 8846-0082 | Gobo glass 50 mm, 1 colour filter |
| 8846-0083 | Gobo glass 50 mm, 2 colour filters |
| 8846-0084 | Gobo glass 50 mm, 3 colour filters |
| 8846-0085 | Gobo glass 50 mm, multicolour 4-colour filters |
| 8846-0086 | Gobo glass 50 mm, greyscale |
| Other options | |
|---|---|
| 8011- | Arm for 1 fixture |
| 8012- | Arm for 2 fixtures |
| 1714-1 | Adapter for Ø60 column |
Combine with
Select colour, control, etc. in the table below.
| Colour | Control |
|---|---|
| 01 = raw anodized | D = DALI-2 |
| 4 = graphite grey | |
| 9 = silver grey | |
| 17 = corten brown | |
| 66 = black noir 900 |
| Protection class | Mounting |
|---|---|
| empty = class II | empty = brackets for cylindrical pole, Ø76 mm |
| J = class I | B90 = brackets for conical pole, Ø 60-90 mm |
| B121 = brackets for conical pole, Ø 91-121 mm |
| Corrosion class | |
|---|---|
| empty = C4 | |
| C5 = C5 coating (add C5 after the colour code) |
Example: 8846-66J = Turn Gobo, 40 W, 85 mm lens, black noir 900, class I
