WAY top entry, circular

"Showing the Way"

WAY is a versatile street luminaire to be mounted on arm or wire. It is available with round or square LED boards.

Like the other AART designs, WAY is modern lines in a classic form - a Nordic design that will suit streets and urban space in any city in the world.

The unique shade offers optical guidance and reduces discomfort glare to a minimum.

Specifications

WAY top entry, circular

Luminaire

WAY top entry
Material	Cast aluminium
Finish	Raw anodized
	Graphite grey: YW355F, Akzo Nobel
	Silver grey: Y2370I, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
	Black: Noir 900 Sablé, SN315F, Akzo Nobel
Shade	Clear, impact resistance PMMA with frosted edge
Mounting	G 3/4" threaded tube
Cable	Delivered with lead; either 2 pcs 2 m 1x2.5 mm2 or 1 pcs 10 m 2 x 1 mm2
Classification	IP66, class II; use code for class I
Impact resistance	IK08
Corrosion class	C4, C5 optional
Weight	max 11 kg
Wind sweeping area	0.11 m2 (laterally)

LED Low lumen

LED circular	Ø240, 64 diodes, CAT lenses
Operational life	min 100,000 hours at ta max 25° C, L80B10
	Constant lumen output
Temperature range	-30 to +35° C
Colour temperature	3000 or 4000 Kelvin
Colour rendering	min 80 Ra
Colour accuracy	4 steps SDCM
Luminous flux	The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 80 Ra	3000K: 850-6700 lm
	4000K: 900-7150 lm
Output ratio	91 per cent

LED High lumen

LED circular	Ø240, 64 diodes, CAT lenses
Operational life	min 100,000 hours at ta max 25° C, L80B10
	Constant lumen output
Temperature range	-30 to +35° C
Colour temperature	3000 or 4000 Kelvin
Colour rendering	min 80 Ra
Colour accuracy	4 steps SDCM
Luminous flux	The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 80 Ra	3000K: 1110-9250 lm
	4000K: 1200-9950 lm
Output ratio	91 per cent

Driver

Driver, Low lumen	Xitanium Full Xi FP 75 W 0.2-0.7 A, programmable
Inrush current	max 46 A (50% after 250 µs)

Driver, High lumen	Xitanium Full Xi FP 110 W 0.3-1.0 A, programmable
Inrush current	max 47 A (50% after 250 µs)


Operational input voltage, AC	80-264 Vac
Operational input voltage, DC	168-275 Vdc
Nominal voltage, AC	220-240 Vac
Nominal voltage, DC	186-250 Vdc
Nominal input frequency	50-60 Hz
Operational input frequency	45-66 Hz
Max preprotection	16 A
Surge protection	L/N-GND: 10 kV
	L-N: 6 kV
Service life	min 100,000 hours
Dimming/control	5 steps dimming within the lumen intervals
Other control options	DALI-2, LineSwitch or
	via Zhaga book 18 socket, D4i

Variants and options

Item No.	Way top entry
9801-	Low lumen, programmable, max 83 W
9802-	High lumen, programmable, max 100 W

Option
1715-0	Hanger for suspension in single wire
1716-0	Hanger for suspension in single wire, Way with SR socket

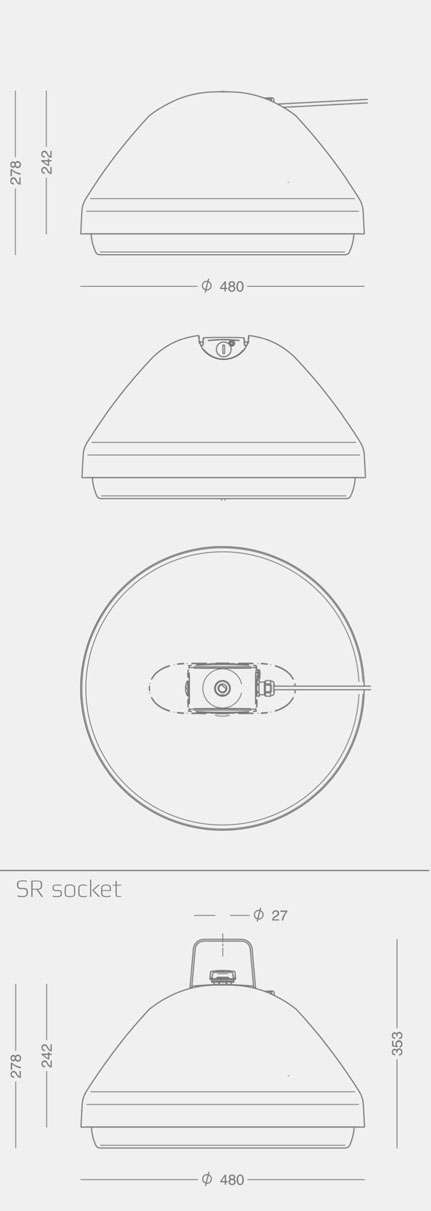

1717-0	Fittings for top entry 3/4” thread, Way with SR socket

Combine with

Select colour, colour temperature, etc. in the table.

Colour	Colour temperature
01 = raw anodized	830 = 3000 K, 80 Ra
4 = graphite grey	840 = 4000 K, 80 Ra
9 = silver grey
17 = corten brown
66 = noir 900

Lead	Dimming/control
2 = 2 pcs 2 m 1x2,5 mm2	empty = programmable
10 = 1 pcs 10 m 2x1 mm2	D = DALI-2 (4/5-conductor cable)
	F = LineSwitch
	R = Zhaga book 18 socket, upwards
	RC = Zhaga book 18 socket, City Touch / Interact City
	S = Zhaga book 18 socket, downwards

Protection class	Corrosion class
empty = class II	empty = C4
J = class I	C5 = C5 coating (add C5 after the colour code)

Example product code: 9801-98302J = Way top entry, circular LED, CAT lenses, Low lumen, silver grey, 3000 K, 80 Ra, 2 m lead, class I

Media & downloads

Product information

Product data, Way top entry, circular boardPDF Dimensions, Way with Zhaga socketsPDF How many per fuse - recommendedPDF Mounting, Way top entryPDF Mounting on wire hanger 1715-0PDF Mounting, using 1717-0, fittings for bracketPDF Mounting on wire hanger 1716-0 for Zhaga socketPDF MaintenancePDF RoHS DeclarationPDF

Udbudstekster

Way_topentry.docxDOCX Way_topentry.pdfPDF

3D files

Way 3D for RevitRFA Way 3D for Revit - descriptionTXT Way 3D for ArchicadGSM Way 3D for AutoCadDWG Way 2D for AutoCadDWG Way 3D Studio3DS Way 3D for SketchupSKP Way 3DFBX Way 3DSTL Way 3DIFC

Photos

Product image, Way top entryJPG Product image, Way side entryJPG Way top entry, Avedoere, CopenahagenPDF Way top entry, City of AarhusPDF Way w. sensor, Groningen, NetherlandsPDF

Photometric data

Catenary, 3000 K, 80 Ra LDT Catenary, 3000 K, 80 Ra PDF Catenary, 4000 K, 80 Ra LDT Catenary, 4000 K, 80 Ra PDF

Way top entry, silver grey, Brøndby Municipality, Avedøre Havnevej

Umbraco.Cms.Core.Models.Link More photos from Brøndby

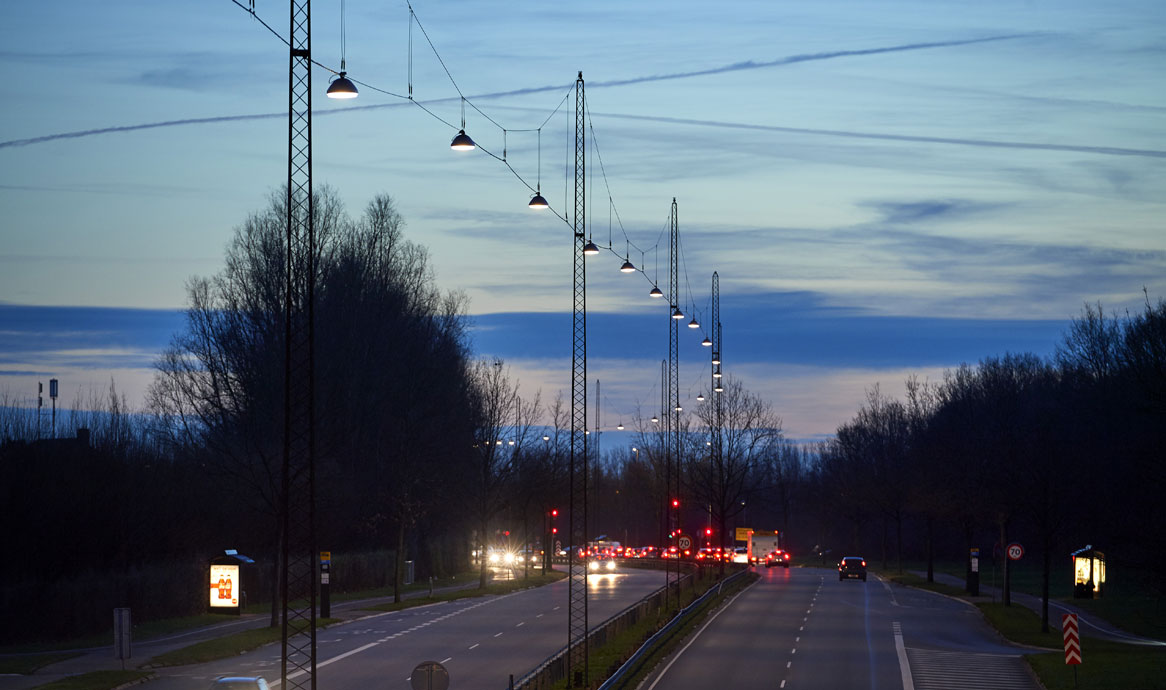

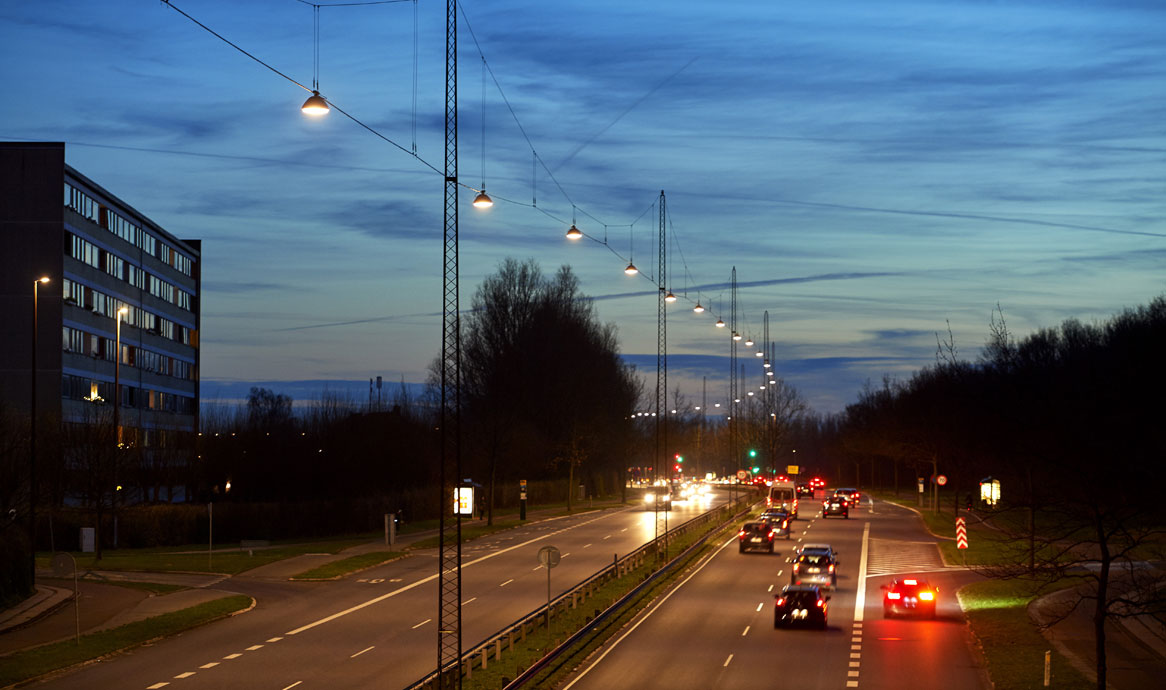

Way top entry, 19,000 lumen and symmetrical optics for traffic roads

Umbraco.Cms.Core.Models.Link More Way photos

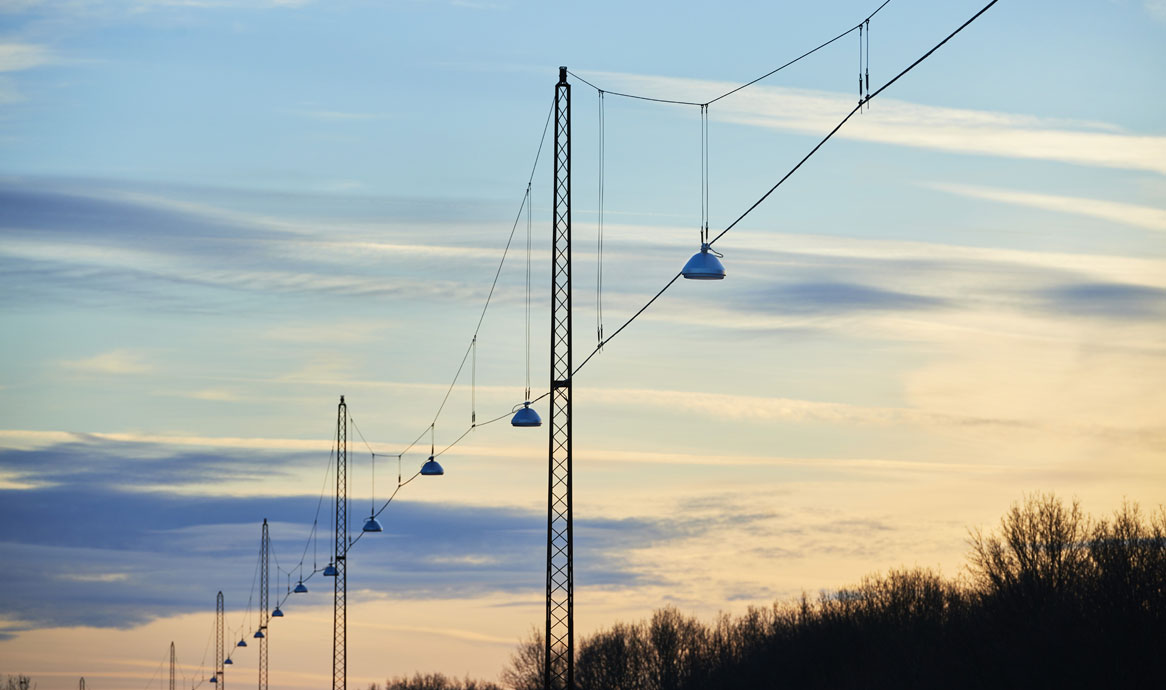

Way silver grey, Brøndby Municipality, traffic road: Avedøre Havnevej

Umbraco.Cms.Core.Models.Link More Way in Danish municipalities

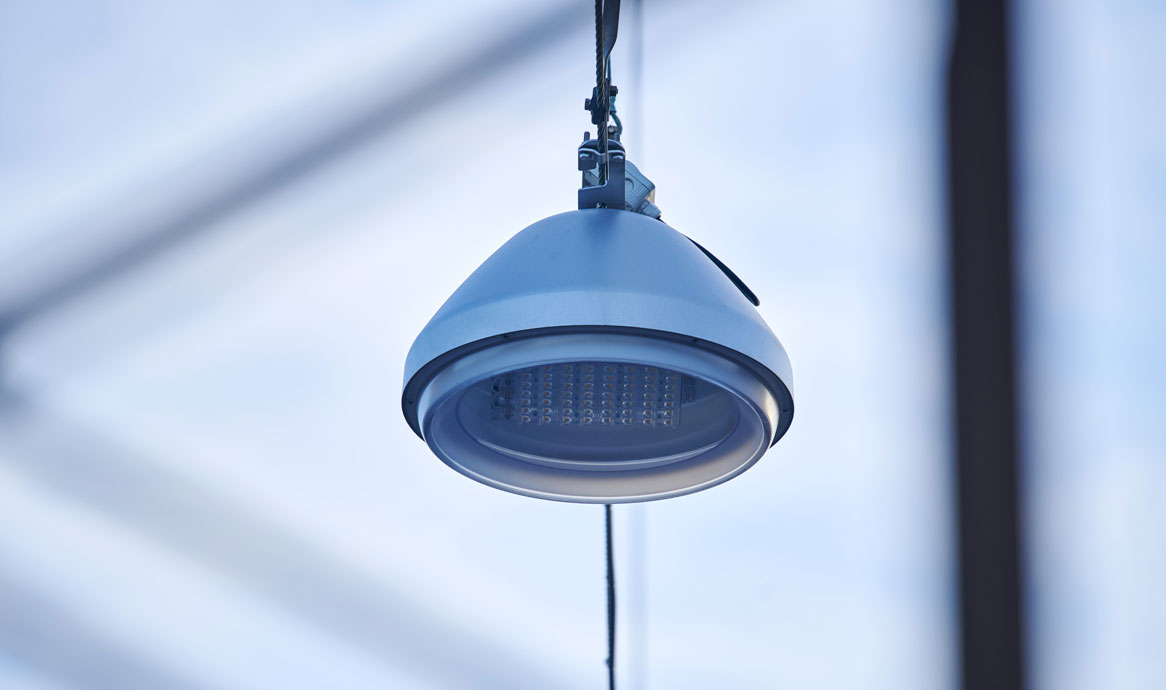

Way - "Showing the Way" - by the glowing ring - no glare

Umbraco.Cms.Core.Models.Link More Way

Way with optics for traffic roads, 19,000 lumen

Umbraco.Cms.Core.Models.Link More Way photos

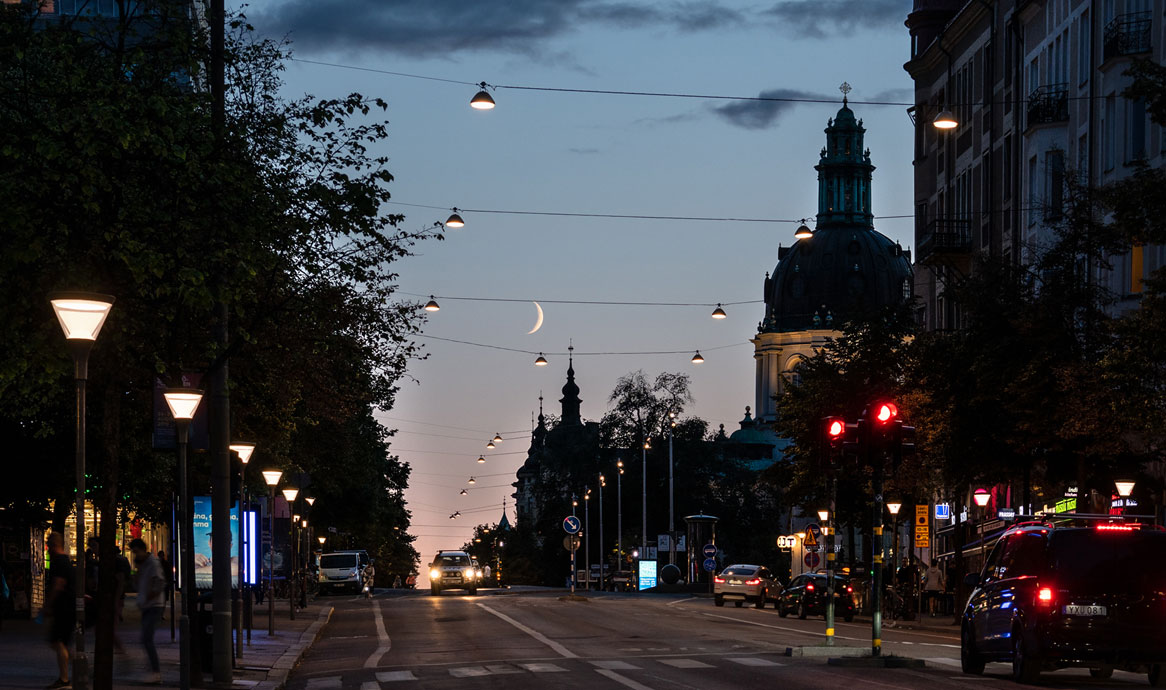

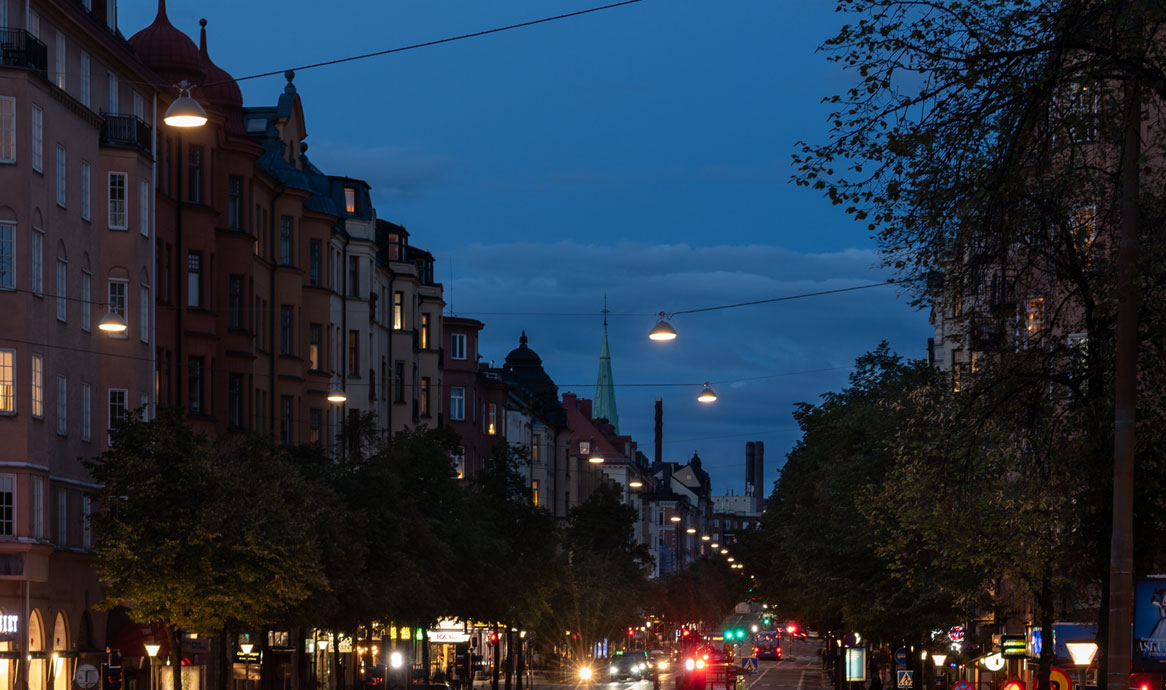

Way and Sky at Sveavägen in Stockholm. The luminaires are equipped with SR sockets for smart city applications.

Umbraco.Cms.Core.Models.Link More images from Stockholm

Way, Sveavägen, Stockholm.

Umbraco.Cms.Core.Models.Link More images from Stockholm

Way is used in many applications in Dutch Helmond. All of them with Zhaga socket for Smart city communication.

Umbraco.Cms.Core.Models.Link More images from Helmond

Way, graphite grey, Helmond, Netherlands, with Zhaga socket for smart-city communication.

Umbraco.Cms.Core.Models.Link More images from Helmond

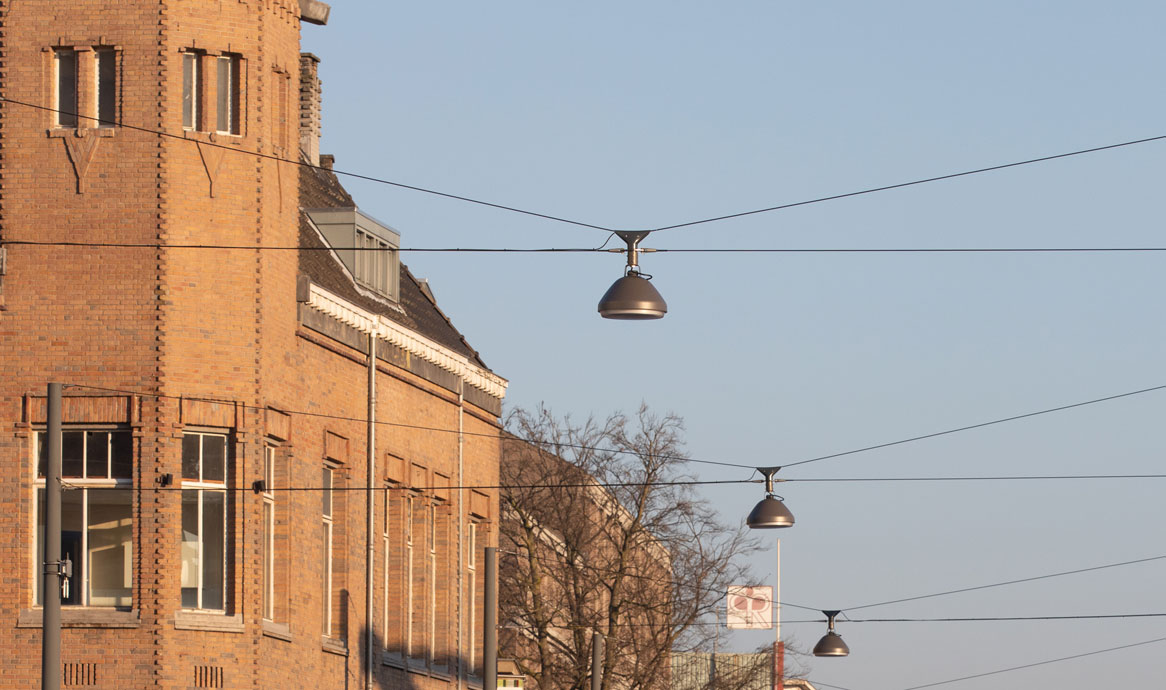

Way in Helmond, Netherlands. The protruding opalised ring ensures the pleasant light and the optical guidance.

Umbraco.Cms.Core.Models.Link More images from Helmond

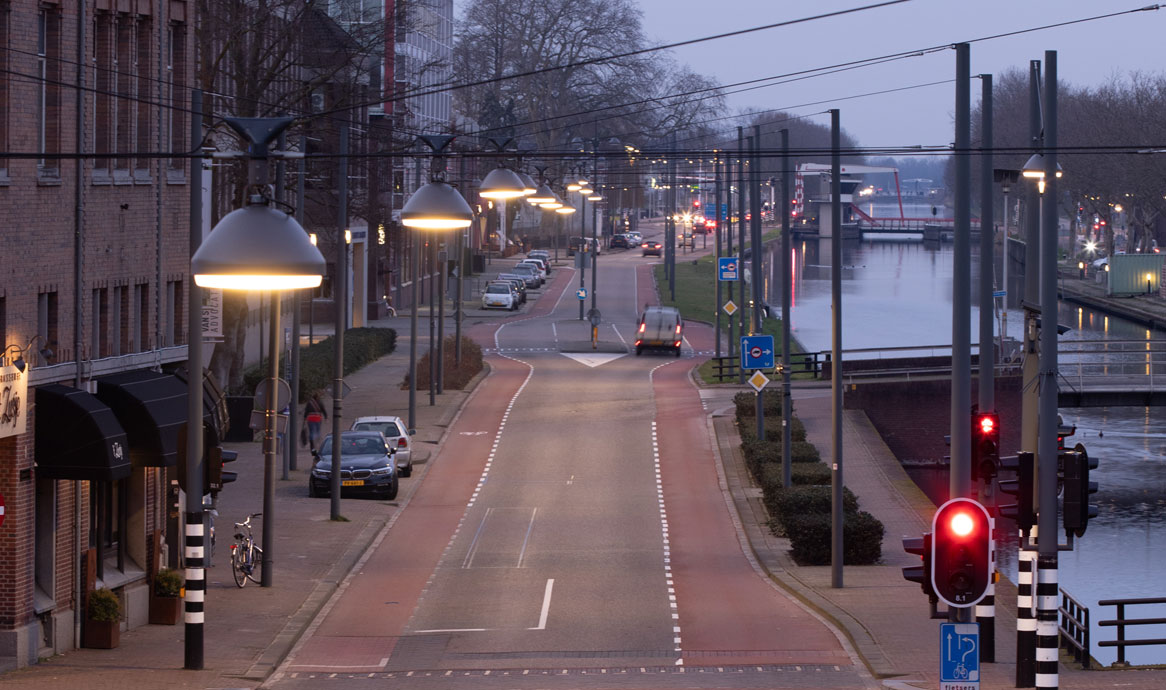

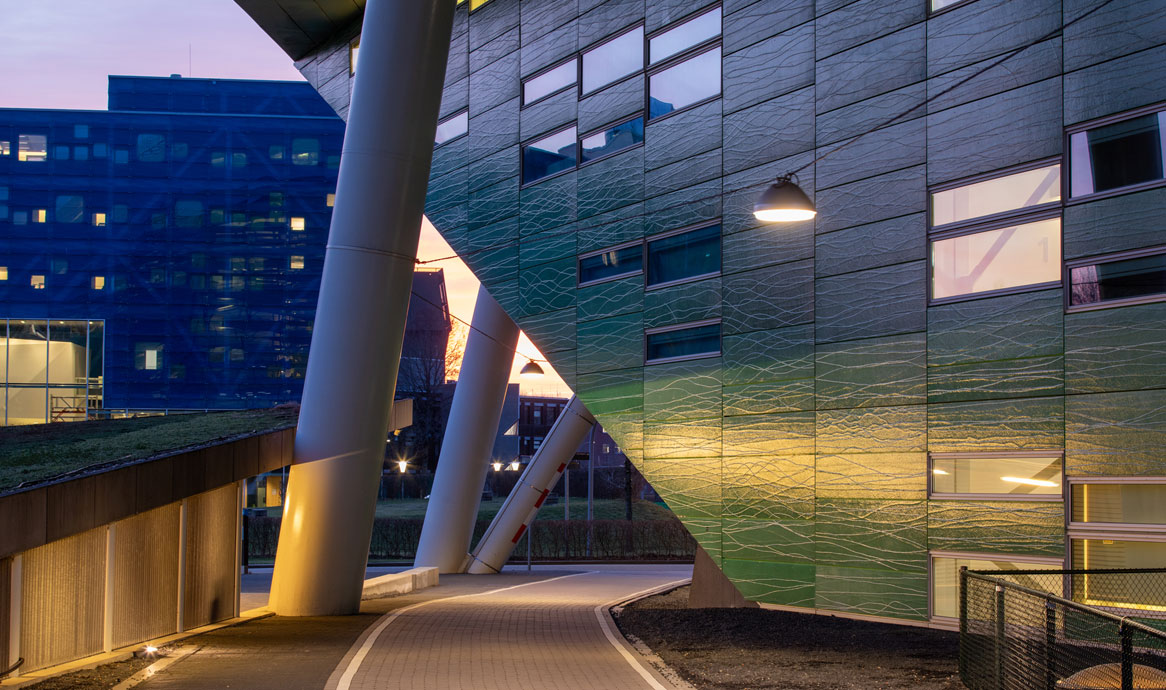

Way around university campus Zernike, Groningen, Netherlands

Umbraco.Cms.Core.Models.Link More from Groningen

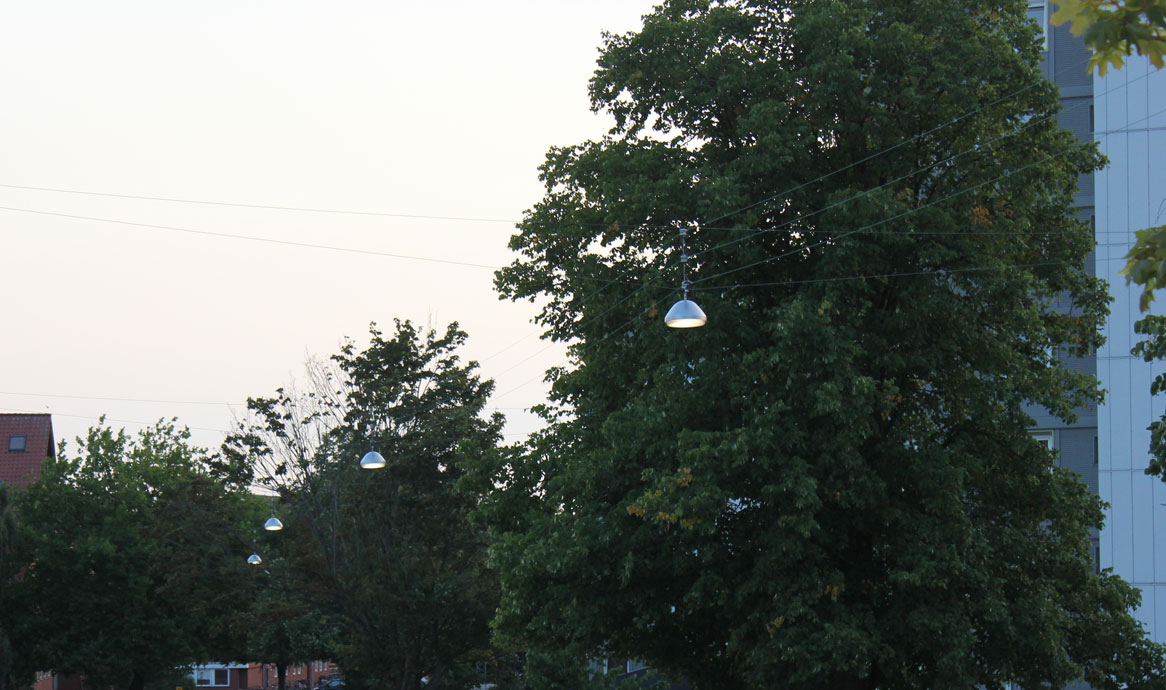

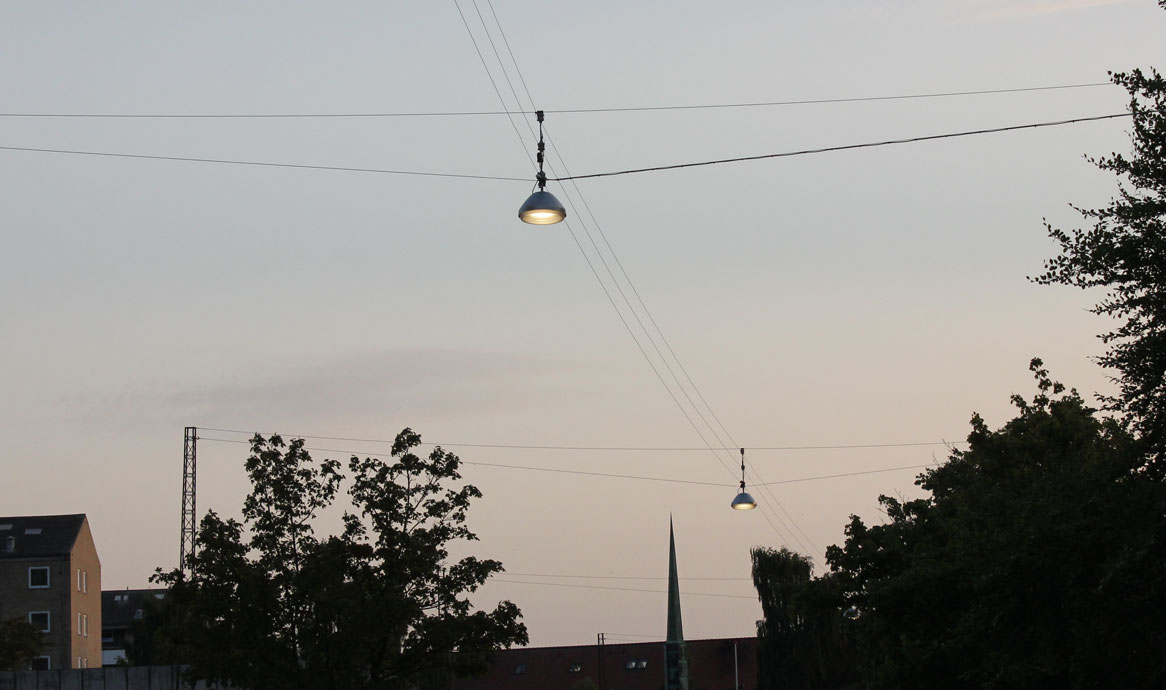

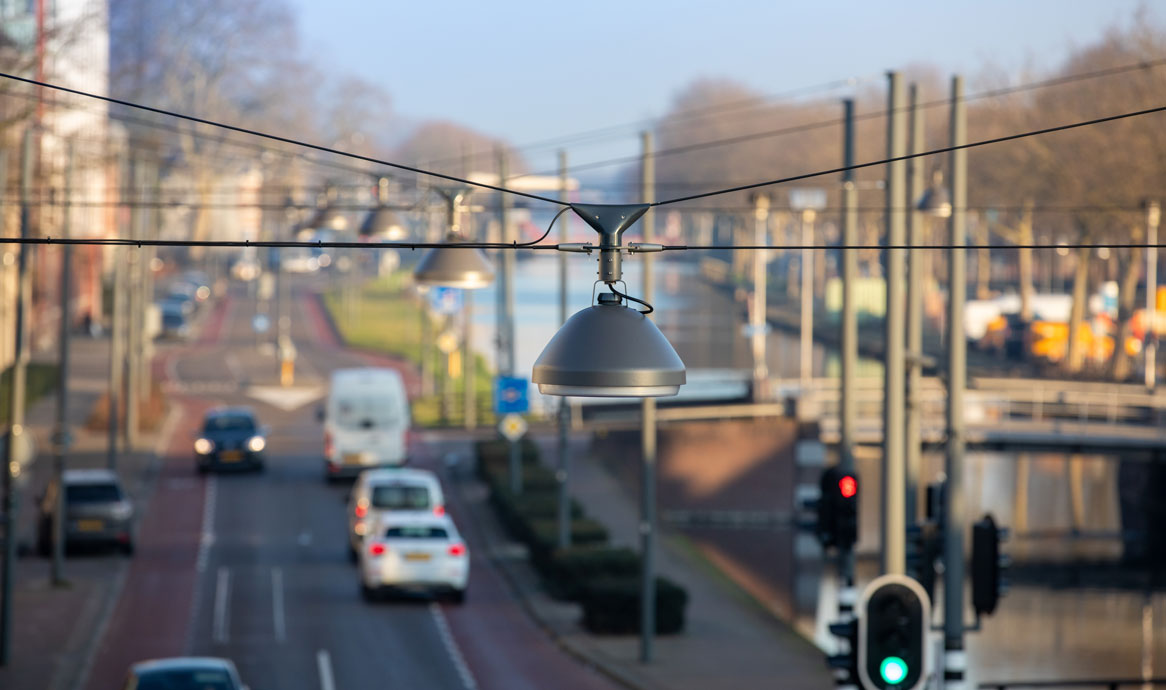

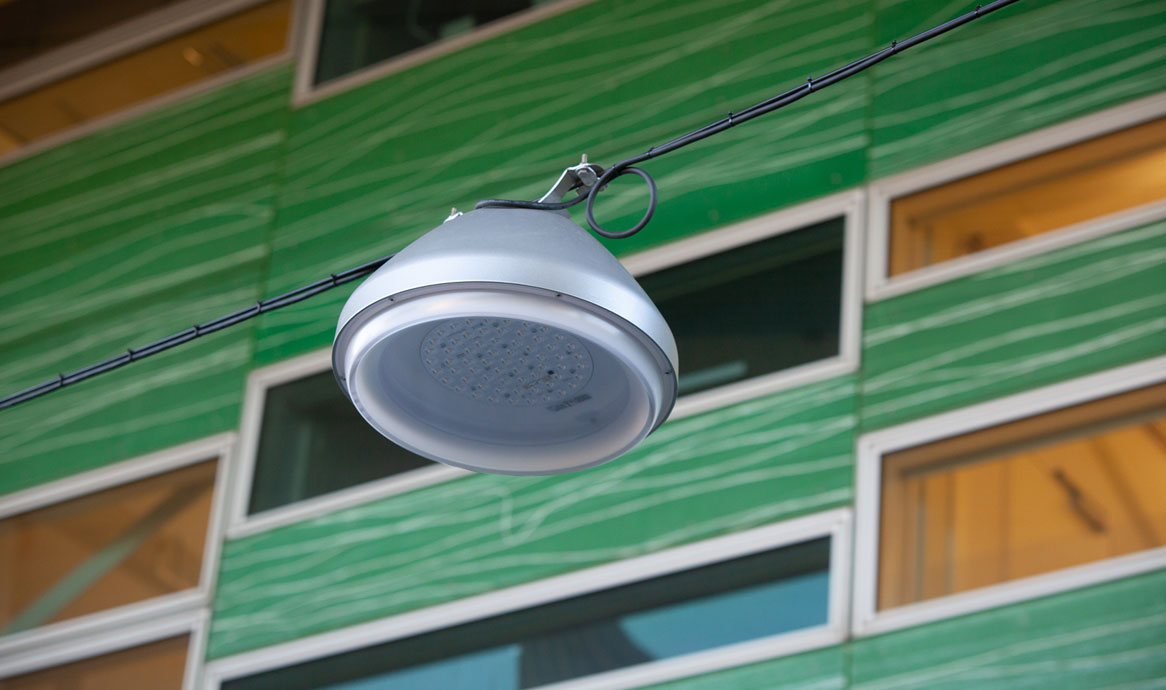

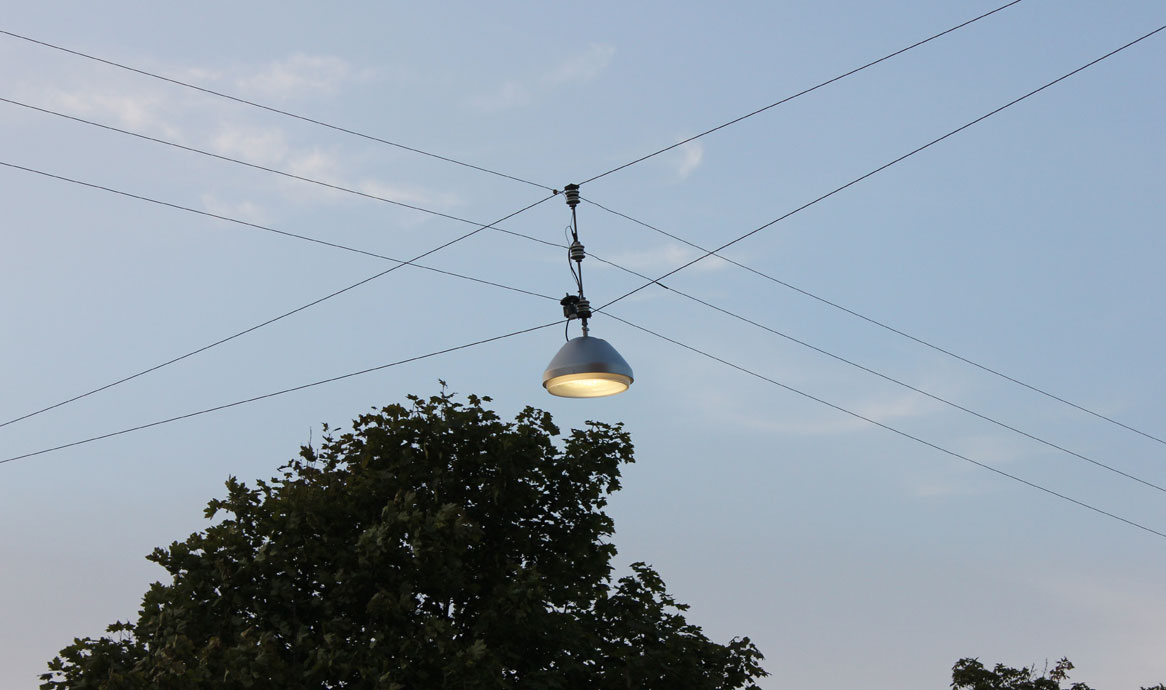

Way for wire suspension with round LED board.

Umbraco.Cms.Core.Models.Link More from Groningen

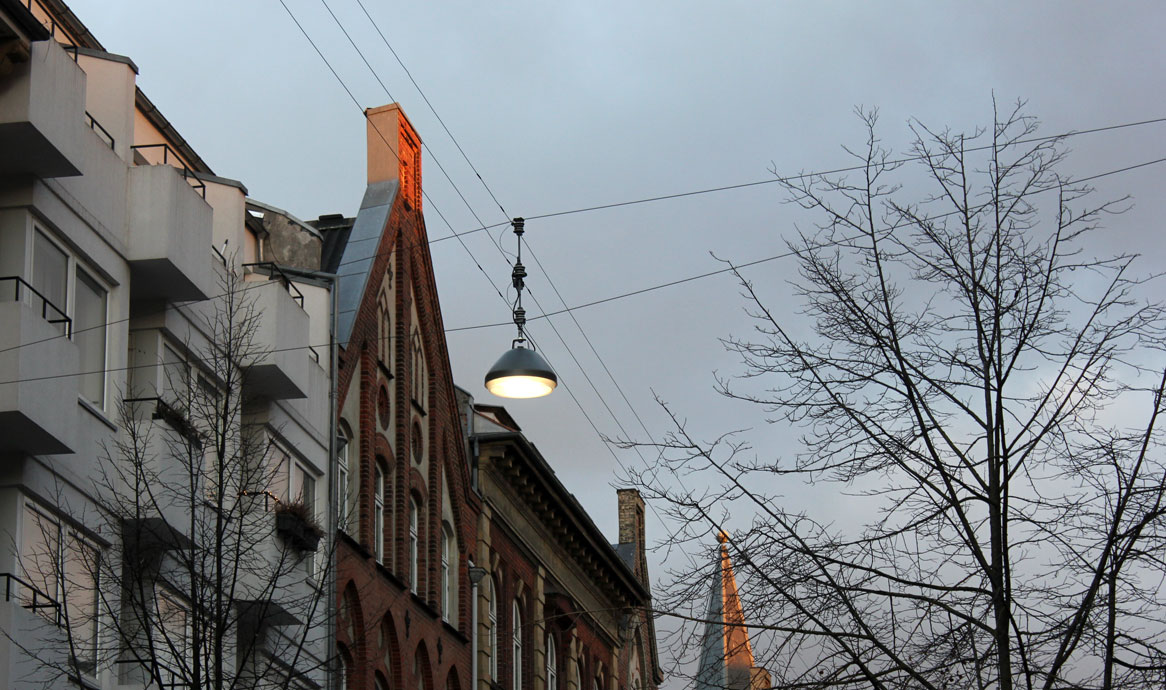

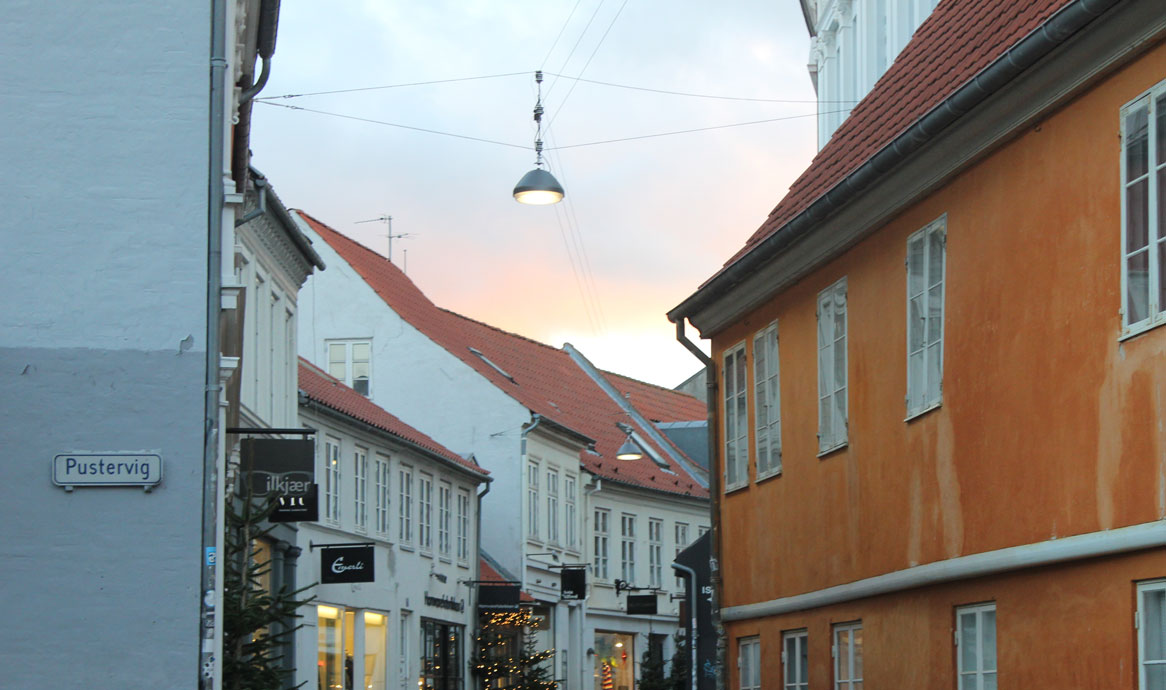

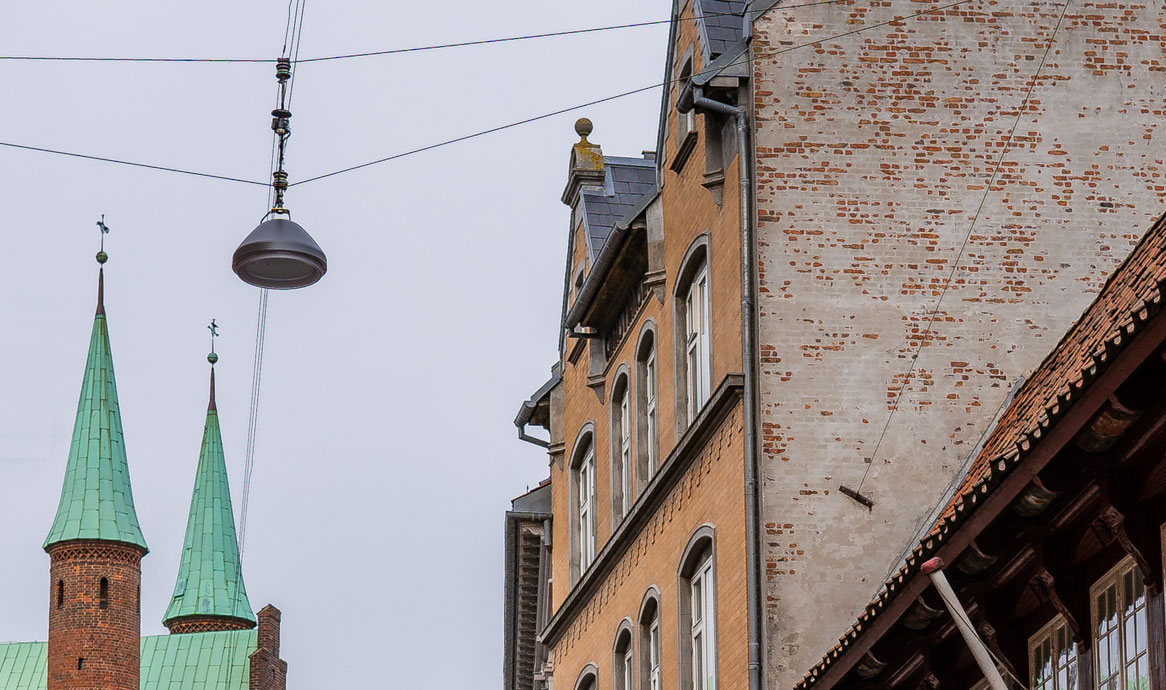

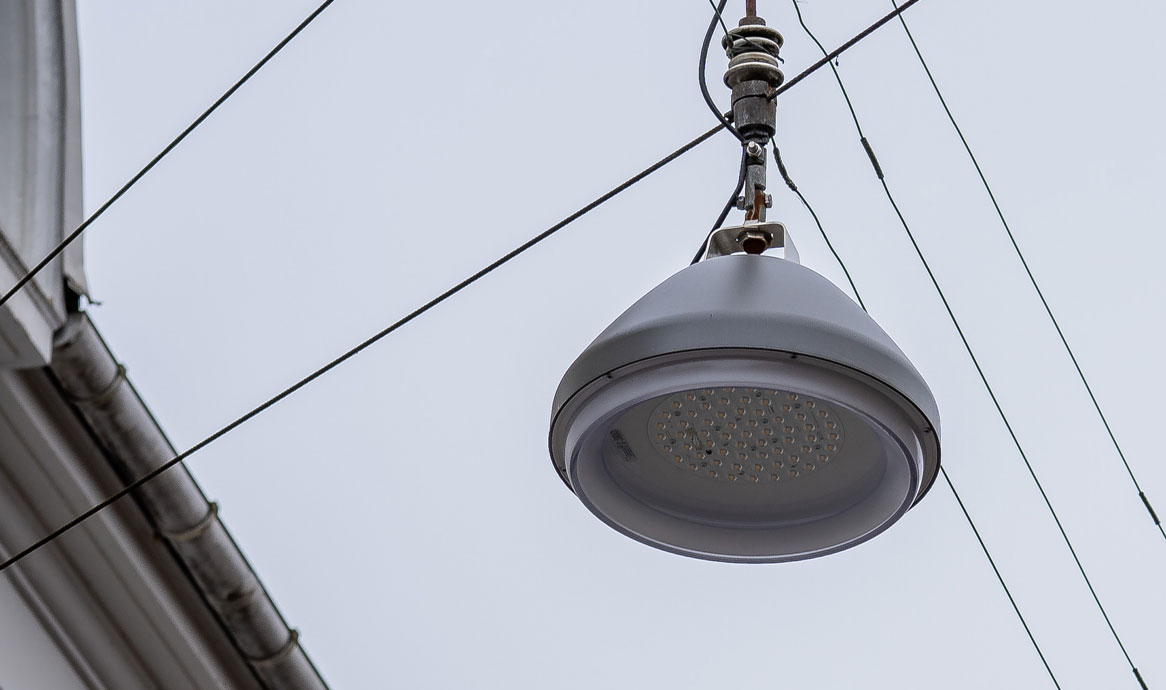

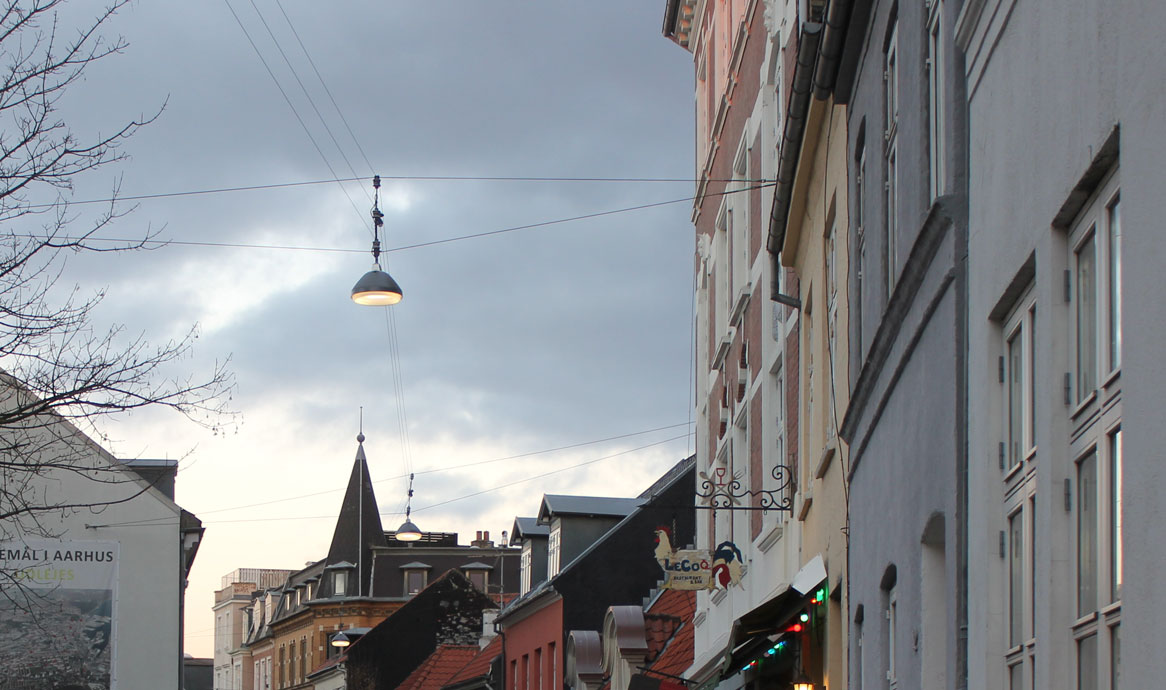

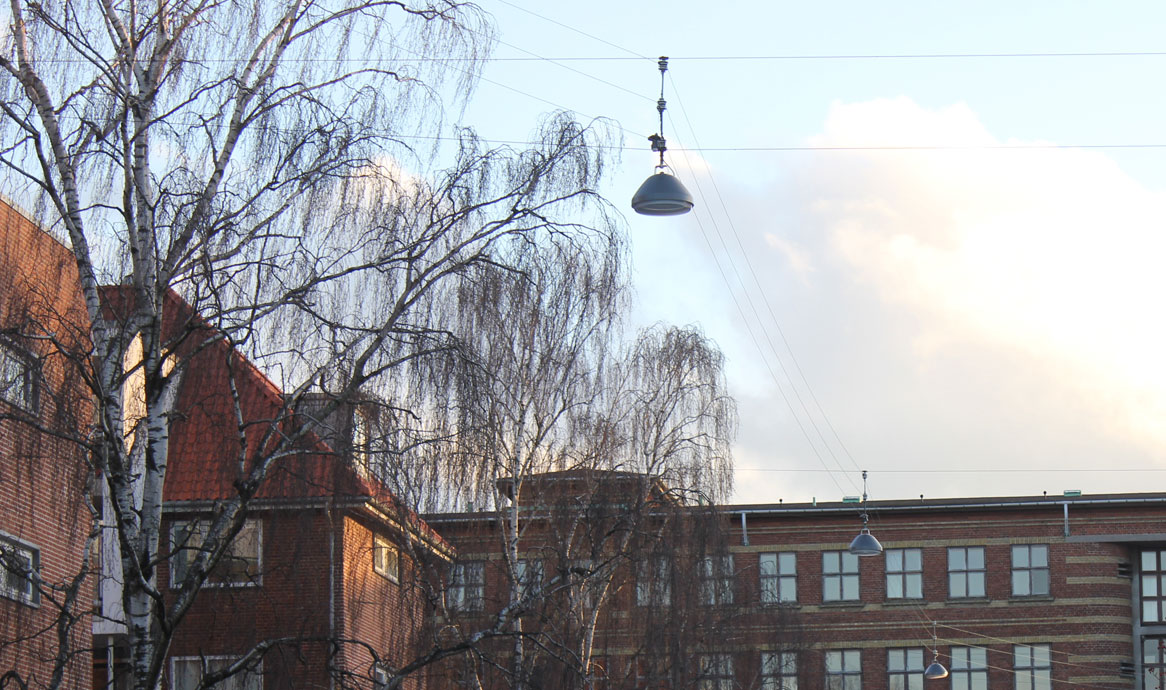

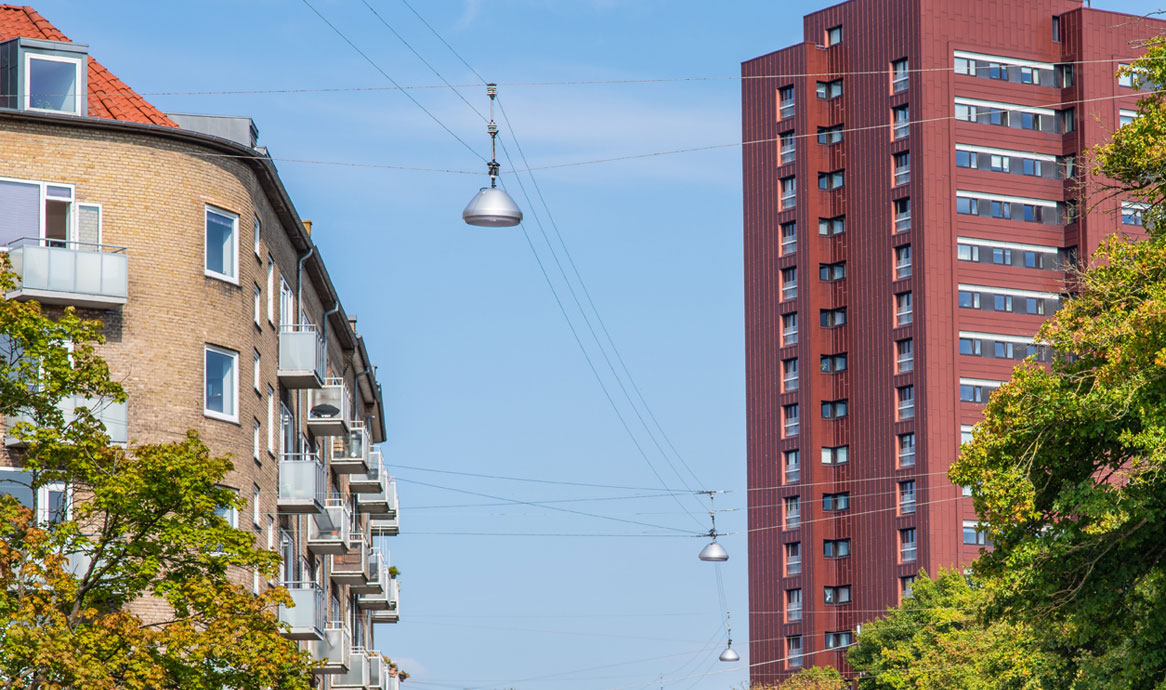

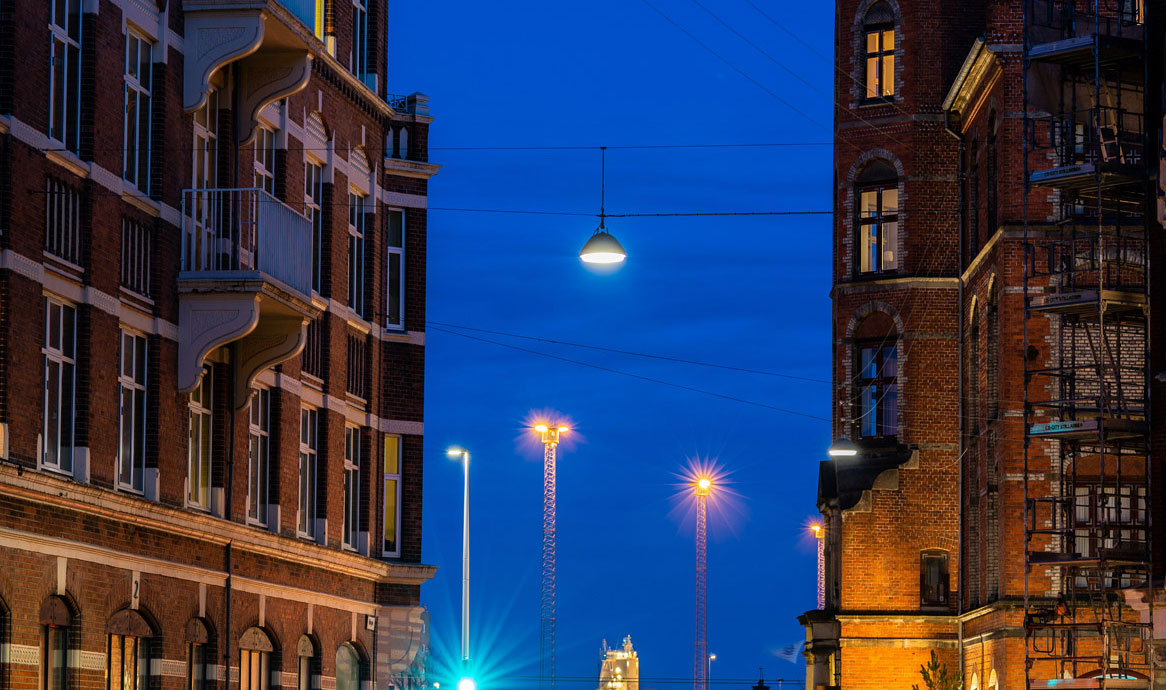

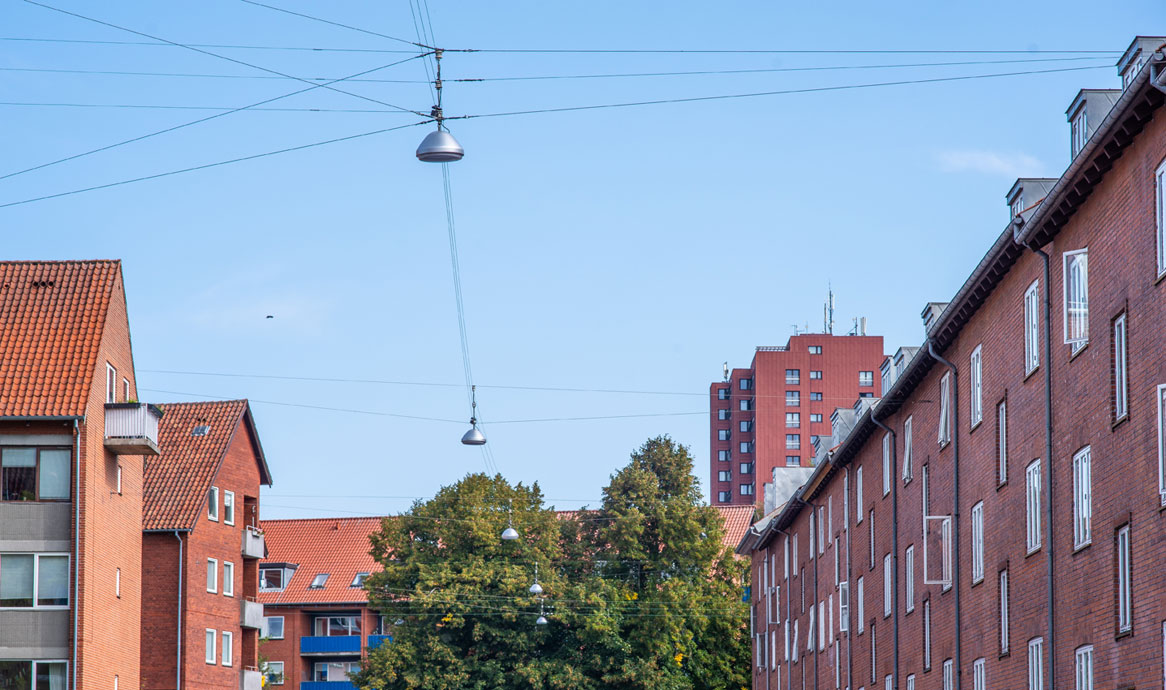

Way with circular LED board and catenary lenses, Aarhus C. The opalised ring ensures pleasant light and offers optical guidance.
