WAY top entry, FF-DA

WAY is a versatile street luminaire to be mounted on arm or wire. It is available with round or square LED boards.

Like the other AART designs, WAY is modern lines in a classic form - a Nordic design that will suit streets and urban space in any city in the world.

The unique shade offers optical guidance and reduces discomfort glare to a minimum.

Specifications

Specification

Please choose

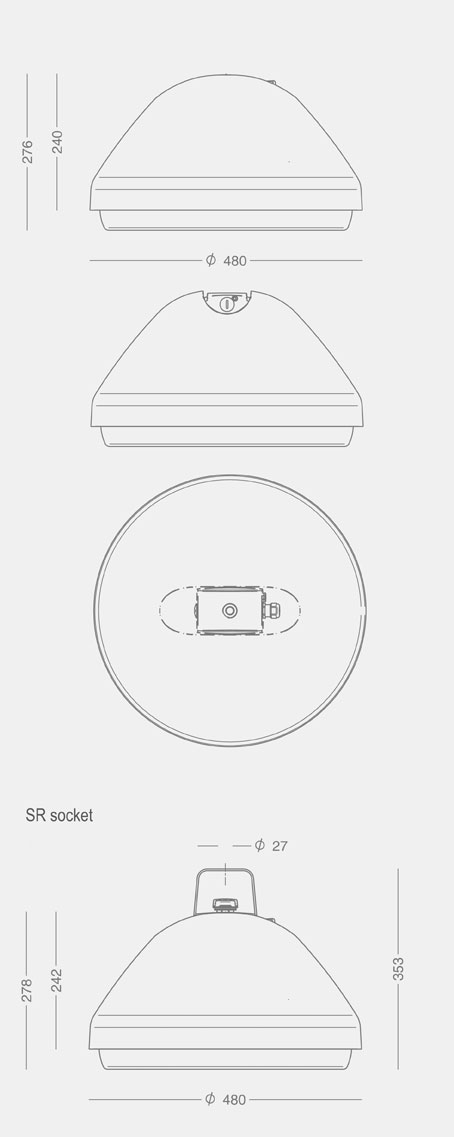

way_topentryeng_f0

Luminaire

WAY top entry
Material Cast aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Black: Noir 900 Sablé, SN315F, Akzo Nobel
Shade Clear, impact resistant PMMA with frosted edge
Mounting G 3/4" threaded tube
Cable Delivered with lead; either 2 pcs 2 m 1x2.5 mm2 or 1 pcs 10 m 2 x 1 mm2
Classification IP66, class II; use code for class I
Impact resistance IK08
Corrosion class C4, C5 optional
Weight max 11 kg
Wind-sweeping area 0.11 m2 (laterally)

LED

LED with lenses 3xFF-DA 2x6 or 4xFF-DA 2x8 with symmetric T3 lenses
Operational life min 100,000 hours at ta max 25° C, L100B10
Constant lumen output
Temperature range -30 to +35° C
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 70, typically 75 Ra, option for 80 Ra*
* Note: Longer lead times for 80 Ra
Colour accuracy 5 steps SDCM
Luminous flux The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 3xFF, 70 Ra 3000K: 980-10100 lm
4000K: 1060-10900 lm
LED-lumen, 3xFF, 80 Ra 2700K: 830-8550 lm
3000K: 875-9000 lm
4000K: 925-9550 lm
LED-lumen, 4xFF, 70 Ra 3000K: 2300-22150 lm
4000K: 2500-23950 lm
LED-lumen, 4xFF, 80 Ra 2700K: 1950-18700 lm
3000K: 2050-19700 lm
4000K: 2200-20850 lm
Output ratio 84%
Luminous intensity class,13201-2 2015 G*4

Drivers

Driver 3xFF Xitanium Full Xi FP 75 W 0.2-0.7 A, programmable
Inrush current max 46 A (50% after 250 µs)
Operational input voltage, AC 80-264 Vac

Driver 4xFF Xitanium Full Xi FP 165 W 0.3-1.0 A, programmable
Inrush current max 41 A (50% after 440 µs)
Operational input voltage, AC 160-264 Vac

Nominal voltage, AC 220-240 Vac
Nominal voltage, DC 186-250 Vdc
Operational input voltage, DC 168-275 Vdc
Nominal frequency range 50-60 Hz
Operational frequency range 45-66 Hz
Max pre-protection 16 A
Surge protection L/N-GND: 10 kV
L-N: 6 kV
Operational life min 100,000 hours
Dimming/control 5 steps dimming within the lumen intervals
Other control options DALI-2, LineSwitch or
via Zhaga book 18 socket, D4i

Variants and options

Item No. Way top entry
9850- 3 x FF-DA T3, programmable, max 84 W
9888- 4 x FF-DA T3, programmable, max 179 W

Option
1715-0 Hanger for suspension in single wire
1716-0 Hanger for suspension in single wire, Way with SR socket
1717-0 Fittings for top entry 3/4” thread, Way with SR socket

Combine with

Select colour, colour temperature etc. in the table.

Colour Colour temperature
01 = raw anodized 730 = 3000 K, 70 Ra
4 = graphite grey 740 = 4000 K, 70 Ra
9 = silver grey 830* = 3000 K, 80 Ra
17 = corten brown 827* = 2700 K, 80 Ra
66 = noir 900 840* = 4000 K, 80 Ra
* Note: Longer lead times

Lead Dimming/control
2 = 2 pcs 2 m 1x2,5 mm2 empty = programmable
10 = 1 pcs 10 m 2x1 mm2 D = DALI-2 (4/5-conductor cable)
F = LineSwitch
R = Zhaga book 18 socket, upwards
RC = Zhaga book 18 socket, City Touch / Interact City
S = Zhaga book 18 socket, downwards

Protection class Corrosion class
empty = class II empty = C4
J = class I C5 = C5 coating (add C5 after the colour code)

Example product code: 9888-97302 = Way top entry, 4xFF-DA T3-sym lenses, silver grey, 3000 K, 70 Ra, class II, 2x 2 m lead

way_topentryeng_f0

Luminaire

WAY top entry
Material Cast aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Black: Noir 900 Sablé, SN315F, Akzo Nobel
Shade Clear, impact resistant PMMA with frosted edge
Mounting G 3/4" threaded tube
Cable Delivered with lead; either 2 pcs 2 m 1x2.5 mm2 or 1 pcs 10 m 2 x 1 mm2
Classification IP66, class II; use code for class I
Impact resistance IK08
Corrosion class C4, C5 optional
Weight max 11 kg
Wind-sweeping area 0.11 m2 (laterally)

LED

LED with lenses 3xFF-DA 2x6 or 4xFF-DA 2x8 with symmetric MEW lenses
Operational life min 100,000 hours at ta max 25° C, L100B10
Constant lumen output
Temperature range -30 to +35° C
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 70, typically 75 Ra, option for 80 Ra*
* Note: Longer lead times for 80 Ra
Colour accuracy 5 steps SDCM
Luminous flux The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 3xFF, 70 Ra 3000K: 980-10100 lm
4000K: 1060-10900 lm
LED-lumen, 3xFF, 80 Ra 2700K: 830-8550 lm
3000K: 875-9000 lm
4000K: 925-9550 lm
LED-lumen, 4xFF, 70 Ra 3000K: 2300-22150 lm
4000K: 2500-23950 lm
LED-lumen, 4xFF, 80 Ra 2700K: 1950-18700 lm
3000K: 2050-19700 lm
4000K: 2200-20850 lm
Output ratio 87%
Luminous intensity class,13201-2 2015 G*6

Drivers

Driver 3xFF Xitanium Full Xi FP 75 W 0.2-0.7 A, programmable
Inrush current max 46 A (50% after 250 µs)
Operational input voltage, AC 80-264 Vac

Driver 4xFF Xitanium Full Xi FP 165 W 0.3-1.0 A, programmable
Inrush current max 41 A (50% after 440 µs)
Operational input voltage, AC 160-264 Vac

Nominal voltage, AC 220-240 Vac
Nominal voltage, DC 186-250 Vdc
Operational input voltage, DC 168-275 Vdc
Nominal frequency range 50-60 Hz
Operational frequency range 45-66 Hz
Max pre-protection 16 A
Surge protection L/N-GND: 10 kV
L-N: 6 kV
Operational life min 100,000 hours
Dimming/control 5 steps dimming within the lumen intervals
Other control options DALI-2, LineSwitch or
via Zhaga book 18 socket, D4i

Variants and options

Item No. Way top entry
9854- 3 x FF-DA MEW, programmable, max 84 W
9889- 4 x FF-DA MEW, programmable max 179 W

Option
1715-0 Hanger for suspension in single wire
1716-0 Hanger for suspension in single wire, Way with SR socket
1717-0 Fittings for top entry 3/4” thread, Way with SR socket

Combine with

Select colour, colour temperature etc. in the table.

Colour Colour temperature
01 = raw anodized 730 = 3000 K, 70 Ra
4 = graphite grey 740 = 4000 K, 70 Ra
9 = silver grey 830* = 3000 K, 80 Ra
17 = corten brown 827* = 2700 K, 80 Ra
66 = noir 900 840* = 4000 K, 80 Ra
* Note: Longer lead times

Lead Dimming/control
2 = 2 pcs 2 m 1x2,5 mm2 empty = programmable
10 = 1 pcs 10 m 2x1 mm2 D = DALI-2 (4/5-conductor cable)
F = LineSwitch
R = Zhaga book 18 socket, upwards
RC = Zhaga book 18 socket, City Touch / Interact City
S = Zhaga book 18 socket, downwards

Protection class Corrosion class
empty = class II empty = C4
J = class I C5 = C5 coating (add C5 after the colour code)

Example product code: 9889-97302 = Way top entry, 4xFF-DA MEW lenses, silver grey, 3000 K, 70 Ra, class II, 2x 2 m lead

way_topentryeng_f0

Luminaire

WAY top entry
Material Cast aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Black: Noir 900 Sablé, SN315F, Akzo Nobel
Shade Clear, impact resistant PMMA with frosted edge
Mounting G 3/4" threaded tube
Cable Delivered with lead; either 2 pcs 2 m 1x2.5 mm2 or 1 pcs 10 m 2 x 1 mm2
Classification IP66, class II; use code for class I
Impact resistance IK08
Corrosion class C4, C5 optional
Weight max 11 kg
Wind-sweeping area 0.11 m2 (laterally)

LED

LED with lenses 3xFF-DA 2x6 or 4xFF-DA 2x8 with CAT lenses
Operational life min 100,000 hours at ta max 25° C, L100B10
Constant lumen output
Temperature range -30 to +35° C
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 70, typically 75 Ra, option for 80 Ra*
* Note: Longer lead times for 80 Ra
Colour accuracy 5 steps SDCM
Luminous flux The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 3xFF, 70 Ra 3000K: 980-10100 lm
4000K: 1060-10900 lm
LED-lumen, 3xFF, 80 Ra 2700K: 830-8550 lm
3000K: 875-9000 lm
4000K: 925-9550 lm
LED-lumen, 4xFF, 70 Ra 3000K: 2300-22150 lm
4000K: 2500-23950 lm
LED-lumen, 4xFF, 80 Ra 2700K: 1950-18700 lm
3000K: 2050-19700 lm
4000K: 2200-20850 lm
Output ratio 87.5%
Luminous intensity class,13201-2 2015 G*6

Drivers

Driver 3xFF Xitanium Full Xi FP 75 W 0.2-0.7 A, programmable
Inrush current max 46 A (50% after 250 µs)
Operational input voltage, AC 80-264 Vac

Driver 4xFF Xitanium Full Xi FP 165 W 0.3-1.0 A, programmable
Inrush current max 41 A (50% after 440 µs)
Operational input voltage, AC 160-264 Vac

Nominal voltage, AC 220-240 Vac
Nominal voltage, DC 186-250 Vdc
Operational input voltage, DC 168-275 Vdc
Nominal frequency range 50-60 Hz
Operational frequency range 45-66 Hz
Max pre-protection 16 A
Surge protection L/N-GND: 10 kV
L-N: 6 kV
Operational life min 100,000 hours
Dimming/control 5 steps dimming within the lumen intervals
Other control options DALI-2, LineSwitch or
via Zhaga book 18 socket, D4i

Variants and options

Item No. Way top entry
9856- 3 x FF-DA CAT, programmable, max 84 W
9890- 4 x FF-DA CAT, programmable max 179 W

Option
1715-0 Hanger for suspension in single wire
1716-0 Hanger for suspension in single wire, Way with SR socket
1717-0 Fittings for top entry 3/4” thread, Way with SR socket

Combine with

Select colour, colour temperature etc. in the table.

Colour Colour temperature
01 = raw anodized 730 = 3000 K, 70 Ra
4 = graphite grey 740 = 4000 K, 70 Ra
9 = silver grey 830* = 3000 K, 80 Ra
17 = corten brown 827* = 2700 K, 80 Ra
66 = noir 900 840* = 4000 K, 80 Ra
* Note: Longer lead times

Lead Dimming/control
2 = 2 pcs 2 m 1x2,5 mm2 empty = programmable
10 = 1 pcs 10 m 2x1 mm2 D = DALI-2 (4/5-conductor cable)
F = LineSwitch
R = Zhaga book 18 socket, upwards
RC = Zhaga book 18 socket, City Touch / Interact City
S = Zhaga book 18 socket, downwards

Protection class Corrosion class
empty = class II empty = C4
J = class I C5 = C5 coating (add C5 after the colour code)

Example product code: 9856-97302 = Way top entry, 3xFF-DA CAT lenses, silver grey, 3000 K, 70 Ra, class II, 2x 2 m lead

Media & downloads

Product information

Product data, Way top entry, FF-DA boardPDF Dimensions, Way with Zhaga socketsPDF How many per fuse - recommendedPDF Mounting, Way top entryPDF Mounting on wire hanger 1715-0PDF Mounting on wire hanger 1716-0 for Zhaga socketPDF Mounting, using 1717-0, fittings for bracketPDF MaintenancePDF RoHS DeclarationPDF

3D files

Way 3D for RevitRFA Way 3D for Revit - descriptionTXT Way 3D for ArchicadGSM Way 3D for AutoCadDWG Way 2D for AutoCadDWG Way 3D Studio3DS Way 3D for SketchupSKP Way 3DFBX Way 3DSTL Way 3DIFC

Photos

Way top entry, FF-DA boardJPG Product image, Way side entryJPG Way top entry, Avedoere, CopenahagenPDF Way top entry, City of AarhusPDF Way w. sensor, Groningen, NetherlandsPDF

Photometric data

FF-DA, T3-sym

3 x FF-DA T3-sym, 3000 K, 70 Ra LDT 3 x FF-DA T3-sym, 3000 K, 70 Ra PDF 3 x FF-DA T3-sym, 4000 K, 70 Ra LDT 3 x FF-DA T3-sym, 4000 K, 70 Ra PDF 3 x FF-DA T3-sym, 2700 K, 80 Ra LDT 3 x FF-DA T3-sym, 2700 K, 80 Ra PDF 3 x FF-DA T3-sym, 3000 K, 80 Ra LDT 3 x FF-DA T3-sym, 3000 K, 80 Ra PDF 3 x FF-DA T3-sym, 4000 K, 80 Ra LDT 3 x FF-DA T3-sym, 4000 K, 80 Ra PDF 4 x FF-DA T3-sym, 3000 K, 70 RaLDT 4 x FF-DA T3-sym, 3000 K, 70 RaPDF 4 x FF-DA T3-sym, 4000 K, 70 RaLDT 4 x FF-DA T3-sym, 4000 K, 70 RaPDF 4 x FF-DA T3-sym, 2700 K, 80 RaLDT 4 x FF-DA T3-sym, 2700 K, 80 RaPDF 4 x FF-DA T3-sym, 3000 K, 80 RaLDT 4 x FF-DA T3-sym, 3000 K, 80 RaPDF 4 x FF-DA T3-sym, 4000 K, 80 RaLDT 4 x FF-DA T3-sym, 4000 K, 80 RaPDF

FF-DA, MEW-sym

3 x FF-DA MEW-sym, 3000 K, 70 Ra LDT 3 x FF-DA MEW-sym, 3000 K, 70 Ra PDF 3 x FF-DA MEW-sym, 4000 K, 70 Ra LDT 3 x FF-DA MEW-sym, 4000 K, 70 Ra PDF 3 x FF-DA MEW-sym, 2700 K, 80 Ra LDT 3 x FF-DA MEW-sym, 2700 K, 80 Ra PDF 3 x FF-DA MEW-sym, 3000 K, 80 Ra LDT 3 x FF-DA MEW-sym, 3000 K, 80 Ra PDF 3 x FF-DA MEW-sym, 4000 K, 80 Ra LDT 3 x FF-DA MEW-sym, 4000 K, 80 Ra PDF 4 x FF-DA MEW-sym, 3000 K, 70 Ra LDT 4 x FF-DA MEW-sym, 3000 K, 70 Ra PDF 4 x FF-DA MEW-sym, 4000 K, 70 RaLDT 4 x FF-DA MEW-sym, 4000 K, 70 RaPDF 4 x FF-DA MEW-sym, 2700 K, 80 RaLDT 4 x FF-DA MEW-sym, 2700 K, 80 RaPDF 4 x FF-DA MEW-sym, 3000 K, 80 RaLDT 4 x FF-DA MEW-sym, 3000 K, 80 RaPDF 4 x FF-DA MEW-sym, 4000 K, 80 RaLDT 4 x FF-DA MEW-sym, 4000 K, 80 RaPDF

FF-DA, CAT

3 x FF-DA CAT, 3000 K, 70 Ra LDT 3 x FF-DA CAT, 3000 K, 70 Ra PDF 3 x FF-DA CAT, 4000 K, 70 Ra LDT 3 x FF-DA CAT, 4000 K, 70 Ra PDF 3 x FF-DA CAT, 2700 K, 80 Ra LDT 3 x FF-DA CAT, 2700 K, 80 Ra PDF 3 x FF-DA CAT, 3000 K, 80 Ra LDT 3 x FF-DA CAT, 3000 K, 80 Ra PDF 3 x FF-DA CAT, 4000 K, 80 Ra LDT 3 x FF-DA CAT, 4000 K, 80 Ra PDF 4 x FF-DA CAT, 3000 K, 70 Ra LDT 4 x FF-DA CAT, 3000 K, 70 Ra PDF 4 x FF-DA CAT, 4000 K, 70 Ra LDT 4 x FF-DA CAT, 4000 K, 70 Ra PDF 4 x FF-DA CAT, 2700 K, 80 Ra LDT 4 x FF-DA CAT, 2700 K, 80 Ra PDF 4 x FF-DA CAT, 3000 K, 80 Ra LDT 4 x FF-DA CAT, 3000 K, 80 Ra PDF 4 x FF-DA CAT, 4000 K, 80 Ra LDT 4 x FF-DA CAT, 4000 K, 80 Ra PDF

All ldt files

LDT.zipZIP
way_2836_1166

Way top entry, silver grey, Brøndby Municipality, Avedøre Havnevej

Umbraco.Cms.Core.Models.Link More photos from Brøndby

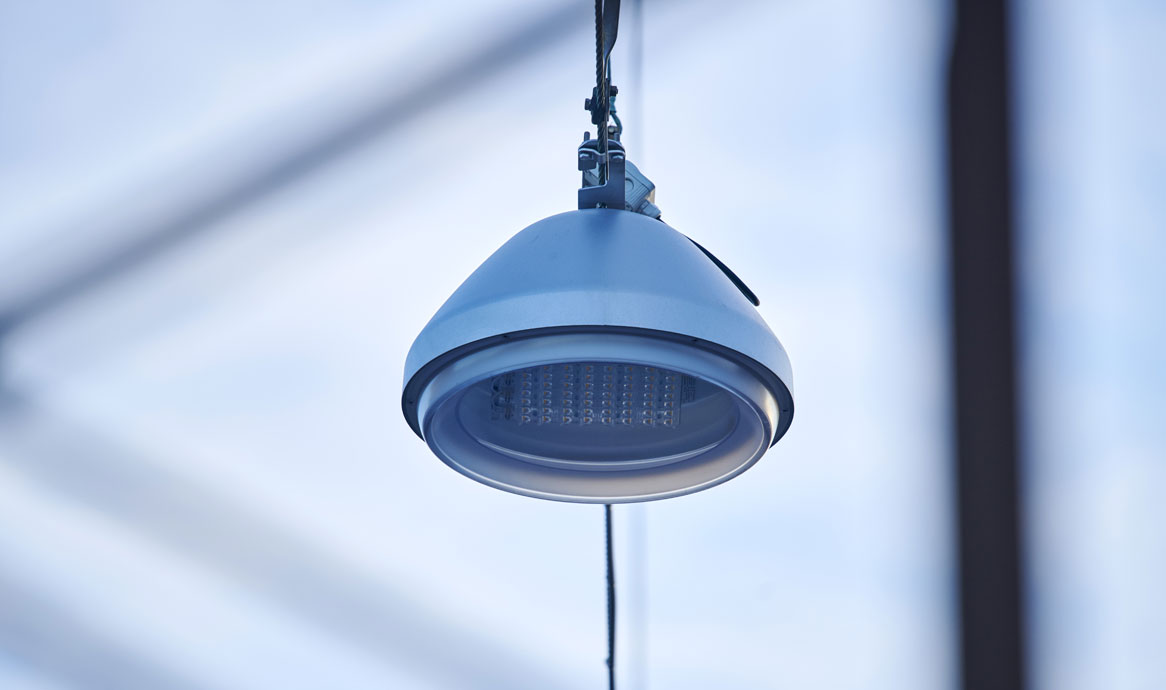

way_2803_close_1166

Way top entry, 19,000 lumen and symmetrical optics for traffic roads

Umbraco.Cms.Core.Models.Link More Way photos

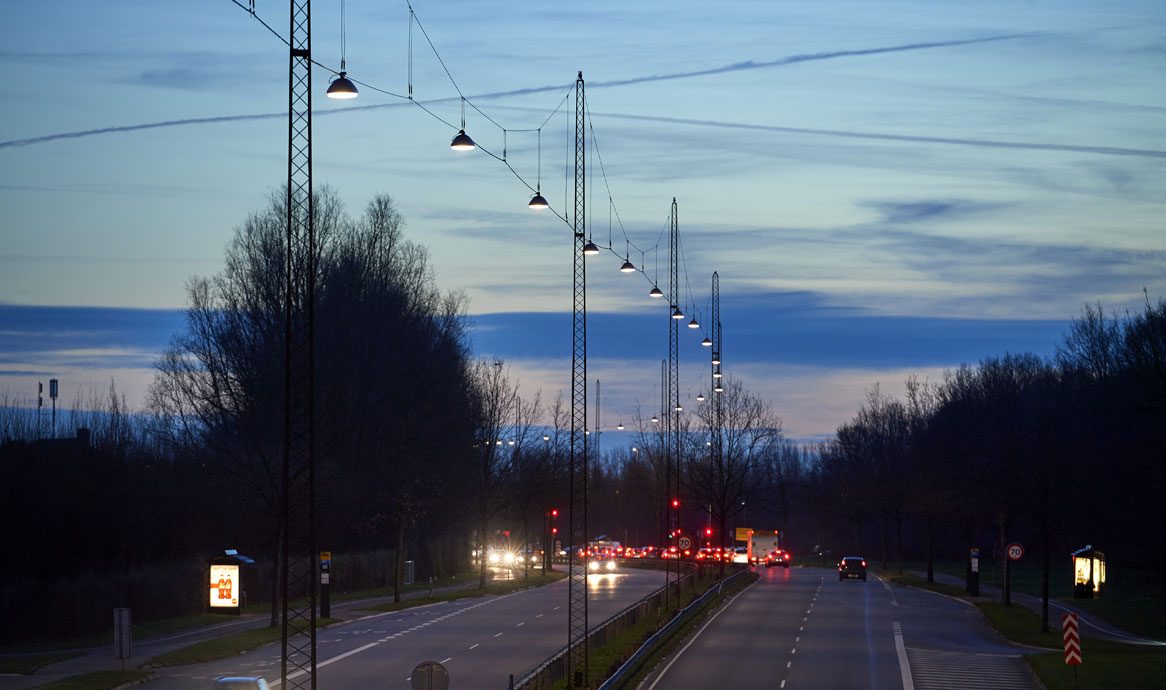

way_8651_1166

Way silver grey, Brøndby Municipality, traffic road: Avedøre Havnevej

Umbraco.Cms.Core.Models.Link More Way in Danish municipalities

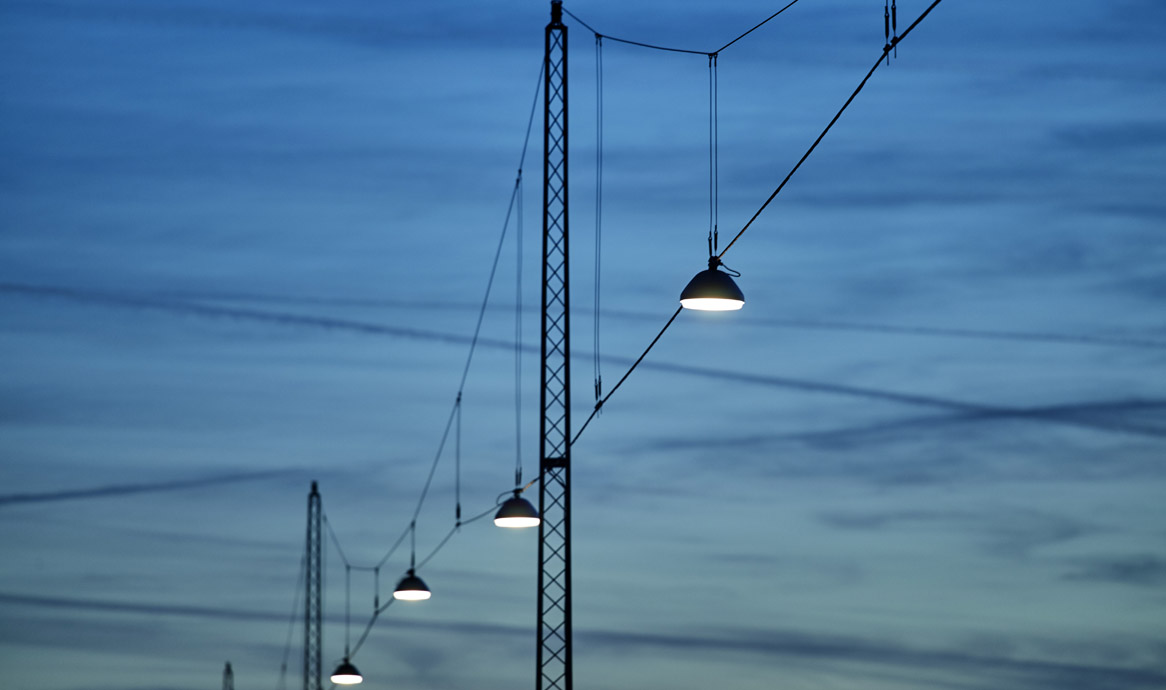

way_8666_l_1166

Way - "Showing the Way" - by the glowing ring - no glare

Umbraco.Cms.Core.Models.Link More Way

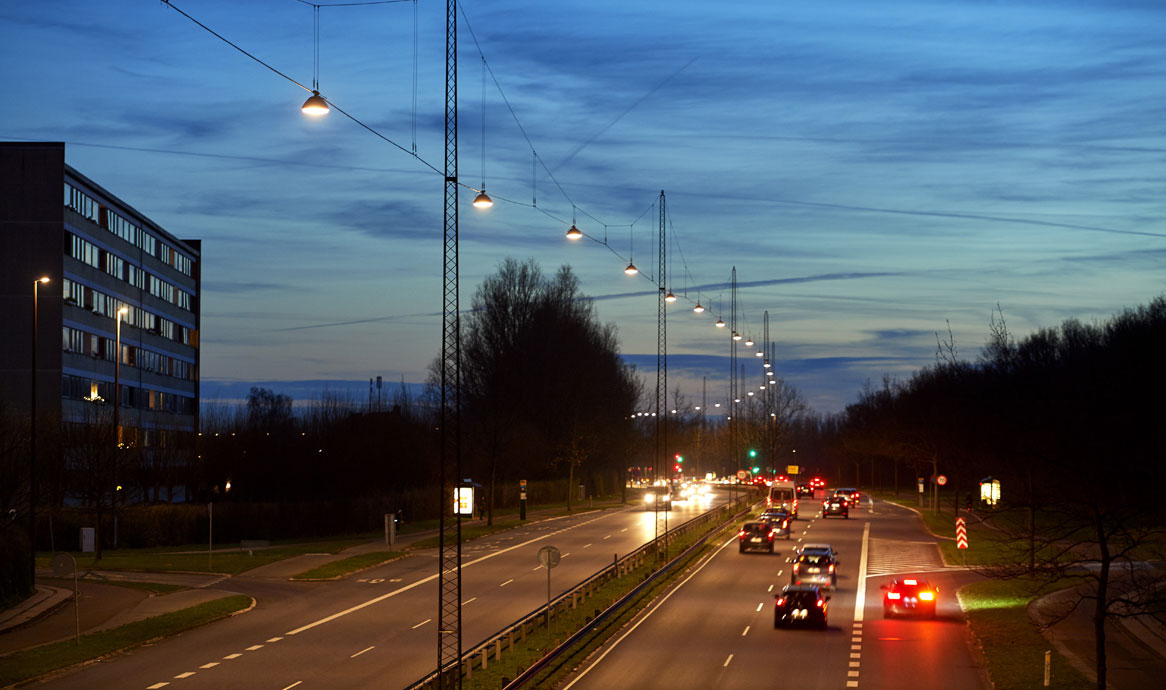

way_8742_l_1166

Way with optics for traffic roads, 19,000 lumen

Umbraco.Cms.Core.Models.Link More Way photos
way_sky_stockholm_9650_1166

Way and Sky at Sveavägen in Stockholm. The luminaires are equipped with SR sockets for smart city applications.

Umbraco.Cms.Core.Models.Link More images from Stockholm
way_stockholm_9652_1166

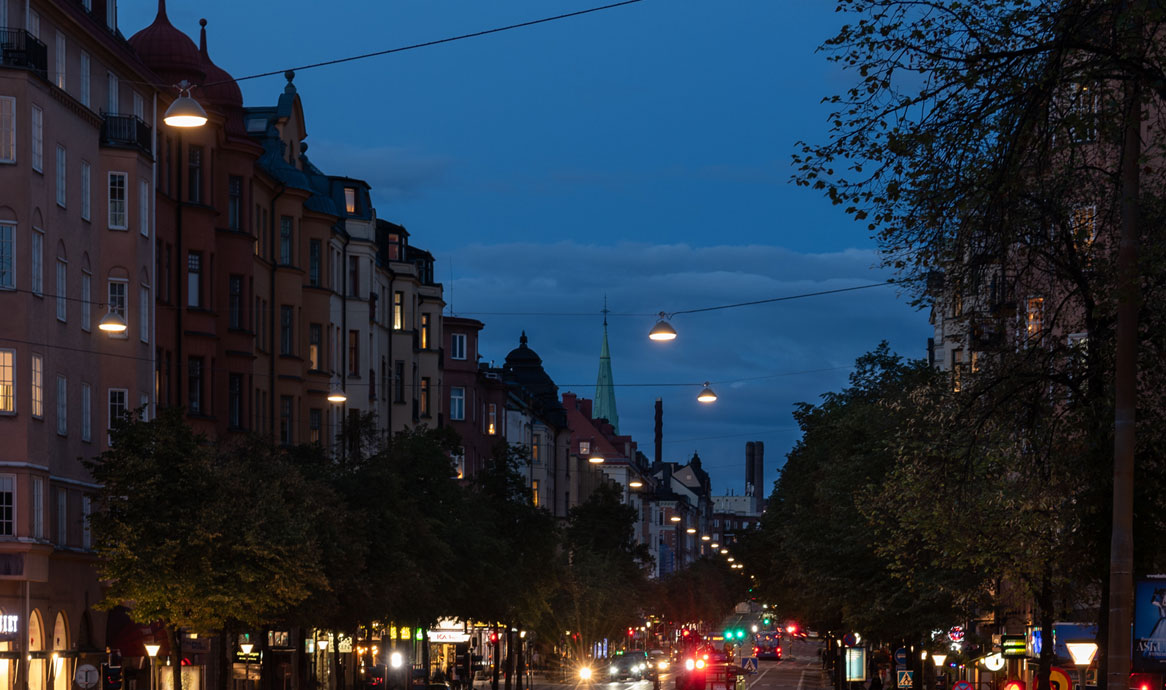

Way, Sveavägen, Stockholm.

Umbraco.Cms.Core.Models.Link More images from Stockholm
waywire_close_5570_1166

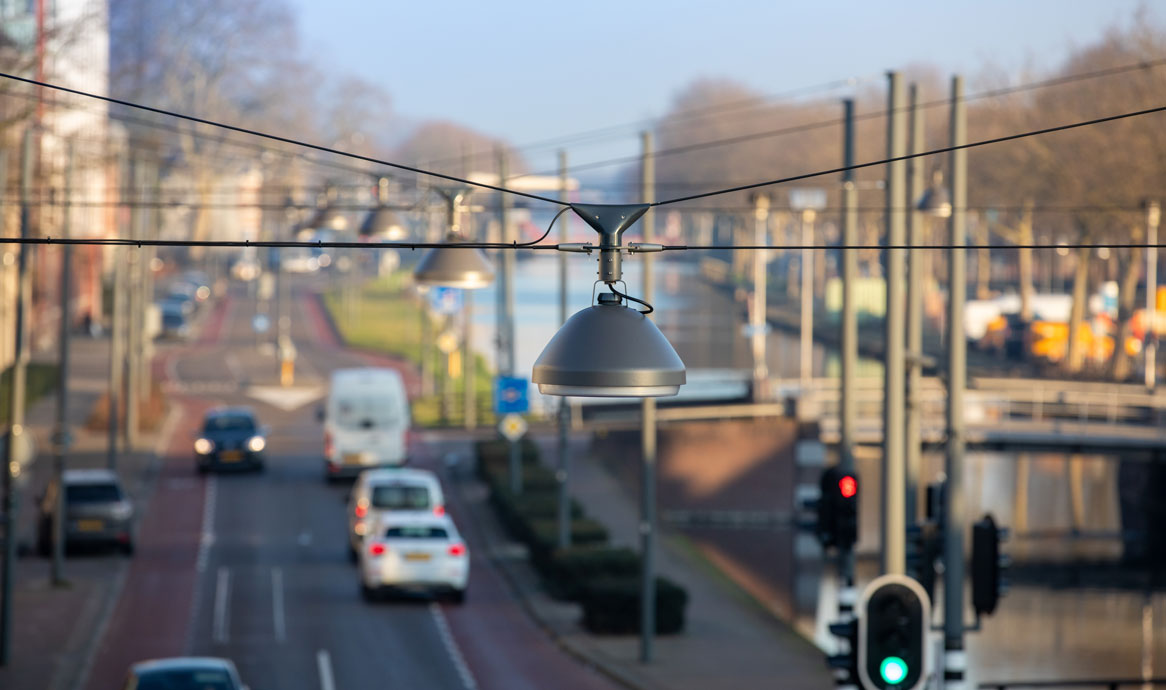

Way is used in many applications in Dutch Helmond. All of them with Zhaga socket for Smart city communication.

Umbraco.Cms.Core.Models.Link More images from Helmond
waywire_longrow_5612_1166

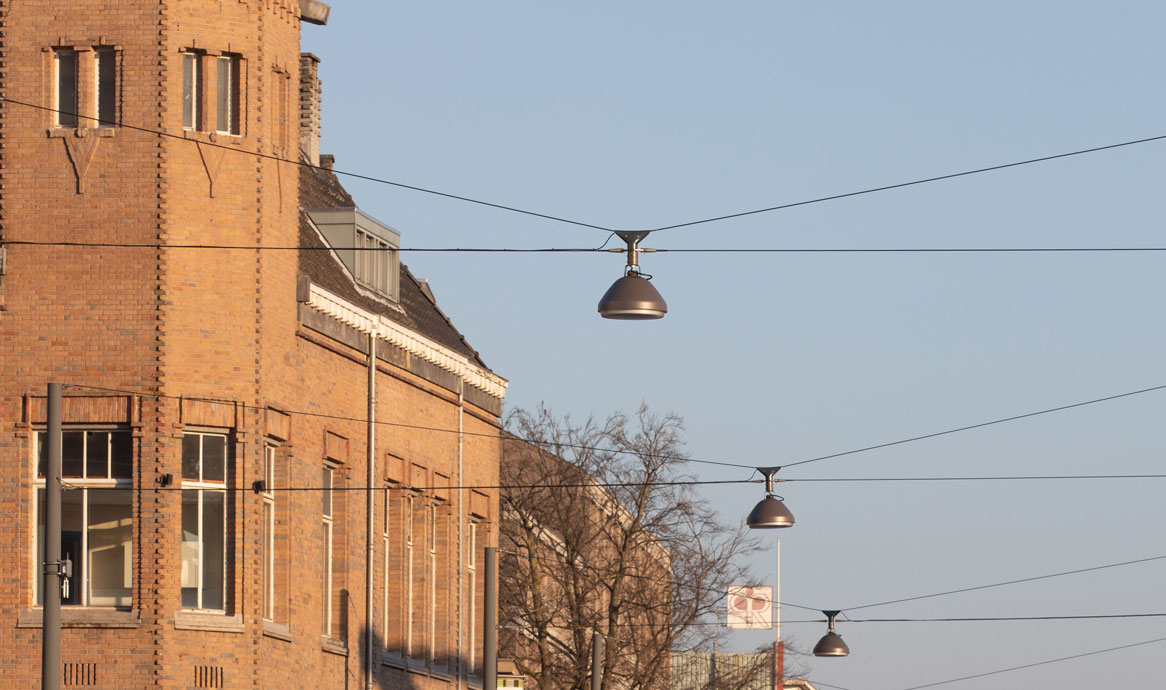

Way, graphite grey, Helmond, Netherlands, with Zhaga socket for smart-city communication.

Umbraco.Cms.Core.Models.Link More images from Helmond
waywire_longrow_5431_1166

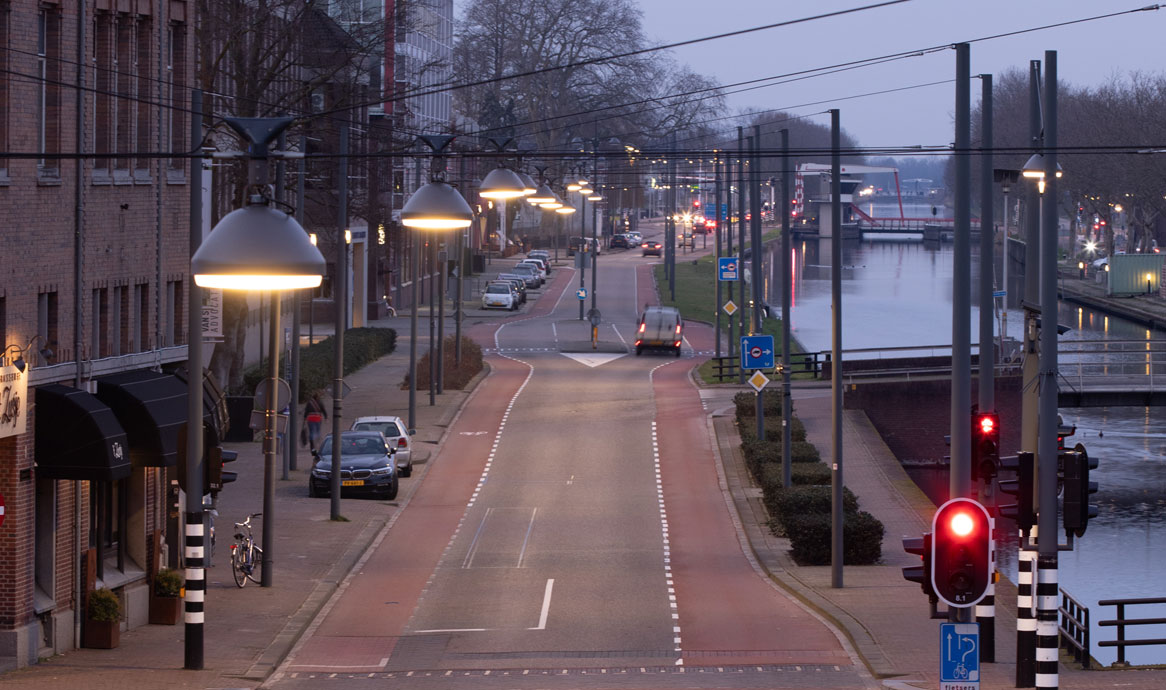

Way in Helmond, Netherlands. The protruding opalised ring ensures the pleasant light and the optical guidance.

Umbraco.Cms.Core.Models.Link More images from Helmond
way_wire_547a2642_1166

Way around university campus Zernike, Groningen, Netherlands

Umbraco.Cms.Core.Models.Link More from Groningen
way_aarhusc_0921_1166

Way with circular LED board and catenary lenses, Aarhus C. The opalised ring ensures pleasant light and offers optical guidance.

Umbraco.Cms.Core.Models.Link More images from Aarhus
way_aarhusc_0960_1166

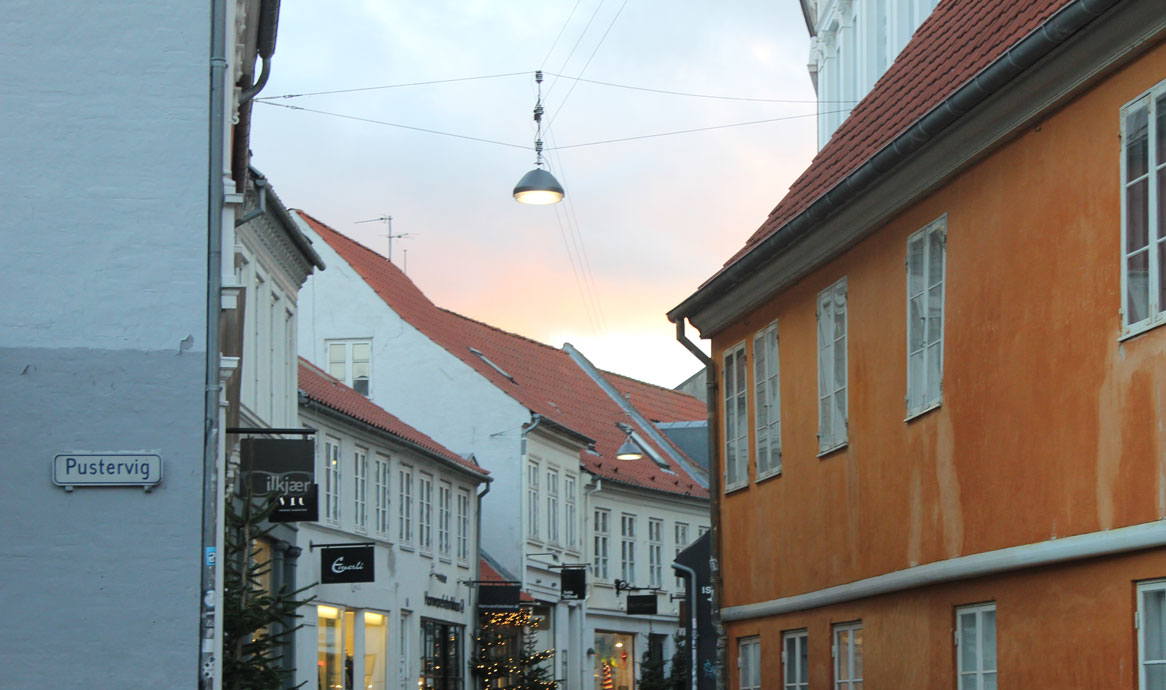

Way, graphite grey - showing the way through Aarhus C

Umbraco.Cms.Core.Models.Link More images from Aarhus
way_aarhusc_0980_1166

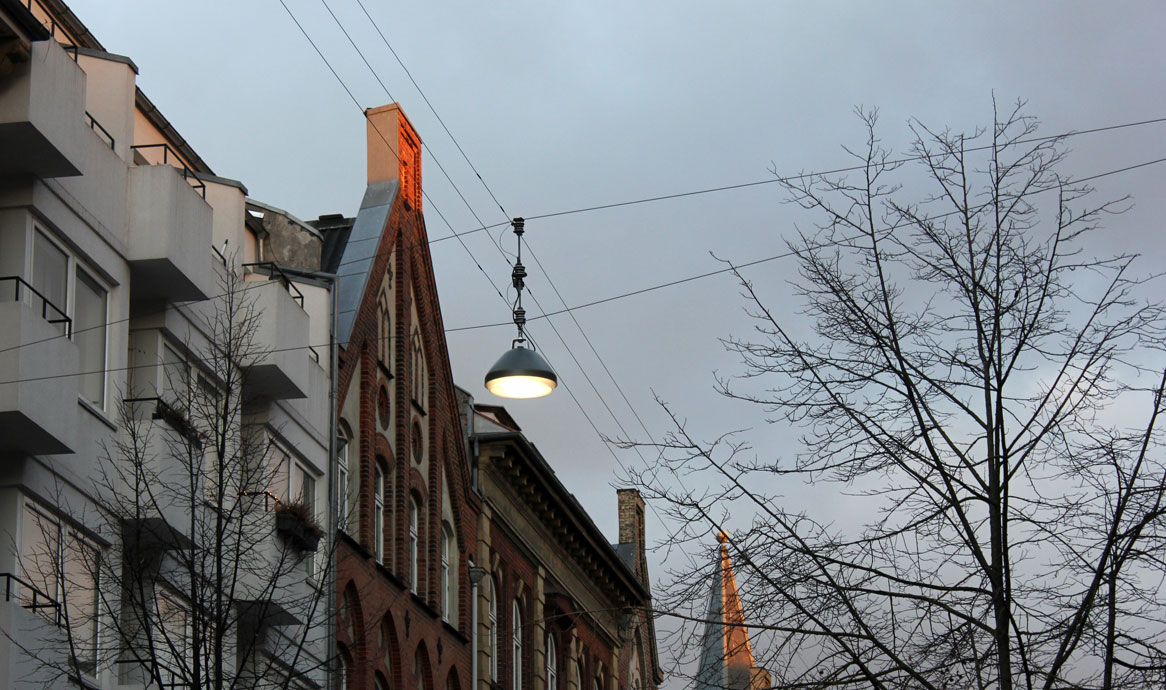

The Way luminaires in Aarhus C are equipped with sensor-ready Zhaga Book 18 sockets.

Umbraco.Cms.Core.Models.Link More images from Aarhus
way_aarhusc_2015_1166

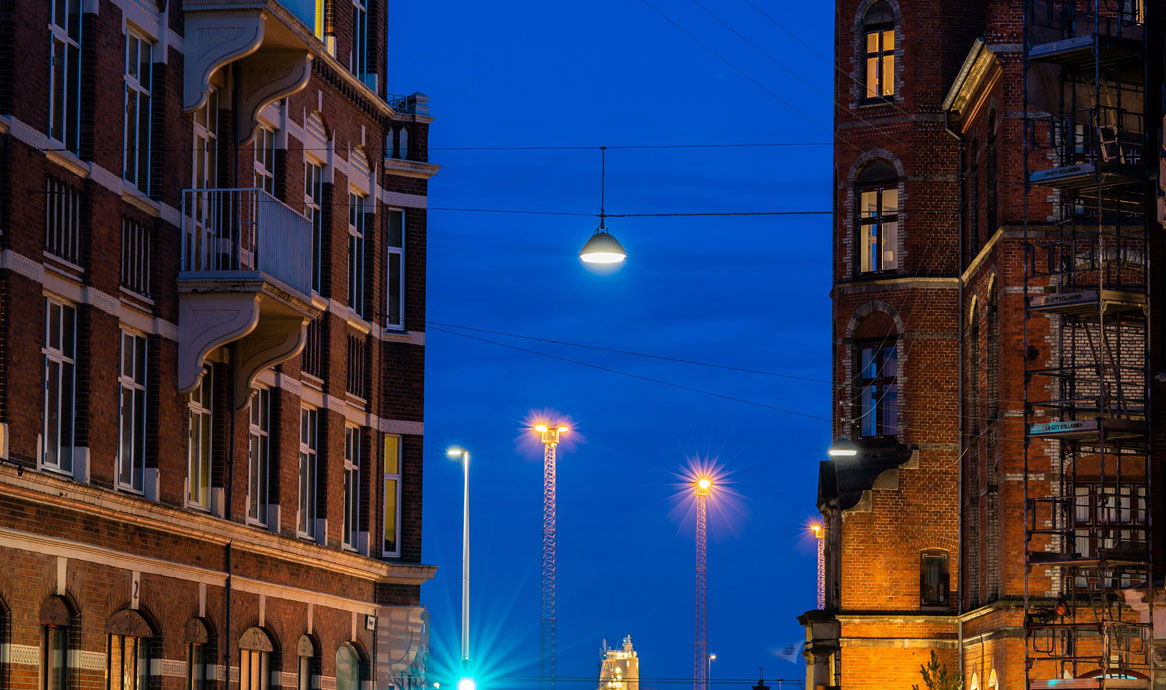

Way - City of Aarhus

way_aarhusc_1005_1166

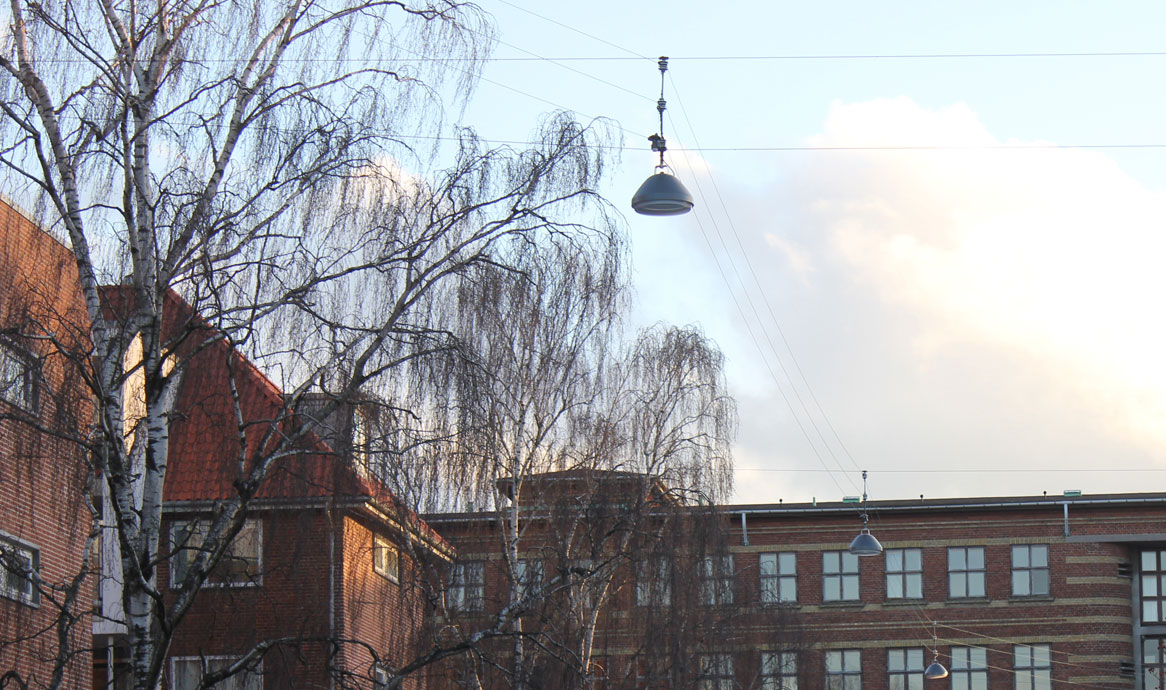

Way, graphite grey, with circular LED board and catenary lenses.

Umbraco.Cms.Core.Models.Link More images from Aarhus
way_aarhusc_145129_1166

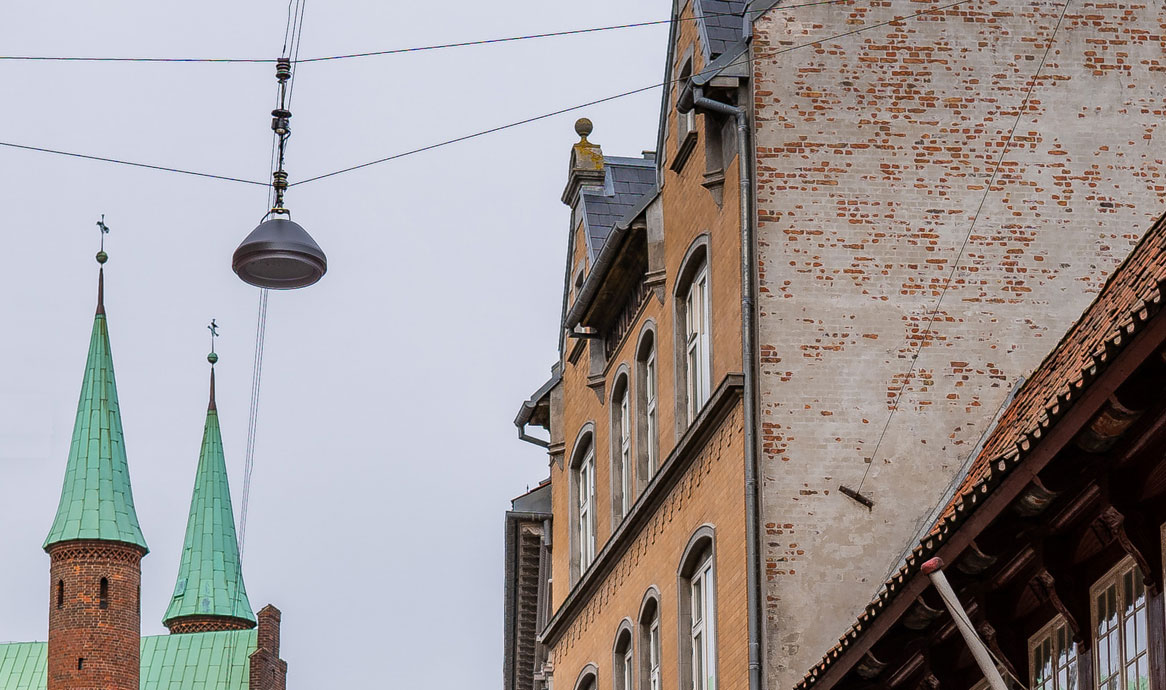

Way is ready for future smart-city applications by means of the Zhaga Book 18 socket at the top.

Umbraco.Cms.Core.Models.Link More images from Aarhus
jt_aarhus_1166

Way with circular LED board, Langenæs Allé, Aarhus Kommune.

Umbraco.Cms.Core.Models.Link More photos from Aarhus

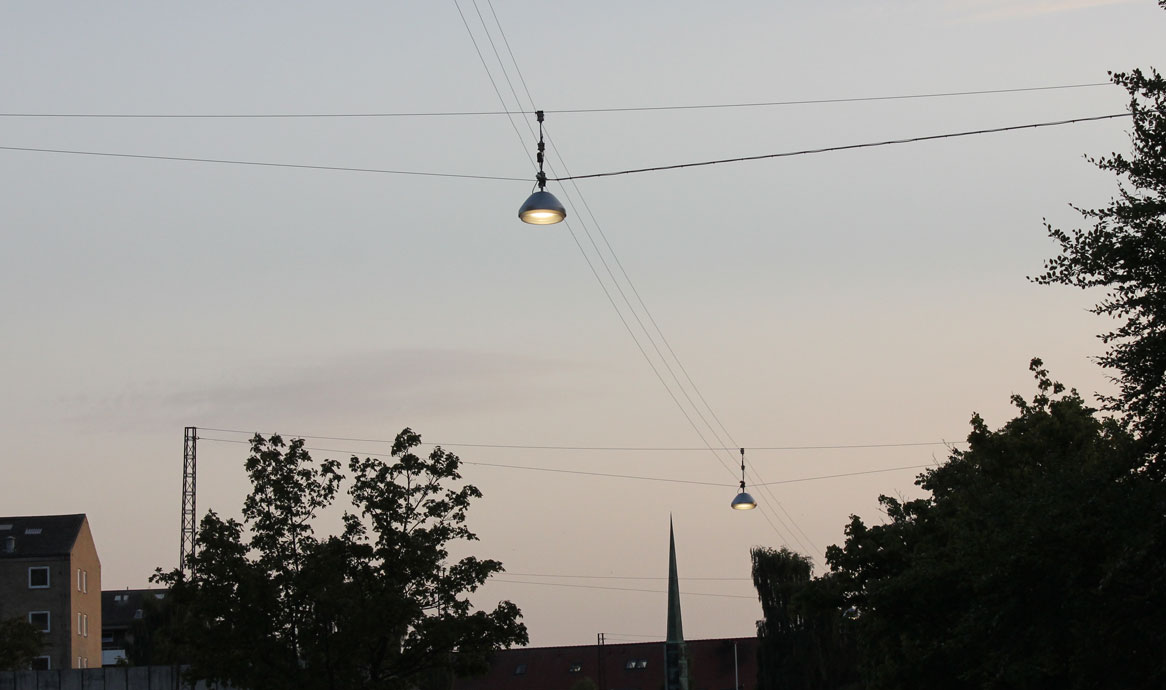

waywire_0309_1166

Way with circular LED board, Langenæs Allé, Aarhus Kommune.

Umbraco.Cms.Core.Models.Link More photos from Aarhus
waywire_0328_1166

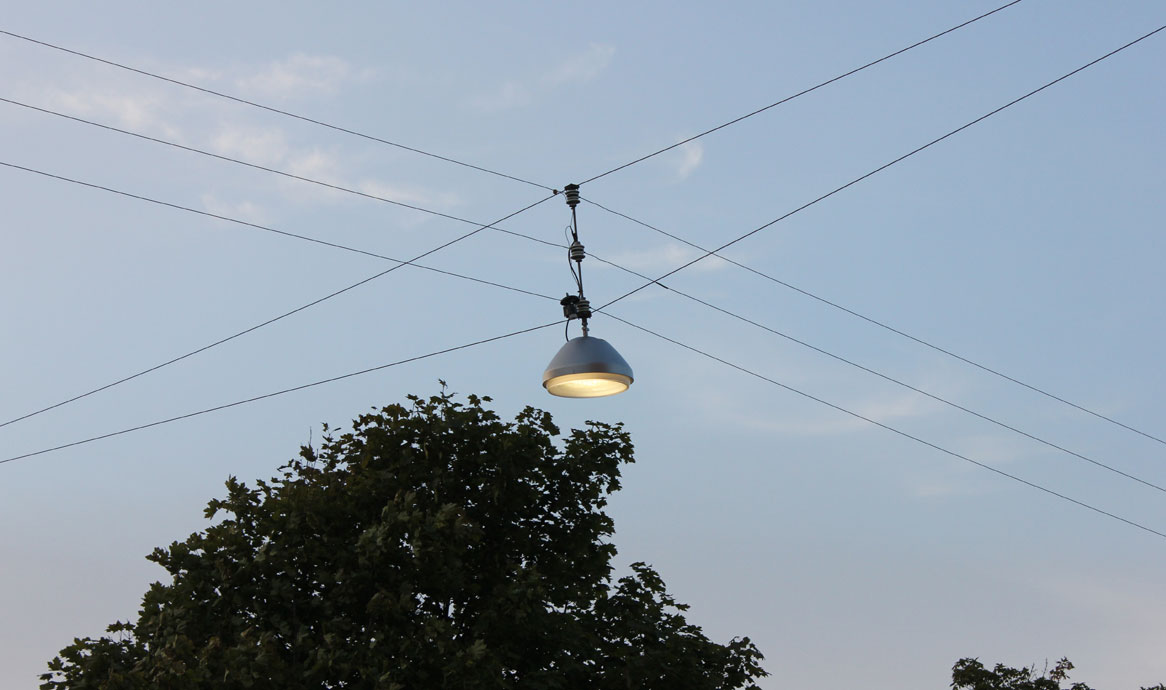

Way with circular LED board, Langenæs Allé, Aarhus Kommune.

Umbraco.Cms.Core.Models.Link More photos from Aarhus

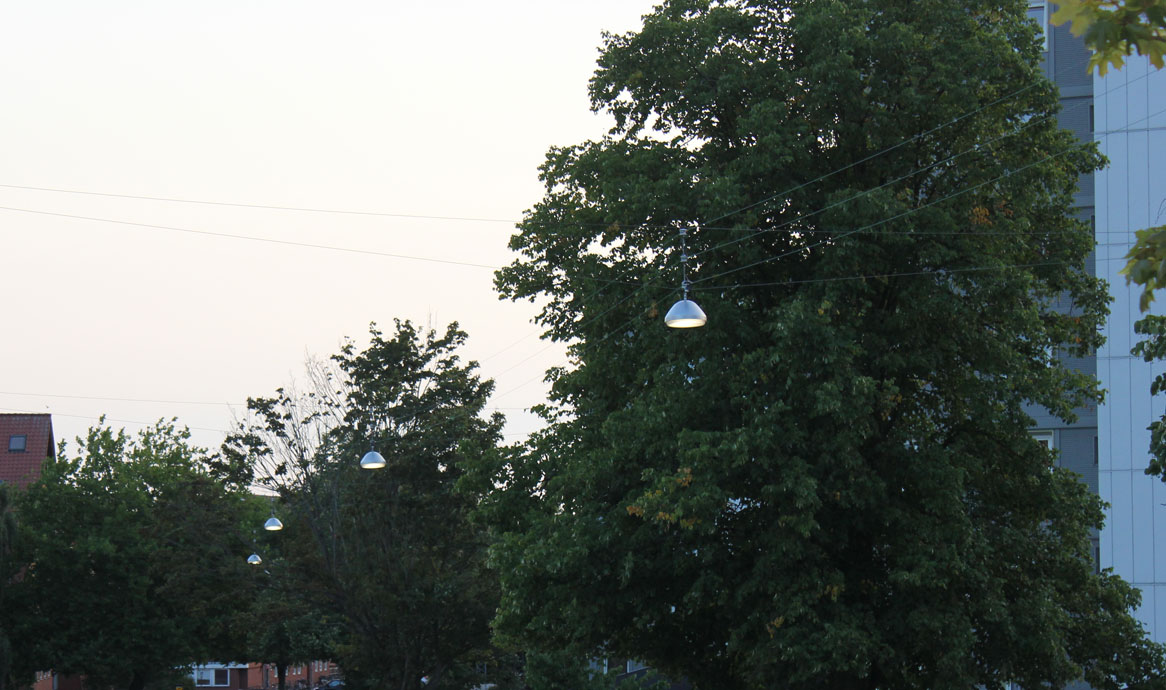

waywire_0319_1166

Way with circular LED board, Langenæs Allé, Aarhus Kommune.

Umbraco.Cms.Core.Models.Link More photos from Aarhus

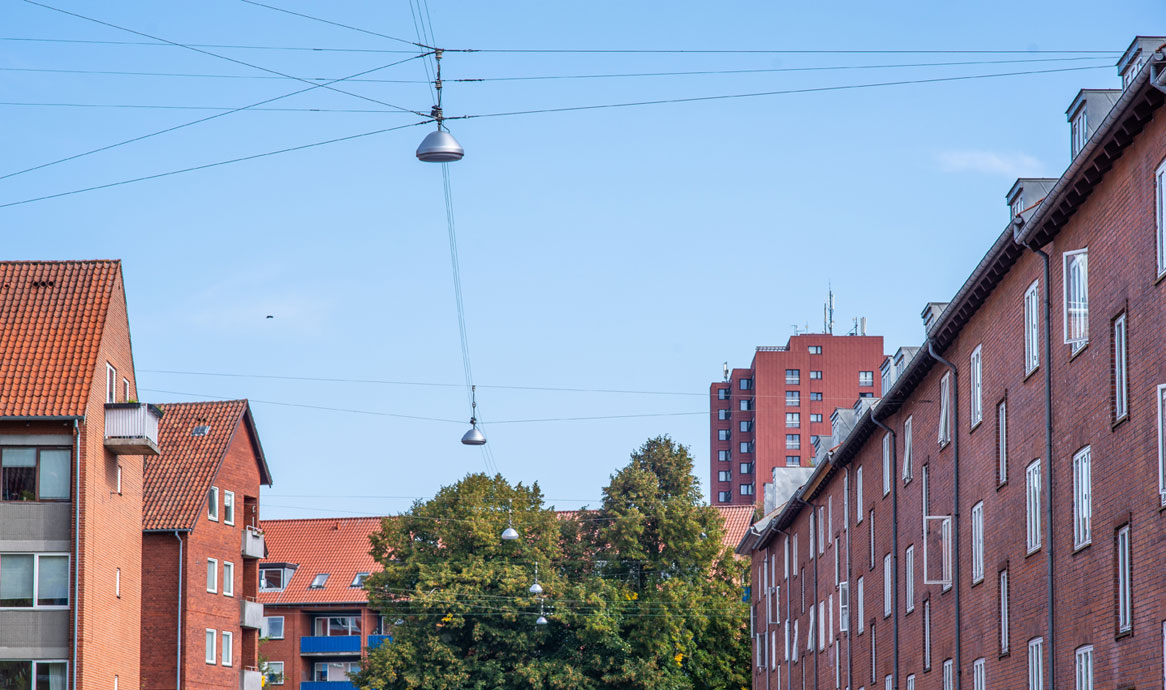

jt_aarhus_2_1166

Way with circular LED board, Langenæs Allé, Aarhus Kommune.

Umbraco.Cms.Core.Models.Link More photos from Aarhus
way_doll_3848_1166

Way is presented at the DOLL Living Lab.

way_doll_3845_1166

Way at DOLL Living Lab. The grey finish is RAL 7024.

DesignAART Designers

WAY is a versatile luminaire for side or top entry. It is designed the Nordic way to avoid light pollution and glaring.

WAY is made of only two components - the housing and the shade, and by very few, simple add-ons it can be mounted on arm or wire.

The shade is parallel to the ground but has a protuberant, frosted edge, which will enhance optical guidance. A visually glowing element with anti-glare function offers the friendly optical guidance on our way – driving or walking – literally “Showing the WAY”.

More on AART Designers here.
