Yoyo is an elegant line of luminaires that is ideal for office environments, conference rooms, reception areas or open spaces in general. Yoyo Line compliments the popular Yoyo family with its round luminaires for surface mounting and round pendants.
Yoyo Line can de delivered in a large range of colors including the popular Raw Anodized and Raw Untreated.

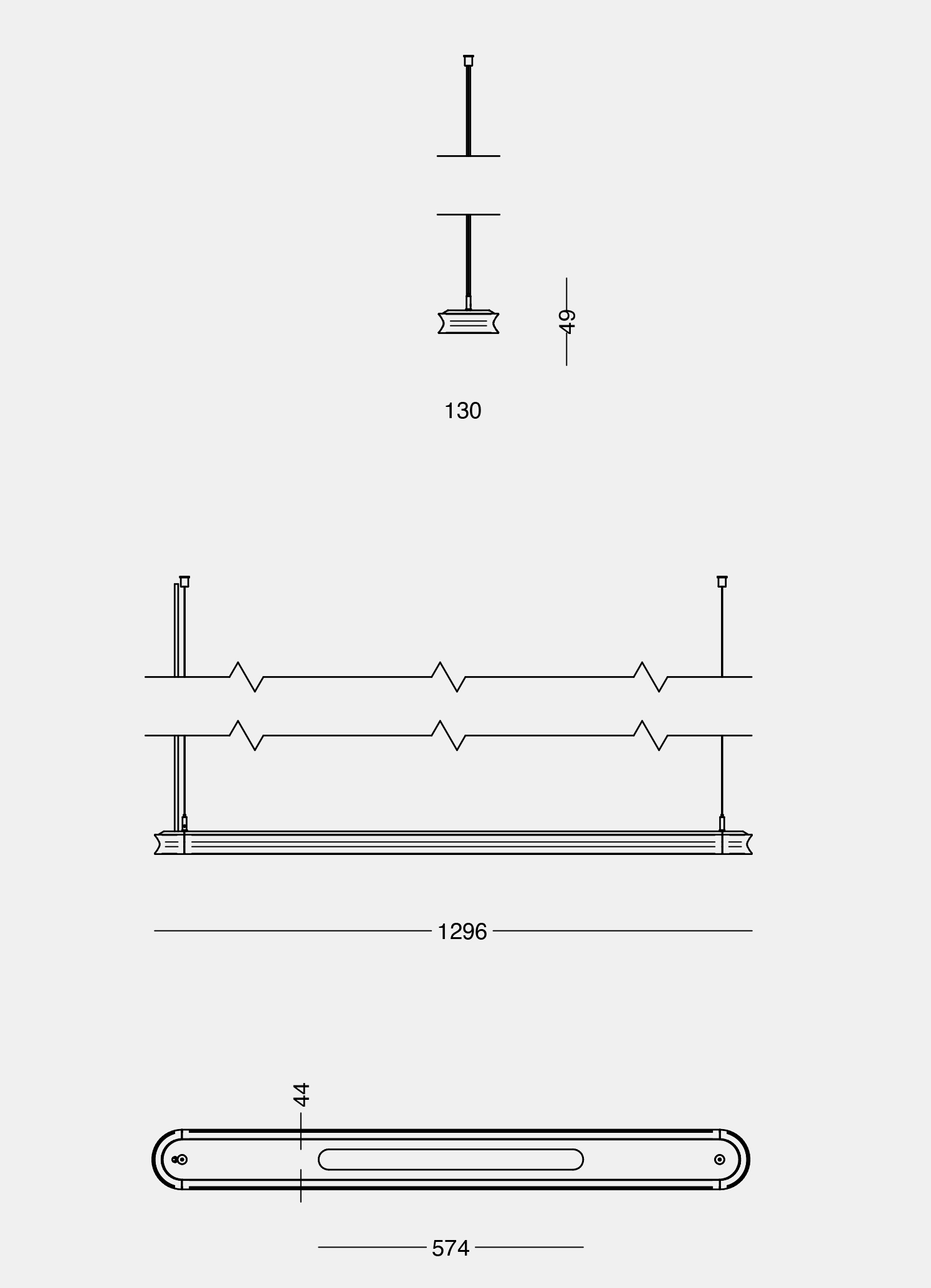

| YOYO Line 1300 | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw aluminium |
| Raw anodized | |
| White RAL 9010 | |
| Black RAL 9005 | |
| Alu-grey RAL 2003 | |
| Yellow RAL 1032 | |
| Orange RAL 2003 | |
| Blue/green RAL 6004 | |
| Squirrel grey RAL 7000 | |
| Shade | Downwards: prismatic |
| Upwards: opal or clear | |
| 100% downwards: white | |
| Lead | 3 m 5 x 0,75 mm2 |
| Suspension | 2 x 2 m steelwire, 1,2 mm |
| Classification | IP20, Class I |
| Weight | 5,3 kg |
| LED type | |
|---|---|
| LED downwards | Edge Lit |
| LED upwards | LED board |
| Operationel life: | 60.000 hours at ta 25º, L80B10 |
| Consumption: | Max. 54 W |
| Luminous power, downwards | 1200-4000 lm-out |
| Luminous power, clear shade | 1250-2700 lm-out |
| Luminous power, opal shade | 1000-2100 lm-out |
| 100% downlight | max. 4000 lm-out |
| Other variants: | max. 5500 lm-out |
| Colour temperature | 2700, 3000 or 4000 Kelvin |
| Colour rendering | min 90 Ra |
| Colour accuracy: | 3 steps SCDM |
| Driver | Dali-2 |
|---|---|
| Driver lifetime | min 100.000 hours |
