Yoyo is an elegant line of luminaires that is ideal for office environments, conference rooms, reception areas or open spaces in general. Yoyo Line compliments the popular Yoyo family with its round luminaires for surface mounting and round pendants.

Yoyo Line can de delivered in a large range of colors including the popular Raw Anodized and Raw Untreated.

Specifications

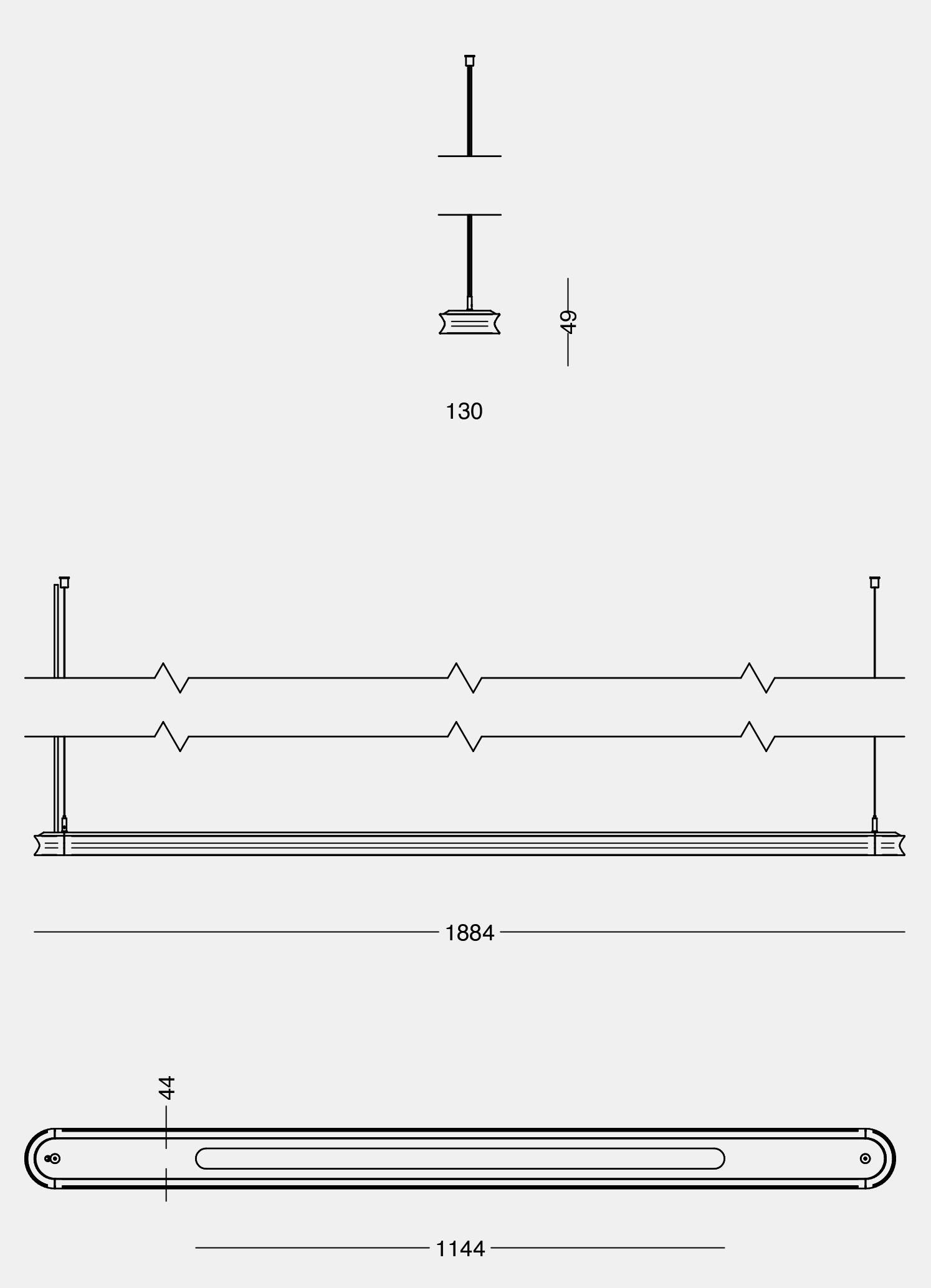

Yoyo Line 1900

Luminaire

YOYO Line 1900
Material	Cast aluminium
Finish	Raw aluminium
	Raw anodized
	White RAL 9010
	Black Noir 900
	Alu-grey RAL 9006
	Yellow RAL 1032
	Urange RAL 2003
	Blue/green RAL 600
	Squirrel grey RAL 7000
Shade	Downwards: prismatic
	Upwards: opal or clear
	100% down: white
Lead	3 m 5 x 0,75 mm2
Suspension	2 x 2 m steelwire, 1,2 mm
Classification	IP20, Class I
Weight	7,4 kg

LED- and driverdata

LED type
LED downwards	Edge lit
LED upwards	LED board
Operationel life	50.000 hours at ta 25º, L80B10
Consumption	max 54 W
Luminous power, downwards	1800-5100 lm-out
Luminous power, clear shade	1250-2700 lm-out
Luminous power, opal shade	1000-2100 lm-out
100% downlight	max 5100 lm-out
Other variants	max 5900 lm-out
Colour temperature	2700, 3000 or 4000 Kelvin
Colour rendering	min 90 Ra
Colour accuracy:	3 steps SCDM

Driver	DALI-2
Driver lifetime	min 100.000 hours

Variants

Item no.	Yoyo Line 1900
5860-	4800 lm-out, downwards 100%
5861-	2200 lm-out, downwards 100%
5862-	5900 lm-out, up and downwards in a 40/60 ratio, clear shade
5864-	3400 lm-out, up and downwards in a 40/60 ratio, clear shade
5866-	5300 lm-out, up and downwards in a 40/60 ratio, opal shade
5868-	3700 lm-out, up and downwards in a 40/60 ratio, opal shade

Combine with

Select colour, colour temperature etc. in the table below.

Colour	Shade
0 = raw untreated	P = prismatic
01 = raw anodized
1 = white RAL 9010
3 = black RAL 9005
19 = alu-grey RAL 9006
102 = yellow RAL 1032
103 = orange RAL 2003
104 = blue/green RAL 6004
105 = squirrel grey RAL 7000

Colour temperature	Dimming
927 = 2700 K, 90 Ra	D = DALI-2
930 = 3000 K, 90 Ra
940 = 4000 K, 90 Ra

Colour of lead
empty = white
Y = black

Example: 5860-3P930D = Yoyo Line 1900, 4800 lm-ud, black RAL, shade prismatic, 3000 K, 90 Ra, Dali dimming
