YOYO PENDANT

Please choose

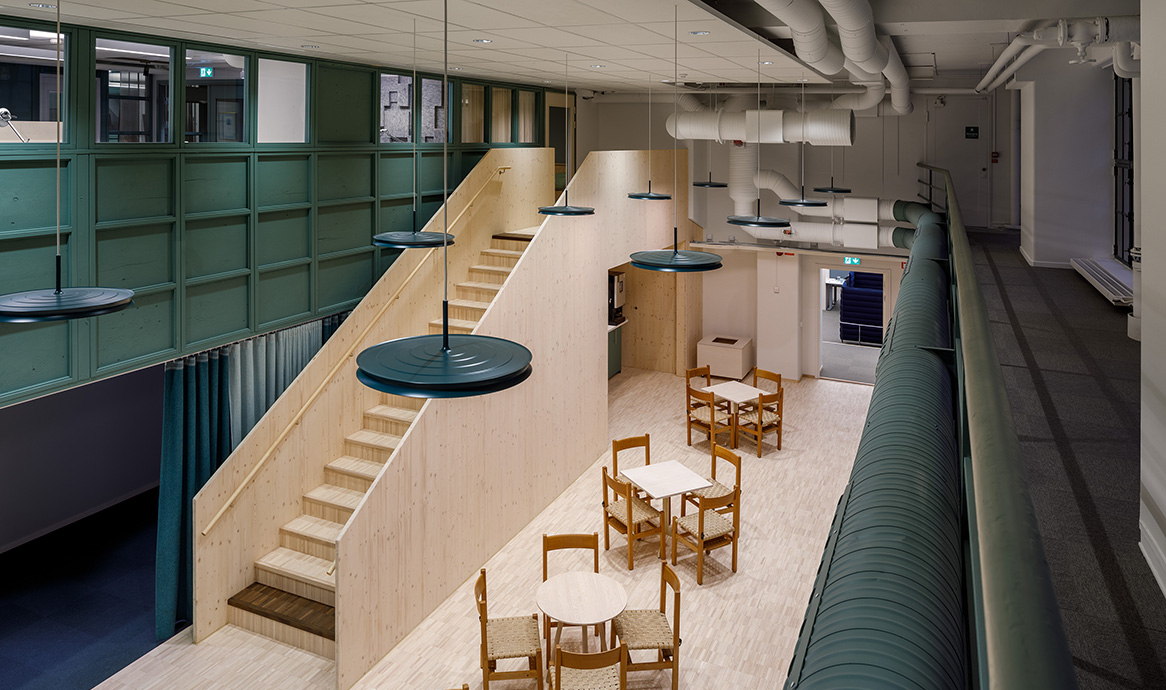

The Yoyo family is complete with the Yoyo pendants with uplight in similar design and same low height as the surface mounted luminaires. The Yoyo pendant uplight is available in diameter 350 and 535 mm.

The Yoyo pendant uplight is available in Raw untreated, Raw anodized and seven standard colours.

Specifications

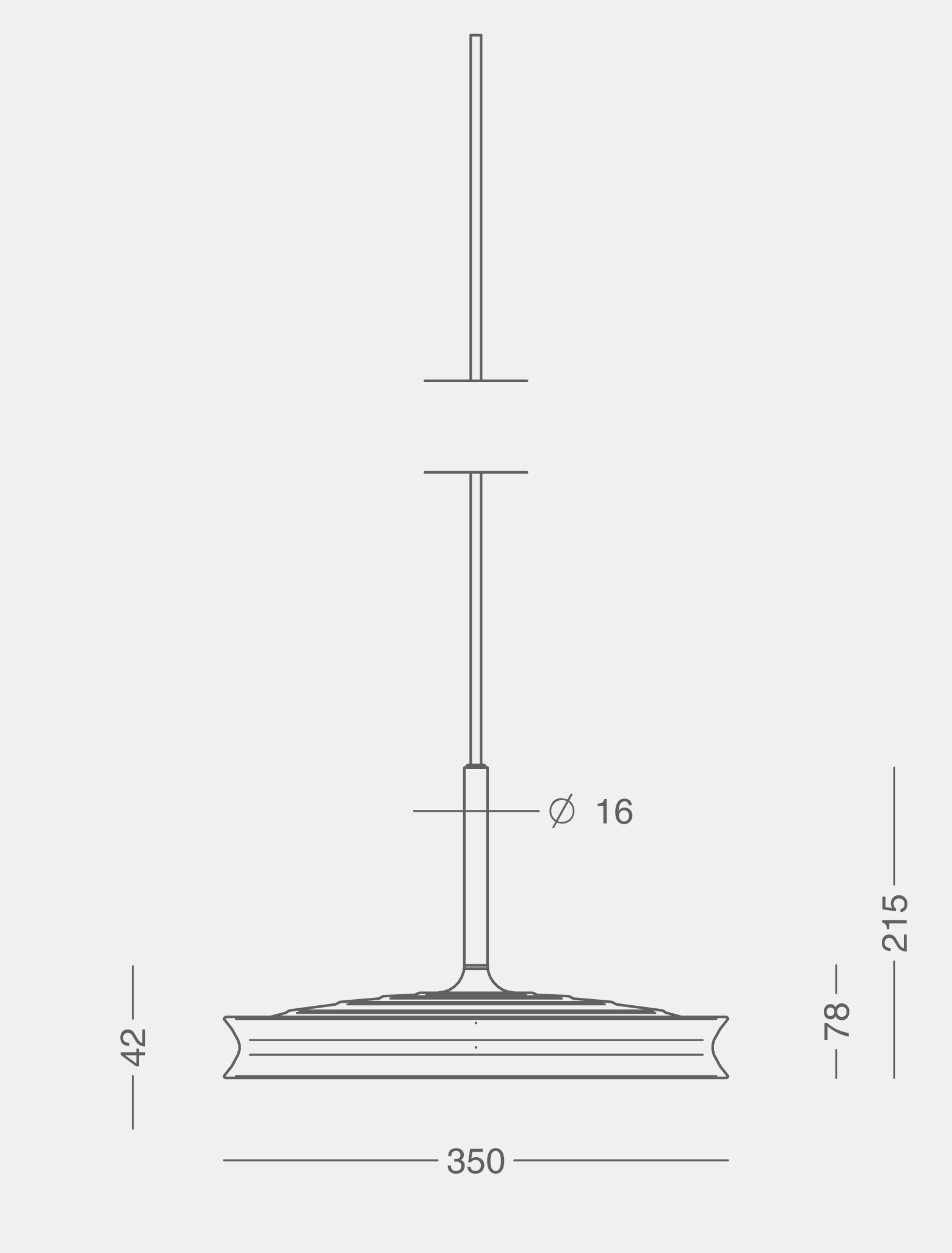

Ø 350 uplight

Luminaire

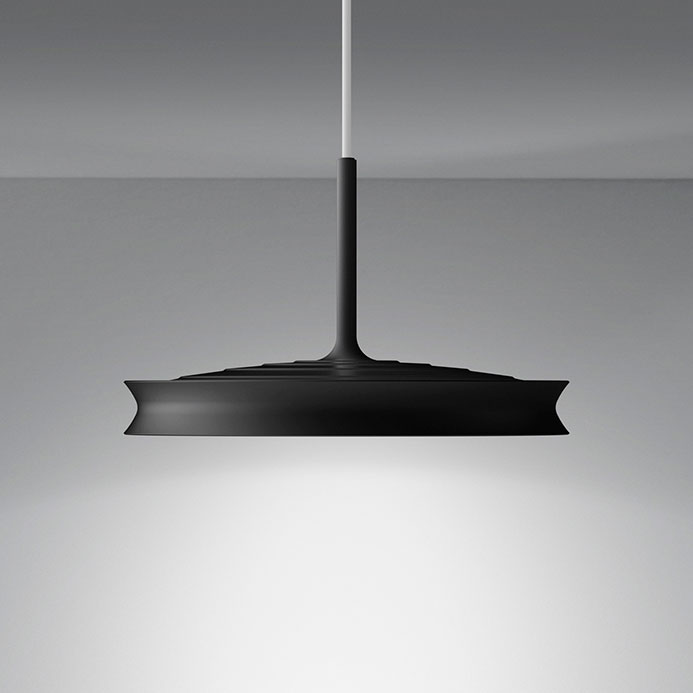

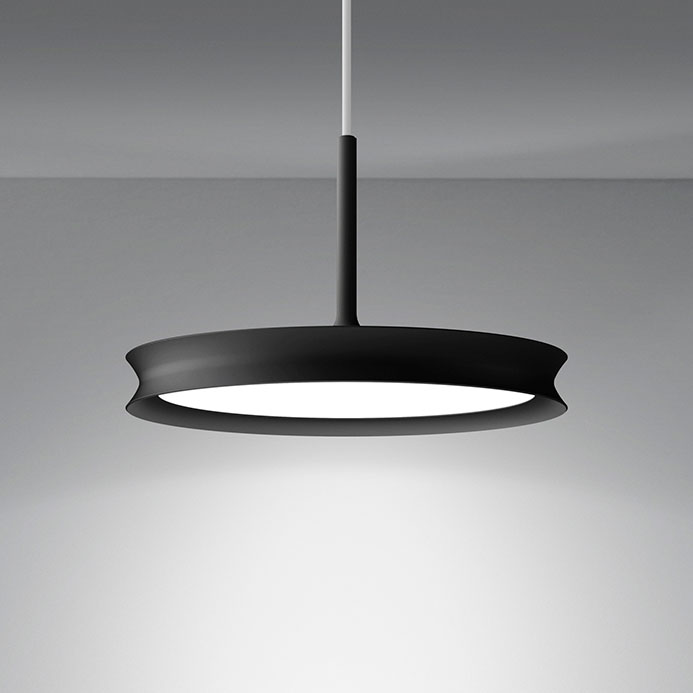

YOYO 350 pendant
Material	Cast aluminium
Finish	Raw untreated
	Raw anodized
Colours, coating	White: RAL 9010
	Black: RAL 9005
	Alu-grey RAL 9006
	Yellow RAL 1032
	Orange RAL 2003
	Blue-green RAL 6004
	Squirrel grey RAL 7000
Shade	Acrylate, opal-white or microprismatic (without visible patterns)
Uplight	Opal-white polycarbonate
Lead	3 m white or black PKAJ, Ø 8 mm
Classification	IP20, class I
Weight	2.2 kg

LED and driver

LED type	Edge lit
Operational life	min 50,000 hours at ta max 25° C, L80B10
Power consumption	16 W (500 mA), 23 W (700 mA)
Colour temperature	2700, 3000, or 4000 Kelvin
	Tunable White*: 2700-6500 Kelvin
	*Longer lead times
Colour rendering	min 90 Ra
Colour accuracy	3 steps SCDM

Driver	LED driver
	Dimming optional
Operational life	min 100,000 hours
Alternative	Driver and sensor (radar) for wireless control

Variants

Item Nos.	Yoyo 350 pendant
1853-	16 W LED, 500 mA
1854-	23 W LED, 700 mA
1857-	16 W LED, 500 mA, with uplight
1858-	23 W LED, 700 mA, with uplight

Combine with

Select colour, colour temperature etc. in the table below.

Colour	Shade
0 = raw untreated	empty = opal-white acrylate
01 = raw anodized	M = microprismatic acrylate
1 = white RAL 9010
3 = black RAL 9005
19 = alu-grey RAL 9006
102 = yellow RAL 1032
103 = orange RAL 2003
104 = blue-green RAL 6004
105 = squirrel grey RAL 7000

Colour temperature	Dimming
927 = 2700 K, 90 Ra	empty = no dimming
930 = 3000 K, 90 Ra	D = Dali-2
940 = 4000 K, 90 Ra	R = bluetooth sensor
9WD = tunable white, Dali-2, 90 Ra

Colour of lead
empty = white
Y = black

Example: 1855-3M930Y = Yoyo 350 pendant uplight, 26 W, black, shade microprismatic, 3000 K, 90 Ra, black lead

Media & downloads

Product information

Brochure, Yoyo - playful elegancePDF Product data, Yoyo pendantPDF Quick guide, Bluetooth sensorPDF Mounting instructionsPDF MaintenancePDF RoHS DeclarationPDF

3D filer

Yoyo Pendant for RevitRFA Yoyo Pendant for ArchicadLCF Yoyo Pendant, 3D for AutoCadDWG Yoyo Pendant, 3D for 3D Studio3DS

Photos

Product image, Yoyo 350, black RAL 9005JPG Product image, Yoyo 350, black RAL 9005JPG Yoyo, Sports Academy Denmark, OdensePDF

Photometric data

Yoyo 350, shade prismatic

16 W, 2700 K, prismatic shade, uplightLDT 16 W, 2700 K, prismatic shade, uplightPDF 16 W, 3000 K, prismatic shade, uplightLDT 16 W, 3000 K, prismatic shade, uplightPDF 16 W, 4000 K, prismatic shade, uplightLDT 16 W, 4000 K, prismatic shade, uplightPDF 23 W, 2700 K, prismatic shade, uplightLDT 23 W, 2700 K, prismatic shade, uplightPDF 23 W, 3000 K, prismatic shade, uplightLDT 23 W, 3000 K, prismatic shade, uplightPDF 23 W, 4000 K, prismatic shade, uplightLDT 23 W, 4000 K, prismatic shade, uplightPDF

Yoyo 350, shade opal white

16 W, 2700 K, opal white shade, uplightLDT 16 W, 2700 K, opal white shade, uplightPDF 16 W, 3000 K, opal white shade, uplightLDT 16 W, 3000 K, opal white shade, uplightPDF 16 W, 4000 K, opal white shade, uplightLDT 16 W, 4000 K, opal white shade, uplightPDF 23 W, 2700 K, opal white shade, uplightLDT 23 W, 2700 K, opal white shade, uplightPDF 23 W, 3000 K, opal white shade, uplightLDT 23 W, 3000 K, opal white shade, uplightPDF 23 W, 4000 K, opal white shade, uplightLDT 23 W, 4000 K, opal white shade, uplightPDF

All ldt files

LDT.zipZIP

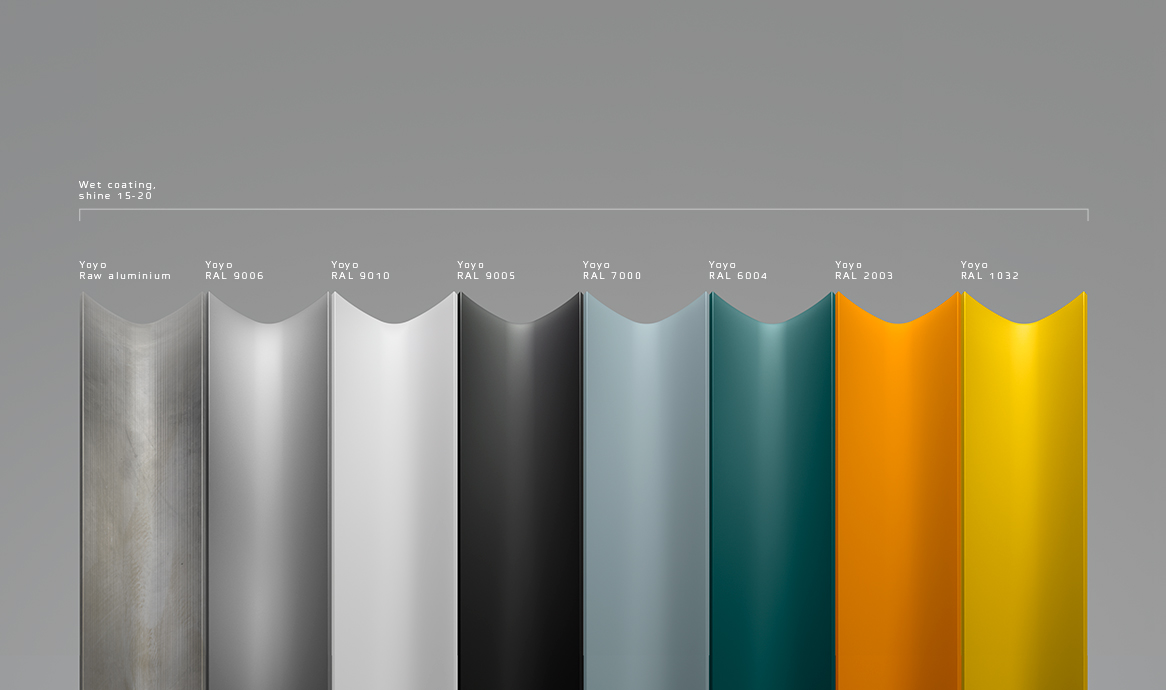

fl_yoyo_color_family_www_1166x690_job1182

Yoyo - playful elegance. Click below for more details on variants and colours.

Umbraco.Cms.Core.Models.Link More details

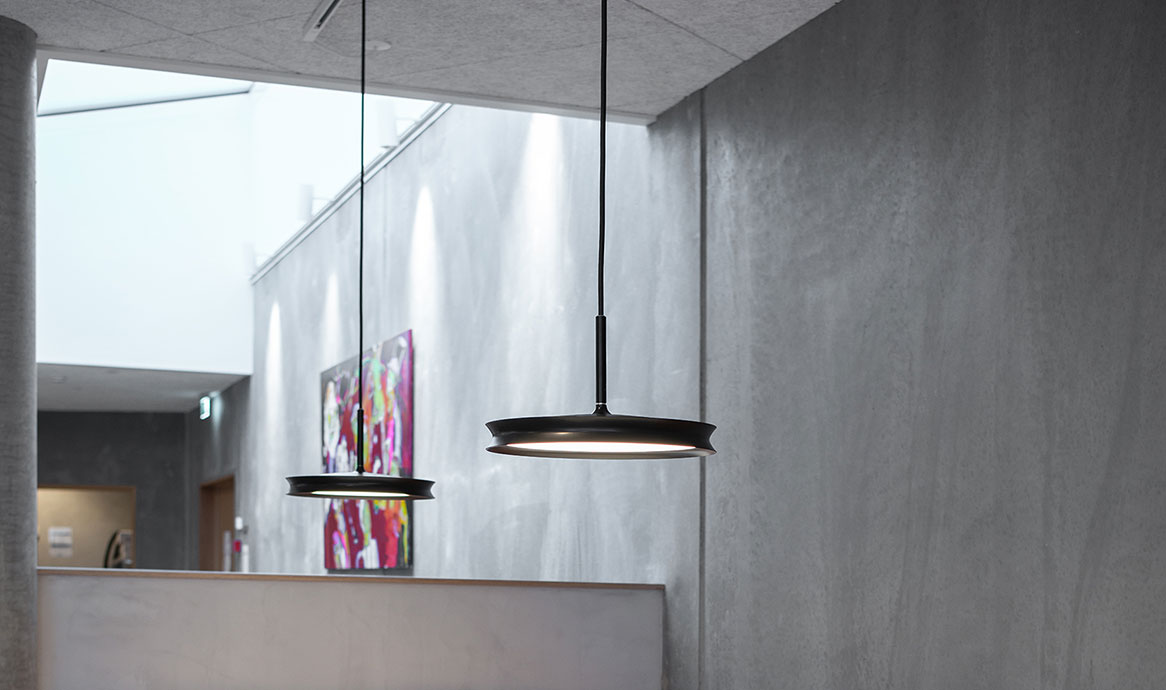

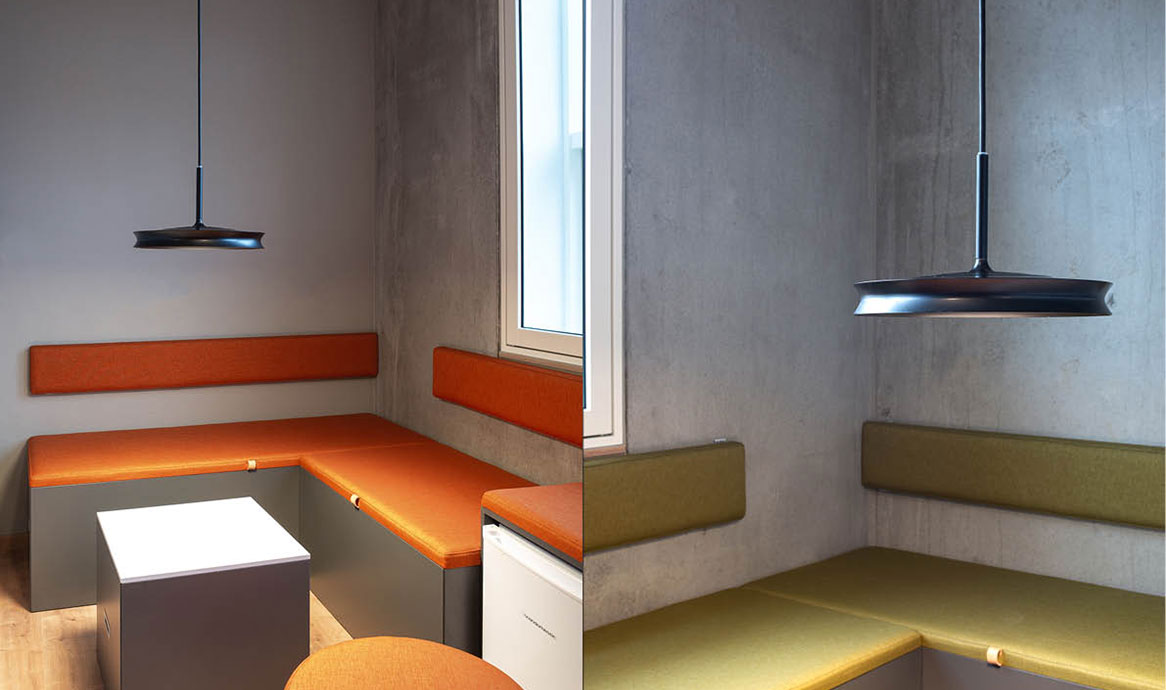

Yoyo 350 pendant and surface-mounted. All pendants at the Sports Academy Denmark, Odense, are coated in black RAL 9005.
