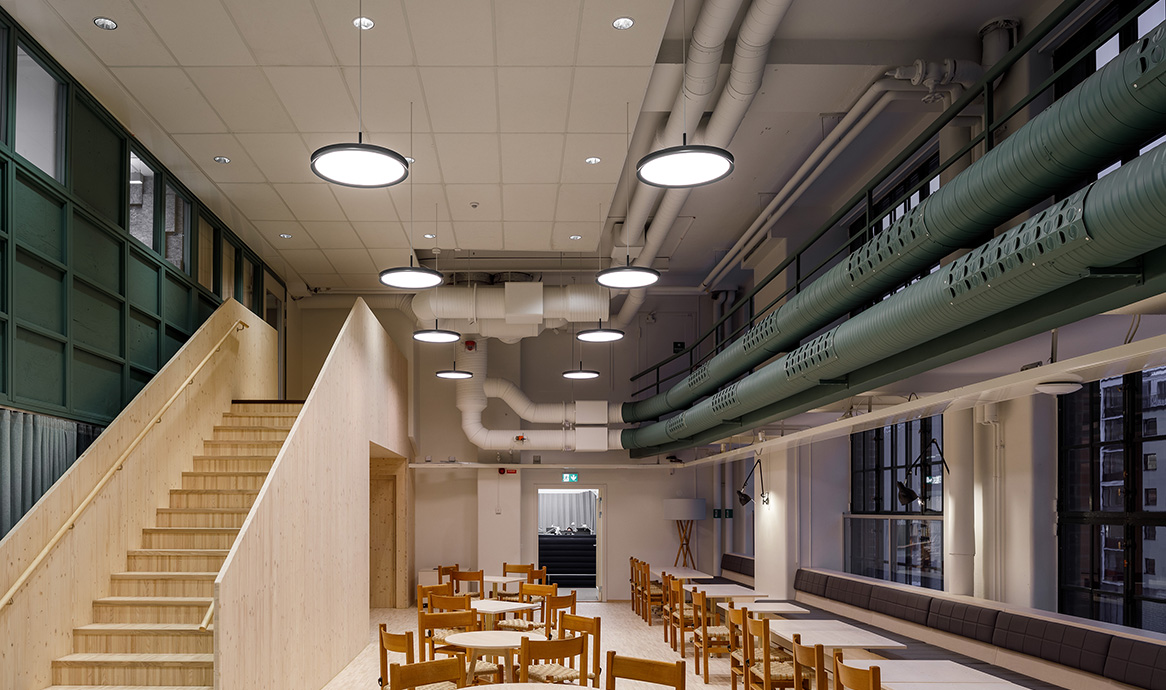

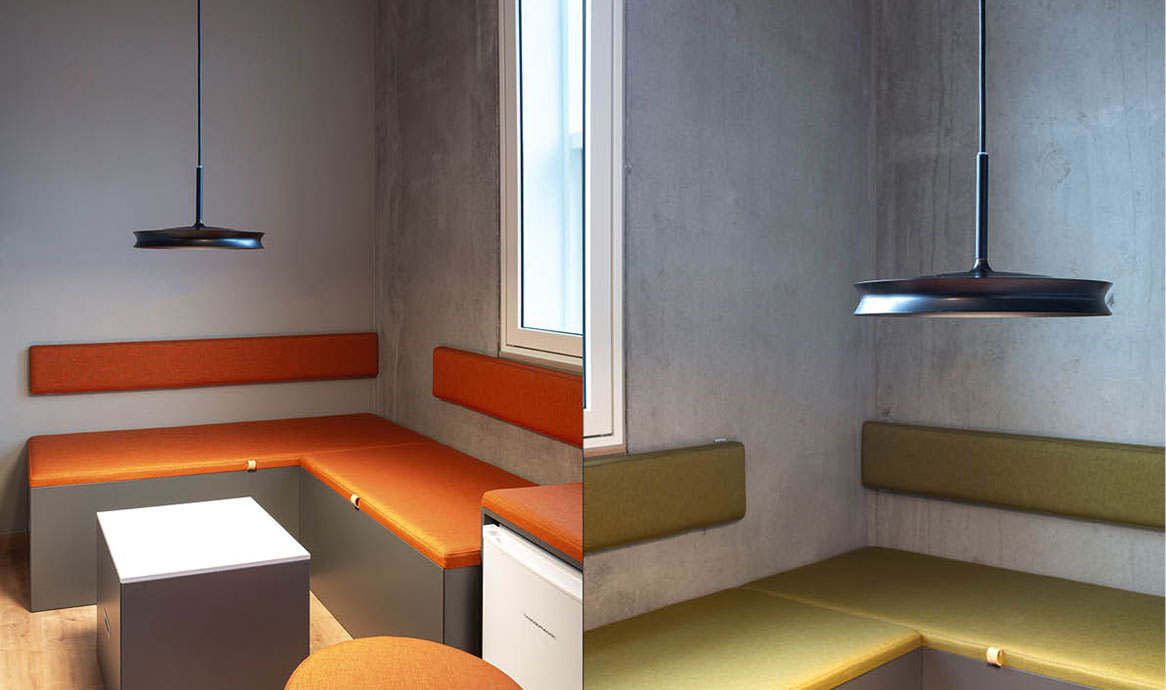

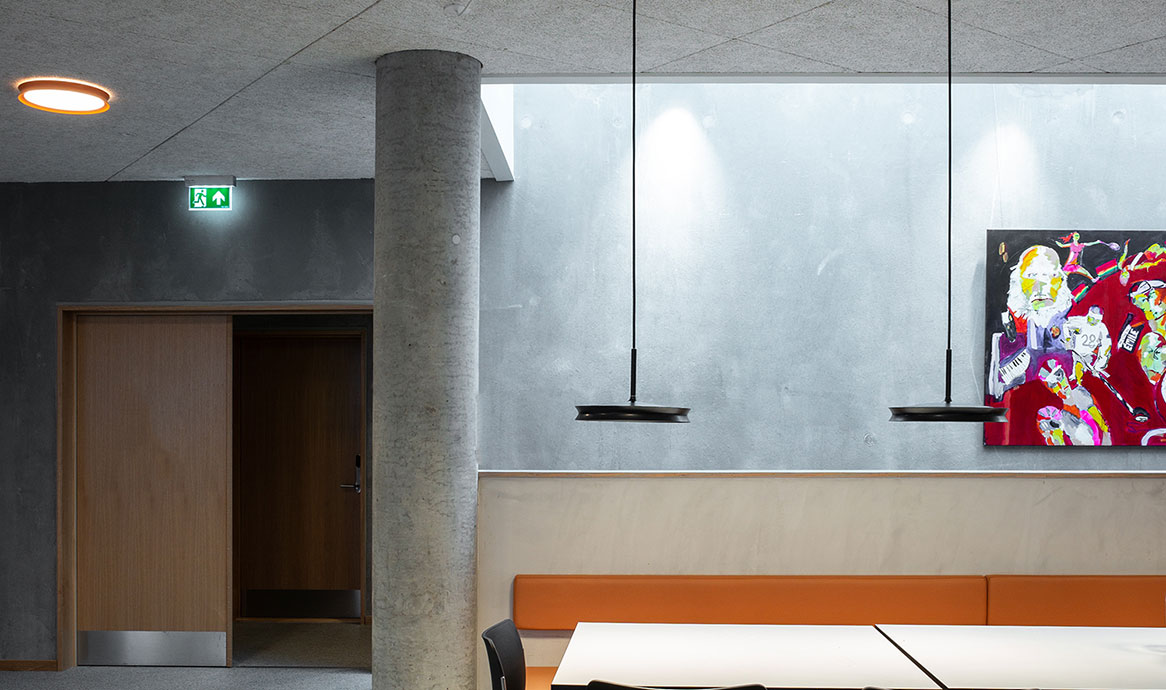

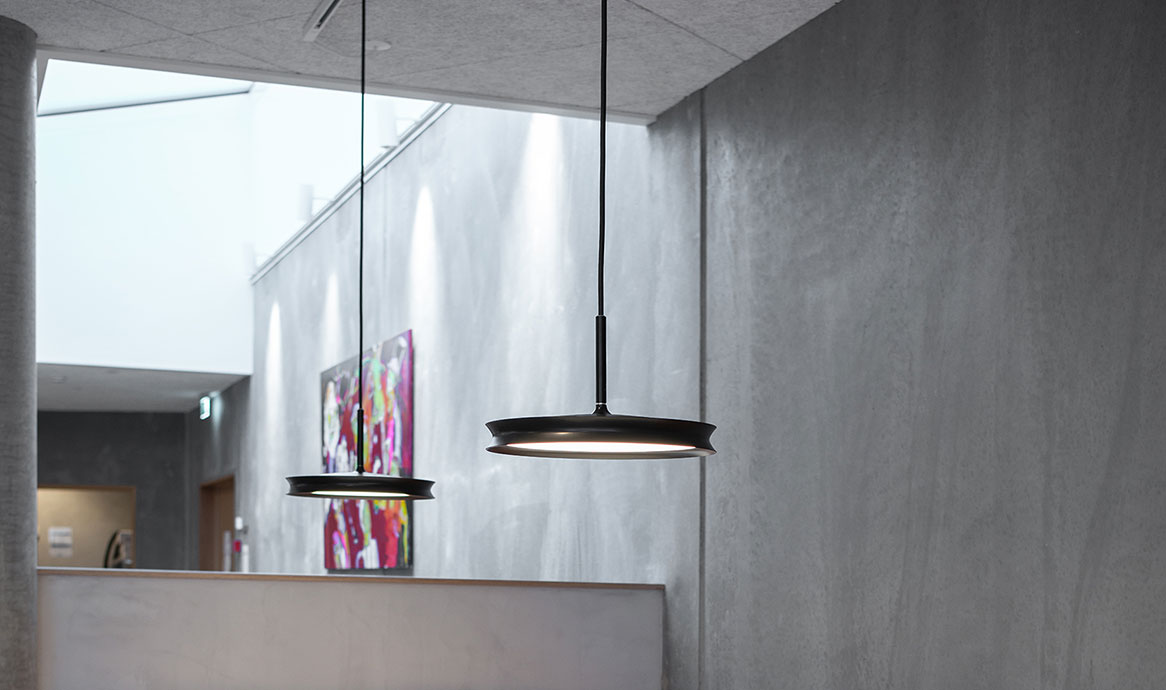

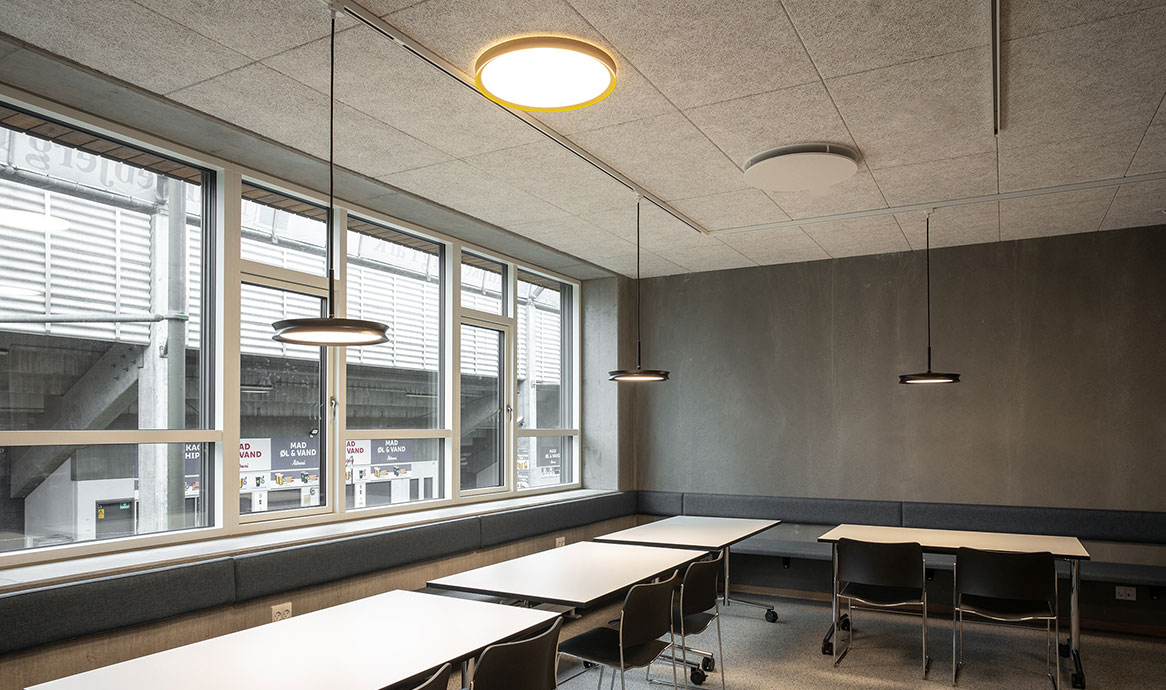

The Yoyo family is complete with the Yoyo pendants with uplight in similar design and same low height as the surface mounted luminaires. The Yoyo pendant uplight is available in diameter 350 and 535 mm.
The Yoyo pendant uplight is available in Raw untreated, Raw anodized and seven standard colours.

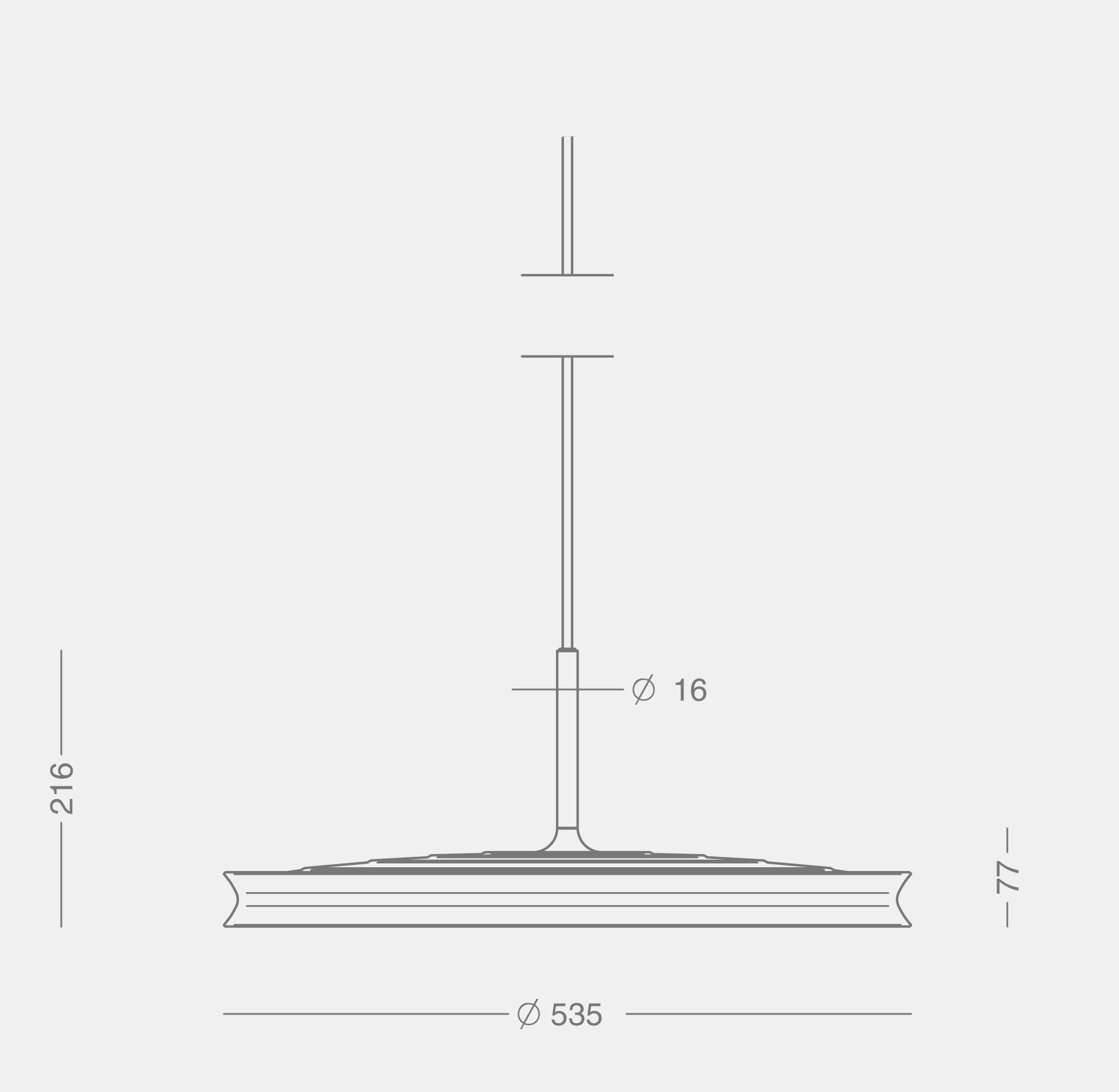

| YOYO 535 pendant | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw untreated |
| Raw anodized | |
| Colours, coating | White: RAL 9010 |
| Black: RAL 9005 | |
| Alu-grey RAL 9006 | |
| Yellow RAL 1032 | |
| Orange RAL 2003 | |
| Blue-green RAL 6004 | |
| Squirrel grey RAL 7000 | |
| Shade | Acrylate, opal-white or microprismatic (without visible patterns) |
| Uplight | Opal-white polycarbonate |
| Lead | 3 m white or black PKAJ, Ø 8 mm |
| Classification | IP20, class I |
| Weight | 5 kg |
| LED type | Edge lit |
|---|---|
| Operational life | min 50,000 hours at ta max 25° C, L80B10 |
| Power consumption | 26 W (500 mA), 36 W (700 mA) |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Tunable White*: 2700-6500 Kelvin | |
| *Longer lead times | |
| Colour rendering | min 90 Ra |
| Colour accuracy | 3 steps SCDM |
| Driver | LED driver |
|---|---|
| Dimming optional | |
| Operational life | min 100,000 hours |
| Alternative | Driver and sensor (radar) for wireless control |
| Item Nos. | Yoyo 535 pendant |
|---|---|
| 1850- | 26W LED, 500 mA |
| 1851- | 36 W LED, 700 mA |
| 1855- | 26W LED, 500 mA, with uplight |
| 1856- | 36W LED, 700 mA, with uplight |
Select colour, colour temperature etc. in the table below.
| Colour | Shade |
|---|---|
| 0 = raw untreated | empty = opal-white acrylate |
| 01 = raw anodized | M = microprismatic acrylate |
| 1 = white RAL 9010 | |
| 3 = black RAL 9005 | |
| 19 = alu-grey RAL 9006 | |
| 102 = yellow RAL 1032 | |
| 103 = orange RAL 2003 | |
| 104 = blue-green RAL 6004 | |
| 105 = squirrel grey RAL 7000 |
| Colour temperature | Dimming |
|---|---|
| 927 = 2700 K, 90 Ra | empty = no dimming |
| 930 = 3000 K, 90 Ra | D = Dali-2 |
| 940 = 4000 K, 90 Ra | R = bluetooth sensor |
| 9WD = tunable white, Dali-2, 90 Ra | T = Triac (350 mA) |
| V = 1-10 V |
| Colour of lead | |
|---|---|
| empty = white | |
| Y = black |
Example: 1856-1M930D = Yoyo 535 pendant with uplight, 26 W, white, shade microprismatic, 3000 K, 90 Ra, Dali control, white lead
