YOYO WALL MOUNTED

Please choose

Concluded by sharp profiles at both ends, the characteristic parable results in a unique and sculptural look and the impression of a floating luminaire.

Yoyo invites to playing with colours and sizes. Let colours dominate or adjust them to the application - the choice is yours. Yoyo is cast in aluminium, and in the raw version every single luminaire is unique.

Specifications

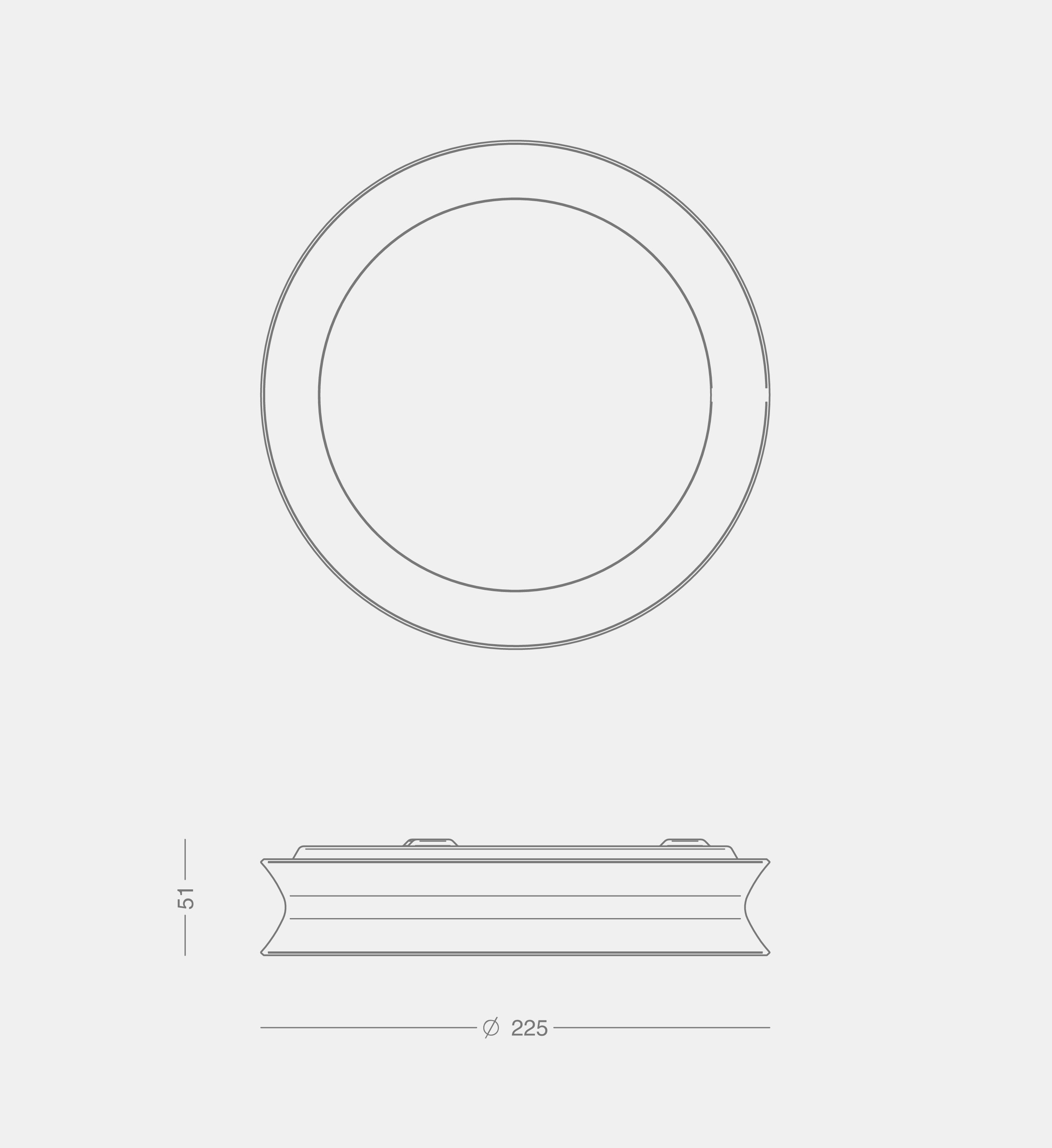

Ø 225

yoyo_225_paabyg_f0

Luminiare

YOYO 225
Material Cast aluminium
Finish Raw untreated
Raw anodized
Colurs White RAL 9010 G20
Black RAL 9005 G20
Alu-grey RAL 9006 G15
Yellow RAL 1032 G20
Orange RAL 2003 G20
Blue-green RAL 6004 G20
Squirrel grey RAL 7000 G20
Shade Acrylate, opal-white or microprismatic (without visible patterns)
Mounting Surface mounting on ceiling or wall
Connection max 2 cables, 5 x 1.5 mm² into 5-pole terminal block, 2 x 2.5 mm²
Classification IP20, class II
Weight 1.2 kg

LED and driver

LED type Edge lit
Operational life min 50,000 hours at ta max 25° C, L80B10
Power consumption 7 W (350 mA), 10 W (500 mA), 14 W (700 mA)
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 90 Ra
Colour accuracy 3 steps SCDM

Driver 500-700 mA, option for dimming
Operational life min 100,000 hours

Variants

Item No. Yoyo 225
2922- 7 W LED, 350 mA
2919- 10 W LED, 500 mA
2918- 14 W LED, 700 mA
2923- 7 W LED, 350 mA, with back-light
2921- 10 W LED, 500 mA, with back-light
2920- 14 W LED, 700 mA, with back-light

Option
1727-01 Kit set Yoyo 350 and 225, 3 pcs spacer tube for visible cable assembly

Combine with

Select colour, colour temperature etc. in the table below.

Colour Shade
0 = raw untreated empty = opal-white acrylate
01 = raw anodized M = microprismatic acrylate
1 = white RAL 9010
3 = black RAL 9005
19 = alu-grey RAL 9006
102 = yellow RAL 1032
103 = orange RAL 2003
104 = blue-green RAL 6004
105 = squirrel grey RAL 7000

Colour temperature Dimming
927 = 2700 K, 90 Ra empty = no dimming
930 = 3000 K, 90 Ra D = Dali-2
940 = 4000 K, 90 Ra

Example: 2921-3M930 = Yoyo 225 surface mount, 10 W w. backlight, black, shade microprismatic, 3000 K, 90 Ra

Media & downloads

Photometric data

All ldt files

fl_yoyo_color_family_www_1166x690_job1182

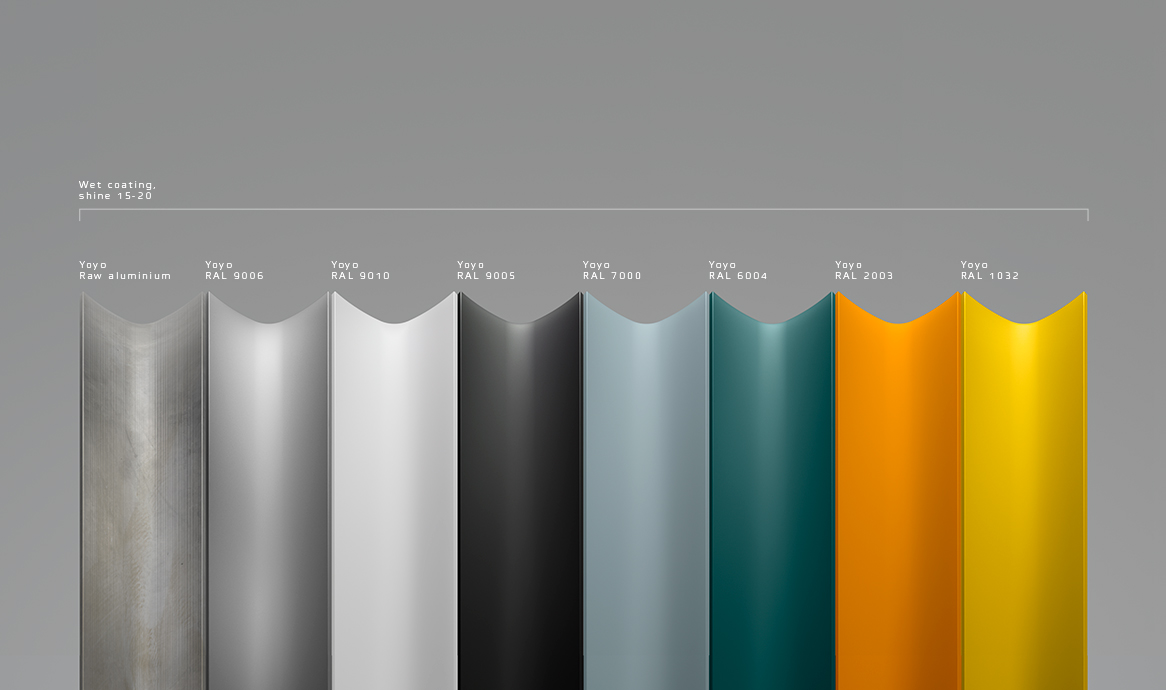

Yoyo - playful elegance. Click below for more details on variants and colours.

Umbraco.Cms.Core.Models.Link More details
yoyo-uc-syd_1166

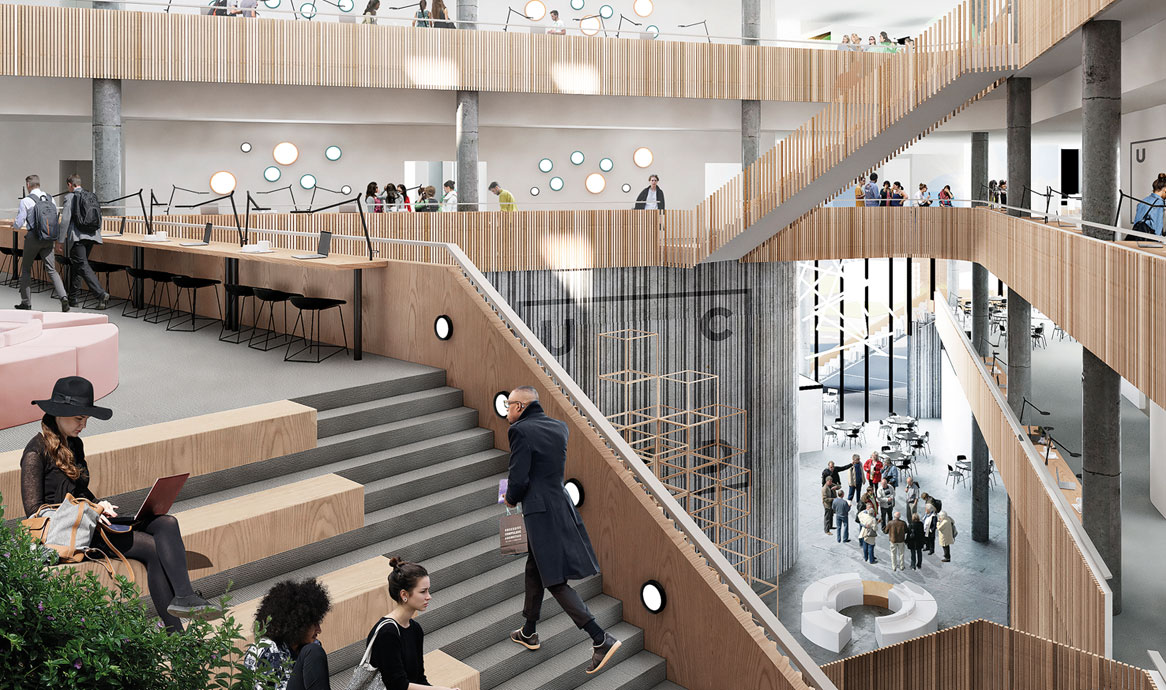

Yoyo surface mounted in different sizes and colours. Rendering by C.F. Møller Architects

yoyoloftx3_9013_1166

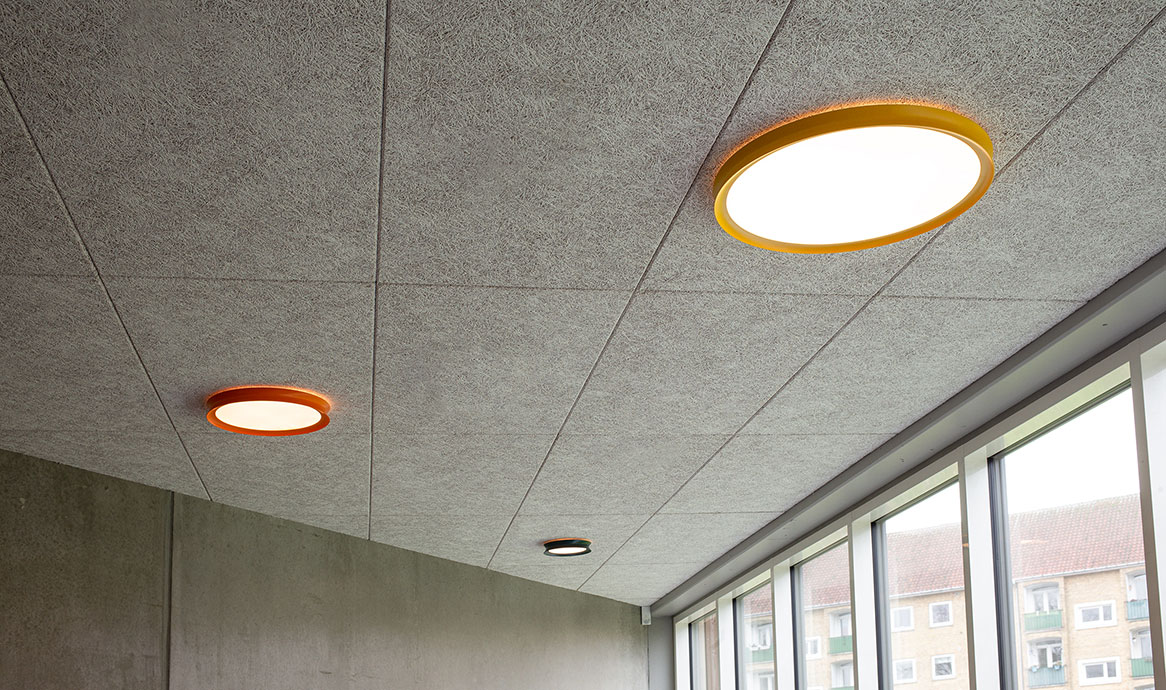

The architects have played with Yoyo in different colours and sizes at Sports Academy Denmark in Odense.

Umbraco.Cms.Core.Models.Link More photos from Sports Academy Denmark
yoyostorrum_9034_1166

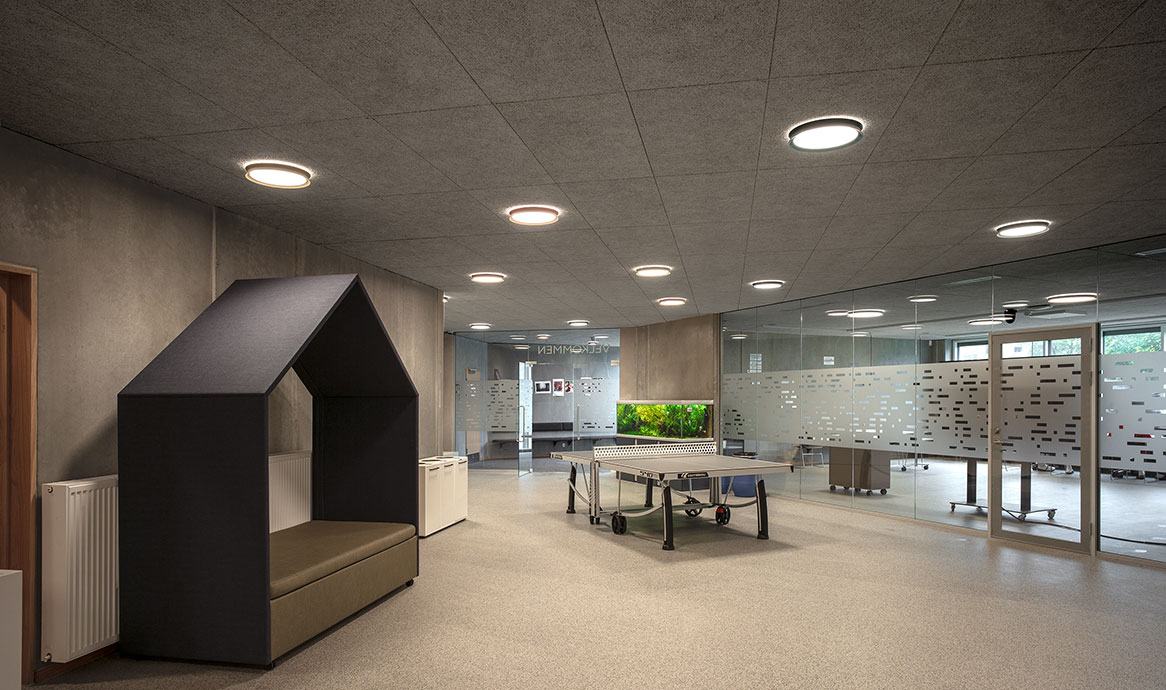

Yoyo 350 in many different colours, Sports Academy Denmark in Odense.

Umbraco.Cms.Core.Models.Link More photos from Sports Academy Denmark
yoyoloft_puder_9095_1166

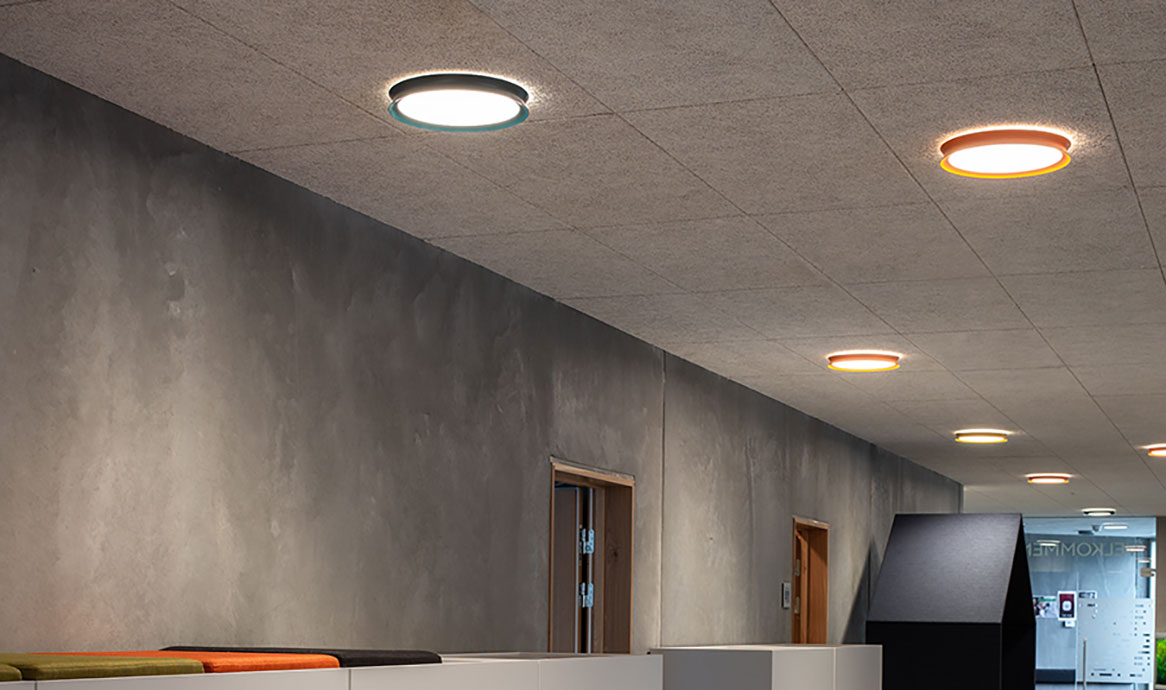

Yoyo 350 is the middle sized variant of the Yoyo family. Sports Academy Denmark, Odense.

Umbraco.Cms.Core.Models.Link More photos from Sports Academy Denmark
yoyo_225_sportsacademy_1166

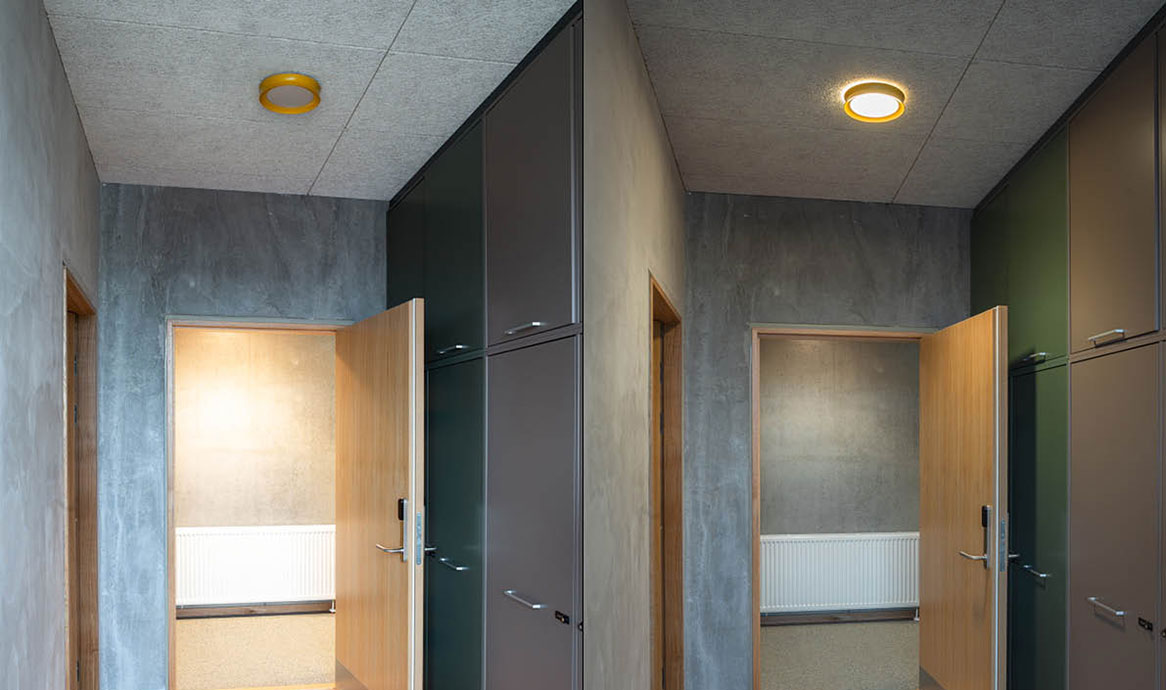

Yoyo 225 is the smallest variant in the Yoyo family. Sports Academy Denmark, Odense.

Umbraco.Cms.Core.Models.Link More photos from Sports Academy Denmark
yoyo535loft_9045_1166

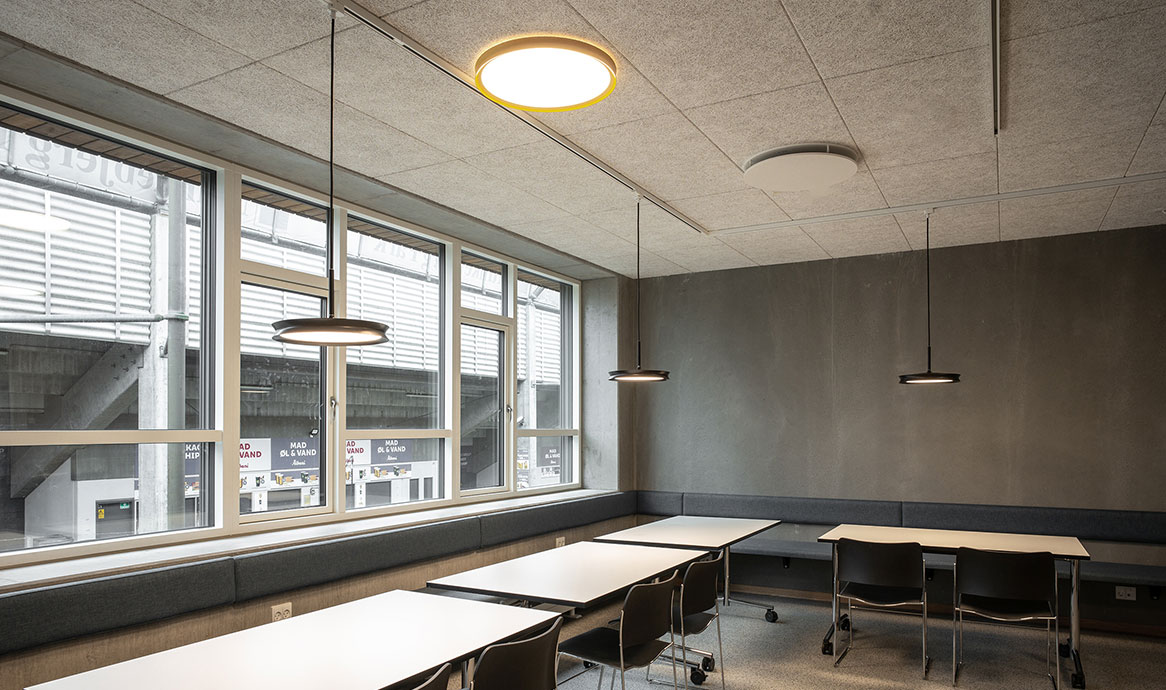

Yoyo 535 is the largest variant in the Yoyo family. Here together with Yoyo 350 pendants. Sports Academy Denmark, Odense.

Umbraco.Cms.Core.Models.Link More photos from Sports Academy Denmark
yoyopendelx2_9115_1166

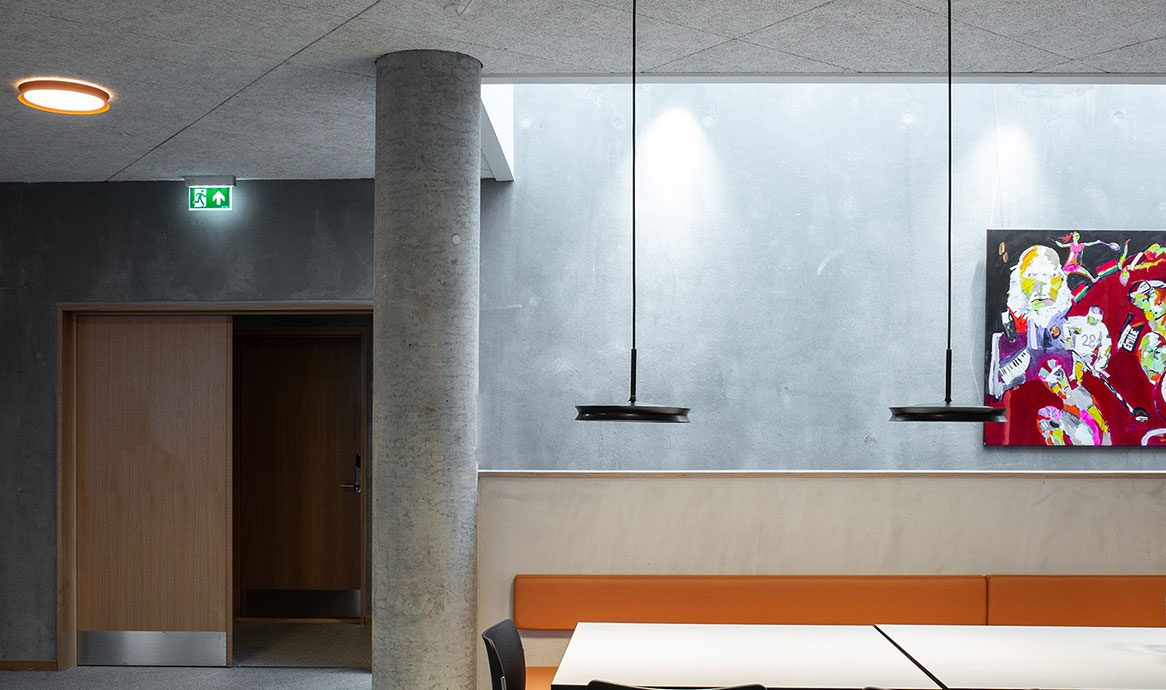

Yoyo 350 pendant and surface-mounted. All pendants at the Sports Academy Denmark, Odense, are coated in black RAL 9005.

Umbraco.Cms.Core.Models.Link More photos from Sports Academy Denmark
yoyo-bispebjerg_1166

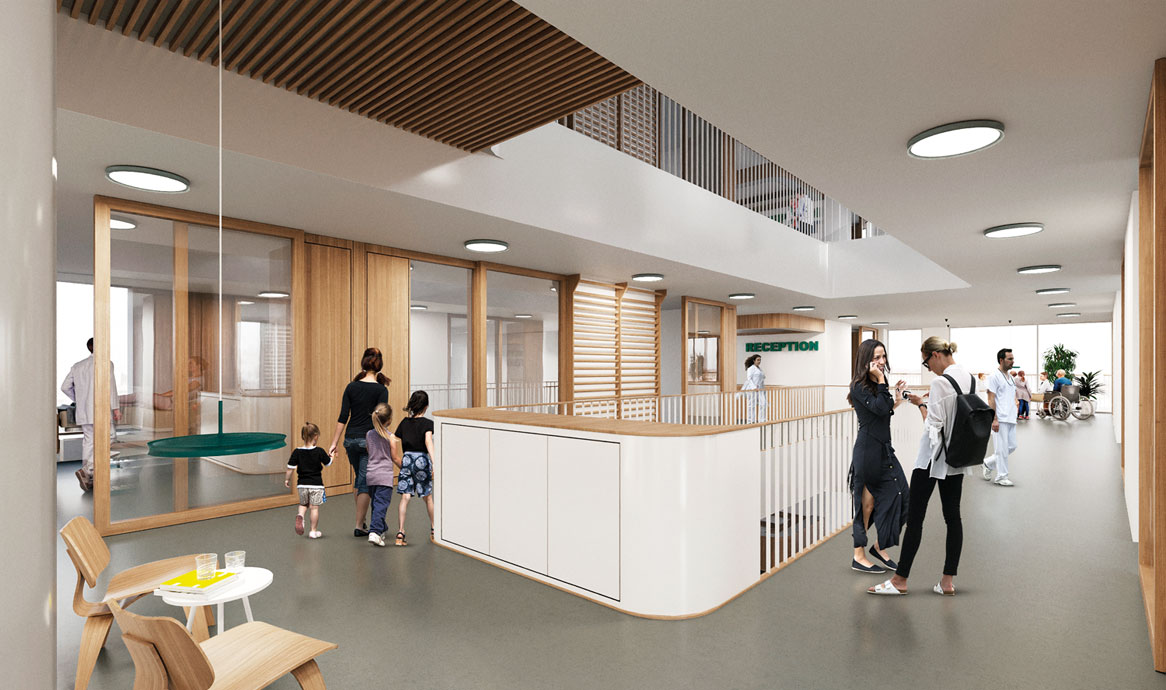

Yoyo 535 surface mounted and suspended. Rendering by C.F. Møller Architects

DesignC.F. Møller Architects

With more than 90 years' price-winning projects worldwide, C.F. Møller range among the leading Scandinavian architects. The architectural qualities are based on experience, innovation, and Nordic principles, securing sustainable solutions with lasting values for clients, users, and society.
