NYX 330

Please choose

Nyx 330 wall fitting - also for solar and other customized poles.

Specifications

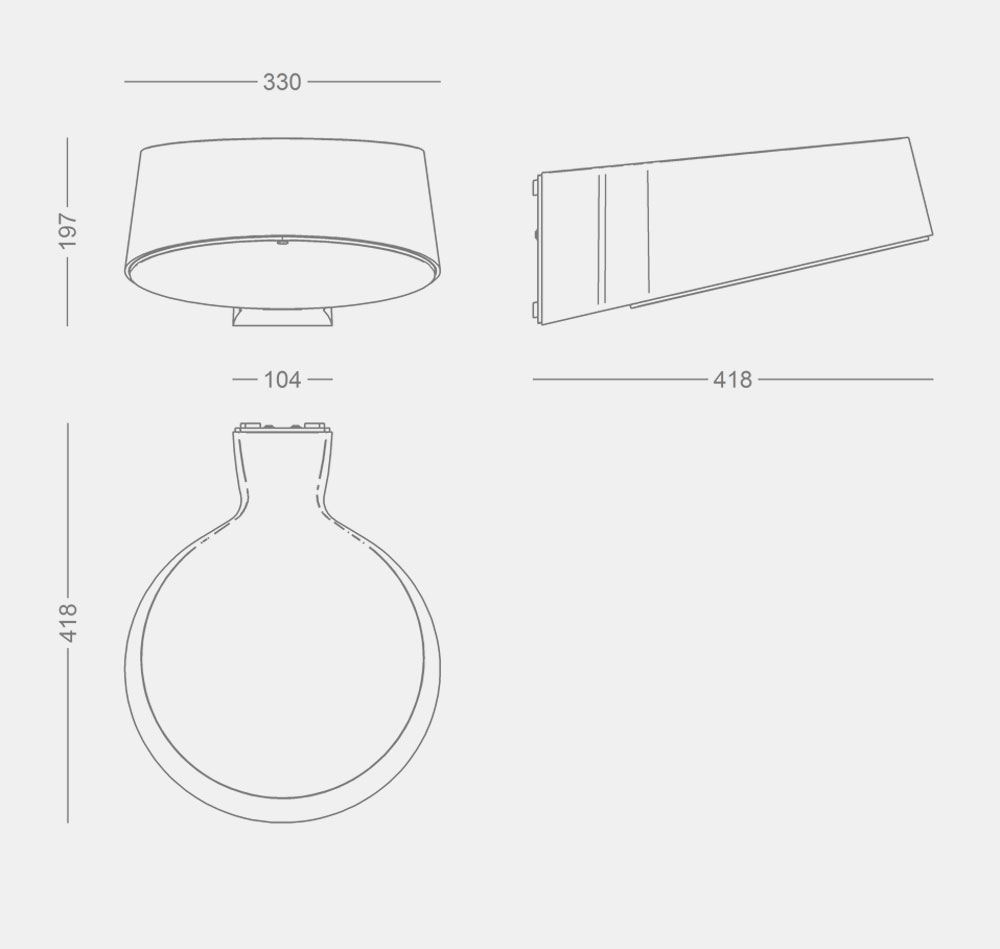

NYX 330 WALL

nyx-330-vaeg

Luminaire

NYX 330 WALL
Material Cast aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Black: RAL 9005, SN805G, Akzo Nobel
Black: Noir 900 Sablé, SN351F, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Shade Polycarbonate, frosted or opal white
Mounting On wall or special pole, double cable entry
Option for base for visible installation
Connection 5 x 2.5 mm2 into terminal block
Classification IP65, class I or II
Impact resistance IK10
Corrosion class C4, C5 optional
Weight 6.5 kg

LED and driver data

LED type Comfort, programmable
Operational life min 100,000 hours at ta max 25° C, L100B10
Constant lumen output
Temperature range -30 to +35° C
Colour temperature 2700, 3000, or 4000 K
Colour rendering Ra 70 or 80
Colour accuracy 5 steps SDCM
Luminous flux The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, Ra 80 2700K: 300-3000 lm
3000K: 300-3150 lm
4000K: 300-3350 lm
LED-lumen, Ra 70 up to 3850 lm
Output ratio 74%

Driver Xitanium Full Xi FP 40 W 0.3-1.0 A, programmable
Inrush current max 22 A (50% after 290 µs)
Dimming 5 steps dimming within the lumen intervals
Other dimming DALI-2, LineSwitch
Surge protection L/N-GND: 8 kV
L-N: 6 kV
Operational life min 100,000 hours

Variants and options

Item No. Nyx 330 wall
6990- LED Comfort, programmable, max 42 W

Option
1721- Base for visible installation, combine with colour

Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
01 = raw anodized 827 = 2700 K, 80 Ra
3 = black RAL 9005 830 = 3000 K, 80 Ra
4 = graphite grey 840 = 4000 K, 80 Ra
9 = silver grey 730 = 3000 K, 70 Ra
17 = corten brown 740 = 4000 K, 70 Ra
66 = noir 900

Shade type Dimming
empty = frosted shade empty = programmable
O = opalised shade D = DALI-2 (4/5-conductor cable)
F = LineSwitch

Protection class Corrosion protection
empty = class I empty = C4
K = class II C5 = C5 coating (add C5 after the colour code)

Example Item No.: 6990-9830 = Nyx 330 Comfort, silver grey, 3000 K 80 Ra, class I

Media & downloads

nyx330vaeg_close_1166

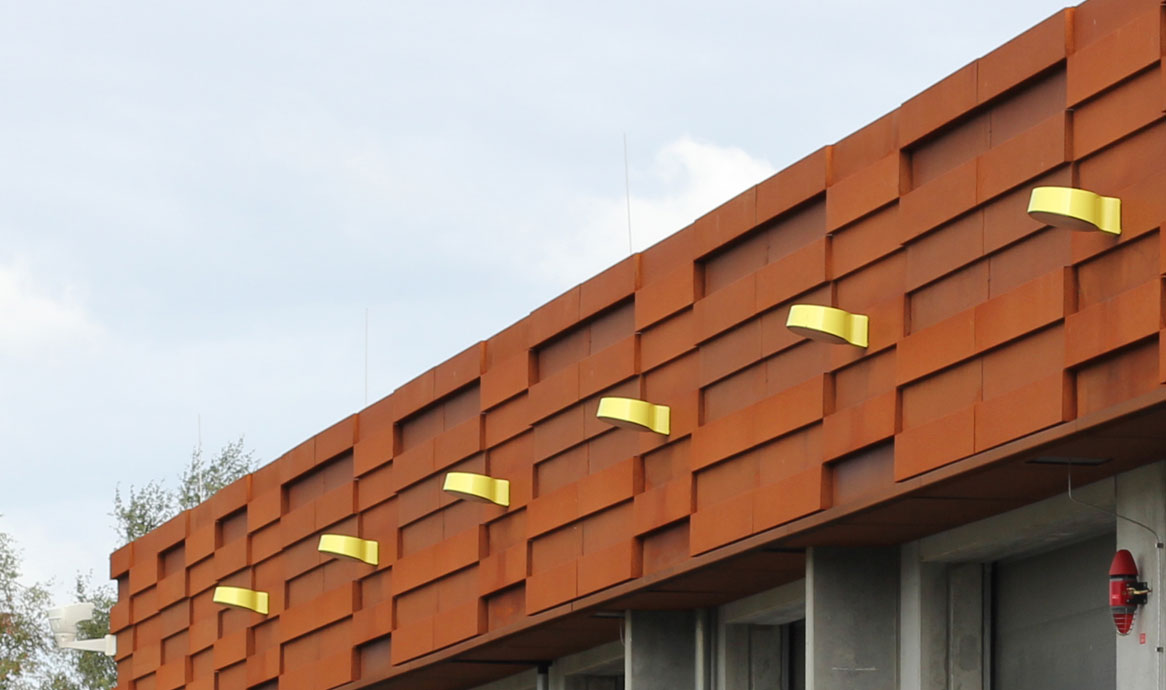

Nyx luminaires in customized colour illuminate the Egtved gas compressor station.

Umbraco.Cms.Core.Models.Link Watch them all
nyx330_randersstadion_1166

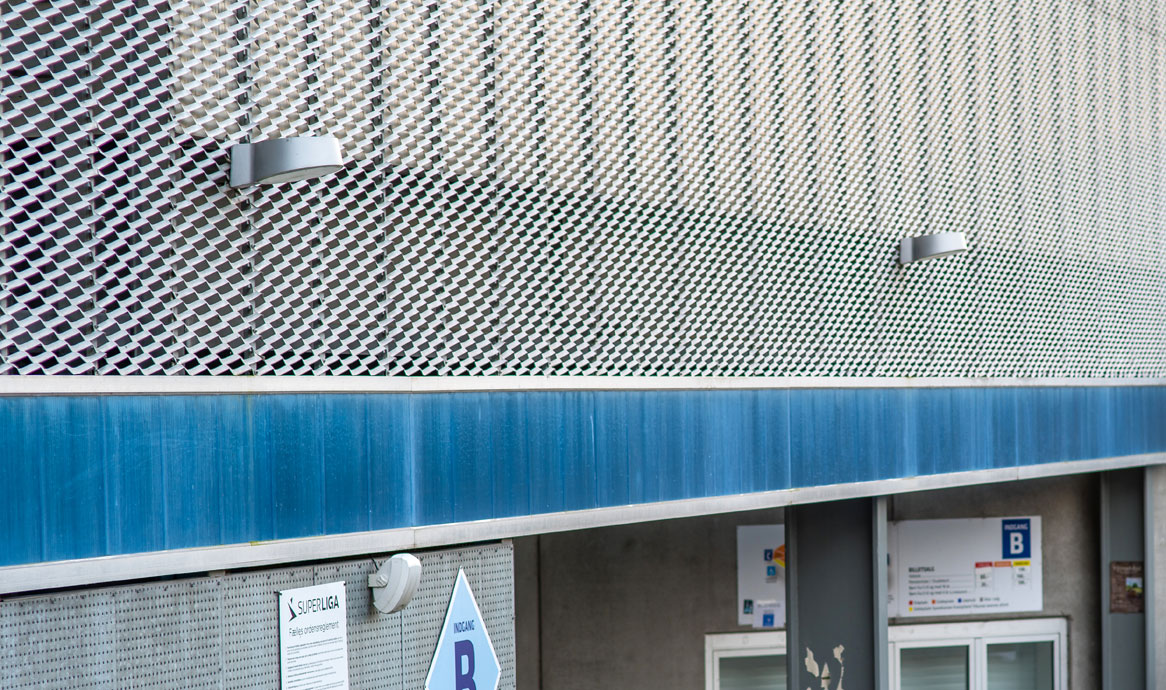

Nyx 330 wall luminaires supplement the post top Nyx around the Randers Football Stadium.

Umbraco.Cms.Core.Models.Link More Nyx in Randers
nyx330vaeg_teaser_1166

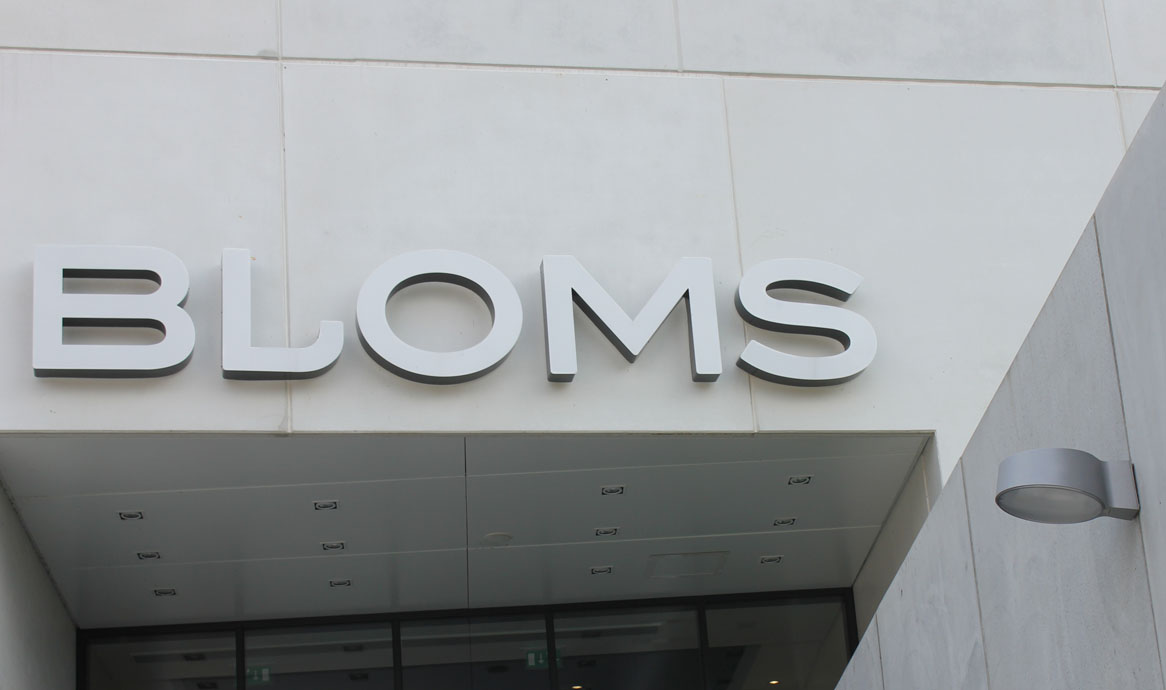

Nyx 330 wall works well at large buildings. Here Bloms Shopping Centre, Skanderborg.

nyx330_bispebjerg_1166

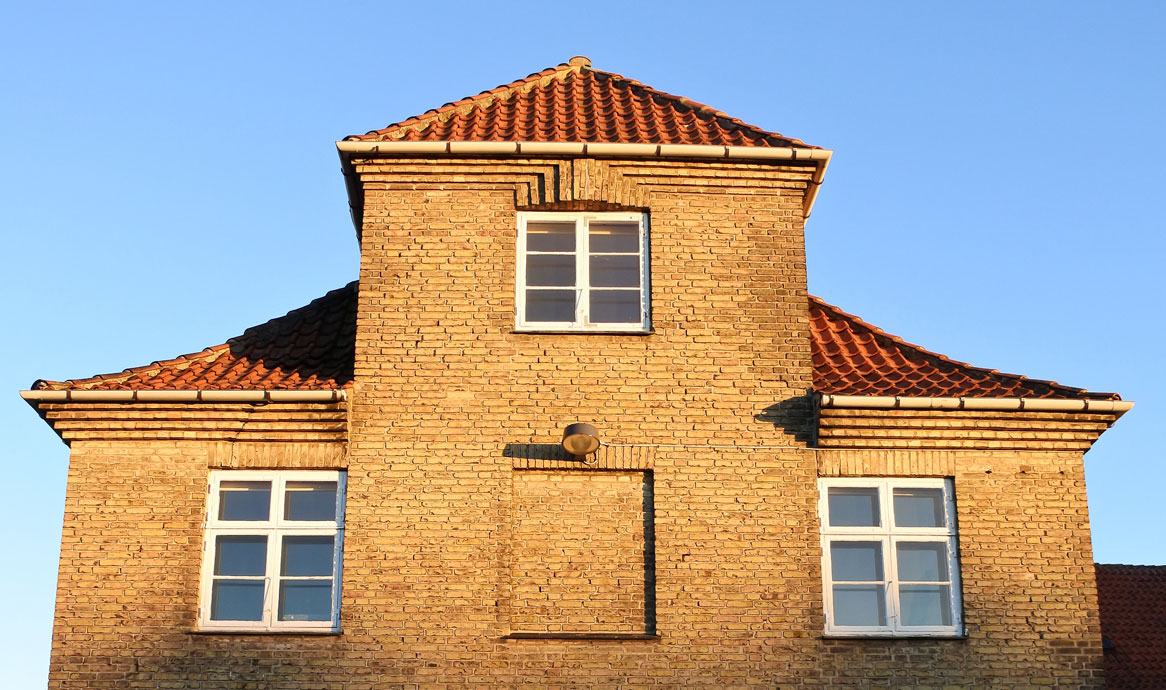

The Nyx luminaires are often seen in the City of Copenhagen, here Nyx 330 on wall, Bispebjerg.

nyx330_loekken_1166

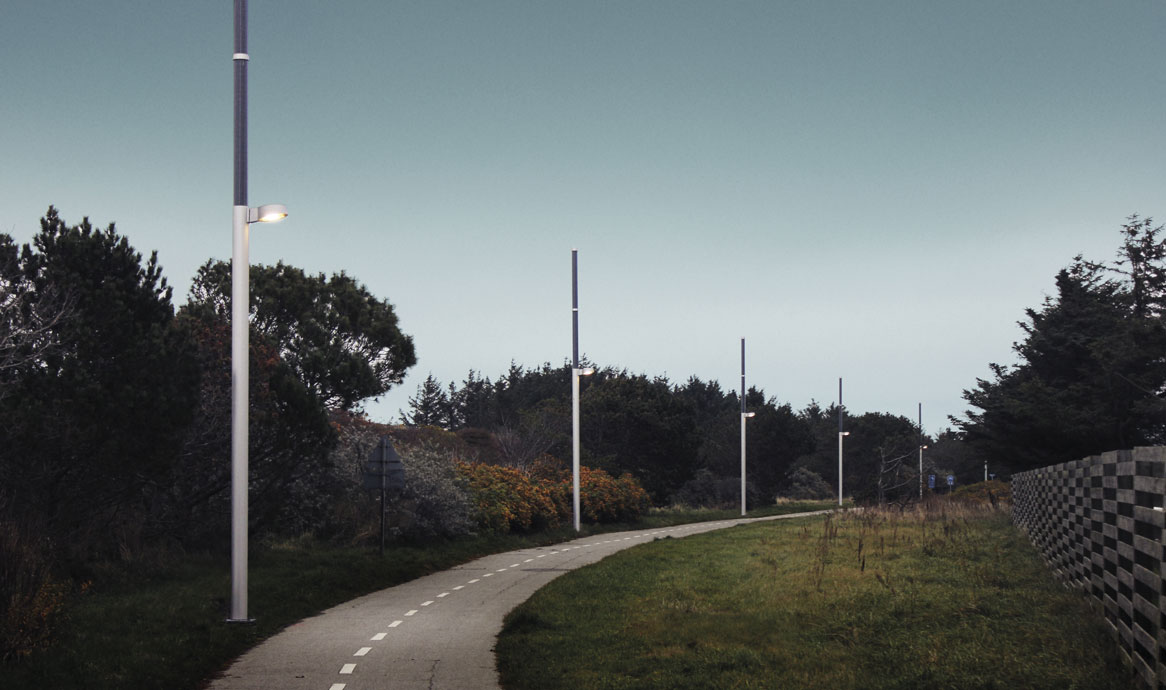

Nyx 330 at Touche solar pole, Løkken.

aab_hou_3097_1166

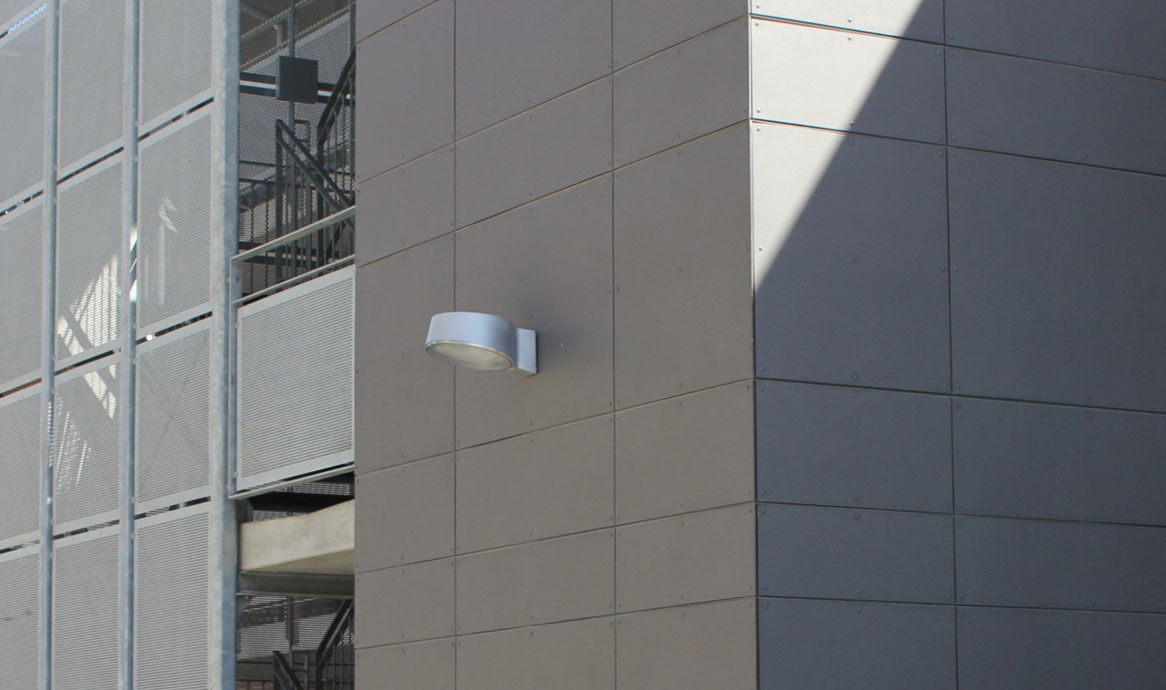

AAB Hou (residential) - Nyx 330, silver grey, and Square 250, galvanised

DesignVilhelm Lauritzen Architects

The story of Nyx begins in 2004 when Vilhelm Lauritzen Architects present the first draft for a wall fitting in two sizes. The design was simple, but characteristic and easily recognisable. Furthermore, Nyx differed from other luminaires of the time by the fact that it is cast in aluminium. Soon the series grew by lanterns and bollards, and especially the lanterns have shown great potential in street lighting.
