PHAROS

There was a lighthouse on the island of Pharos off Alexandria. One of the seven wonders of the world. Its light might be seen from far away and guided ships to safety.
Light is life and liveliness. Worth heading for through darkness.

Specifications

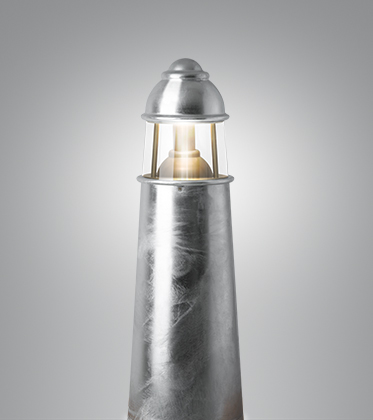

PHAROS

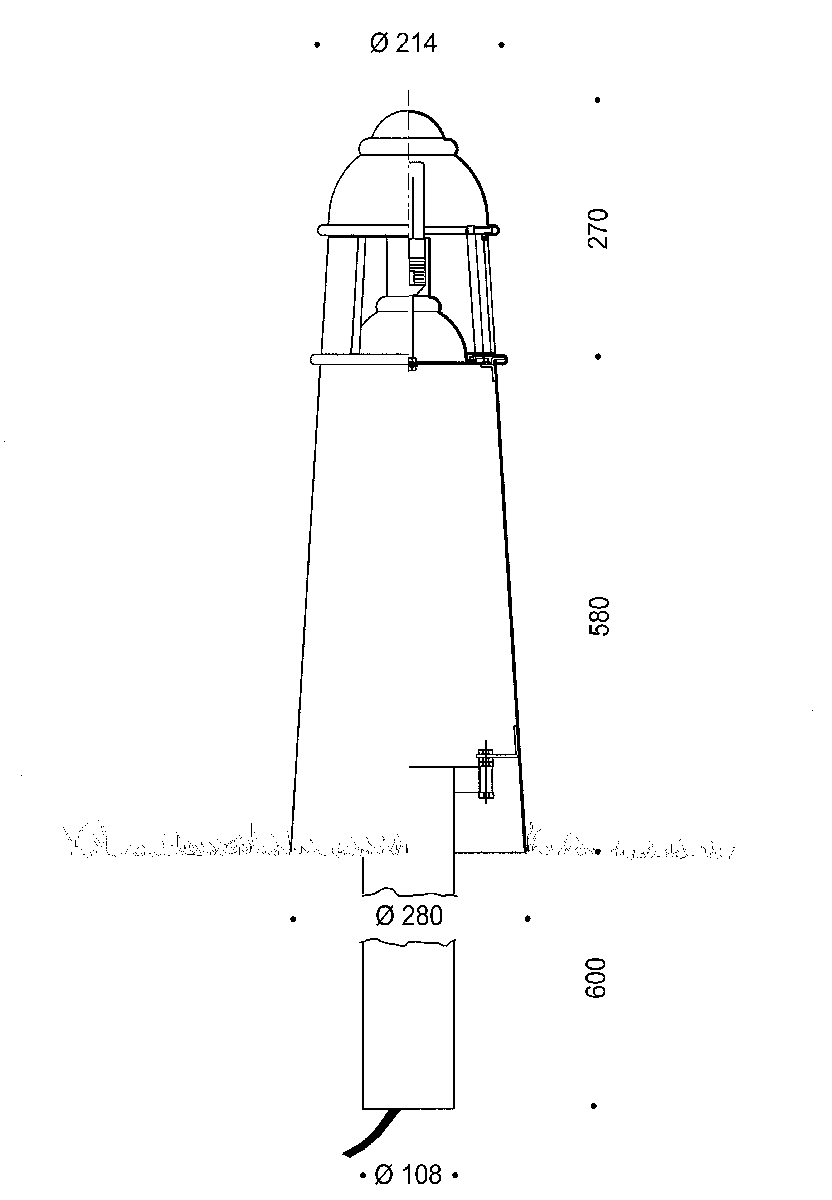

70099-copy

Luminaire

PHAROS
Material Hot-dipped galvanised steel
Copper (price on request)
Shade Clear polycarbonate
Mounting Separate earth spike Ø108 mm for embedment or on standard concrete base
Connection Max two 6 mm2 cables into 5 x 16 mm2 terminal block
Classification E27: IP44, class I
Weight Luminaire: 12 kg, earth spike: 9 kg

Lamp type

E27 max 77 W, max length 170 mm, max diameter 48 mm

Variants and options

Item No. Pharos
7009- max 77 W, max length 170 mm, max diameter 48 mm

Options
70193 Earth spike for embedment
70194 Earth spike for concrete base

Combine with

Select material in the table below.

Material
8 = copper
9 = galvanised steel

Example Item No.: 7009-9 = Pharos, E27, galvanised steel, class I

Media & downloads

pharos_danbunker1_1166

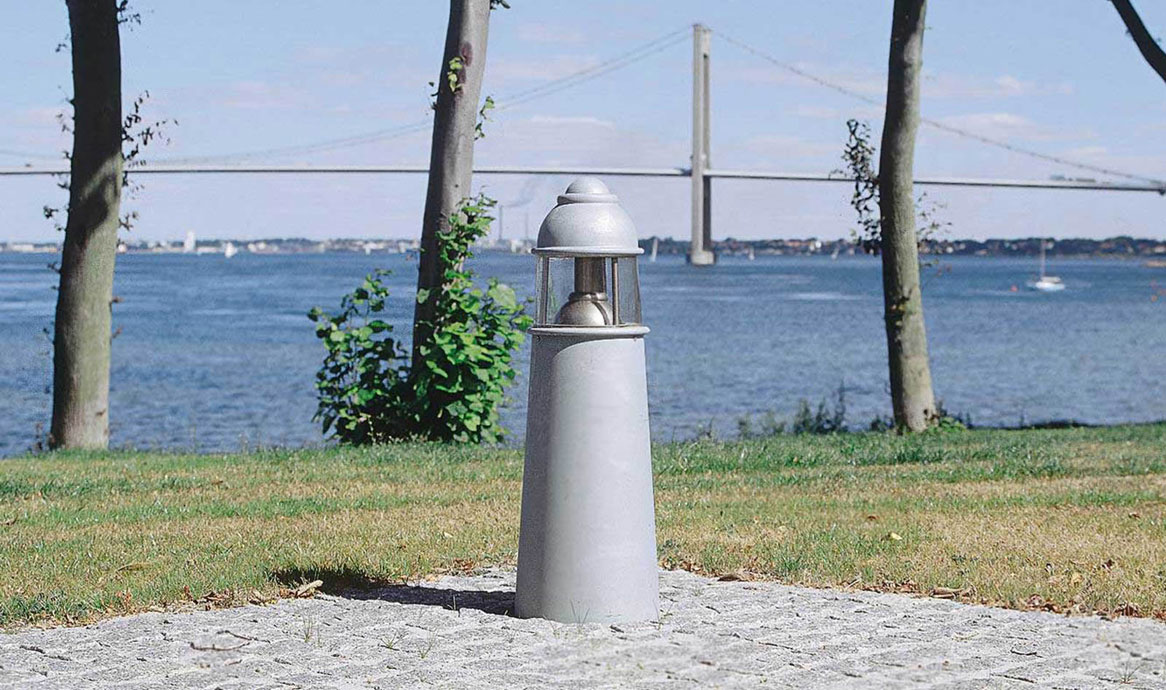

Dan-Bunkering, Middelfart

Umbraco.Cms.Core.Models.Link More projects with Pharos
pharos_danbunker2_1166

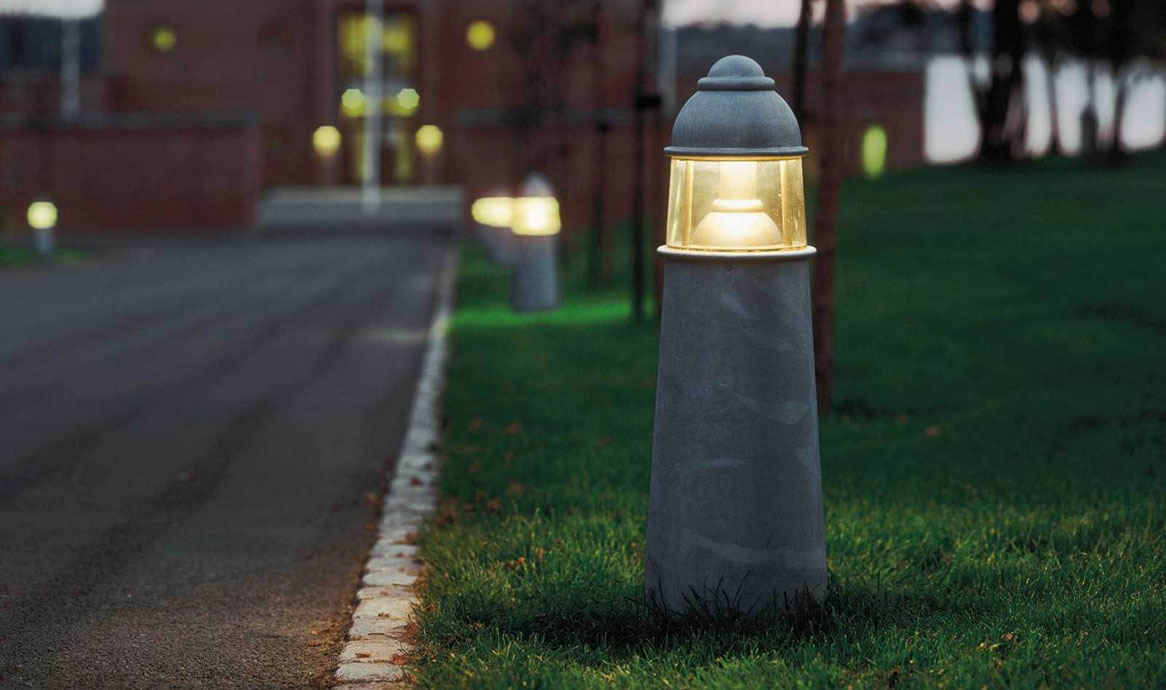

Dan-Bunkering, Middelfart

Umbraco.Cms.Core.Models.Link More projects with Pharos
pharos_sverige_1166

The Swedish archipelago

Umbraco.Cms.Core.Models.Link More Pharos projects here
pharos_nokia_1166

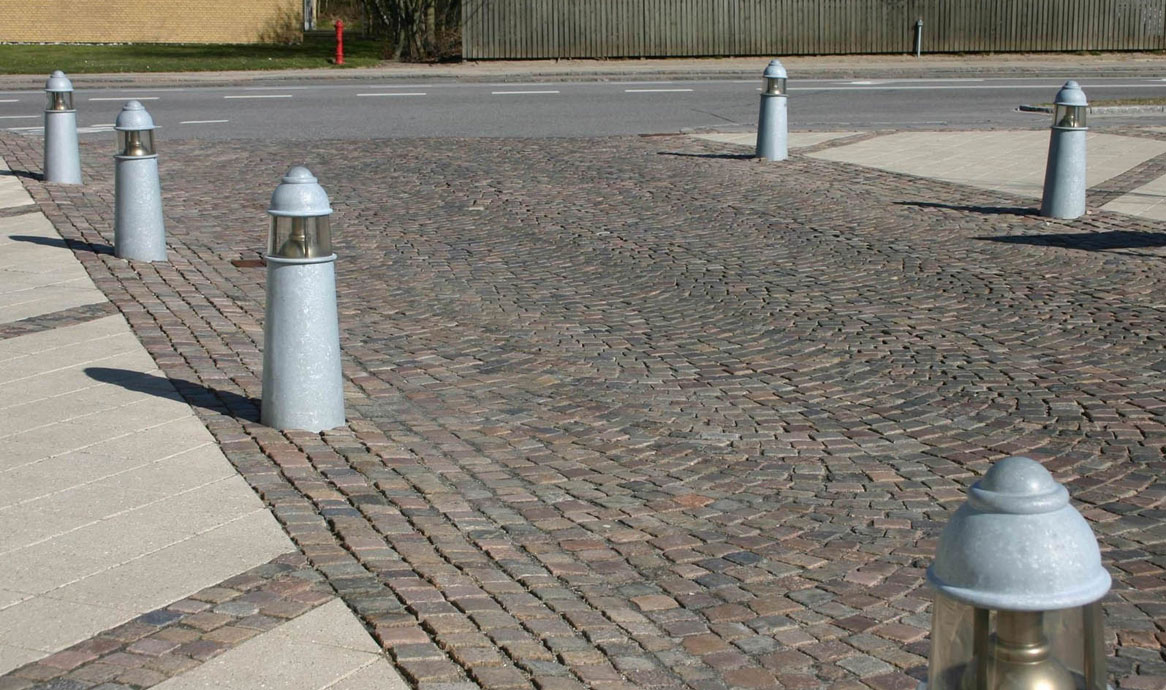

Pharos far away from the seaside.

Umbraco.Cms.Core.Models.Link More Pharos projects here

DesignTorsten Thorup & Claus Bonderup

Pharos is one of many luminaires designed by Torsten Thorup & Claus Bonderup for Focus Lighting. The cooperation began in the late 70es with Confetti and other pendant lamps.
