PUNKT LAMP

Please choose

The Punkt Lamp 150 is the second largest downlighter in the family of five and is used as the primary light source in large halls, shopping centres and similar premises.

The two larger Punkt Lamps can be equipped with an extra glass shade at the bottom.

Specifications

Ø 150

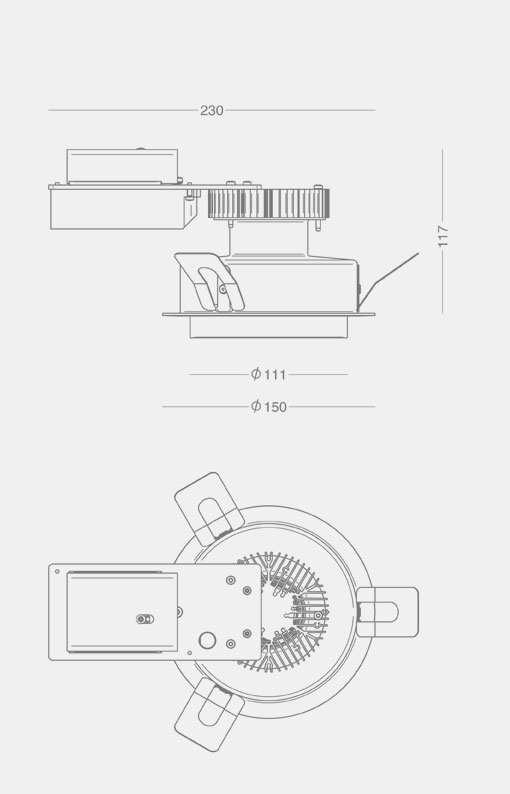

punkt_150_v8

Luminaire

PUNKT LAMP 150
Material Aluminium
Shade Mouth-blown, opal-white glass
Mounting Recessed; 17 W into un-insulated ceiling only
Cut-out Ø132-134 mm in 6-15 mm plate
Ø136-138 mm in 15-35 mm plate
Clearances Horizontally: min 45 mm
Built-in height min 117 mm from lower edge of ceiling
Connection 230 V, 5-pole terminal block
Classification IP20, class I
Weight 0.9 kg

LED and driver data

LED type Bridgelux V8
Total consumption 12 W (500 mA), alt. 17 W (700 mA)
Operational life min 100,000 hours at ta max 25°C, L80B10
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 90 Ra
Colour accuracy 3 steps SDCM

Driver Helvar LED driver, 350-700 mA
Operational life min 50,000 hours

Variants and options

Item No. Punkt Lamp 150
2893- 12 W, 500 mA
2898- 17 W, 700 mA

Options
20152 3 mm glass shade
2030-20 Ring for soft ceilings

Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
2 = white 927 = 2700 K, 90 Ra
9 = grey metallic 930 = 3000 K, 90 Ra
940 = 4000 K, 90 Ra

Dimming
empty = no dimming
V = 1-10 V
D = Dali

Example Item No.: 2893-9930D = Punkt Lamp 150, 12 W, grey metallic, 3000 K, 90 Ra, Dali control

Media & downloads

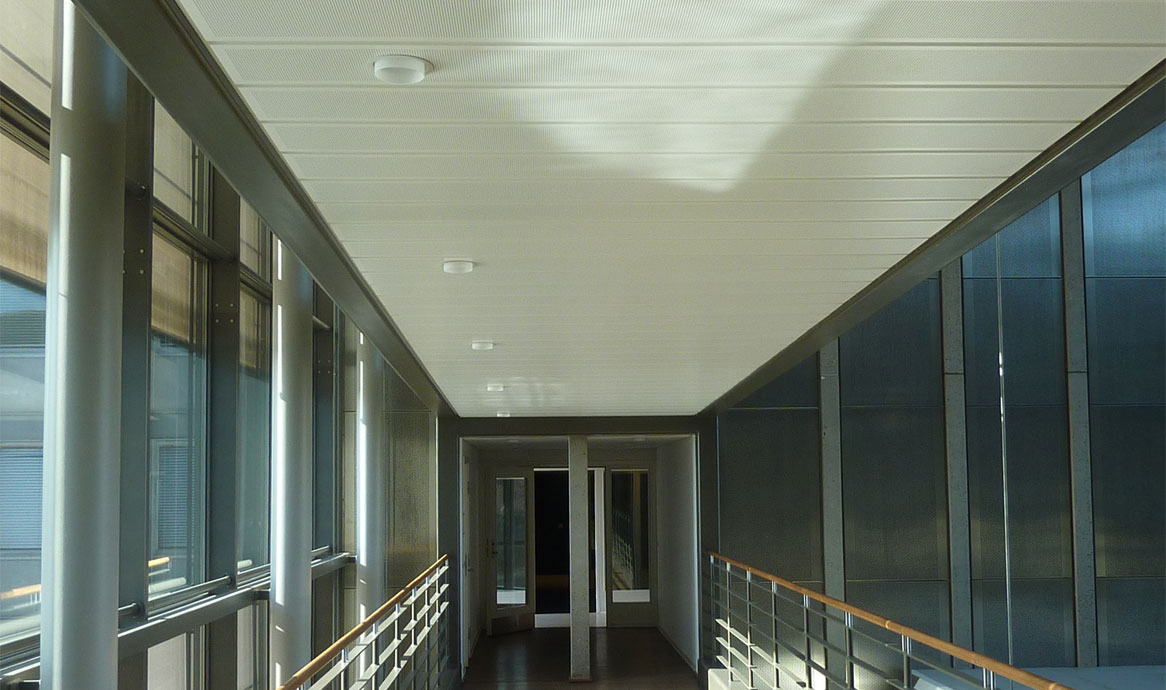

punkt150_teaser_1066

Punkt Lamp 150 - Aalborg Police

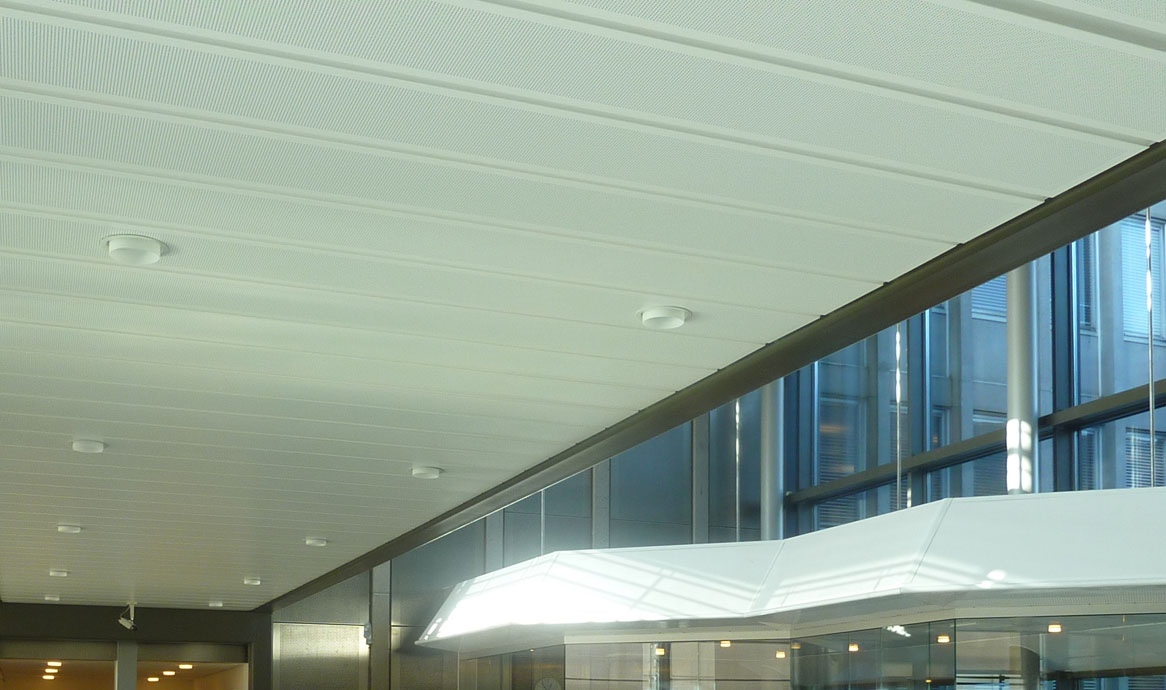

punkt_aalborgpoliti_1166

Punkt Lamp 150 - Aalborg Police

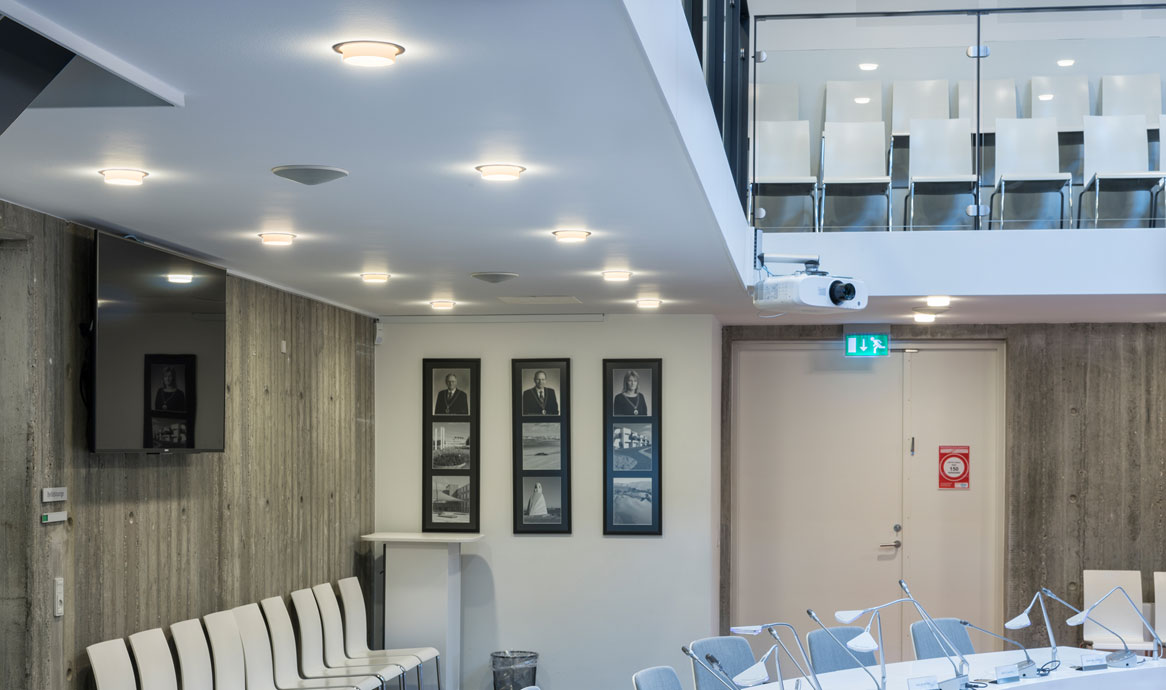

punkt_150_frederikshavn_116

Punkt Lamp 150 and 200 - Frederikshavn Town Hall

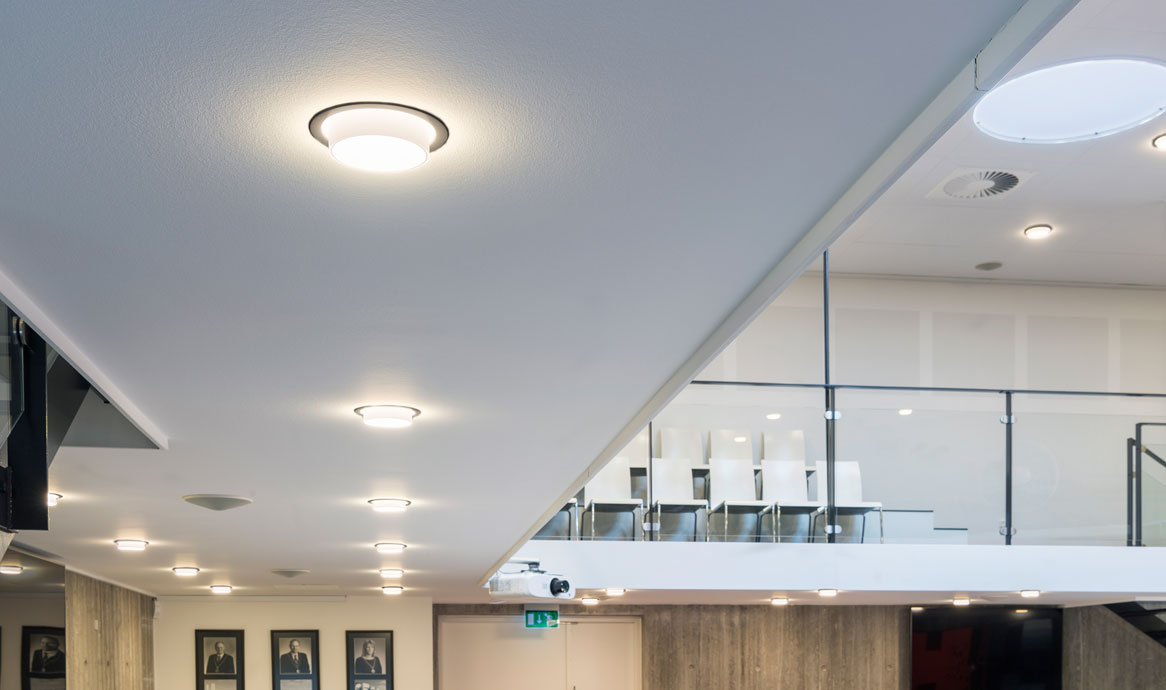

punkt_150_frhraadhus_1166

Punkt Lamp 150 - Frederikshavn Town Hall

DesignFocus Lighting

The Punkt Lamp is designed in 1976 by the founder of Focus, Nils Kristiansen.

The simplicity in design and quality in material has made the Punkt Lamp the preferred downlighter among architects. The design is dominated by the inner shade in mouth-blown glass, spreading the light in a pleasant and beautiful way without glaring.
