PUNKT LAMP

Please choose

The Punkt Lamp 65 is the smallest in the family of five and the only one to be tipped. Once it is made tipable, it cannot be fixed again.

All Punkt Lamps are fully closed according to European standards for lighting equipment. They are approved for recession in various types of ceilings. With a special water-proof cover, they can be used in bath rooms and outdoors in roofs and carports.

Specifications

Ø 65

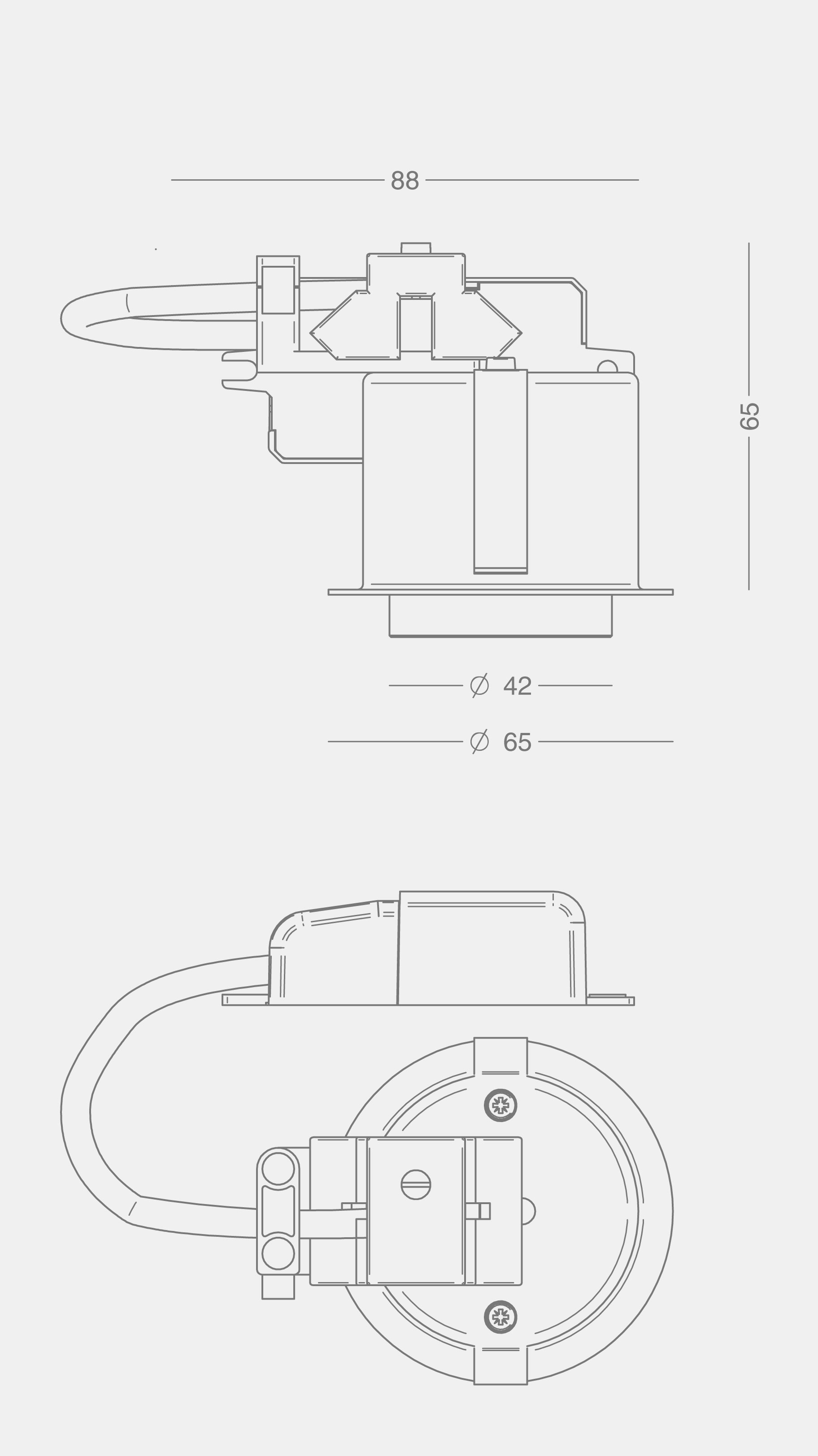

punktlampe65_v6

Luminaire

PUNKT LAMP 65
Material Aluminium
Shade Mouth-blown, opal-white glass
Mounting Recessed into ceiling
Cut-out Ø54-56 mm in 10-20 mm plate
Clearances Horizontally: min 50 mm
Built-in height min 65 mm from lower edge of ceiling
Connection Terminal block and clamp in the driver
Classification IP20, class II
Weight 0.2 kg

LED and driver data

LED type Bridgelux V6
Total consumption 5 W (350 mA)
Operational life min 100,000 hours at ta max 25°C, L80B10
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 90 Ra
Colour accuracy 3 steps SDCM

Driver TCI Bull
Dimmable driver at extra charge
Operational life min 50,000 hours

Variants and options

Item No. Punkt Lamp 65
2890- 5 W, 350 mA

Options
2700-20 Ring for soft ceilings

Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
2 = white 927 = 2700 K, 90 Ra
9 = grey metallic 930 = 3000 K, 90 Ra
940 = 4000 K, 90 Ra

Dimming
empty = no dimming
T = Triac
V = 1-10 V
D = Dali

Example Item No.: 2890-2927V = Punkt Lamp 65, 5 W, white, 2700 K, 90 Ra, 1-10 V dimming

Media & downloads

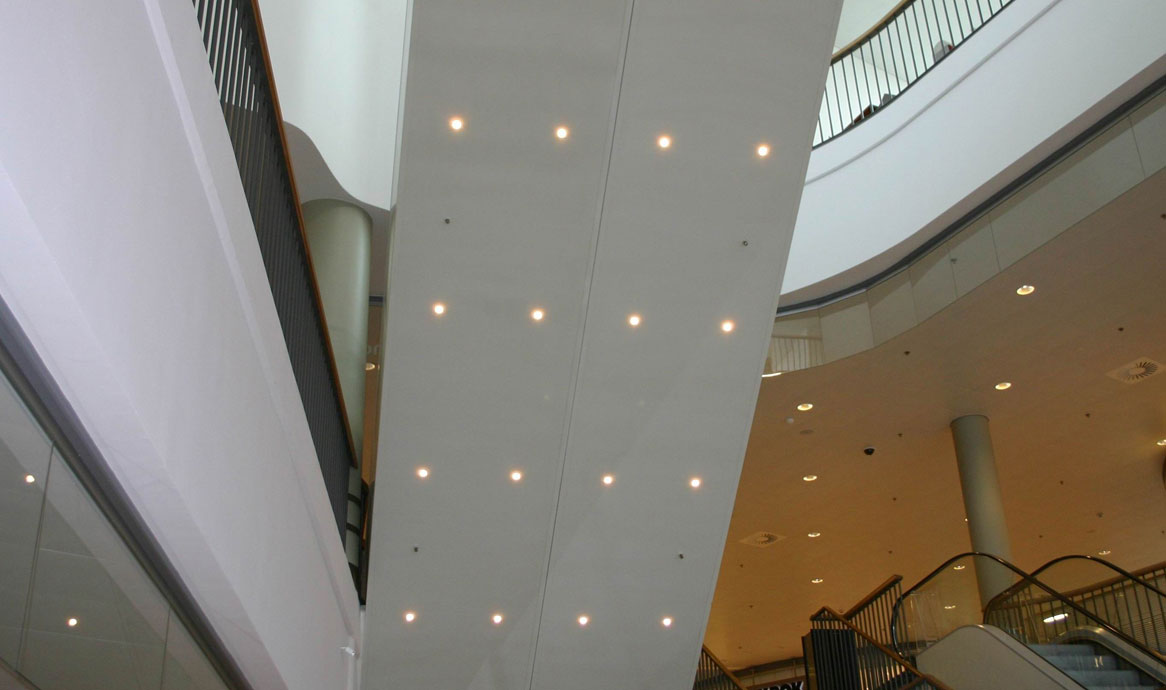

punkt65_teaser_1066

Punkt Lamp 65 - escallator, Bruhns Galleries, Aarhus

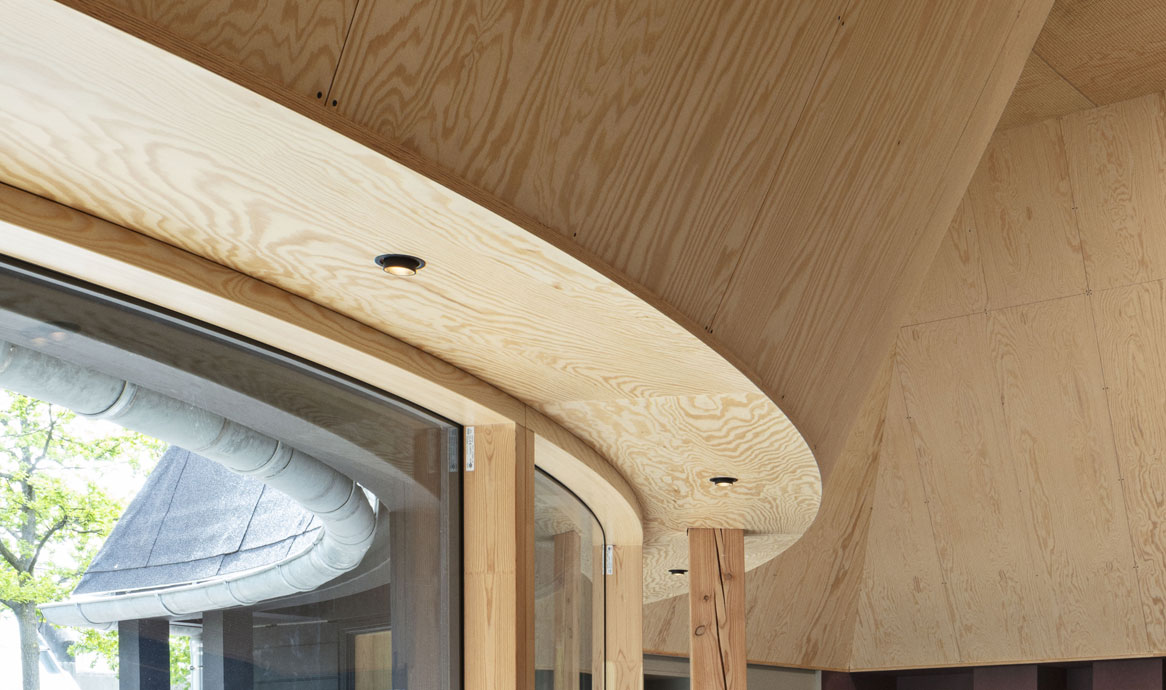

punkt_zoolab_1_1166

Punkt Lamp Ø65, black noir 900, Zoolab Copenhagen

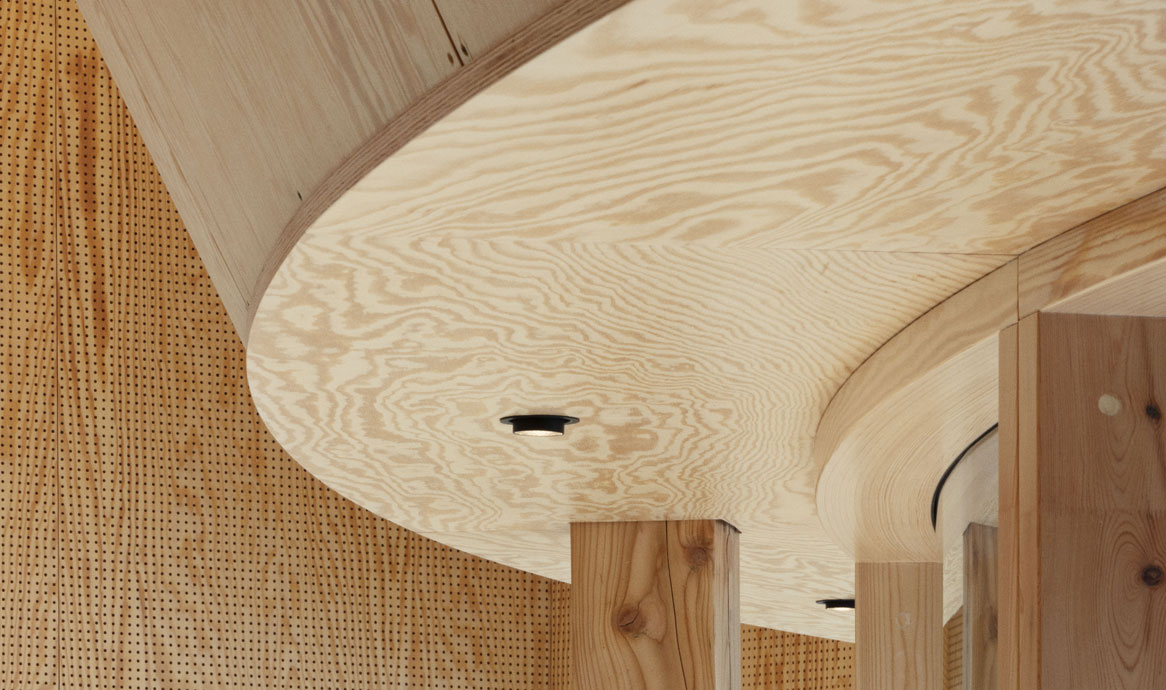

punkt_zoolab_2_1166

Punkt Lamp Ø65, black noir 900, Zoolab Copenhagen

DesignFocus Lighting

The Punkt Lamp is designed in 1976 by the founder of Focus, Nils Kristiansen.

The simplicity in design and quality in material has made the Punkt Lamp the preferred downlighter among architects. The design is dominated by the inner shade in mouth-blown glass, spreading the light in a pleasant and beautiful way without glaring.
