PUNKT LAMP

Please choose

The Punkt Lamp is characterised by the protruding cylinder of mouth-blown glass, diffusing light in a pleasant way. The new LED version offers a uniform high-quality illumination of the room as well as excellent colour reproduction.

All Punkt Lamps are fully closed according to European standards for lighting equipment. They are approved for recession in various types of ceilings.

Specifications

Ø 90

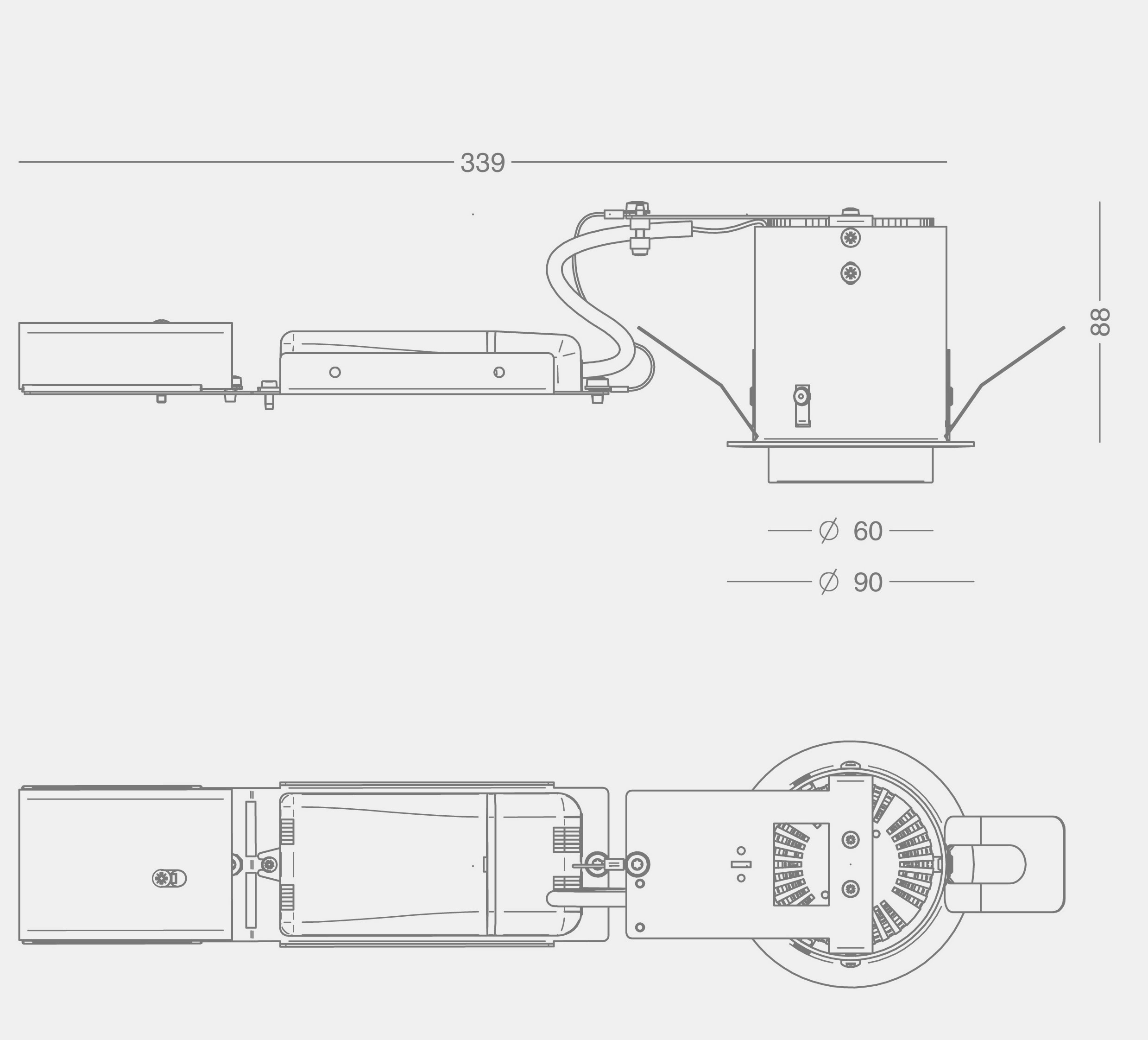

punktlampe90_v6

Luminaire

PUNKT LAMP 90
Material Aluminium
Shade Mouth-blown, opal-white glass
Mounting Recessed into ceiling
Cut-out Ø80-82 mm in 6-15 mm plate
Ø82-84 mm in 15-35 mm plate
Clearances Horizontally: min 50 mm
Built-in height ca 107 mm from lower edge of ceiling
Connection 230 V, 5-pole terminal block
Classification IP20, class I
Weight 0.6 kg

LED and driver data

LED type Bridgelux V6
Total consumption 5 W (350 mA), alt. 7 W (500 mA)
Operational life min 100,000 hours at ta max 25°C, L80B10
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 90 Ra
Colour accuracy 3 steps SDCM

Driver TCI Mini Jolly
Dimmable at extra charge
Operational life min 50,000 hours

Variants and options

Item No. Punkt Lamp 90
2891- 5 W, 350 mA
2895- 7 W, 500 mA

Options
2010-20 Ring for soft ceilings

Combine with

Colour Colour temperature
2 = white 927 = 2700 K, 90 Ra
9 = grey metallic 930 = 3000 K, 90 Ra
940 = 4000 K, 90 Ra

Dimming
empty = no dimming
V = 1-10 V
D = Dali

Example Item No.: 2895-9927V = Punkt Lamp 90, 7 W, grey metallic, 2700 K, 90 Ra, dimmable 1-10 V

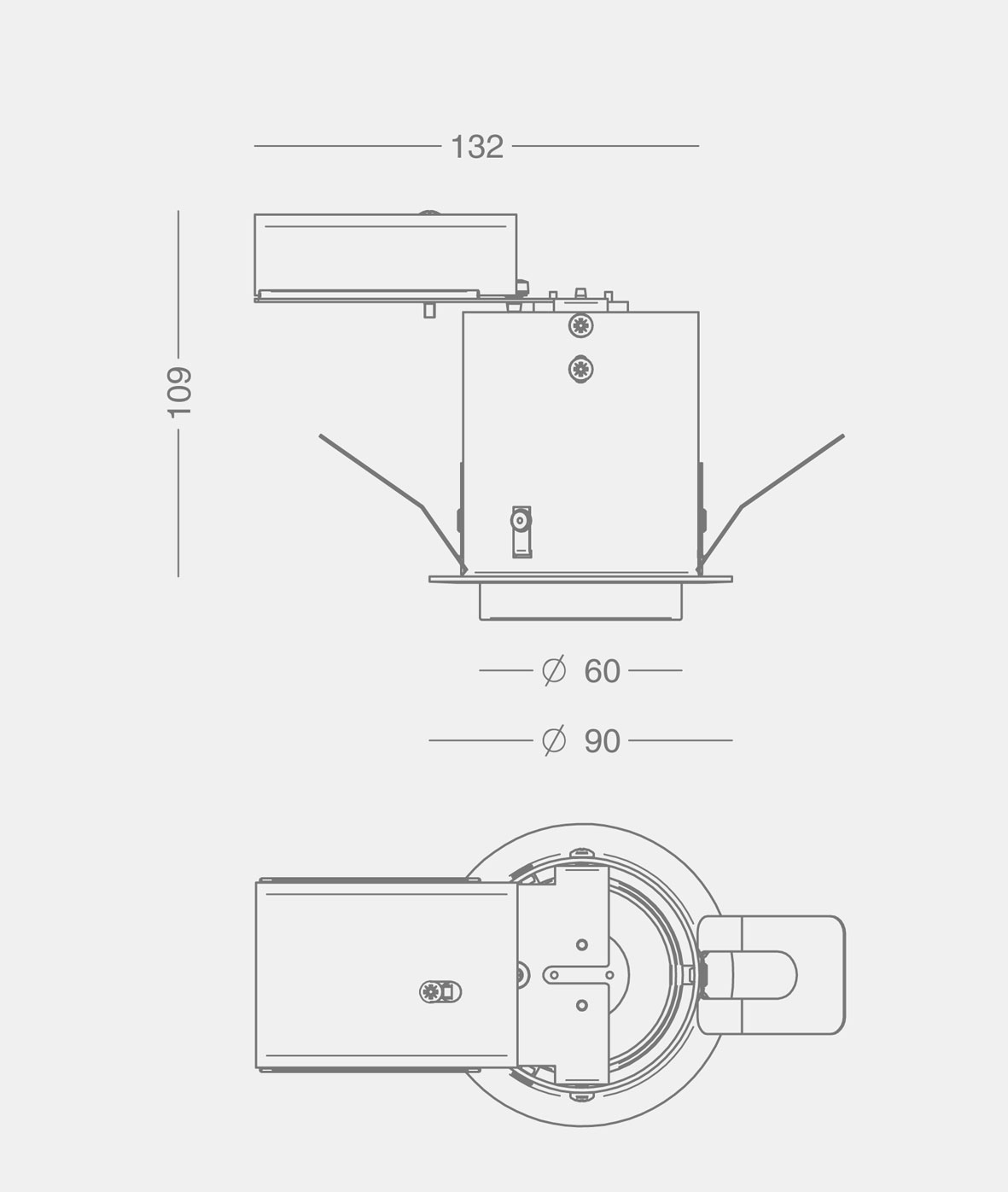

punktlampe90_gu10

Luminaire

PUNKT LAMP 90
Material Aluminium
Shade Mouth-blown, opal-white glass
Mounting Recessed into unisolated ceiling
Cut-out Ø80-82 mm in 6-15 mm plate
Ø82-84 mm in 15-35 mm plate
Clearances Horizontally: min 50 mm
Built-in height min 109 mm from lower edge of ceiling
Connection 230 V, 5-pole terminal block for 105°
Classification IP20, class I
Weight 0.3 kg

Lamp type

Lamp type GU10, max 33 W, 230 V

Variants and options

Item No. Punkt Lamp 90
2901- GU10 variants, max 33 W, 230 V

Options
2010-20 Ring for soft ceilings

Combine with

Select colour in the table below.

Colour
2 = white
9 = grey metallic

Example Item No.: 2901-2 = Punkt Lamp 90, GU10, white

Media & downloads

DesignFocus Lighting

The Punkt Lamp is designed in 1976 by the founder of Focus, Nils Kristiansen.

The simplicity in design and quality in material has made the Punkt Lamp the preferred downlighter among architects. The design is dominated by the inner shade in mouth-blown glass, spreading the light in a pleasant and beautiful way without glaring.
