Quarto was designed by Torsten Thorup and Claus Bonderup back in the 80'es, but is still going strong due to its classic circular shape. However, the Quarto from Focus Lighting differs from the many similar products because it ends up in a cylindrical shape. This completes and adds harmony to the shape. Throughout the years Quarto has proven its ability to both adding quality to and adjusting to its environment.

Specifications

270 interior

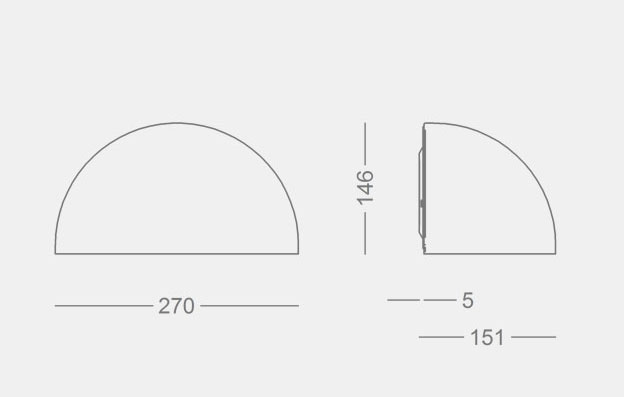

quarto270_inde_skitse

Luminaire

QUARTO 270 interior
Material Steel, brass, or copper
Coating White: RAL 9010
Black: RAL 9005
Graphite grey: MO125, close to RAL 9007
Shade Flame-proof, opal-white polycarbonate
Mounting On wall or wall box
Connection Max two cables, 1.5 mm2, into 3-pole terminal block, 4 mm2
Classification IP20, class I
Weight 1.3 kg

LED and driver data

LED type Bridgelux V8
Operational life min 100,000 hours at ta max 25° C, L100B10
Total consumption 6, 9, or 12 W
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 90 Ra
Colour accuracy 3 steps SDCM
Output ratio 75%

Driver LED driver, 20 W
Dimming optional
Operational life min 100,000 hours
Alternative Driver and sensor (radar) for wireless control

Variants

Item No. Quarto 270 interior
4802- 6 W LED, 250 mA
4803- 9 W LED, 350 mA
4804- 12 W LED, 500 mA

Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
1 = white 927 = 2700 K, 90 Ra
3 = black 930 = 3000 K, 90 Ra
4 = graphite grey 940 = 4000 K, 90 Ra
6 = polished brass
8 = polished copper

Dimming Protection class
empty = no dimming empty = class I
V = 1-10 V K = class II
D = DALI
R = bluetooth sensor

Example Item No.: 4803-1927V = Quarto 270, 9 W LED, white, 2700 K, 90 Ra, 1-10 V dimming

quarto270_inde_skitse

Luminaire

QUARTO 270 interior
Material Steel, brass, or copper
Coating White: RAL 9010
Black: RAL 9005
Graphite grey: MO125, close to RAL 9007
Shade Flame-proof, opal-white polycarbonate
Mounting On wall or wall box
Connection Max two cables, 1.5 mm2, into 3-pole terminal block, 4 mm2
Classification IP20, class I
Weight 1.1 kg

Lamp type

E27 max 57 W, max length 110 mm, max diameter 56 mm
See recommendations below.
Output ratio 58%

Variants and options

Item No. Quarto 270 interior
4001- max 57 W, E27

Option
1100-2 E27 LED, Philips Core Pro LED 9 W, 2700 K, 80 Ra, 15,000 hours operation
1100-3 E27 LED, Philips Core Pro LED 9 W, 3000 K, 80 Ra, 15,000 hours operation
1100-6 E27 LED, Deco Aurora dimmable, 7.5 W, 2700 K, 80 Ra, 20,000 hours operation

Combine with

Select colour in the table below.

Colour
1 = white
3 = black
4 = graphite grey
6 = polished brass
8 = polished copper

Example of product code: 4001-9 = Quarto 270, E27, galvanised

Media & downloads

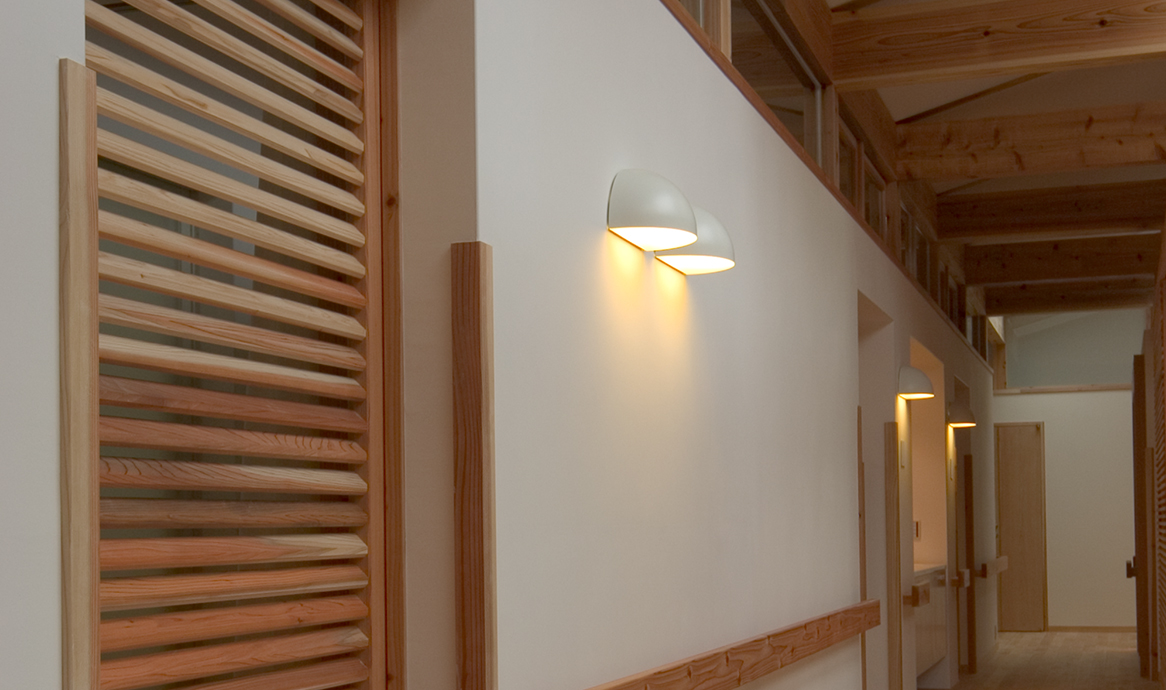

quarto_newzealand_1166

Quarto 270, white

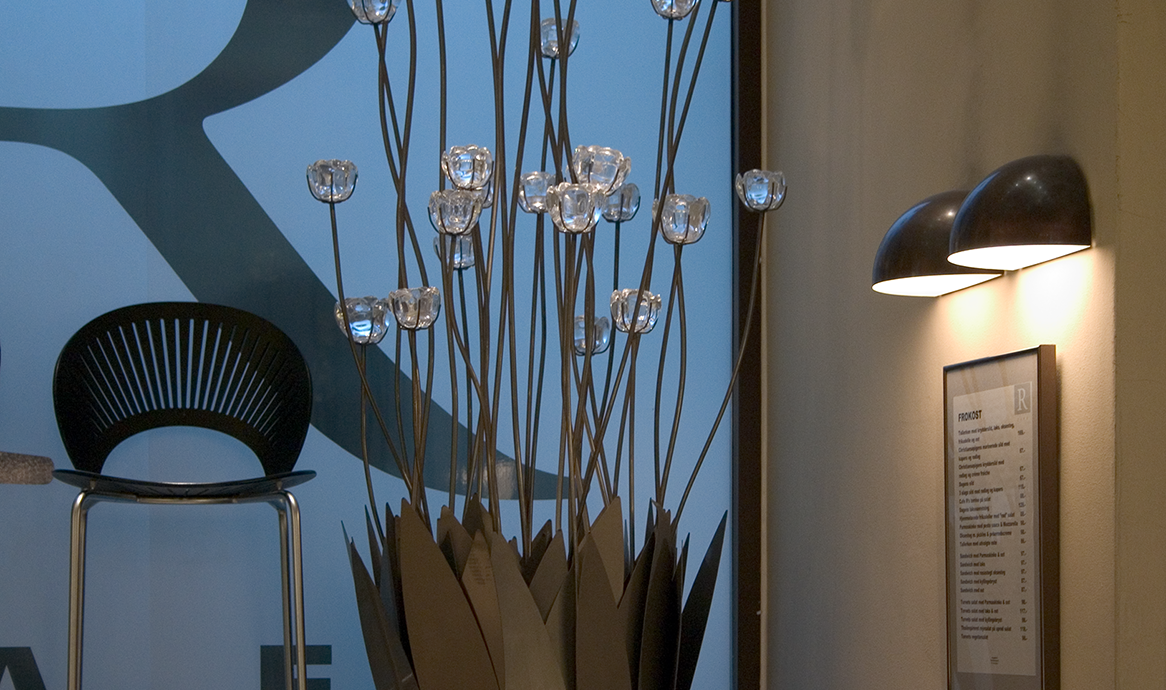

georgjensencrw_4262rehe

Quarto 270, copper

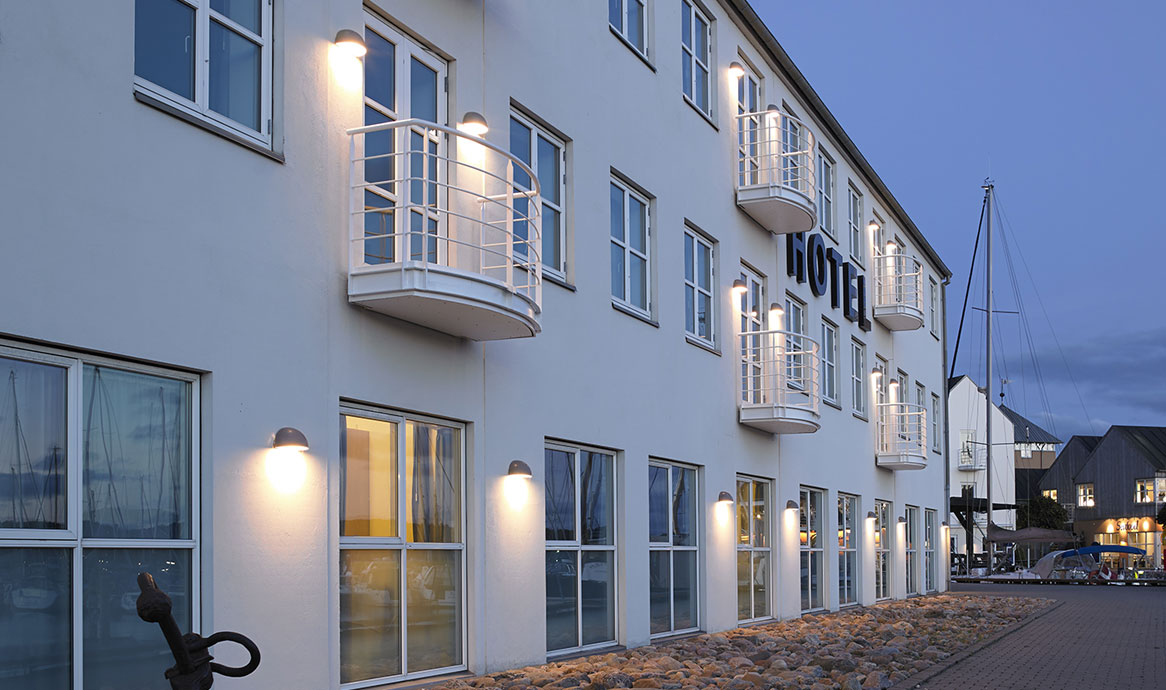

aarhus_5_1166

Qaurto 270 graphite grey, Bed&Breakfast hotel at Port Marselis, Aarhus

aarhus_3_1166

Quarto 270 graphite grey, Bed&Breakfast hotel at Port Marselis, Aarhus

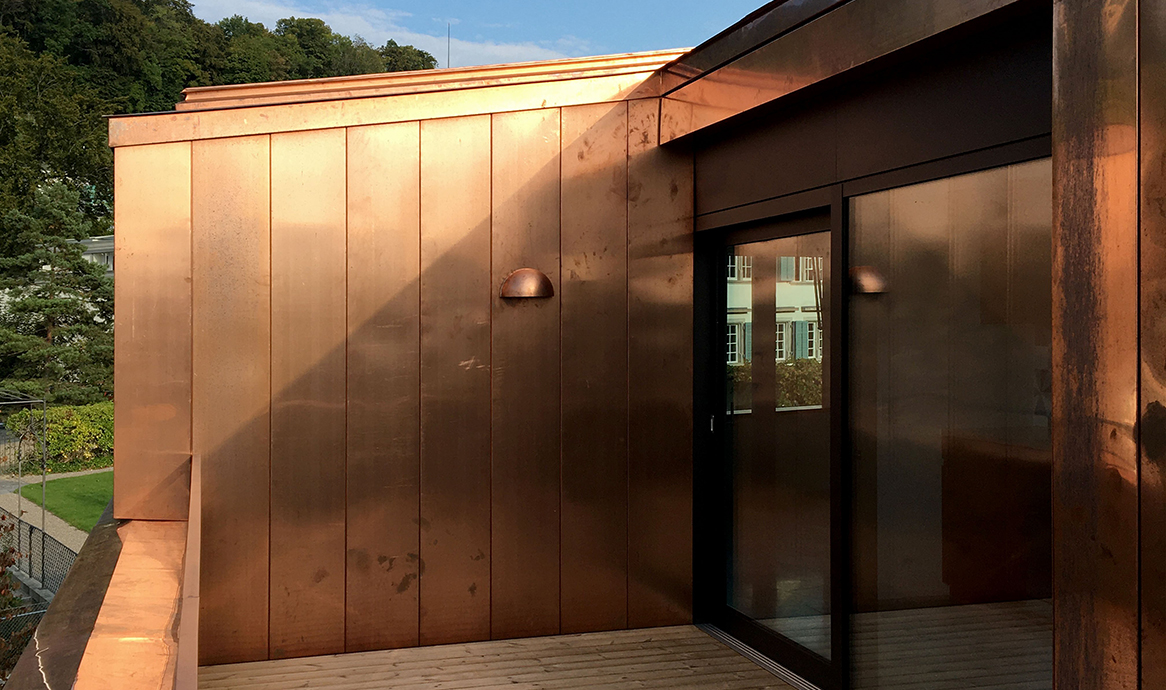

quarto-270_kupfer-unbehandelt_1166

Quarto 270, copper raw, untreated, Switzerland

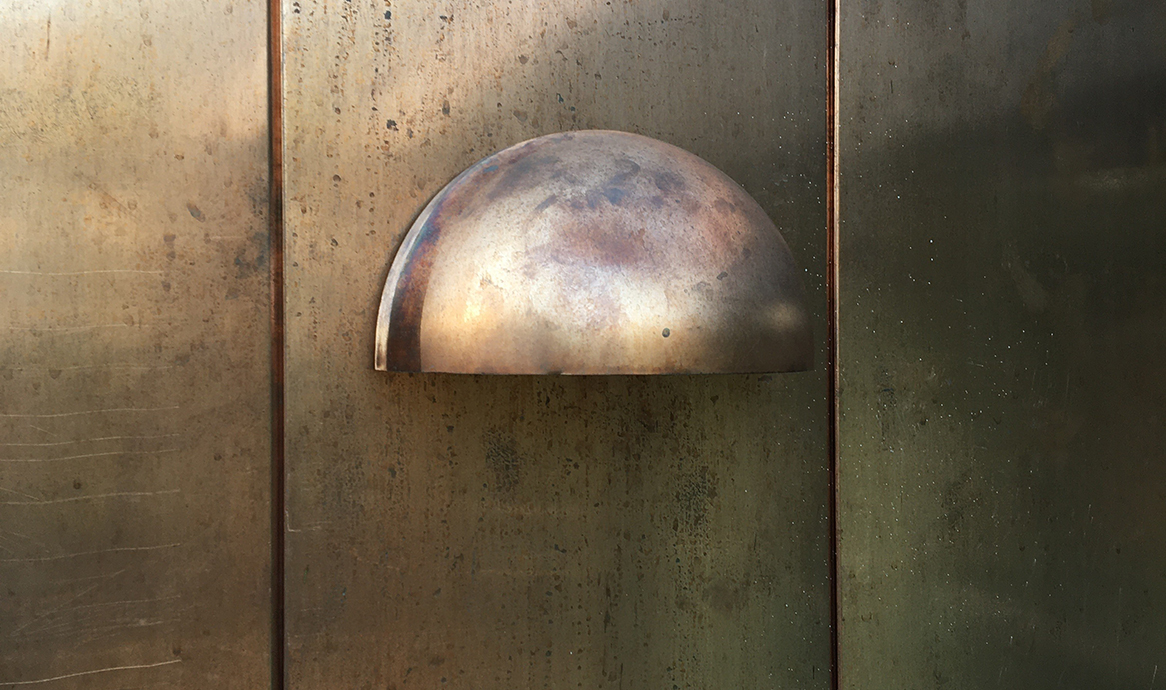

quarto-270_kupfer_close_1166

Quarto 270, copper raw, untreated, Switzerland

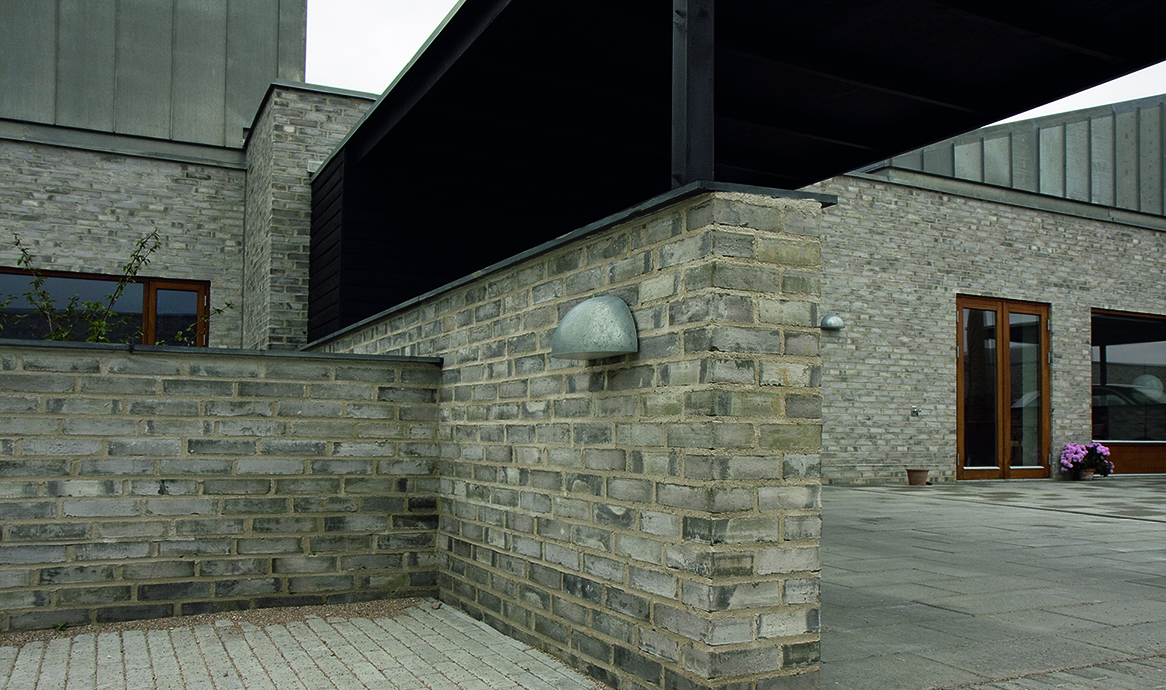

quarto270_galv_slotshusene_1166

Quarto 270, galvanised

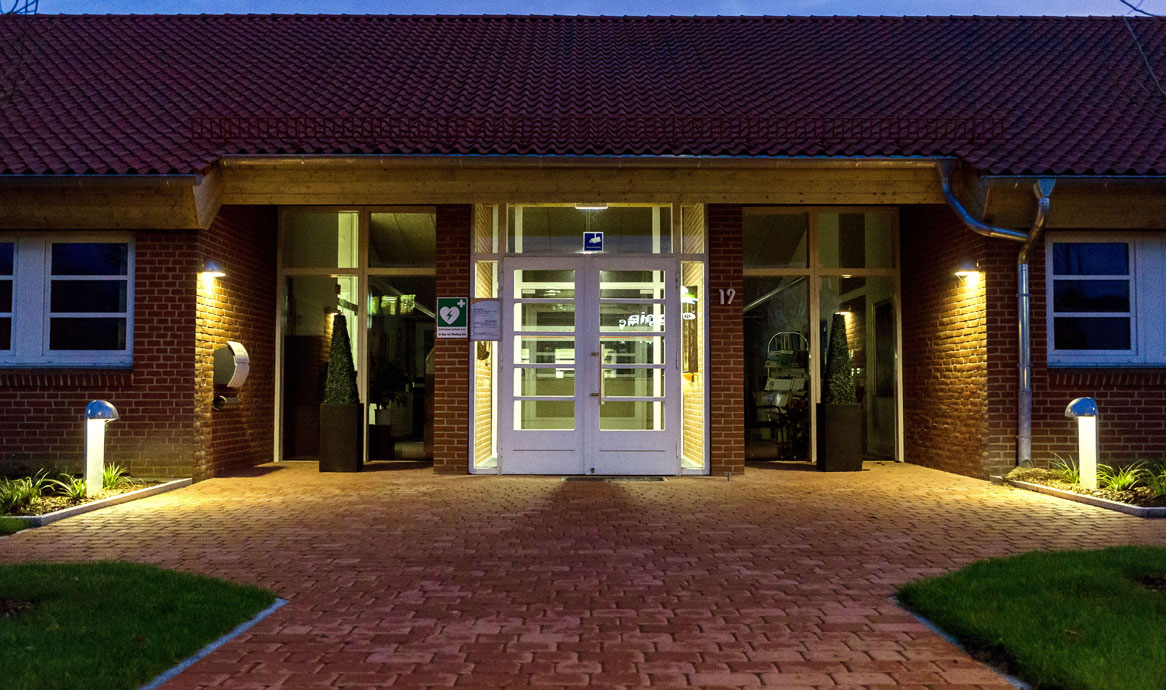

fla-focus-lighting-18_1166

Quarto 270 and Bollard Q, galvanised

Umbraco.Cms.Core.Models.Link See more photos

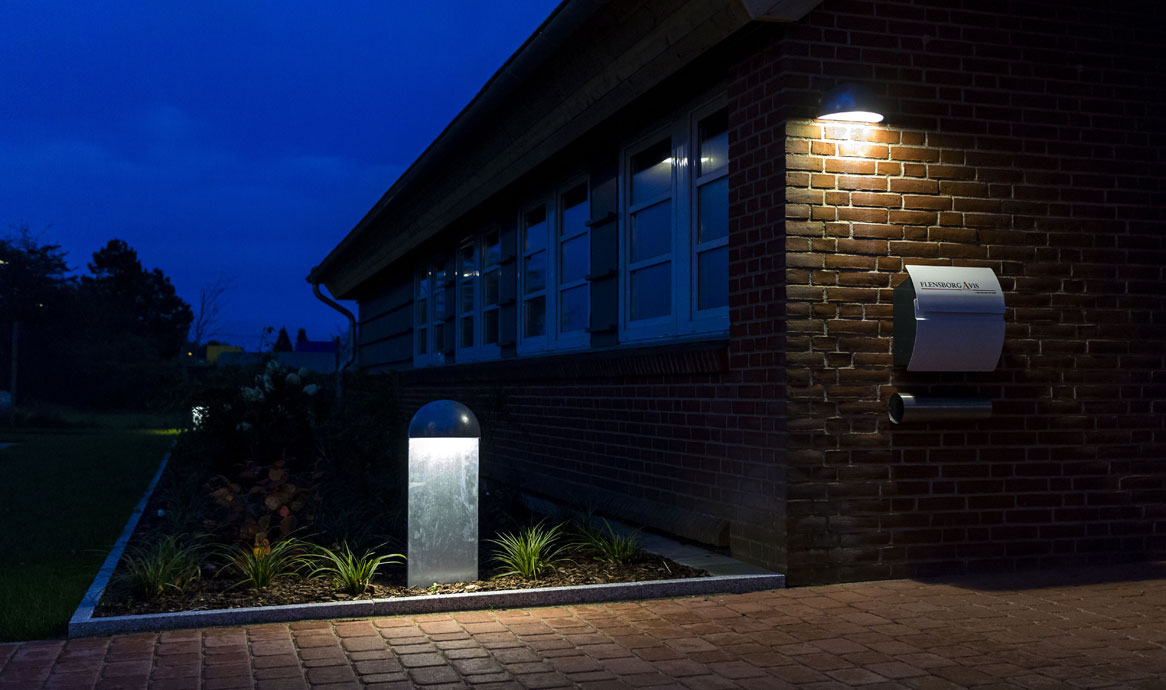

fla-focus-lighting-19_1166

Quarto 270 and Bollard Q, galvanised

Umbraco.Cms.Core.Models.Link See more photos

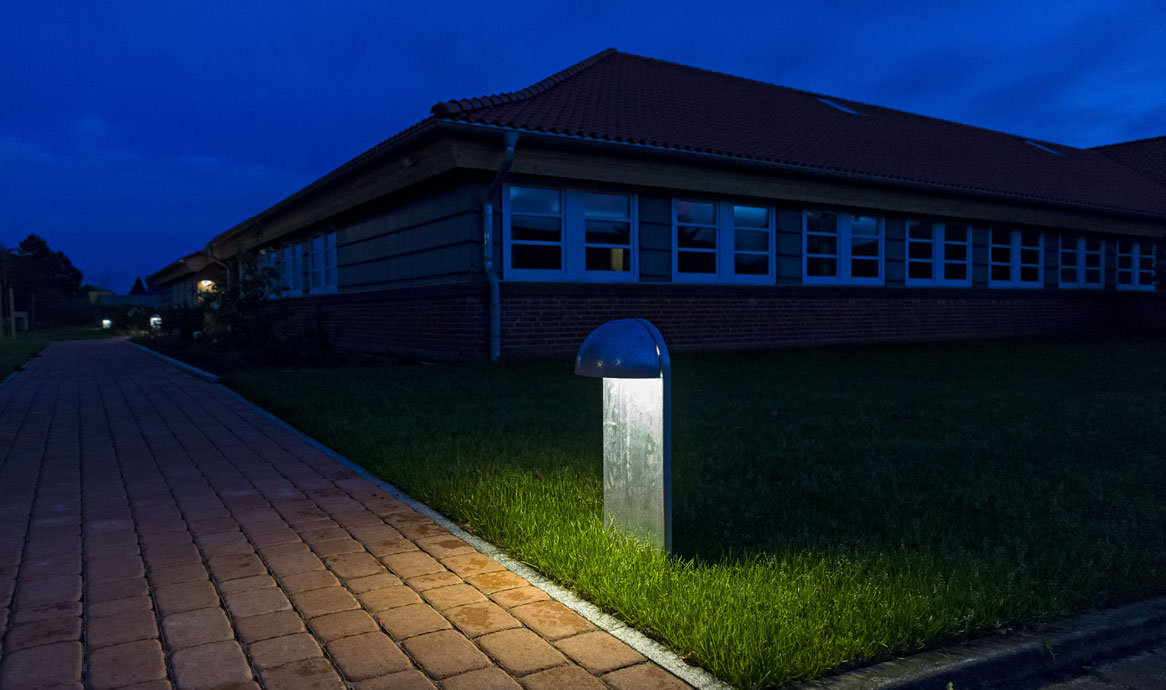

fla-focus-lighting-21_1166

Quarto 270 and Bollard Q, galvanised

Umbraco.Cms.Core.Models.Link See more photos

DesignTorsten Thorup & Claus Bonderup

Quarto is one of many luminaires designed by Torsten Thorup & Claus Bonderup for Focus Lighting. The cooperation began in the late 70es with Confetti and other pendant lamps.
