NYX 190 BOLLARD

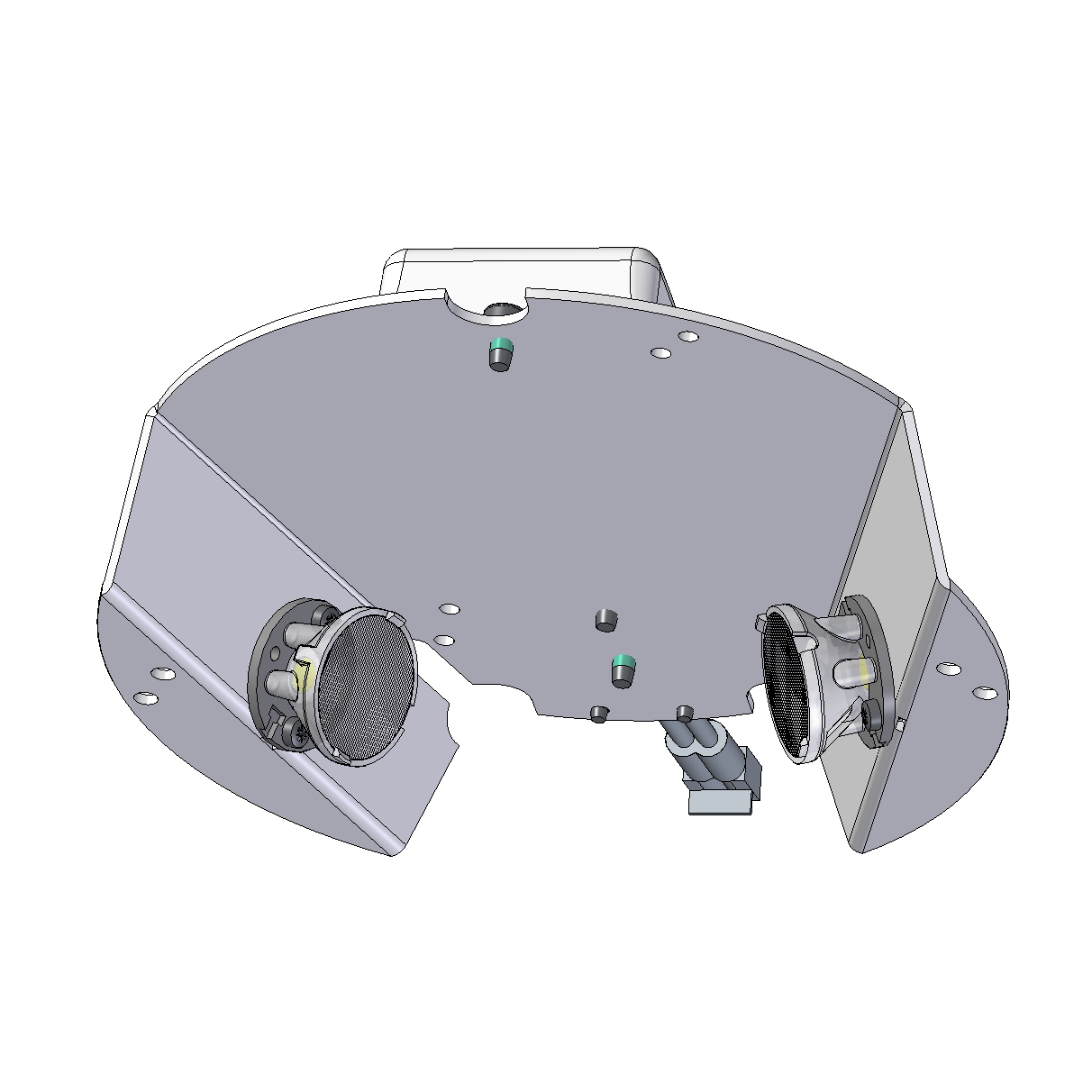

Complete LED modules for easy and energy-efficient upgrade of existing Nyx 190 bollards.
Specifications
Specification
LED and driver data
| LED type | Bridgelux V6 |
|---|---|
| Operational life | min 100,000 hours at ta max 25° C, L90B10 |
| Total consumption | 6, 8, 11, or 16 W |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Energy eff. class | F |
| Colour rendering | min 90 Ra |
| Colour accuracy | 3 steps SDCM |
| Insulation class | The LED modules fit class I and II installations |
| Driver | LED driver, 20 W |
|---|---|
| Dimming optional | |
| Inrush current | max 5 A (50% after 50 µs) |
| Operational life | min 100,000 hours |
Variants
| Item No. | |
|---|---|
| 1973- | 6 W, 250 mA |
| 1919- | 8 W, 350 mA |
| 1955- | 11 W, 500 mA |
| 1960- | 16 W, 700 mA |
Combine with
| Colour temperature | Dimming |
|---|---|
| 927 = 2700 K, 90 Ra | V = 1-10 V |
| 930 = 3000 K, 90 Ra | D = Dali |
| 940 = 4000 K, 90 Ra | E = programmable |
